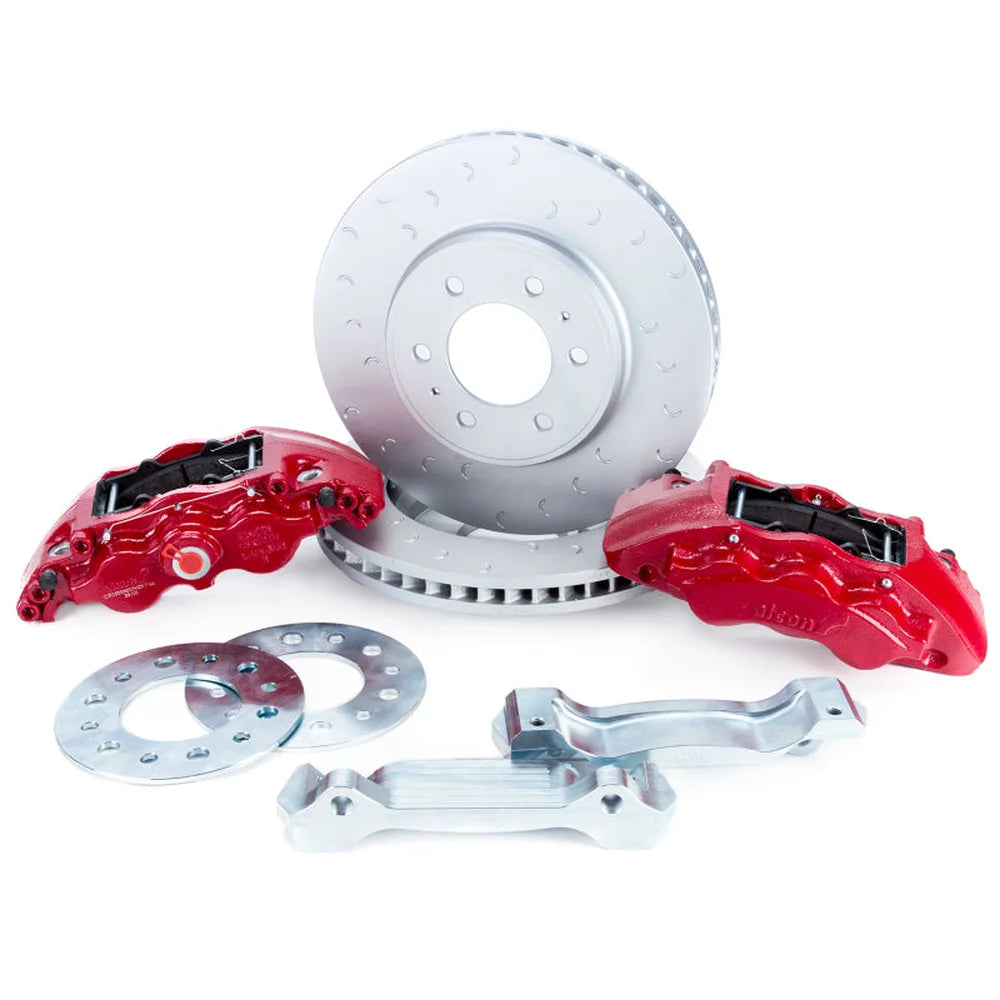

Alcon 6-Piston Front Big Brake Kit for 2010-2020 Ford F-150 and Raptor
The Alcon ALCALABKF1559BE11 front big brake kit brings motorsport-grade stopping power to the 2010-2020 Ford F-150 and Raptor with massive 347x36mm rotors and 6-piston red calipers. Built for trucks running larger tires and heavier suspension, this kit restores confident, fade-resistant braking under demanding conditions. Installation requires the alcAC011507NAN tie rod adapter kit for proper clearance.
Key Features

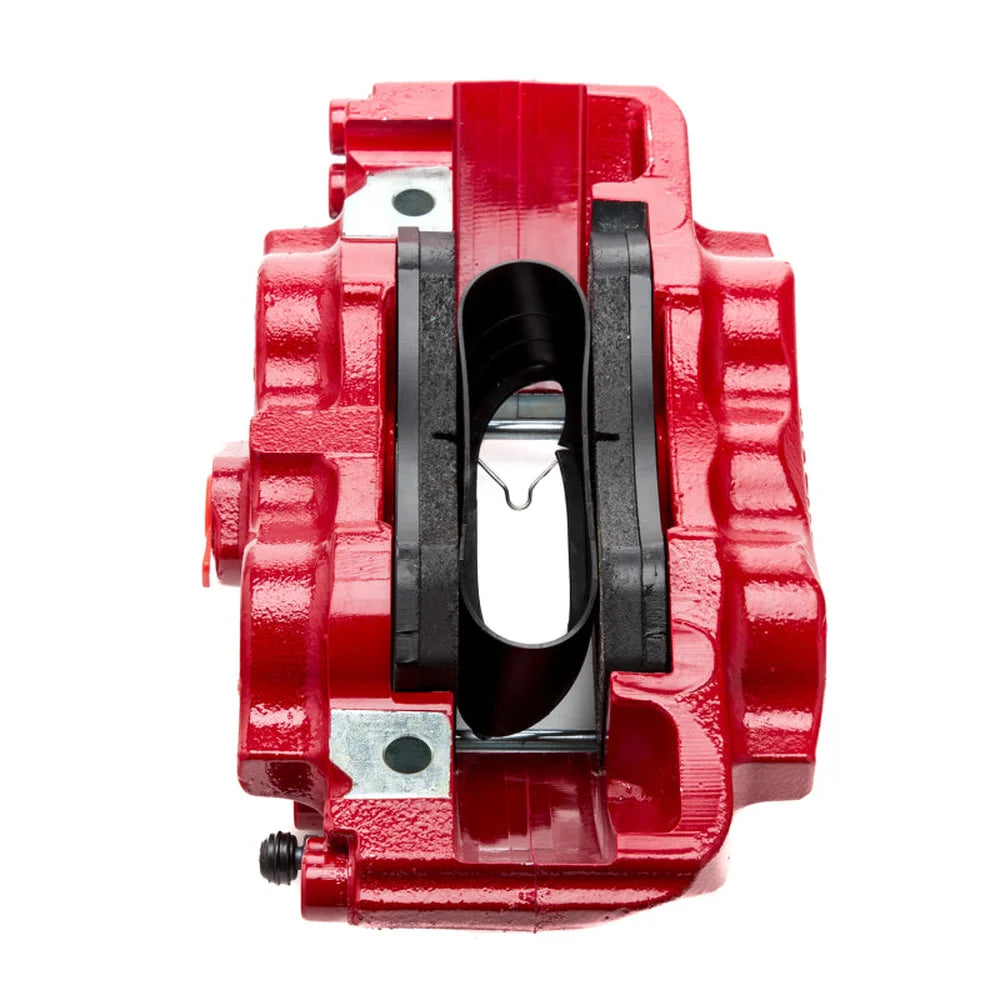

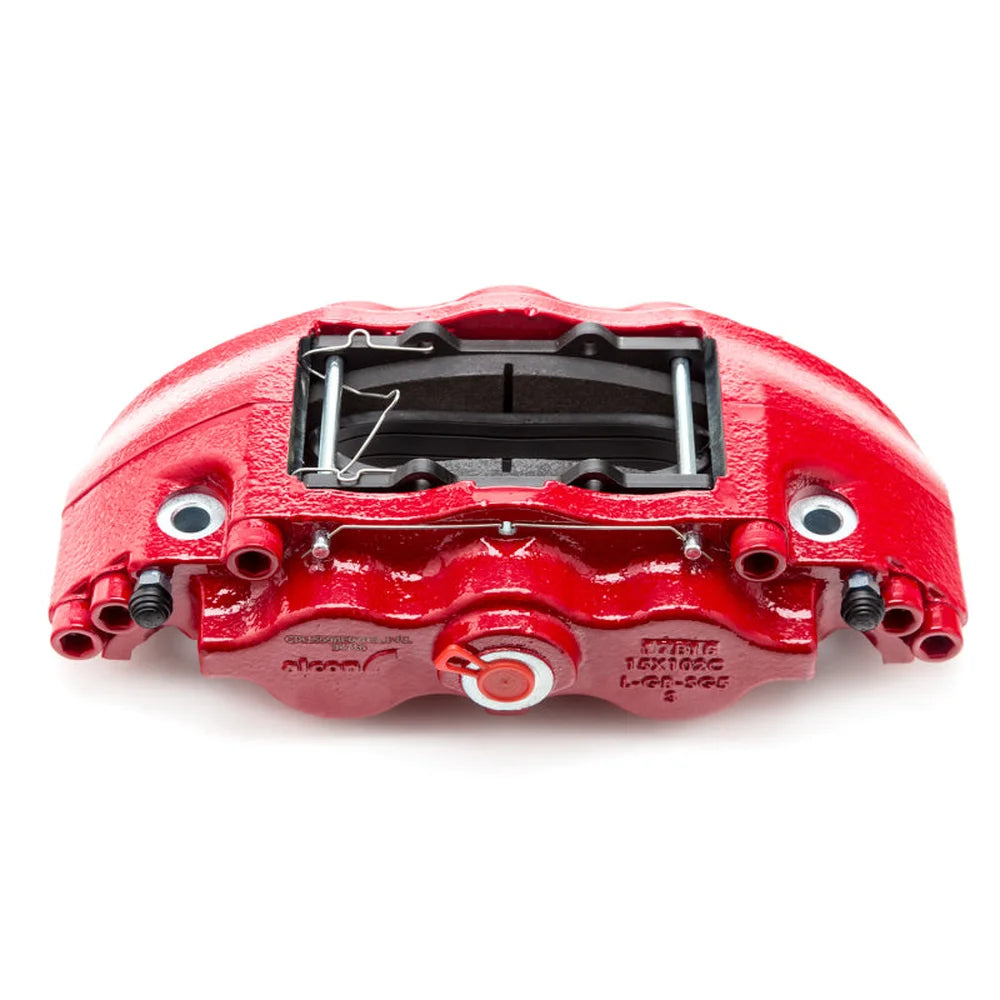

- ALCALABKF1559BE11 6-piston forged calipers in red finish
- 347x36mm one-piece slotted rotors with high thermal mass
- Low-profile caliper design clears factory 17 inch and larger wheels
- Compatible with the stock master cylinder and parking brake
- Includes calipers, rotors, brackets, spacers, hardware, and performance pads
- High-temperature motorsports-grade seals for consistent pedal feel
Fitment Table
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2010-2020 | Ford | F-150 | - |
| 2010-2020 | Ford | F-150 | Raptor |
Specifications
| Detail | Value |
|---|---|
| Rotor Diameter | 347mm |
| Rotor Thickness | 36mm |
| Piston Count | 6 per caliper |
| Caliper Color | Red |
| Caliper Material | Forged aluminum |
| UPC | 854071008010 |
What's Included
- Two ALCALABKF1559BE11 6-piston front calipers
- Two 347x36mm one-piece slotted rotors

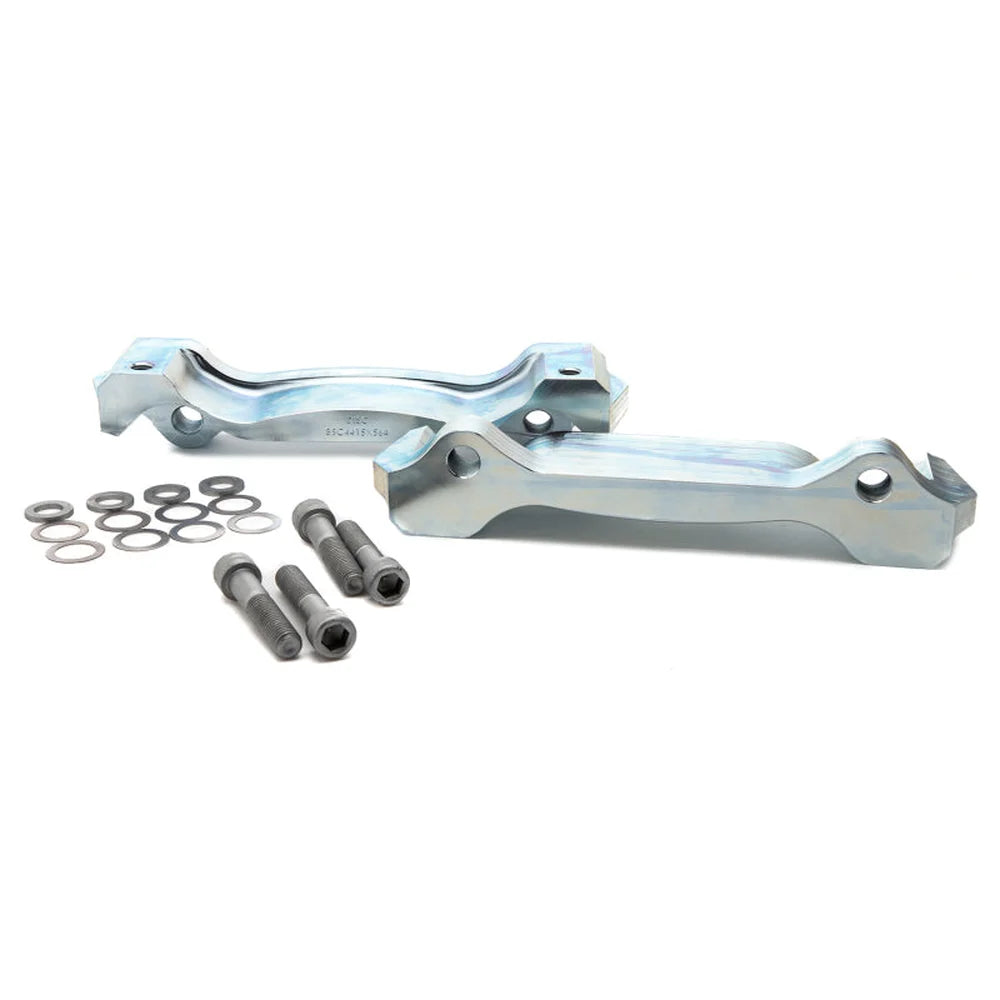

- Mounting brackets, spacers, and hardware
- Performance brake pads pre-loaded in calipers
About Alcon
Alcon is a motorsports brake manufacturer with decades of experience supplying calipers and rotors to professional racing teams worldwide. Alcon applies that same engineering discipline to its truck and off-road big brake kits, delivering durable components built to handle heat and repeated hard stops.
FAQ
What is the ALCALABKF1559BE11?The ALCALABKF1559BE11 is an Alcon 6-piston front big brake kit with 347x36mm rotors designed for the 2010-2020 Ford F-150 and Raptor.
Does this brake kit fit under factory wheels?Yes, this kit is designed to clear factory 17 inch and larger F-150 and Raptor wheels, though a wheel clearance template is recommended before installation.
Is a tie rod adapter required with this brake kit?Yes, this kit requires the alcAC011507NAN tie rod adapter kit due to clearance at the stock ball joint.
Does this brake kit work with the factory parking brake?Yes, this kit is compatible with the stock parking brake and master cylinder.
What rotor size does this brake kit use?This kit uses 347mm diameter rotors that are 36mm thick.
How many pistons does this brake kit's caliper have?Each caliper uses 6 pistons for high clamping force.
Can this brake kit be used with an electronic parking brake truck?If your truck has a rear electronic parking brake, Alcon suggests pairing this kit with the rear rotor and pad upgrade for balanced performance.
What brake pads come with this kit?This kit includes performance brake pads pre-loaded into the calipers, ready for installation.
Install Instructions
- Apply the parking brake and raise the vehicle on a lift or axle stands.
- Remove the road wheels and disconnect the brake hose from the hard line.
- Remove the factory caliper and retain the mounting bolts for the new bracket.
- Install the new caliper mounting bracket with the bolts torqued to factory specification.
- Install the new ALCALABKF1559BE11 rotor onto the hub, checking for proper clearance.
- Position the caliper over the rotor and secure it to the bracket, checking wheel clearance before final torque.
- Reconnect the brake hose and torque the banjo bolt to specification.
- Bleed the brake system with DOT 4 fluid and check for leaks.
- Torque the wheels to factory specification and bed in the new brakes with gradual stops.
