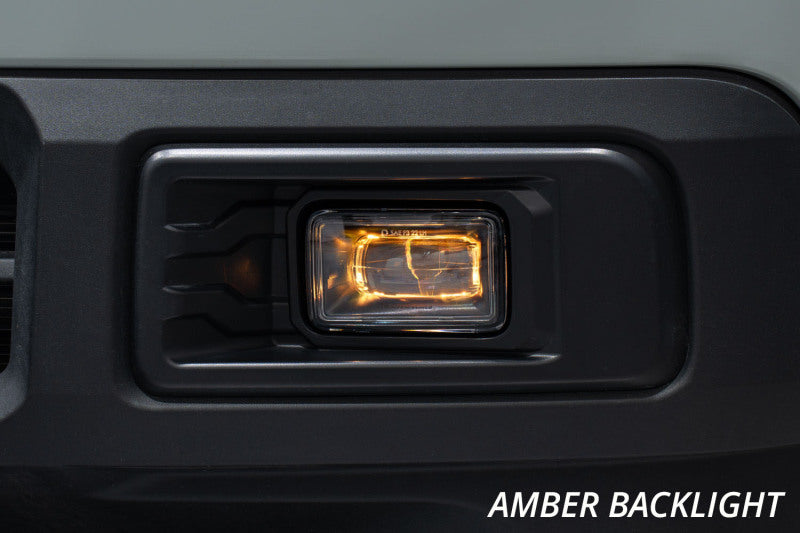

The Diode Dynamics Elite Series Add-On LED Fog Light Kit for 2022-2024 Ford Maverick, Yellow is engineered to deliver application-matched automotive illumination through its specified output, color, beam pattern, and electrical design. Select manufacturer part number DD7769 only after matching the verified year, make, model, mounting location, and electrical requirements below.
Key Features
- Optical output, color, and beam pattern are defined by the exact configuration
- Raw Lumens: 1,650 lm, Yellow: 1,900 lm, Backlight: 140 lm Intensity (cd): White: 11,300 cd, Yellow: 11,000 cd, Color Temp (CCT): 3000K, 6000K, Beam Angle: Fog, 100°x7°
- Automotive-grade housing, lens, electronics, and thermal management
- Mounting and wiring components are included only when expressly identified for this kit
- Verified vehicle applications are listed in the fitment table and Convermax filter
Fitment
| Years | Make | Model |
|---|---|---|
| 2022-2024 | Ford | Maverick |
Specifications
| Brand | Diode Dynamics |
|---|---|
| Manufacturer Part Number | DD7769 |
| Product Type | Fog Lights |
| Condition | New |
| Raw Lumens | 1,650 lm, Yellow: 1,900 lm, Backlight: 140 lm Intensity (cd): White: 11,300 cd, Yellow: 11,000 cd |
| Color Temp (CCT) | 3000K, 6000K |

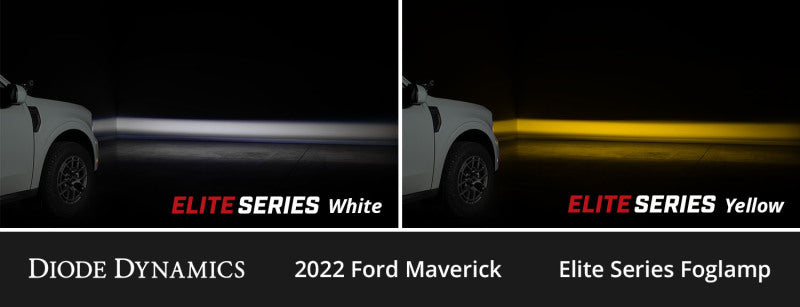

| Beam Angle | Fog, 100°x7° |
| Power (watts) | Main Beam White: 16, Main Beam Yellow: 21, Backlight: 2.0 |
| Operating Voltage | 9-16V |
| Current (amps @ 13.2V) | Main Beam White: 1.2, Main Beam Yellow: 1.6, Backlight: 0.15 |
| Polarity | Polarity Specific |
| Operating Temperature | -40C to 85C (-40F to 185F) |
| LED Emitter | DongFeng DF3E |
| Connector(s) | Deutsch DT Input, 9006 |
| Driver Features | Internal, Constant Current |
| Materials | Copper PCB, UV Coated Polycarbonate Lens, Powdercoated Aluminum |
What's Included

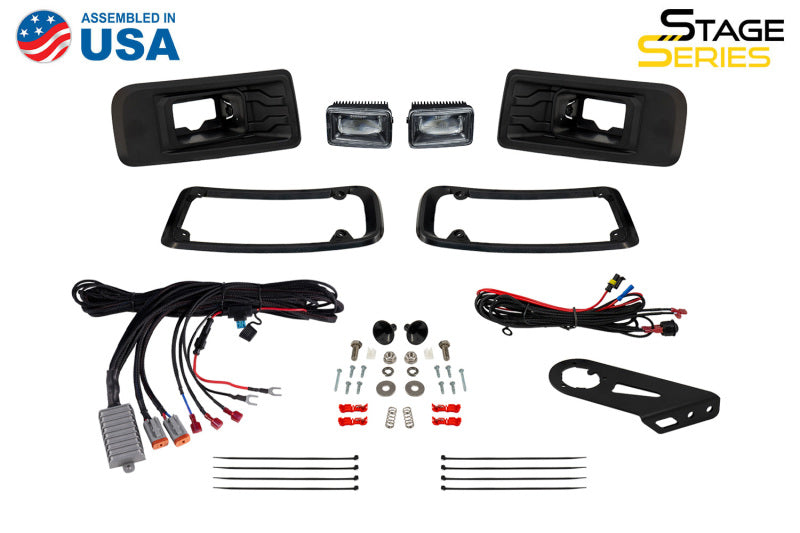

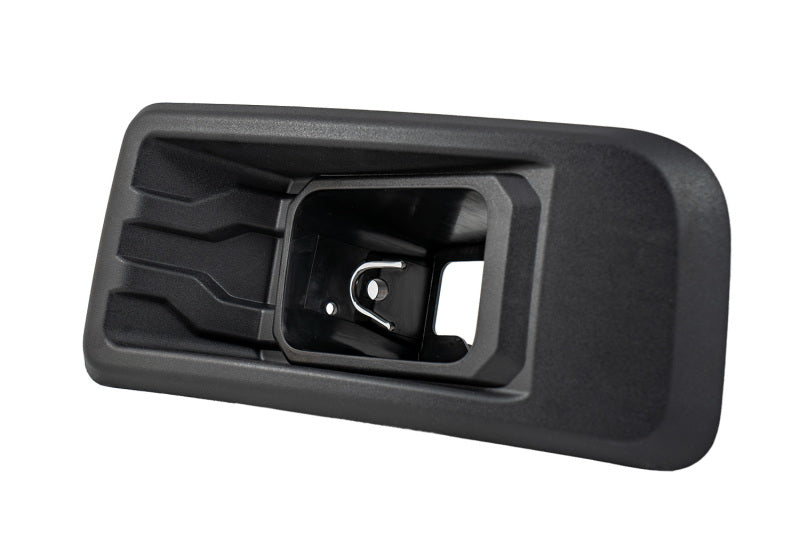

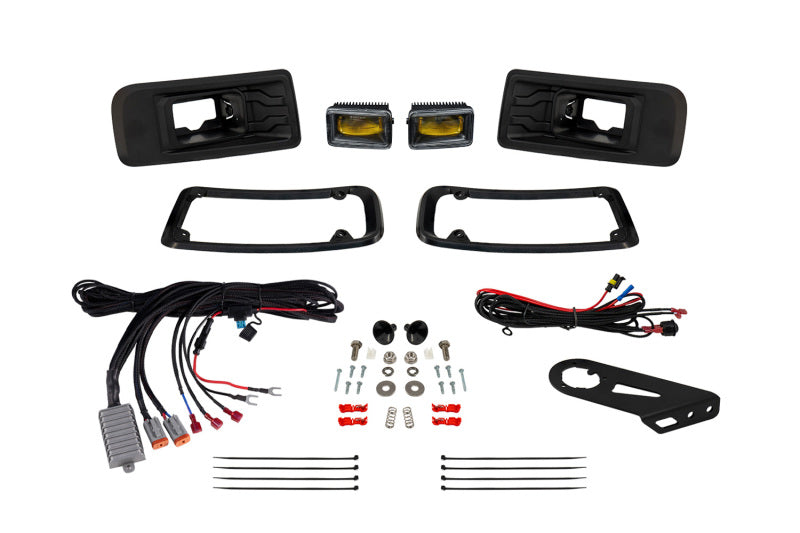

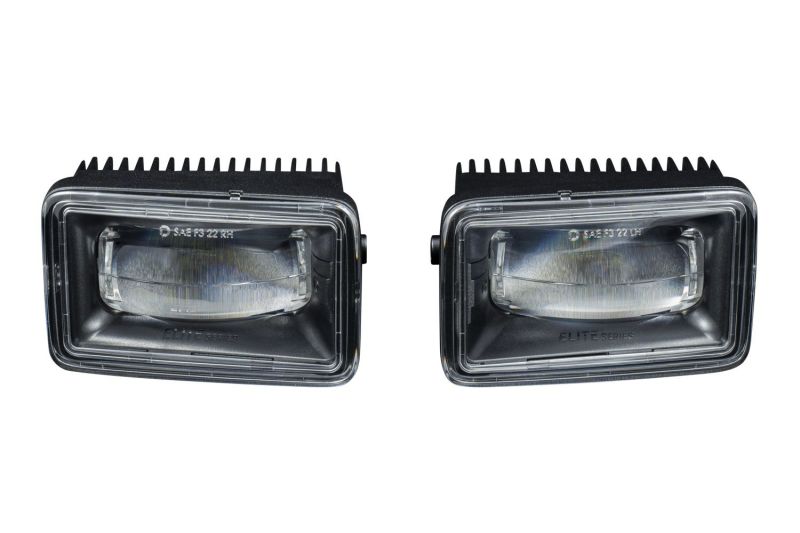

- DD5174P Elite Foglamp Type F2 yellow (pair), DD7767P Maverick Fog Lamp Bracket Kit, DD4110 Add-on DT 4-Pin Foglight Wiring Harness
About Diode Dynamics
Diode Dynamics develops and manufactures automotive LED lighting, optics, wiring, and mounting solutions. Every bulb, lamp, pod, bar, bracket, and electrical component remains exact-part specific, so confirm the complete configuration before ordering.
Related Diode Dynamics Products
- Diode Dynamics DD8744 Diode Dyamics Rock Light - Red/White - M8 4-Pack
- Diode Dynamics DD8746 Diode Dyamics Rock Light - Red/White - M8 8-Pack
- Diode Dynamics DD8963 00-07 Toyota Tundra/Sequoia SS3 LED Foxbeam Fog Light Kit
Browse the Diode Dynamics collection for additional automotive lighting and installation components.
Frequently Asked Questions
How do I confirm this Diode Dynamics light fits my vehicle?
Match the exact years, make, model, mounting position, factory-light configuration, wiring, and every listed exclusion.
Which beam pattern and color should I choose?
Fog, driving, combo, spot, flood, and work-light patterns serve different distances and mounting positions. Match the stated pattern, color, output, aiming requirements, and road-use classification to the intended use.
Are the brackets, wiring harness, and switch included?
Only the components listed in the What's Included section are supplied. Standalone lights, replacement lamps, and service parts may require separate brackets, adapters, wiring, relays, or switches.
Installation Instructions
- Confirm the exact vehicle, light configuration, beam pattern, lens color, brackets, harness, switch, and included hardware before beginning.
- Mount and aim the light with the specified hardware, then route the correct fused wiring and grounds away from heat, abrasion, sharp edges, and moving parts.
- Test every function, verify wire and body clearance, confirm legal aiming and color, then recheck mounting hardware after the initial drive.
