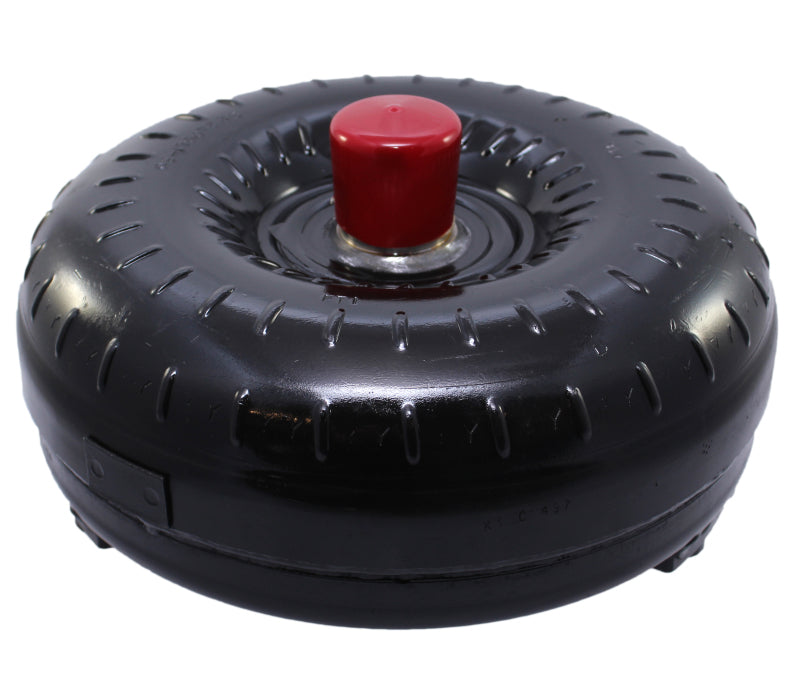

This FTI Performance 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall is a performance torque converter selected by transmission family, engine combination, stall range, input spline, bolt pattern, lock-up configuration, and intended power level. Confirm the complete drivetrain combination before ordering.
Key Features
- Converter family, diameter, stall speed, spline, bolt pattern, and lock-up strategy are application critical
- Final stall behavior depends on vehicle weight, gearing, tire size, engine torque, camshaft, and complete drivetrain setup
- Exact manufacturer part number SB2400LT30
- New FTI Performance component in the listed configuration
Fitment
Vehicle fitment is not assigned from transmission name alone. Verify the exact transmission, engine interface, spline, bolt pattern, case or bellhousing, dimensions, electronics, stall requirements, and complete drivetrain configuration.
Specifications
| Brand | FTI Performance |
|---|---|
| Manufacturer Part Number | SB2400LT30 |
| Product Type | Torque Converters |
| Condition | New |
| Configuration | 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall |
| Transmission Compatibility | 4L60E, 700R4 |
| Diameter | 12In |
| Stall Speed | 2400 Stall |
| Spline | 30 Spline |
| Lock-Up Compatible | Yes |
What's Included
One FTI Performance torque converter in the exact configuration shown. Converter bolts, flexplate, fluid, cooler, lines, wiring, controller, mount, crossmember, driveshaft parts, seals, and installation hardware are included only when expressly stated.
About FTI Performance
FTI Performance develops performance and racing torque converters, transmissions, internal components, cooling parts, and lubricants for properly matched street and competition drivetrains.
Related Parts
- FTI 11in Extreme Street Brawler Series Torque Converter - 3200 Stall - 4L60E 4L65E - Billet Cover
- FTI 9.5in TH350/TH400 Economy Street Racer Series - Turbo Spline - 3200 Stall
- FTI 9.5in TH350/TH400 Economy Street Racer Series - Turbo Spline - 3000 Stall
- Shop all FTI Performance products
Frequently Asked Questions
How do I confirm the stall speed for the 12In Street Brawler GM Lock Up 700R4 - 4L60E - 30 Spline - 2400 Stall?
Stall speed depends on engine torque, camshaft, vehicle weight, gearing, tire size, transmission, and intended use. Confirm the complete build with an FTI converter specialist before ordering.
Will this converter fit every vehicle with the listed transmission?
No. Transmission family alone is not enough. Verify engine pattern, pilot, flexplate bolt circle, input spline, lock-up control, spacing, and every vehicle-specific note.
Are converter bolts and mounting hardware included?
Hardware inclusion varies by converter series. Compare the exact part number with FTI's current bolt chart and included-components list before installation.
Installation Instructions
Confirm the exact FTI part number and complete drivetrain specification. Disconnect the battery and support the vehicle safely. Follow FTI's current instructions and the vehicle service procedure for converter seating, clearances, fasteners, fluid, cooler lines, wiring, linkage, driveshaft, and initial fill. Verify converter-to-flexplate clearance before tightening. Check fluid level at the specified temperature, inspect for leaks and abnormal noise, and recheck operation before full-load use.
