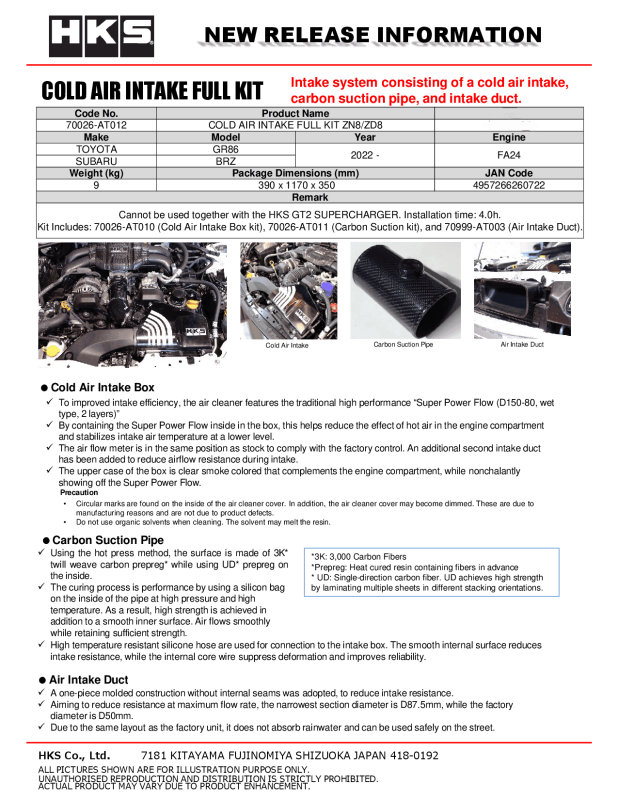

The HKS Subaru ZN8/ZD8 Cold Air Intake Full Kit is designed for the 2022-2025 Subaru BRZ and the other applications in the fitment table. Match manufacturer part number 70026-AT012, the complete vehicle or system configuration, dimensions, connections, and included components before ordering.
Key Features
- Performance airflow or boost-control component in the stated configuration
- Core, piping, inlet, outlet, valve, and control details are part-number specific
- Engine, turbo system, sensors, and available installation space must be confirmed
- Calibration and supporting modification requirements vary by application
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2022-2025 | Subaru | BRZ | Confirm engine, body style, system configuration, and exact interface |
| 2022-2025 | Toyota | GR86 | Confirm engine, body style, system configuration, and exact interface |
Specifications
| Brand | HKS |
|---|---|
| Manufacturer Part Number | 70026-AT012 |
| Product Type | Cold Air Intakes |
| Fitment Type | Vehicle Specific |
| Condition | New |
| Box dimensions | 385 × 1165 × 1165 mm |
| Shipping weight | 9 kg |
| Air cleaner | Super Power Flow, D150-80, wet type, 2 layers |
| Air intake duct narrowest-section diameter | D87.5 mm |
| Factory air intake duct diameter | D50 mm |
| Carbon suction pipe construction | 3K twill-weave carbon prepreg surface with UD prepreg on the inside. Hot-press construction |
| Air intake duct construction | One-piece molded construction without internal seams |
| Piping material | Polished aluminum piping |
| Cold air intake box material | Dry carbon |
| Package Dimensions/Weight | 385 × 1165 × 1165 mm, 9 kg |

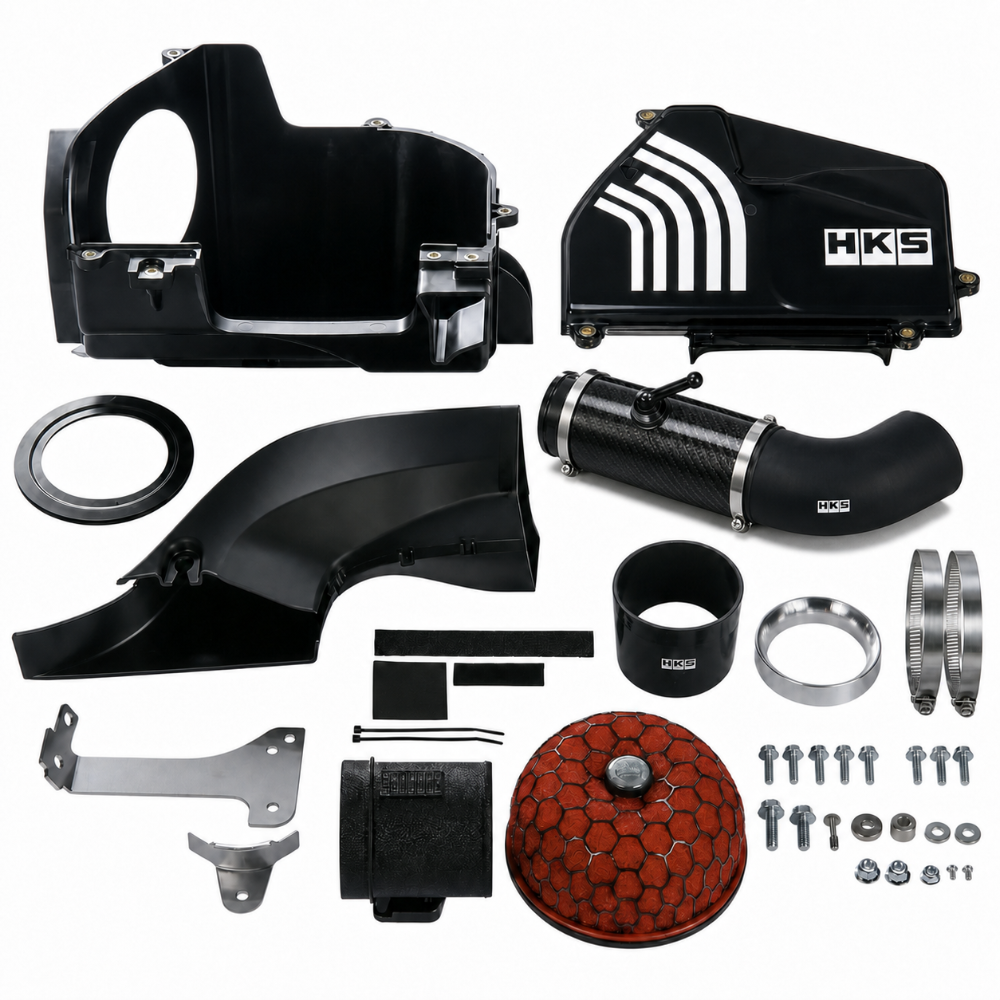

What's Included
One new HKS cold air intakes identified by manufacturer part number 70026-AT012, in the quantity stated by the title. Additional wiring, pipes, hoses, clamps, fittings, gaskets, fluids, tuning, tools, and installation hardware are included only when expressly listed for this exact part number.
About HKS
HKS develops exhaust, forced-induction, cooling, engine, electronics, and exterior components for import and performance vehicle applications.
Related HKS Products
- Shop all HKS products
- HKS DryCarbon Suction kit ZN6/ZC6 FA20
- HKS Premium Suction ZN6/ZC6 FA20
- HKS RS ZN6/ZC6 86/BRZ FA20
Frequently Asked Questions
How do I confirm this HKS airflow or boost part fits?
Match the manufacturer part number, listed vehicle, engine and turbo configuration, piping diameter, connector, mounting points, and available installation space.
Will tuning be required after installation?
Calibration needs depend on the product, vehicle, boost target, sensors, fuel system, and supporting modifications. Confirm the complete setup with a qualified tuner before operation.
Are all pipes, couplers, valves, and hardware included?
Included components vary by exact part number. Use the What’s Included section and current HKS documentation to identify any separate piping, couplers, clamps, sensors, or adapters.
Installation Instructions
Follow the current HKS instructions and the vehicle service manual for part number 70026-AT012. Compare every component, connection, dimension, and mounting point before disassembly. Use the correct tools, fasteners, torque values, fluids, wiring protection, and safety procedures, then inspect for leaks, interference, heat exposure, clearance, and secure operation before normal use.
