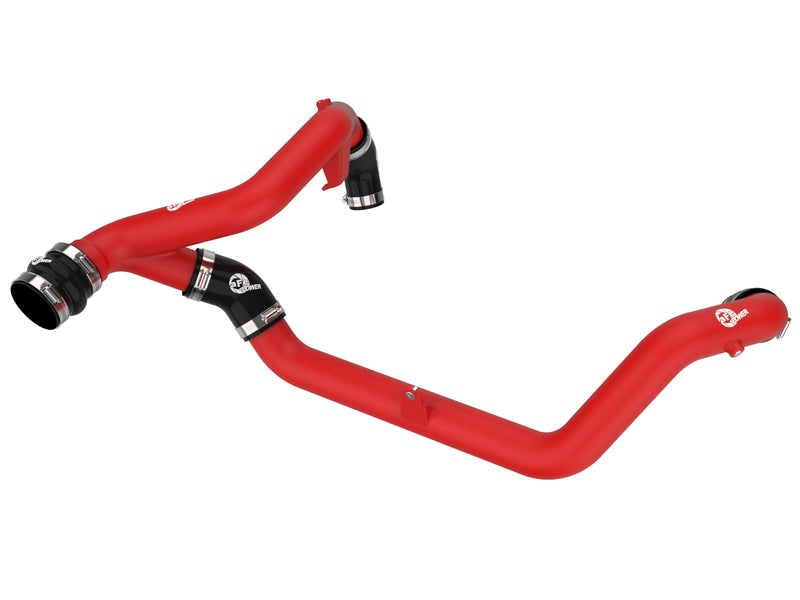

This aFe cooling or charge-air component is the BladeRunner 2 1/4in Intercooler Hot Side Charge Pipe 22-23 Ford Explorer V6-3.0L (tt) - Red for 2022-2024 Ford Explorer. Confirm core and pipe dimensions, connection sizes, sensor provisions, mounting points, pressure requirements, and clearance with the complete vehicle configuration.
Key Features
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2022-2024 | Ford | Explorer | King Ranch |
| 2022-2024 | Ford | Explorer | Platinum |
| 2022-2024 | Ford | Explorer | ST |
| 2022-2023 | Lincoln | Aviator | Base |
| 2022-2024 | Lincoln | Aviator | Black Label |
| 2022-2024 | Lincoln | Aviator | Livery |
| 2024 | Lincoln | Aviator | Premiere |
Specifications
| Brand | aFe Power |
|---|---|
| Manufacturer Part Number | 46-20678-R |
| Product Type | Intercoolers |
| Condition | New |
| Configuration | BladeRunner 2 1/4in Intercooler Hot Side Charge Pipe 22-23 Ford Explorer V6-3.0L (tt) - Red |
| Listed Dimension | 4in |
What's Included
One new aFe intercooler in the exact configuration and quantity identified by this listing. Hardware, clamps, couplers, gaskets, sensors, wiring, fluids, calibration, and accessories are included only when expressly stated.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Important Disclosures
Related Parts
Frequently Asked Questions
Will the BladeRunner 2 1/4in Intercooler Hot Side Charge Pipe 22-23 Ford Explorer V6-3.0L (tt) - Red connect to factory components (aFe 46-20678-R)?
Confirm the exact vehicle, connection diameters, sensors, mounting points, and whether the listing includes pipes, couplers, clamps, or adapters.
Does an upgraded intercooler require tuning?
Many direct-fit intercoolers can operate with the factory calibration, but supporting modifications and intended boost level can change requirements. Confirm the complete setup.
What should be pressure-tested after installation?
Pressure-test every charge-air or fluid connection, inspect clamps and seals, and verify there is no contact with heat sources, fans, belts, steering, or bodywork.
Are all installation components included?
Only the parts expressly listed for this exact configuration are included. Verify couplers, clamps, brackets, sensors, hoses, and fluids before beginning work.
