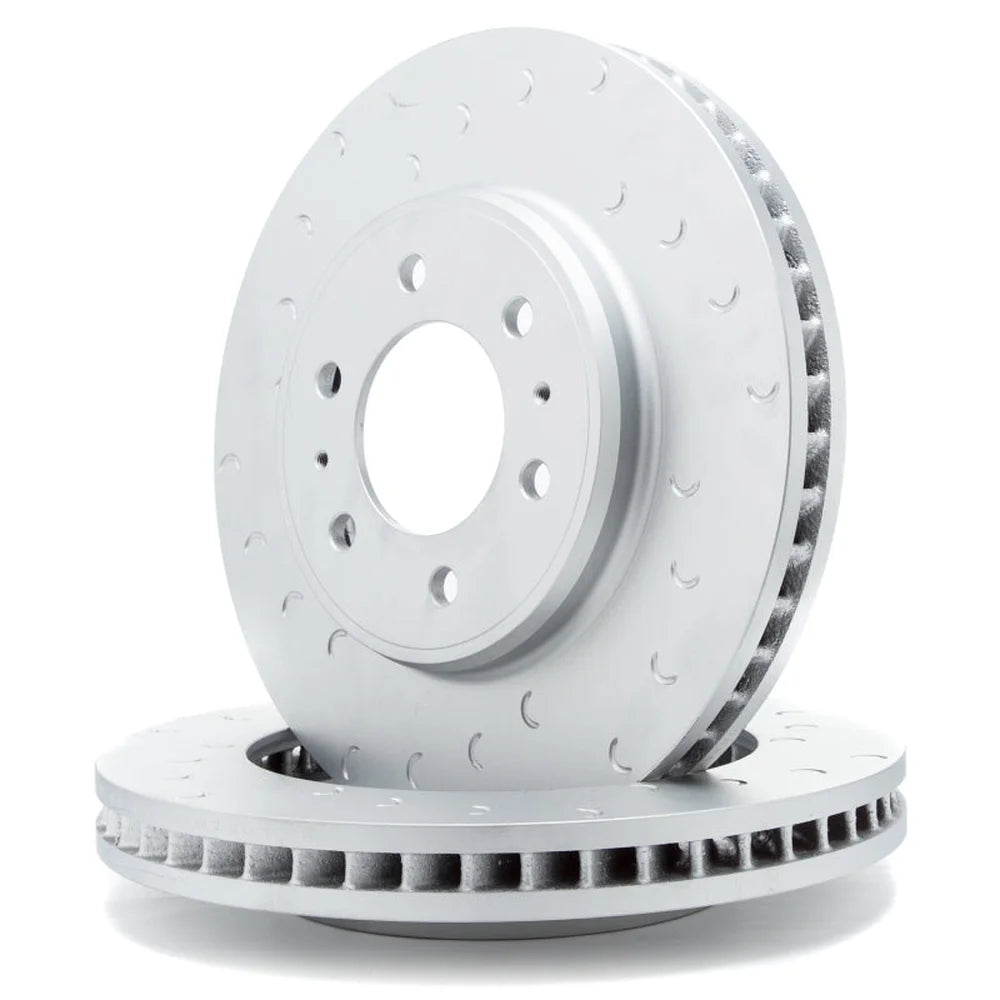

Alcon 347x36mm Replacement Rotor for Ford F-150 and Raptor Big Brake Kits
The Alcon ALCALADIV3430X986C24R is the right front replacement rotor for the ALCALABKF1559BE11 big brake kit fitted to the 2010-2021 Ford F-150 and Raptor. Larger rotors increase brake torque and thermal capacity, reducing potential for brake fade during repeated hard stops.
Key Features
- ALCALADIV3430X986C24R right front replacement rotor
- 347x36mm dimensions matching the original Alcon big brake kit
- One-piece design with high thermal mass for reduced fade
- Direct fit replacement for the ALCALABKF1559BE11 kit
Fitment Table
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2010-2021 | Ford | F-150 | - |
| 2010-2021 | Ford | F-150 | Raptor |
Specifications
| Detail | Value |
|---|---|
| Rotor Diameter | 347mm |
| Rotor Thickness | 36mm |
| Position | Right Front |
| Design | One-piece |
What's Included
- One ALCALADIV3430X986C24R right front rotor
About Alcon
Alcon is a motorsports brake manufacturer with decades of experience supplying calipers and rotors to professional racing teams worldwide, bringing that same durability to replacement components for truck big brake kits.
Related Parts
- ALCALABKF1559BE11 6-Piston Front Brake Kit for Ford F-150 and Raptor
- ALCALABSK4415X618 Front Bracket Kit for Ford F-150
FAQ
What is the ALCALADIV3430X986C24R?The ALCALADIV3430X986C24R is an Alcon 347x36mm right front replacement rotor for Ford F-150 and Raptor big brake kits.
Which brake kit uses this rotor?This rotor is the original equipment rotor for the ALCALABKF1559BE11 front big brake kit.
Does this rotor fit the left side?No, this rotor is specific to the right front position. A separate left front rotor is required for that side.
What years does this rotor fit?This rotor fits 2010-2021 Ford F-150 and Raptor models equipped with the Alcon big brake kit.
What is the thickness of this rotor?This rotor is 36mm thick with a 347mm diameter.
Can this rotor be purchased individually?Yes, this rotor is sold as a single right front rotor for replacement or service needs.
Does this rotor require new pads?Alcon recommends inspecting pad wear when replacing this rotor and replacing pads if less than 2mm of material remains.
Is this rotor a direct fit replacement?Yes, this rotor is a direct fit replacement for the original rotor in the Alcon big brake kit.
Install Instructions
- Raise the vehicle on a lift or axle stands and remove the right front wheel.
- Remove the caliper and support it aside without disconnecting the brake hose.
- Remove the worn rotor from the hub.
- Clean the hub face to ensure it is flat before installing the new rotor.
- Install the ALCALADIV3430X986C24R rotor, checking for a minimum 5mm clearance to the steering joint.
- Reposition the caliper over the rotor and torque the mounting bolts to specification.
- Reinstall the wheel and torque to factory specification.
- Bed in the new rotor with several gradual stops from low speed.
