Sold out
Eagle Mitsubishi 4G63 2nd Gen Engine Connecting Rod (1 rod) - Eagle CRS5900MB3D-1
Eagle Mitsubishi 4G63 2nd Gen Engine Connecting Rod (1 rod) - Eagle CRS5900MB3D-1
Eagle Mitsubishi 4G63 2nd Gen Engine Connecting Rod (1 rod) - Eagle CRS5900MB3D-1
Click to zoom in

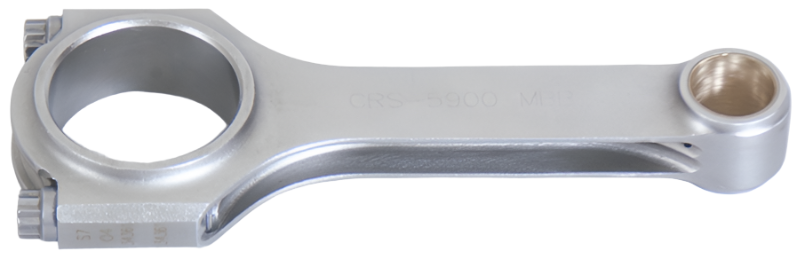

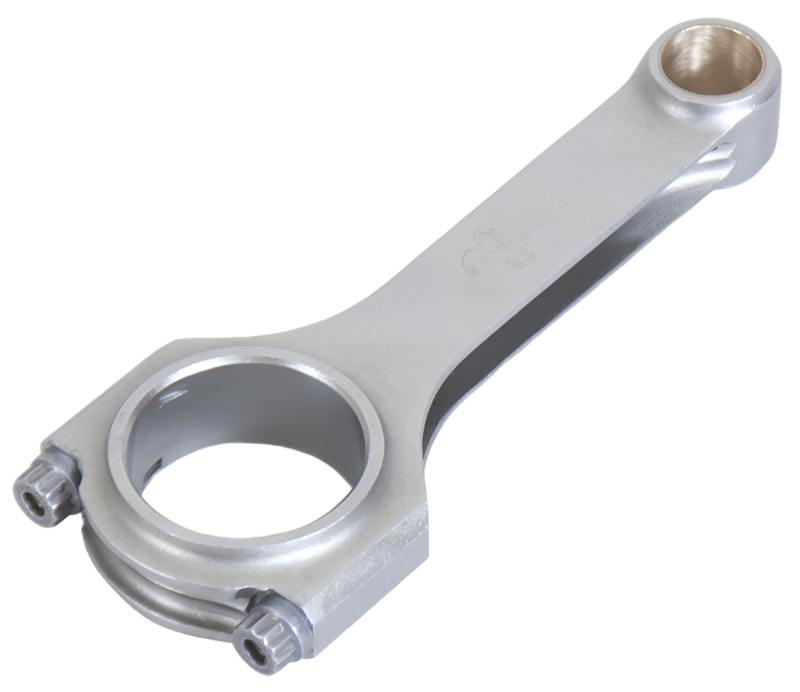

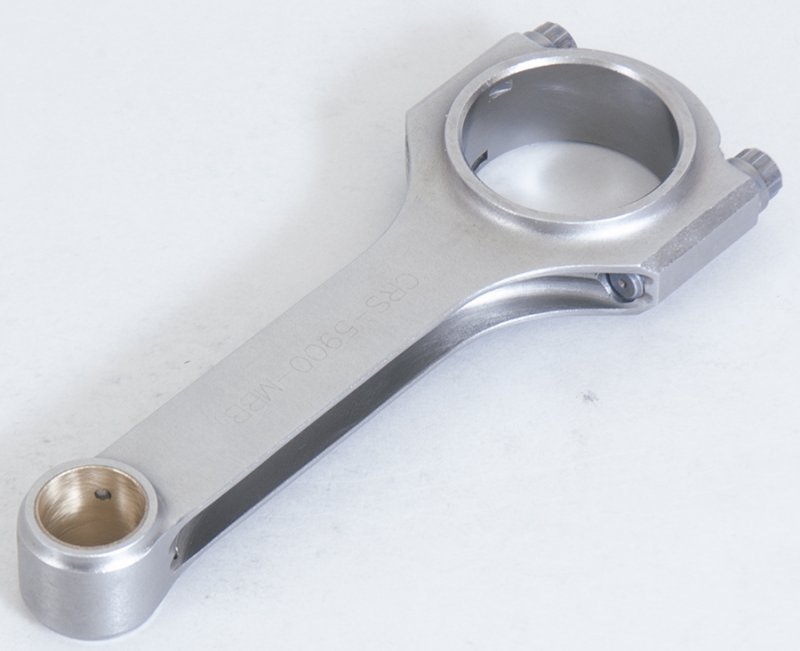

Eagle Mitsubishi 4G63 2nd Gen Engine Connecting Rod (1 rod)

$ 122.02

Eagle CRS5900MB3D-1 is a performance connecting-rod option for the engine family and dimensions identified in this listing. 5.9" 4340 H-Beam, Mitsubishi 4g63 7 Bolt, 3/8" Arp 2000 Bolts must be matched to the crank journal, piston pin, rod length, fastener package, and required quantity before machining or assembly begins.

Key Features

  • bolts: 3/8" ARP 2000
  • material: forged 4340 steel
  • center to center length: 5.9"
  • pin size: 0.866"
  • pin end width: 1.038"
  • rod journal: 1.771"
  • Performance connecting-rod construction
  • Application and dimensions are exact-part-number specific

Fitment

This component is selected by engine family and exact dimensions rather than vehicle year, make, and model. Confirm the complete engine combination before ordering.

Specifications

Manufacturer Eagle Specialty Products
Manufacturer Part Number CRS5900MB3D-1
Product Type Connecting Rods - Single
Package Quantity One connecting rod
Fitment Type Engine and dimension specific
Bolts 3/8" ARP 2000
Material forged 4340 steel
Center To Center Length 5.9"
Pin Size 0.866"
Pin End Width 1.038"
Rod Journal 1.771"
Housing Bore 1.89"
Big End Width 1.038"
Typical Weight 575g

What's Included

  • One connecting rod
  • Manufacturer packaging and documentation supplied with the exact part number

About Eagle Specialty Products

Eagle Specialty Products manufactures performance connecting rods, crankshafts, rotating assemblies, and related bottom-end components. Selection depends on exact engine architecture, dimensions, materials, balance, and fastener requirements.

Related Eagle Products

Browse the Eagle collection for related engine internals.

Frequently Asked Questions

Is Eagle CRS5900MB3D-1 one rod or a complete set?
This listing is identified as one connecting rod. Confirm the package quantity for Eagle CRS5900MB3D-1 before ordering because similar part numbers may be sold individually or as a weight-matched set.

What measurements must match before I order these connecting rods?
Confirm center-to-center length, crank journal and housing bore, big-end width, piston-pin diameter and width, bolt specification, and whether the pin is press-fit or full-floating.

Can I reuse the published rod-bolt torque from another Eagle rod?
No. Use the current procedure for this exact rod and fastener package, including the specified lubricant and stretch or torque method. Similar Eagle rods may use different bolts and tightening values.

Installation Instructions

Professional engine-building and machine-shop service is required. Measure every component, establish all clearances, verify balance and block preparation, follow current Eagle and fastener procedures, lubricate as specified, and rotate the assembled short block by hand before final installation and startup.
