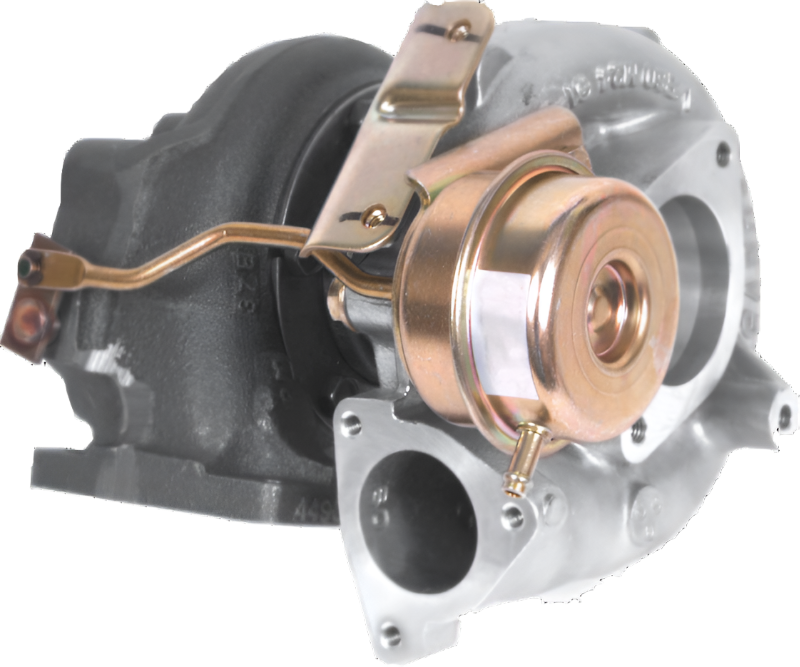

The Garrett GT2560R Turbocharger (Small Frame) is a performance turbocharger configuration selected by exact vehicle application or by complete engine-system requirements. Confirm the manufacturer part number, compressor and turbine match, rotation, flanges, oil and coolant connections, control strategy, calibration, and supporting hardware before ordering.
Key Features
- Garrett compressor and turbine technology
- Oil, coolant, control, calibration, and supporting-system requirements must match
- Exact Garrett manufacturer part number 836023-5004S
- New component in the exact configuration shown
Fitment
This is a universal specification-matched performance component. It does not receive a year-make-model claim. Confirm every dimension, flange, port, rotation, flow, power, pressure, control, and supporting-system requirement before ordering.
Specifications
| Brand | Garrett |
|---|---|
| Manufacturer Part Number | 836023-5004S |
| Product Type | Turbochargers |
| Condition | New |
| Rotation | Standard |
| Quantity | One exact listed component or kit |
What's Included
One new Garrett component or kit in the exact configuration and quantity stated. Supporting housings, lines, fittings, clamps, gaskets, fasteners, sensors, wiring, controllers, calibration, fluids, and fabricated installation hardware are included only when expressly listed.
About Garrett
Garrett develops turbochargers, intercoolers, boost-control hardware, and forced-induction technology for original-equipment, replacement, and performance applications.
Related Garrett Products
- Shop all Garrett products
- Garrett 09-23 Fiat Abarth 500 1.4L MGT1446Z PowerMax Turbo Upgrade Kit
- Garrett 13-17 Ford 3.5L EcoBoost Stage 1 GT1749S Twin Turbo Kit (PMAX)
- Garrett 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger
Frequently Asked Questions
Is the GT2560R Turbocharger (Small Frame) a direct-fit turbocharger?
This product has no year-make-model claim. Match the exact dimensions, flanges, ports, rotation, operating range, controls, and complete engine-system requirements.
Does the GT2560R Turbocharger (Small Frame) require tuning?
Any airflow or boost change must be evaluated in the engine calibration. Follow Garrett's current requirements and use a qualified calibrator for the complete combination.
What supporting parts are needed for the GT2560R Turbocharger (Small Frame)?
Oil and coolant lines, gaskets, fasteners, inlet and exhaust connections, boost control, sensors, intercooling, fuel-system capacity, and installation hardware depend on the exact application.
Installation Instructions
Installation must follow Garrett's current instructions for the exact part number. Verify fitment and the complete system first, protect the engine from debris, prime oil-fed components before startup, use the specified lines, fittings, gaskets, fasteners, torque values, heat protection, wiring, controls, and calibration, then inspect for leaks, interference, abnormal noise, and correct boost operation before driving.
