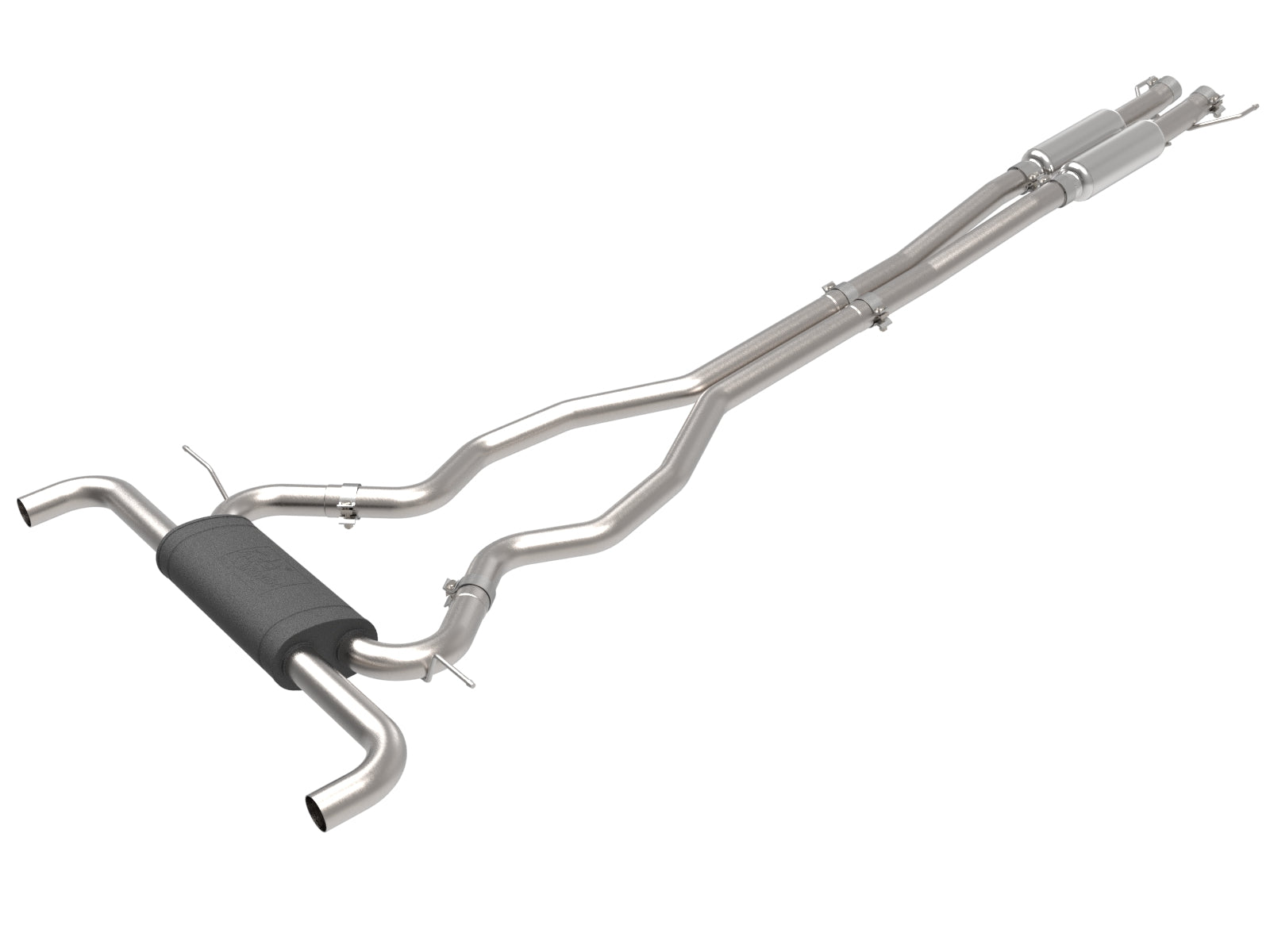

aFe 49-33133 Vulcan uses 2.5-inch mandrel-bent 304 stainless tubing, a resonator assembly and a black-finished high-flow stainless muffler for a mild tone. MIG-welded construction and factory-style hanger locations form the specified six-assembly system without separate decorative tips.
Ford Edge with twin-turbo 2.7L V6: Sport 2015-2018 and ST 2019-2023. Current primary names ST 2019-2023; own March 2022 manual page 1 prints 2015-2023 with ST shorthand, while page 2 explicitly names Sport/ST but ends 2022. Exact selected live retailer table supplies Sport 2015-2018 and ST 2019-2023, reconciling grade/year scope. No blanket 2015 ST grade or later 2024 endpoint is invented. Confirm original dual front connections, hangers and retained bumper outlet interface. Broader retailer SE/SEL/Titanium/ST-Line and unrelated F-150 copy are not sufficient engine/routing proof.
| Years | Make | Model | Named grade; actual twin-turbo 2.7L Edge Sport/ST and matching original interfaces required |
|---|---|---|---|
| 2019-2023 | Ford | Edge | ST |
| 2015-2018 | Ford | Edge | Sport |
Verify 49-33133 against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-33133 |
| System | Vulcan cat-back; SIX physical assemblies |
| Tubing / weld | 2.5-inch mandrel-bent 304 stainless; MIG-welded |

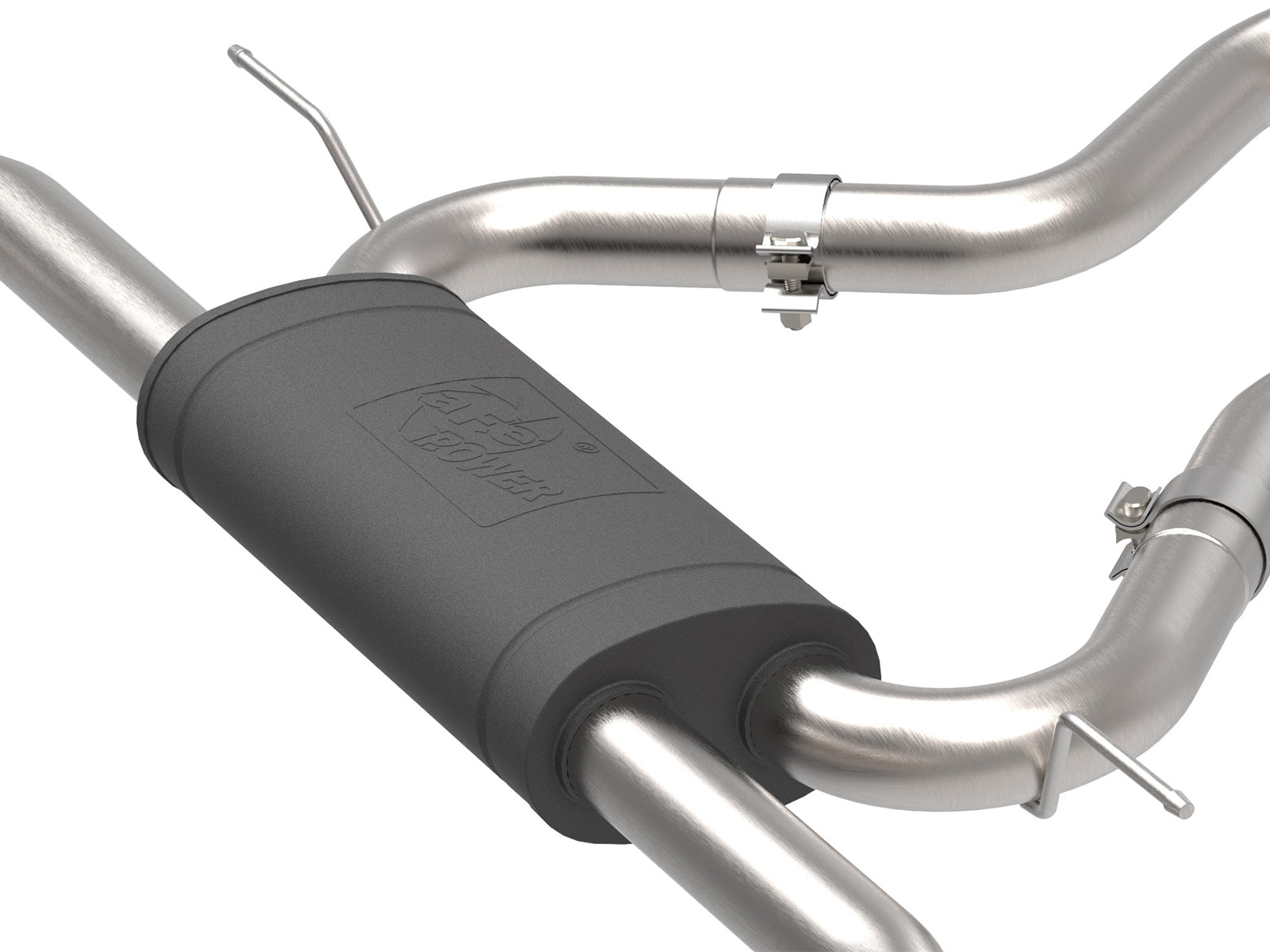

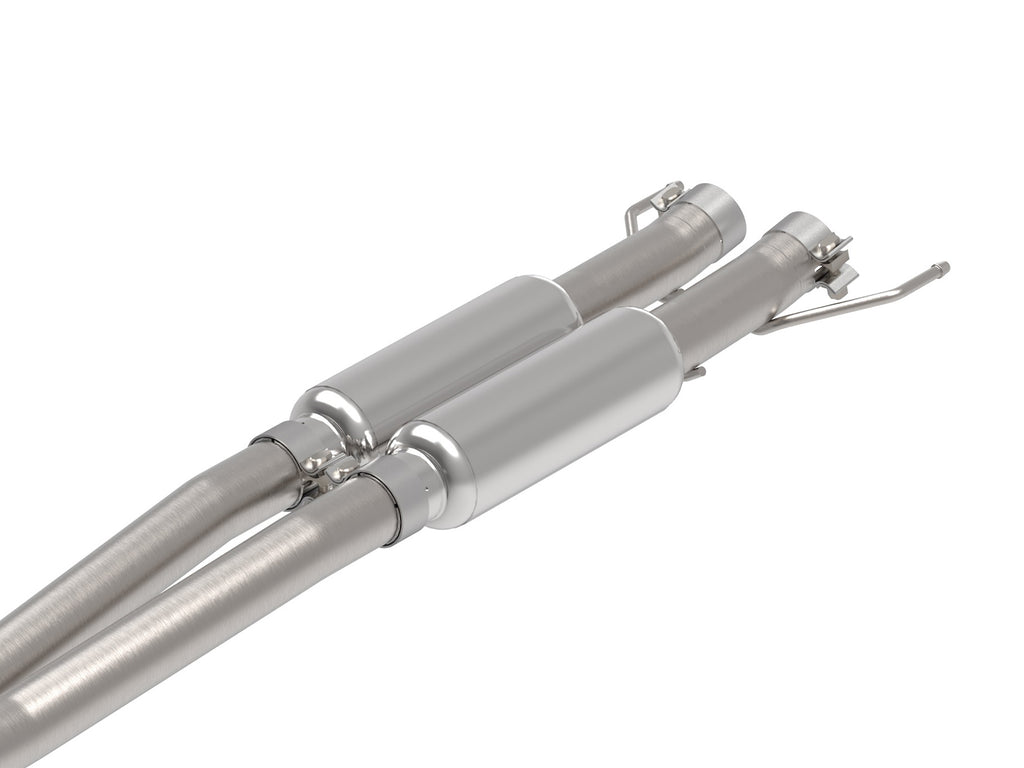

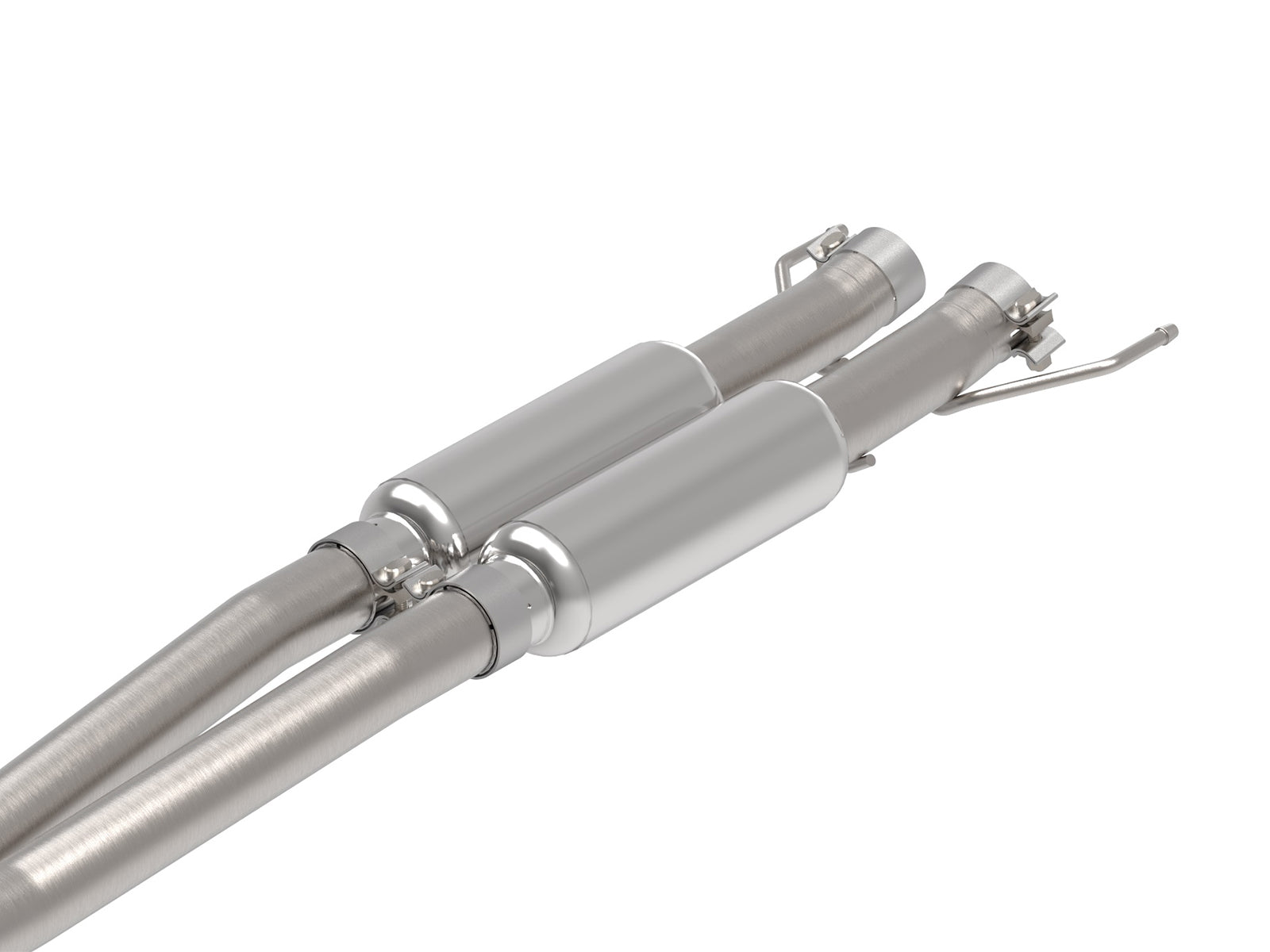

| Resonator / muffler | 05-245144 resonator assembly; 05-245148 black-finished high-flow muffler assembly |
| Mid-pipes | TWO 05-245145; shorter straight ends insert into resonator outlets |
| Clamps | SIX 2.5-inch 05-41061; TWO 2.25-inch 05-41210 |
| Tips / gaskets | No separate decorative tips or new gaskets itemized |
| Torque / recheck | 40-45 ft-lb bands; re-tighten all clamps/hardware after 50-100 miles |
| Performance evidence | No actual dyno or airflow chart, numeric horsepower/torque gain or measured cabin-drone result is linked for this exact selection. Manufacturer specifies a mild tone and high-flow black muffler, which do not establish a guaranteed gain or drone-free cabin. |
| Emissions | Current manufacturer says no CARB EO required; no replacement converter supplied |
| UPC | 802959634660 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

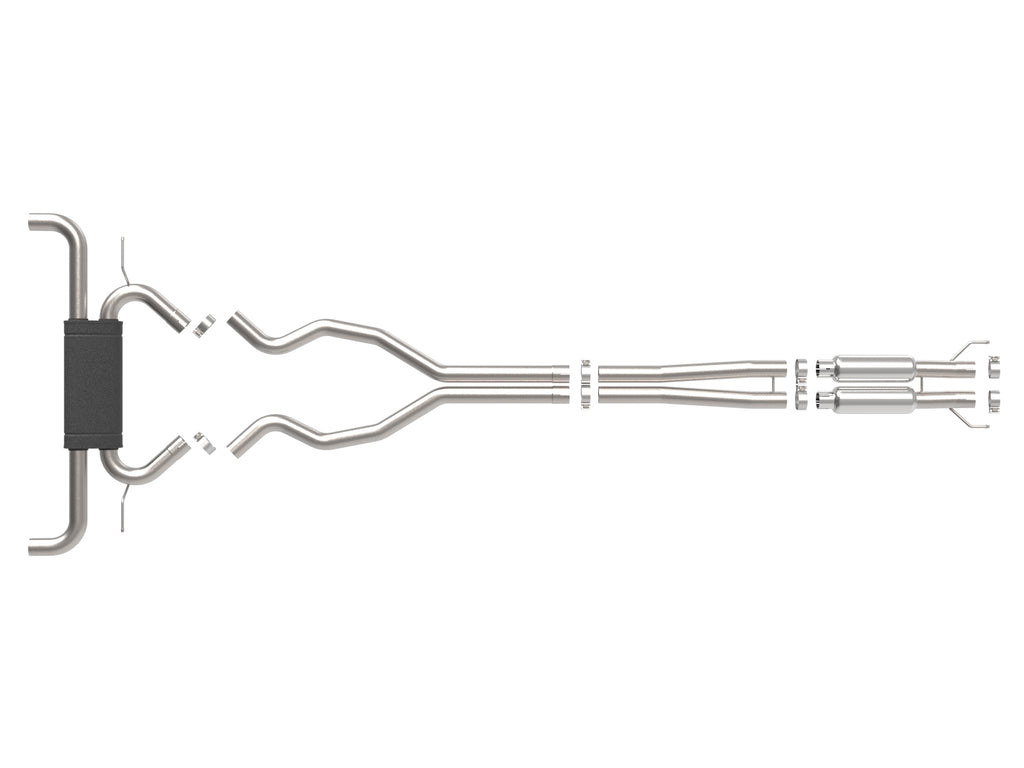

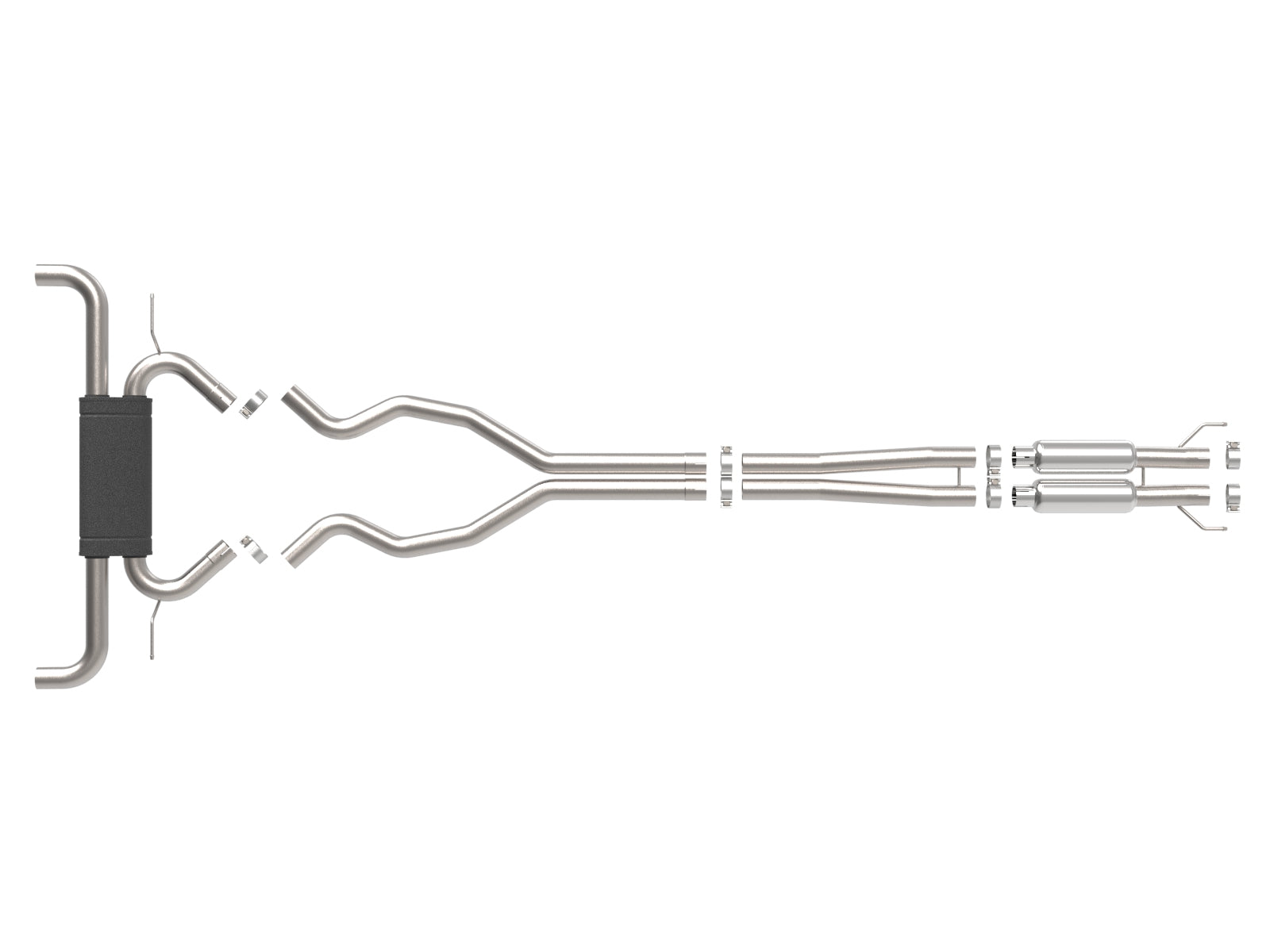

SIX physical assemblies: ONE resonator assembly 05-245144, TWO mid-pipes 05-245145, ONE LEFT rear tube 05-245146, ONE RIGHT rear tube 05-245147 and ONE muffler assembly 05-245148. SIX 2.5-inch band clamps 05-41061 and TWO 2.25-inch band clamps 05-41210. Reuse original rubber isolators; original system removal disengages FOUR hangers. No separate decorative exhaust tips, new gasket, replacement converter, valve motor, wiring or intake filter/coupler is itemized. Mid-pipe quantity is TWO despite a single shared service number.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
SIX physical assemblies: ONE resonator assembly 05-245144, TWO mid-pipes 05-245145, ONE LEFT rear tube 05-245146, ONE RIGHT rear tube 05-245147 and ONE muffler assembly 05-245148. SIX 2.5-inch band clamps 05-41061 and TWO 2.25-inch band clamps 05-41210. Reuse original rubber isolators; original system removal disengages FOUR hangers. No separate decorative exhaust tips, new gasket, replacement converter, valve motor, wiring or intake filter/coupler is itemized. Mid-pipe quantity is TWO despite a single shared service number.
Which Edge grades and years fit?Ford Edge with twin-turbo 2.7L V6: Sport 2015-2018 and ST 2019-2023. Current primary names ST 2019-2023; own March 2022 manual page 1 prints 2015-2023 with ST shorthand, while page 2 explicitly names Sport/ST but ends 2022. Exact selected live retailer table supplies Sport 2015-2018 and ST 2019-2023, reconciling grade/year scope. No blanket 2015 ST grade or later 2024 endpoint is invented. Confirm original dual front connections, hangers and retained bumper outlet interface. Broader retailer SE/SEL/Titanium/ST-Line and unrelated F-150 copy are not sufficient engine/routing proof.
How many mid-pipes are supplied and which end faces forward?TWO mid-pipes share service part 05-245145. Own step 9 specifies SHORTER STRAIGHT SECTION into rear outlets of resonator assembly. Do not reverse them or reduce bill quantity to one.
Which clamp sizes are used?TWO 2.25-inch bands secure FRONT resonator connections. SIX 2.5-inch bands secure resonator-to-mid-pipe, mid-pipe-to-rear-tube and rear-tube-to-muffler joints in pairs.
Are separate decorative tips or new gaskets included?No. Neither is itemized. The kit supplies resonator/muffler assemblies, two mid-pipes, left/right rear tubes and eight bands. Original rubber isolators are retained.
What band torque and recheck apply?Align and tighten FRONT to REAR. Band clamps require 40-45 ft-lb. No separate original hanger fixing number is printed. Re-tighten all clamps/hardware after 50-100 miles.
Does it require cutting, wiring or valve transfer?Current primary specifies no cutting/modifications. Own manual removes FOUR original hangers from rubber isolators and supplies no drilling, battery-disconnection, sensor wiring, valve transfer, coding or installation welding step.
What power or cabin-drone measurements are provided?No actual dyno or airflow chart, numeric horsepower/torque gain or measured cabin-drone result is linked for this exact selection. Manufacturer specifies a mild tone and high-flow black muffler, which do not establish a guaranteed gain or drone-free cabin.
Verify aFe 49-33133.
No actual dyno or airflow chart, numeric horsepower/torque gain or measured cabin-drone result is linked for this exact selection. Manufacturer specifies a mild tone and high-flow black muffler, which do not establish a guaranteed gain or drone-free cabin. Manual pages carry different grade/year headers; current exact ST primary and exact selected Sport/ST retailer rows qualify the scope. No 2015 ST, 2024 extension, unrelated F-150 or broader 2.0L trim application is inferred.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
