aFe Ram 6.7L 2019-2026 ATLAS 5-Inch Polished DPF-Back

Ram ATLAS DPF-back exhaust details

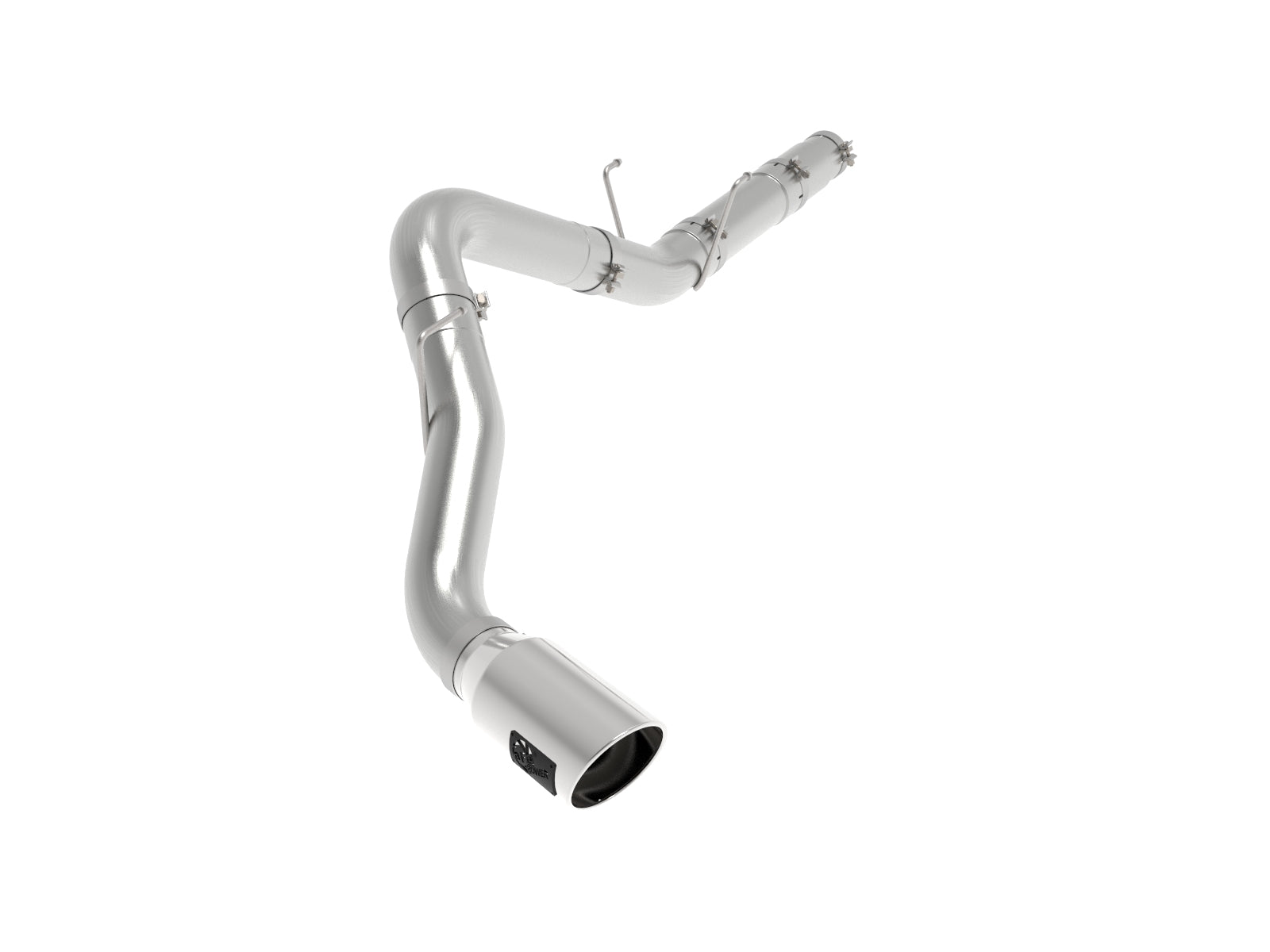

aFe 49-02078-P ATLAS uses 5-inch mandrel-bent ALUMINIZED STEEL tubing, 100% MIG-welded construction and factory-style hangers. One 7-inch polished stainless tip finishes the system behind the retained DPF. Mega Cab and Crew Cab short-bed configurations use different extension arrangements.

Key Features

• 5-inch mandrel-bent ALUMINIZED STEEL main sections.
• 100% MIG-welded construction and factory-style mounting.
• FIVE supplied tube sections; extension used only on 160-inch Mega Cab.
• FOUR 5-inch stainless bands plus ONE 4.5-inch stainless band.

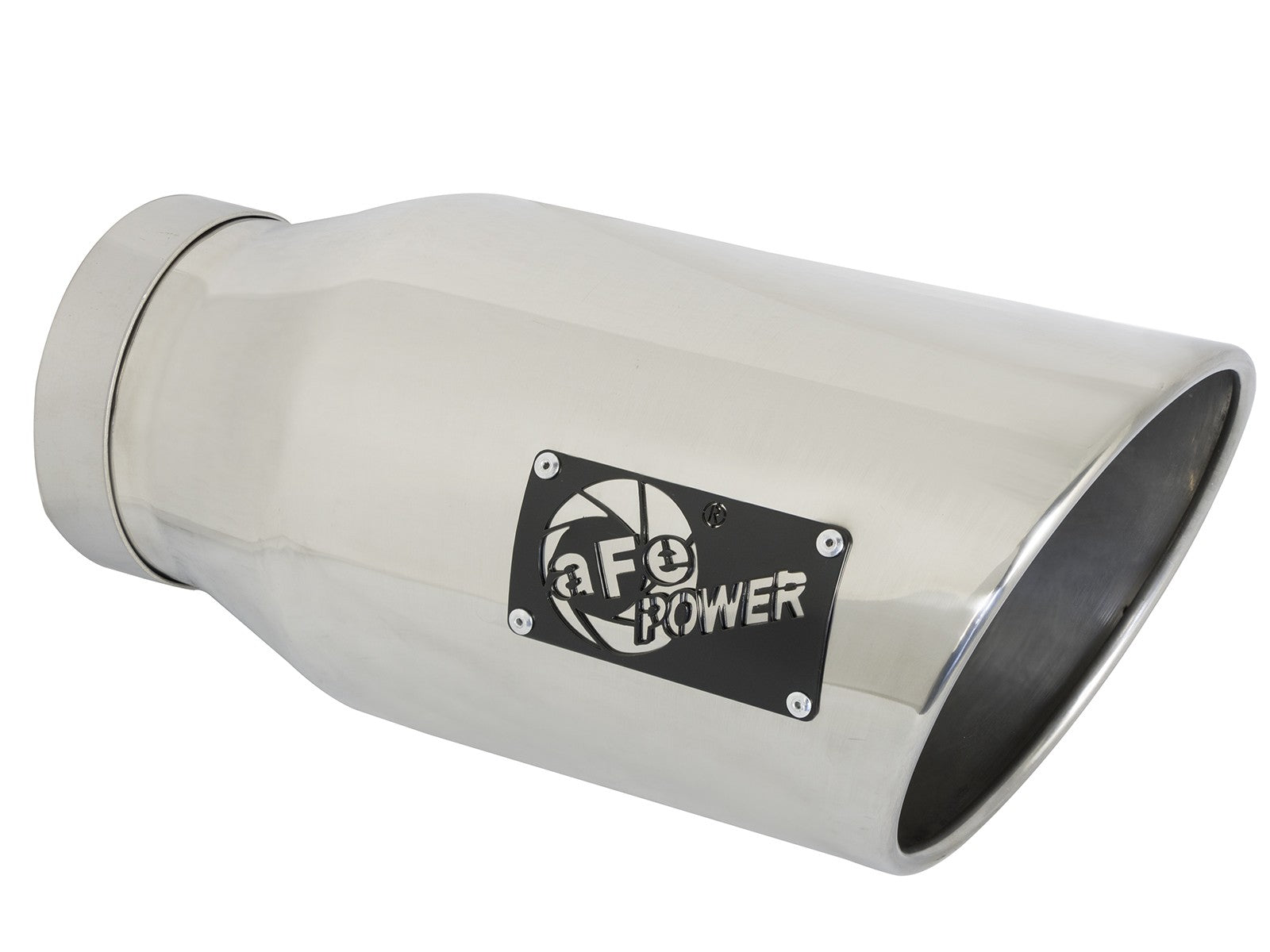

• ONE 5-inch inlet x 7-inch outlet x 15-inch selected stainless tip.
• 149-inch Crew Cab short bed OMITS the extension.
• Band torque 40-45 ft-lb; all-clamp/hardware recheck at 50-100 miles.

Fitment

2019-2026 Ram 2500 / 3500 with 6.7L Cummins turbodiesel, matching Mega Cab / standard short bed with 160-inch wheelbase or Crew Cab / standard short bed with 149-inch wheelbase. Current exact product page and own May 2026 manual agree through 2026. Actual diesel engine, rear-DPF interface, cab/bed and wheelbase remain required for every named grade. No gas-engine version, other wheelbase, long-bed layout or cab-and-chassis fitment is inferred. Named years below follow the exact selected retailer table, retaining older SLT, Laramie Longhorn and Lone Star limits rather than extending every grade uniformly.

Verify 49-02078-P against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-142877: ALUMINIZED front pipe.
• 1 x 05-142878: ALUMINIZED extension; use only on Mega Cab short bed 160-inch wheelbase.
• 1 x 05-142879: ALUMINIZED rear pipe.
• 1 x 05-242011: ALUMINIZED over-axle section.
• 1 x 05-242012: ALUMINIZED tailpipe.
• 4 x 05-41173: 5-inch stainless band clamp.
• 1 x 05-410241: 4.5-inch stainless front band clamp.
• 1 x 49T50701-P15: Selected 5-inch inlet x 7-inch outlet x 15-inch stainless tip.

FIVE ALUMINIZED-STEEL sections in the bill: front pipe 05-142877, extension 05-142878, rear pipe 05-142879, over-axle 05-242011 and tailpipe 05-242012. The extension is used ONLY for Mega Cab / short bed, 160-inch wheelbase; Crew Cab / short bed, 149-inch wheelbase, omits it. FOUR supplied 5-inch stainless bands 05-41173 and ONE 4.5-inch stainless band 05-410241. ONE selected POLISHED 49T50701-P15 stainless bolt-on tip: 5-inch inlet, 7-inch outlet, 15-inch length. Original hanger/isolation mounts are reused. Shared bill stainless main-section alternatives belong to 49-42078, not extra sections supplied with this aluminized kit. No new DPF, converter, sensor, muffler, valve, intake filter or coupler is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 49-02078-P
• Exact illustrated installation manual
• Shop the complete aFe Power collection

FAQ

FIVE ALUMINIZED-STEEL sections in the bill: front pipe 05-142877, extension 05-142878, rear pipe 05-142879, over-axle 05-242011 and tailpipe 05-242012. The extension is used ONLY for Mega Cab / short bed, 160-inch wheelbase; Crew Cab / short bed, 149-inch wheelbase, omits it. FOUR supplied 5-inch stainless bands 05-41173 and ONE 4.5-inch stainless band 05-410241. ONE selected POLISHED 49T50701-P15 stainless bolt-on tip: 5-inch inlet, 7-inch outlet, 15-inch length. Original hanger/isolation mounts are reused. Shared bill stainless main-section alternatives belong to 49-42078, not extra sections supplied with this aluminized kit. No new DPF, converter, sensor, muffler, valve, intake filter or coupler is listed.

2019-2026 Ram 2500 / 3500 with 6.7L Cummins turbodiesel, matching Mega Cab / standard short bed with 160-inch wheelbase or Crew Cab / standard short bed with 149-inch wheelbase. Current exact product page and own May 2026 manual agree through 2026. Actual diesel engine, rear-DPF interface, cab/bed and wheelbase remain required for every named grade. No gas-engine version, other wheelbase, long-bed layout or cab-and-chassis fitment is inferred. Named years below follow the exact selected retailer table, retaining older SLT, Laramie Longhorn and Lone Star limits rather than extending every grade uniformly.

Use extension 05-142878 only on Mega Cab / standard short bed with 160-inch wheelbase. Crew Cab / standard short bed with 149-inch wheelbase omits it. One extension joint and its 5-inch band are therefore not installed on the shorter configuration; the bill still supplies four 5-inch bands.

Main tubes are ALUMINIZED STEEL, not aluminum and not the shared-bill stainless alternative kit. ONE polished stainless tip is selected with 5-inch inlet, 7-inch outlet and 15-inch length. Tip service identity is 49T50701-P15; generic black retailer copy does not change the selected polished finish.

Factory DPF and emissions equipment stay installed. Remove exhaust only to BACK OF DPF. Reuse original hanger and isolation mounts. No replacement DPF, converter, sensor, muffler or valve is listed.

Support factory exhaust separately. Install front pipe with 4.5-inch band, applicable Mega Cab extension, rear pipe, over-axle, tailpipe and selected tip. Keep joints loose for alignment, check all surrounding clearances and tighten evenly FRONT to REAR.

BAND CLAMPS require 40-45 ft-lb. No separate numeric decorative-tip torque is printed. Re-tighten ALL clamps and hardware after 50-100 miles. Listed configurations require no cutting per current exact manufacturer.

No actual dyno or flow chart is linked for this exact selection. Manufacturer smooth-sound and flow descriptions do not independently establish a numeric horsepower, torque or EGT gain, fuel-economy improvement or cabin-drone guarantee. Current no-EO wording does not resolve legacy Non-CARB restriction or provide blanket jurisdiction clearance.

Installation Instructions

Verify aFe 49-02078-P.

1. Read both pages of own May 2026 manual, all SIXTEEN steps, full bill and diagram. Inspect supplied parts for shipping damage; cool exhaust and wear eye/hand protection. Use vehicle-manual jack-stand positions and support factory exhaust separately with jacks/stands. Keep new joints loose until fully installed for adjustment.
2. Remove factory exhaust only UP TO THE BACK OF THE DIESEL PARTICULATE FILTER. Factory DPF and emissions equipment stay installed. Lay out selected ALUMINIZED parts as own diagram shows.
3. Install front pipe 05-142877 with supplied 4.5-inch band 05-410241. For MEGA CAB / SHORT BED, 160-inch wheelbase, install extension 05-142878 with one supplied 5-inch band. For CREW CAB / SHORT BED, 149-inch wheelbase, OMIT extension. Do not cut or force the extension into the shorter configuration.
4. Install rear pipe 05-142879 with a 5-inch band and engage its hangers in original factory mounts. Install over-axle 05-242011 with a 5-inch band, then tailpipe 05-242012 with a 5-inch band; engage tailpipe hanger in original isolation mount.
5. Install selected polished tip and adjust its position. Check safe clearance from all wires, hoses, brake lines, body parts and tires. Align and tighten evenly from FRONT to REAR. BAND CLAMPS require 40-45 FT-LB; no separate numeric decorative-tip torque is supplied.
6. Start vehicle, check for leaks and repair any found before lowering safely from stands. Re-tighten ALL clamps and hardware after 50-100 miles. Current exact primary states no cutting or modifications for listed configurations. No battery-disconnection, sensor relocation, valve transfer or coding procedure is printed.

No actual dyno or flow chart is linked for this exact selection. Manufacturer smooth-sound and flow descriptions do not independently establish a numeric horsepower, torque or EGT gain, fuel-economy improvement or cabin-drone guarantee. Current no-EO wording does not resolve original Non-CARB restriction or authorize DPF/sensor deletion. Own selected bill supplies aluminized main sections, not the alternative stainless kit. Generic black-tip wording on the polished retailer overview conflicts with selected polished primary and own P15 bill; polished identity is retained.
