aFe BladeRunner Jeep Wrangler JL 2.0L Hot Charge Pipe - Black 18–23

BladeRunner charge piping for the exact engine

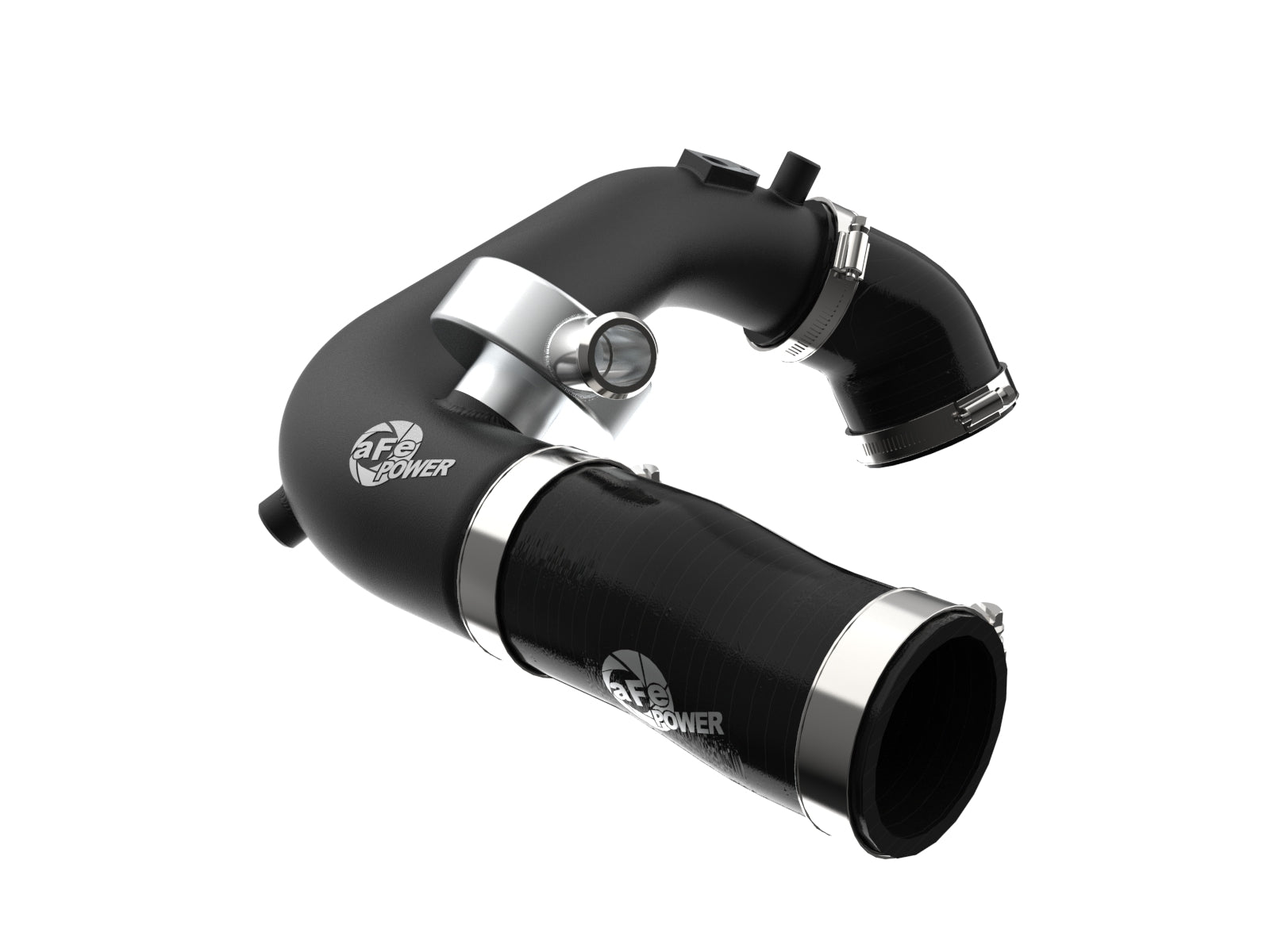

The aFe 46-20468-B replaces the specified Wrangler JL 2.0L turbo original charge pipe with a single wrinkle black aluminum tube. The original blow-off valve actuator and sensors are transferred.

Key Features

• TIG-welded aluminum charge pipe with five-ply polyester-reinforced silicone couplings and four stainless SmartSeal clamps.

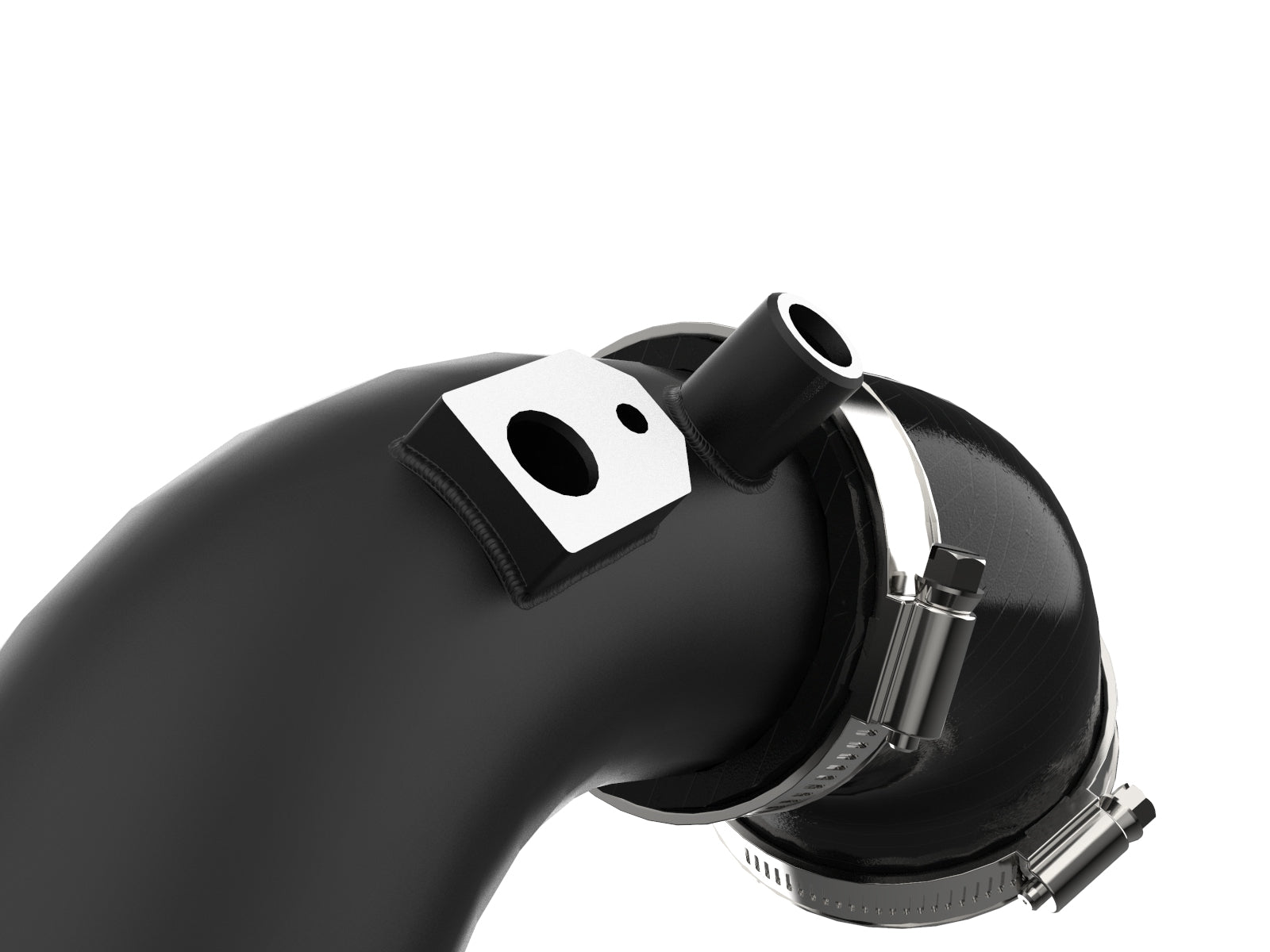

• Factory sensor and pipe mounting provisions plus exact engine-cover spacer hardware.
• One 1/8-inch NPT accessory port with a supplied plug; no water/methanol system or sensor included.
• Manufacturer reports up to 38% increased flow and test gains up to 5 hp and 7 lb-ft; these are manufacturer comparisons, not guaranteed results on every vehicle.

Fitment

46-20468-B: The exact primary page and manual list Wrangler JL 2018–2023 2.0L turbo, extending beyond the old store title. A Wrangler trim name alone does not establish its installed engine; existing named trim/year mappings are not a complete engine-specific table. The newer 2024+ pipe uses a different exact part and installation sequence; do not exchange their actuator hardware or emissions claims.

Specifications

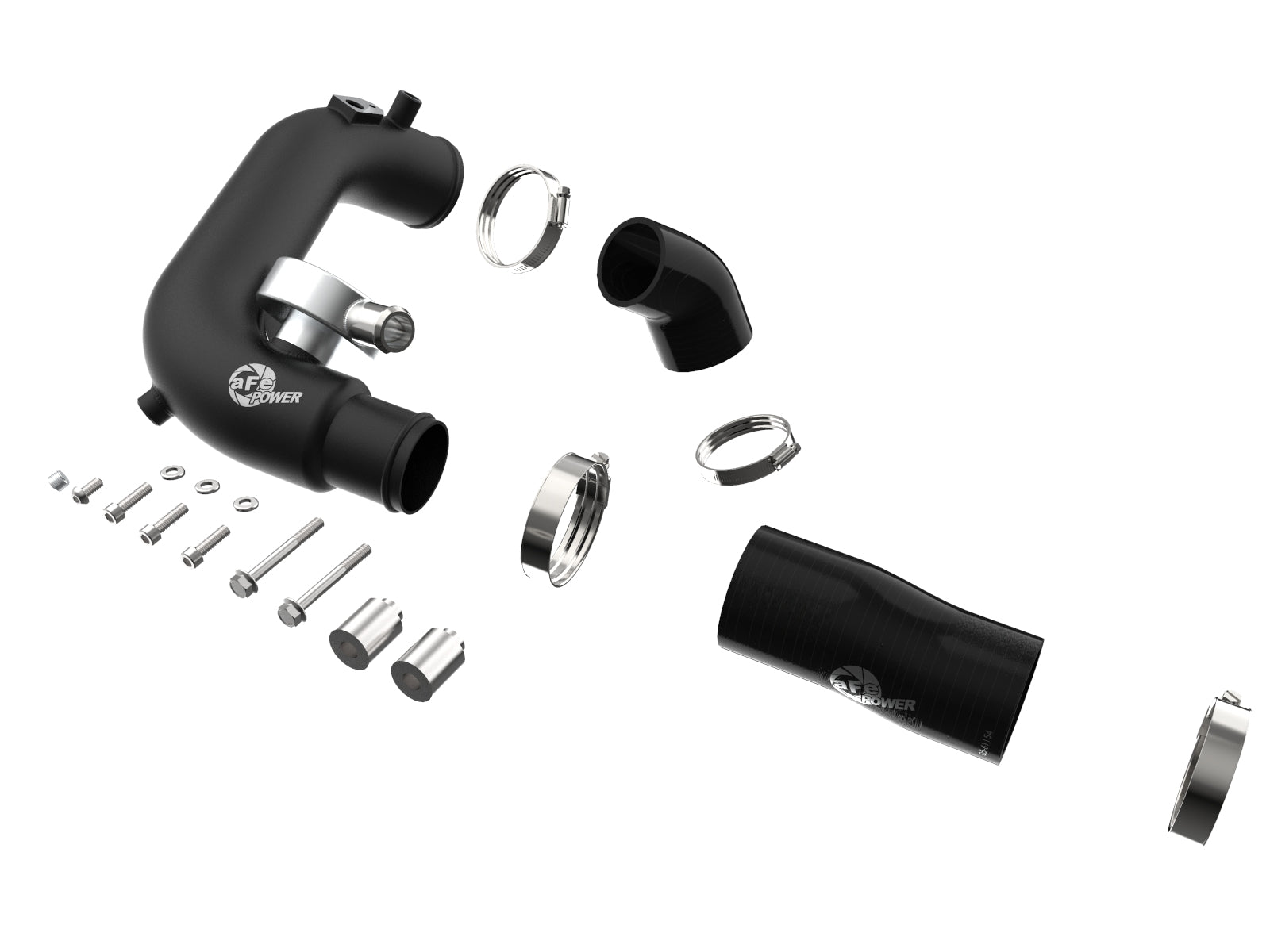

What's Included

• One 2.5-inch aluminum charge pipe in the specified finish.
• One 2.75 x 2.5-inch 45-degree silicone reducer elbow and one 2-inch ID x 5.6-inch-long 10-degree silicone coupling.
• Four SmartSeal 044 clamps, listed range 2.5–3.06 inches; one 1/8-inch NPT plug.
• One M6 x 1.0 x 12 mm button-head MAP sensor screw.
• Two M6 x 1.0 x 50 mm flange screws and two 22 mm OD x 30 mm engine-cover spacers.
• Three M6 x 1.0 x 20 mm socket-head screws and three M6 washers for transferring the original blow-off actuator.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.

replaces the specified Wrangler JL 2.0L turbo original charge pipe with a single wrinkle black aluminum tube. The original blow-off valve actuator and sensors are transferred.

No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.

Original temperature and MAP sensors, blow-off valve actuator, two metal mounting inserts and mounting grommet transfer to the new pipe; no new sensors or valve are supplied.

Four SmartSeal 044 clamps. The exact manual gives no numerical clamp or fastener torque; do not borrow another SmartSeal kit value. Recheck all connections after 50–100 miles.

The exact primary page and manual list Wrangler JL 2018–2023 2.0L turbo, extending beyond the old store title. A Wrangler trim name alone does not establish its installed engine; existing named trim/year mappings are not a complete engine-specific table. The newer 2024+ pipe uses a different exact part and installation sequence; do not exchange their actuator hardware or emissions claims.

No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.

The primary page and exact manual refer to CARB EO D-550-62 for some or all listed applications. Exact EO vehicle/year scope has not been verified here; confirm the actual engine, year and EO applicability before California use. This statement does not extend exemption to later kits or all Wrangler powertrains.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20468-B, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Park on level ground, apply the parking brake, let the engine cool and disconnect the negative battery cable as directed. Retain the original hardware and follow the vehicle service procedure around hybrid systems where applicable.
3. Remove the main engine cover. Release the two transmission-breather hose clips from the side cover, loosen its screws and remove it. Unlock and disconnect the MAP and temperature sensor connectors, then disconnect and remove the vent tube.
4. Remove the pipe mounting screw. Unlock and disconnect the blow-off actuator connector, disconnect the charge-air recirculation hose and release the PCV hose at its valve as directed.
5. Loosen the throttle-body and turbo coupling clamps, remove the original pipe and both original couplings. Release stuck connections carefully with the instructed tool.
6. Lubricate the original sensor O-ring with grease as directed, transfer the temperature and MAP sensors and secure the MAP sensor with the supplied M6 x 12 screw.

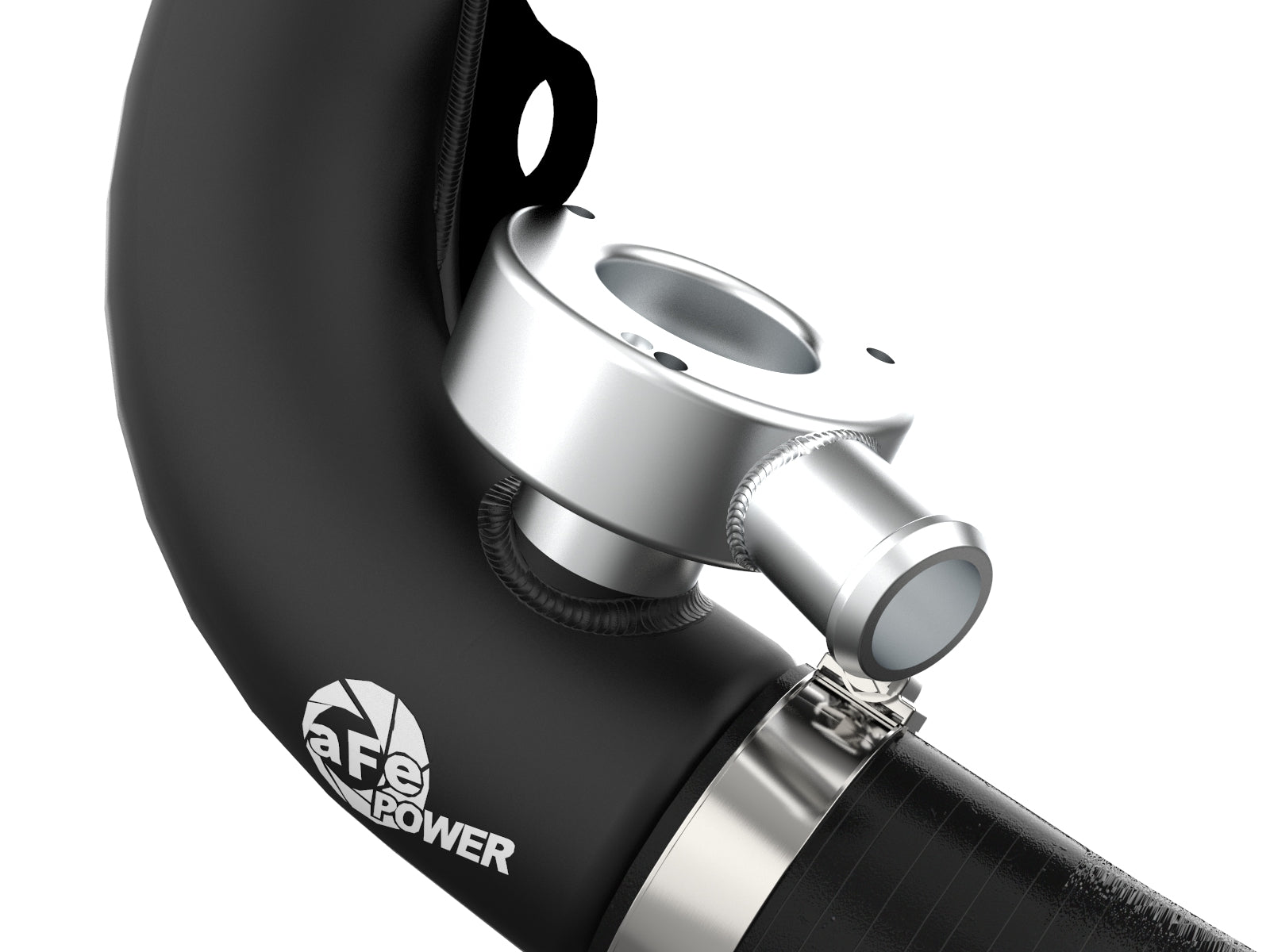

7. Transfer the original blow-off actuator with the three supplied M6 x 20 screws and M6 washers.
8. Seal the unused accessory port with the supplied NPT plug and suitable thread sealant. Transfer both factory metal inserts and the pipe mounting grommet.
9. Clean oil from mating surfaces. Fit the 2.75 x 2.5-inch 45-degree coupling at the throttle body and the 2-inch ID x 5.6-inch 10-degree coupling to the pipe, using two SmartSeal clamps per coupling. Install the pipe, align its factory mount and couplings, tighten clamps as directed and secure with the factory mounting screw. No numerical torque is given in the exact instructions.
10. Reconnect the vent tube securely and keep it clear of the charge pipe. Restore the PCV hose, blow-off actuator connector and recirculation hose. Reconnect the temperature and MAP sensors and lock their security tabs.
11. Reinstall the side cover using its factory screws and reattach the transmission-breather hose clips. Replace the two metal inserts under the main cover grommets with the supplied 22 x 30 mm spacers, then install the main cover using the supplied M6 x 50 flange screws.
12. Reconnect the battery as directed; check connections, leaks, wiring and clearance. Recheck every connection after 50–100 miles.

46-20468-B: inspect every connection and resolve the documented kit discrepancies before operation.
