aFe BladeRunner Street Series Tube & Fin Aluminum Radiator 09-13 GM Gas Trucks 5.3L V8

Bigger Core, Lower Temps, More Confidence for the 1999-2002 GMC Sierra 2500

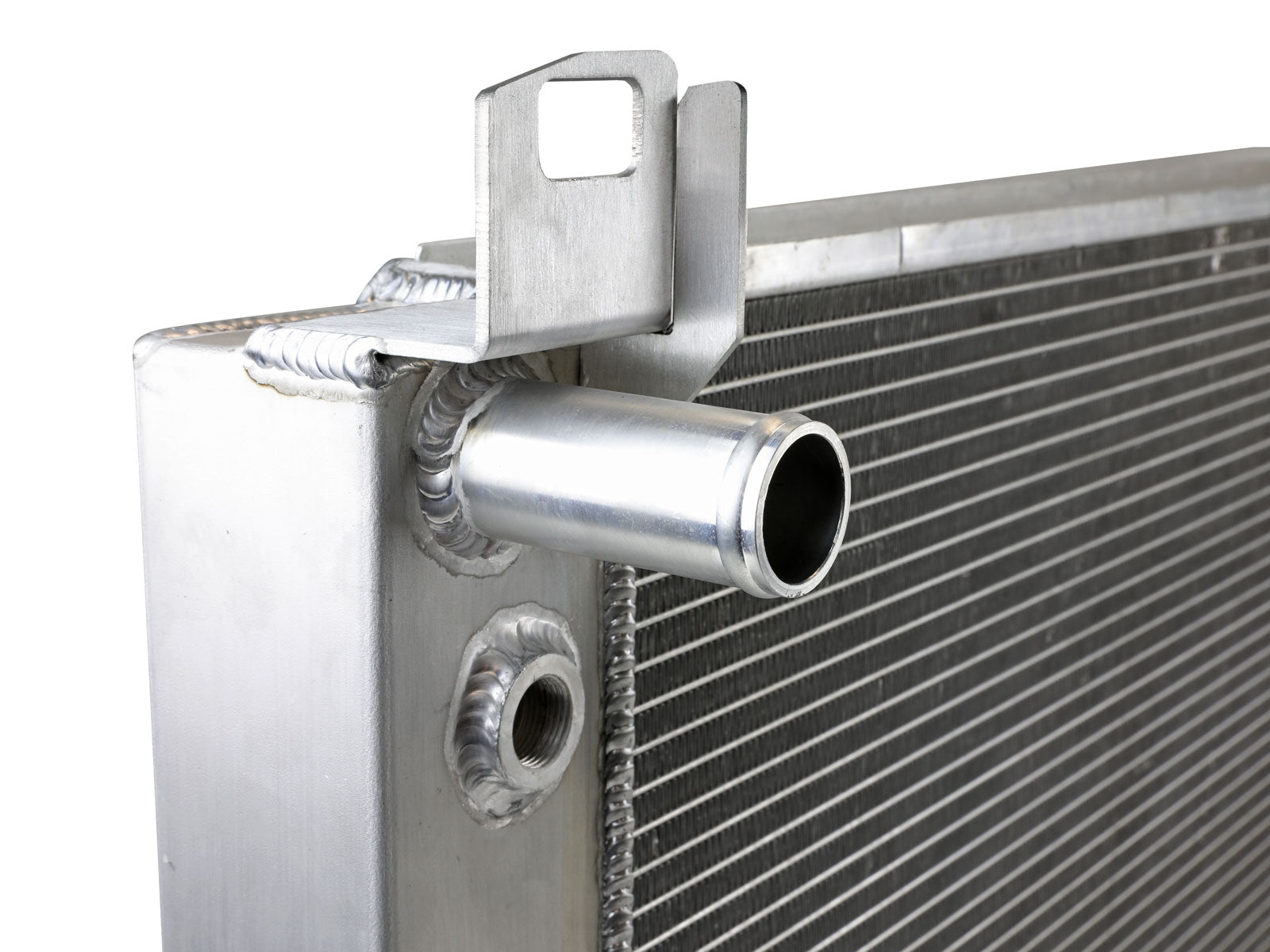

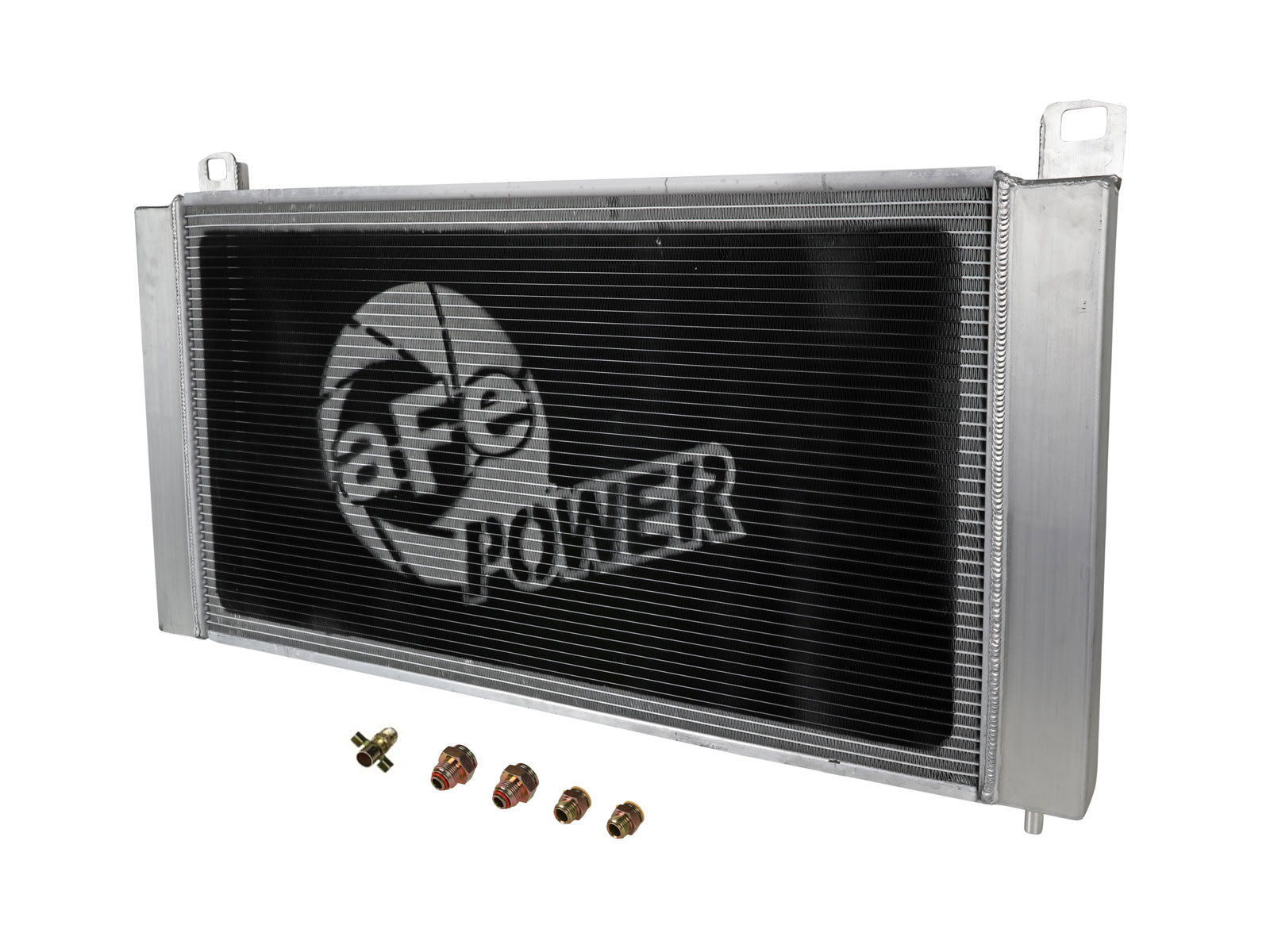

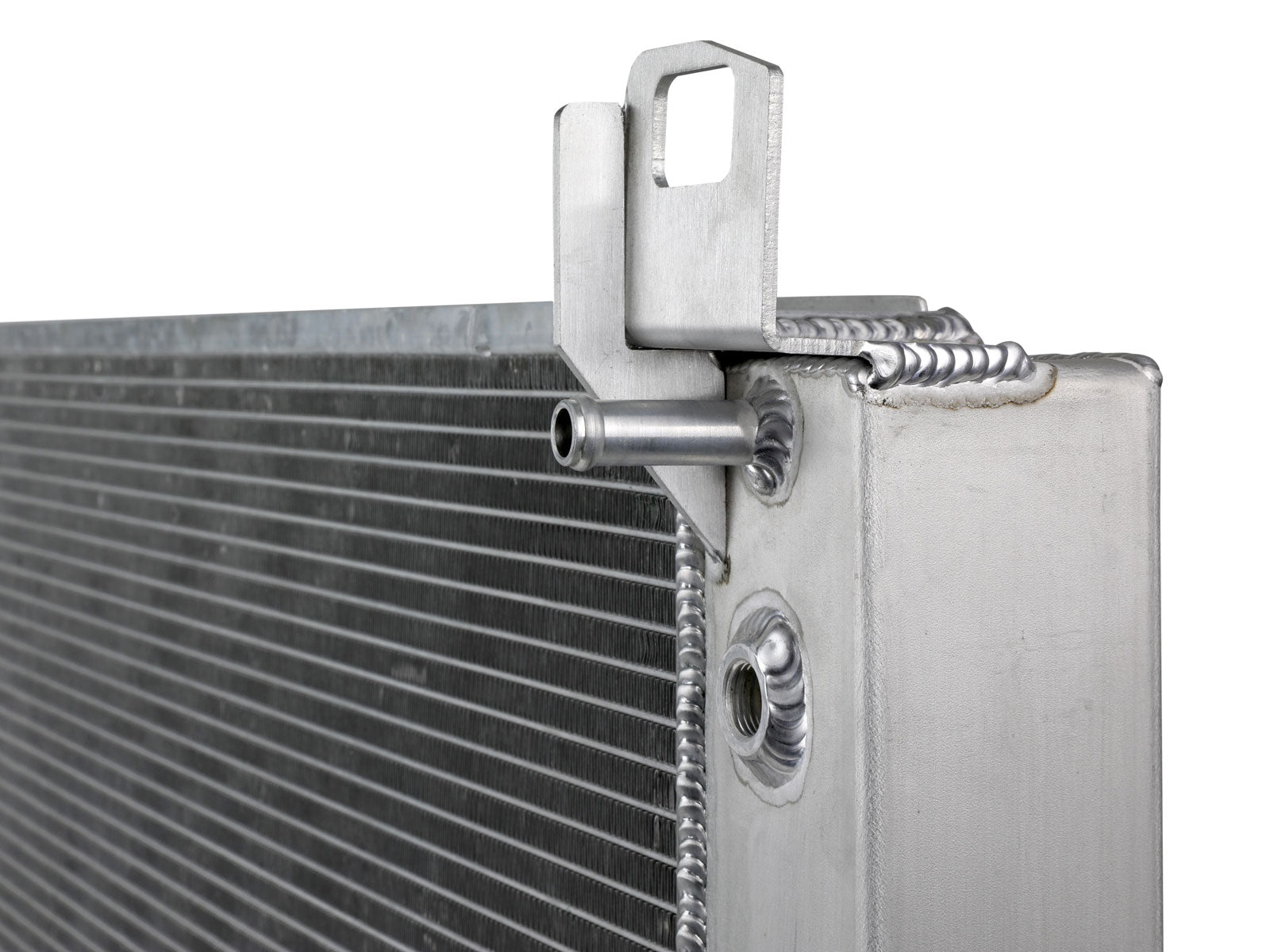

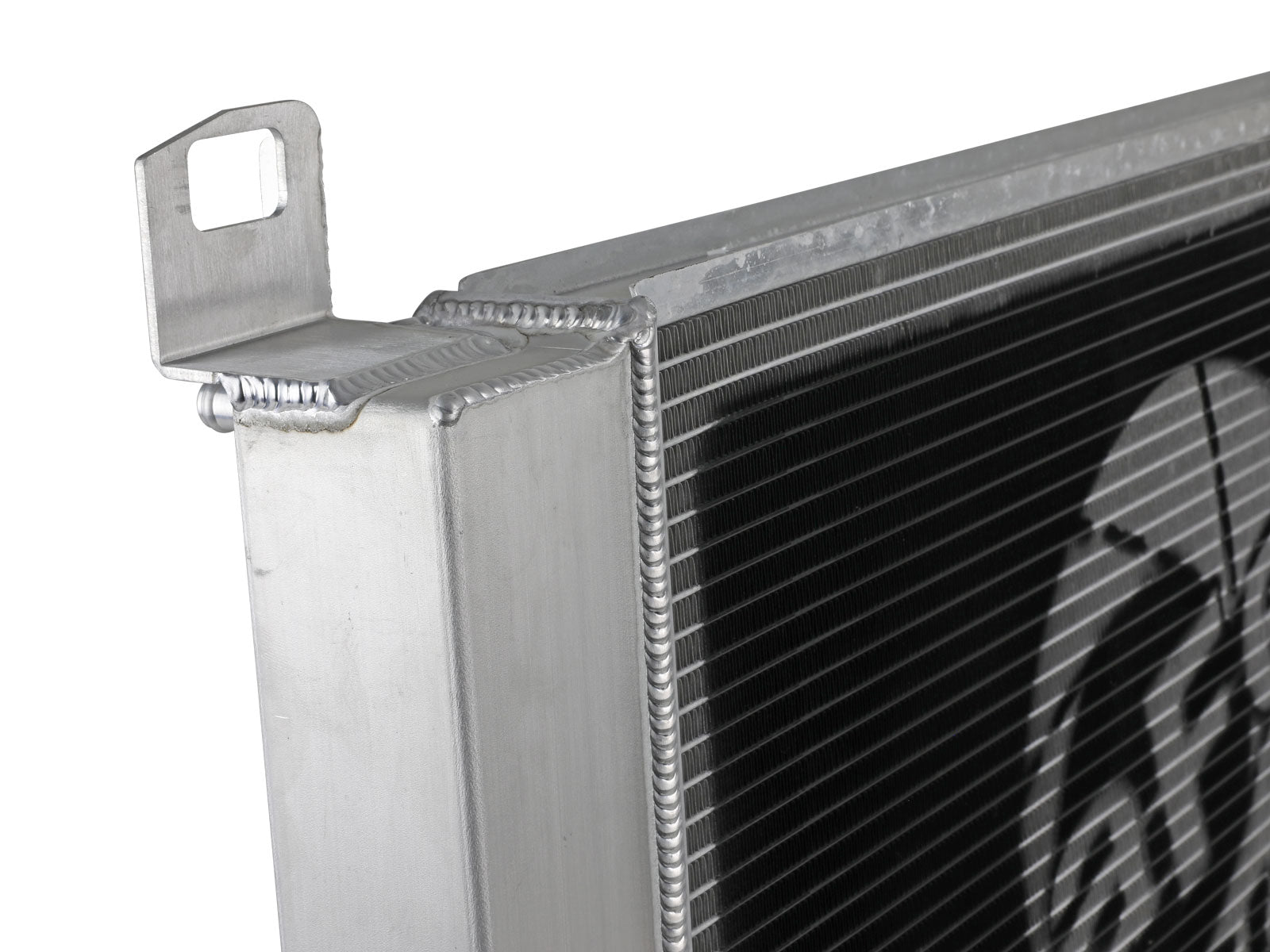

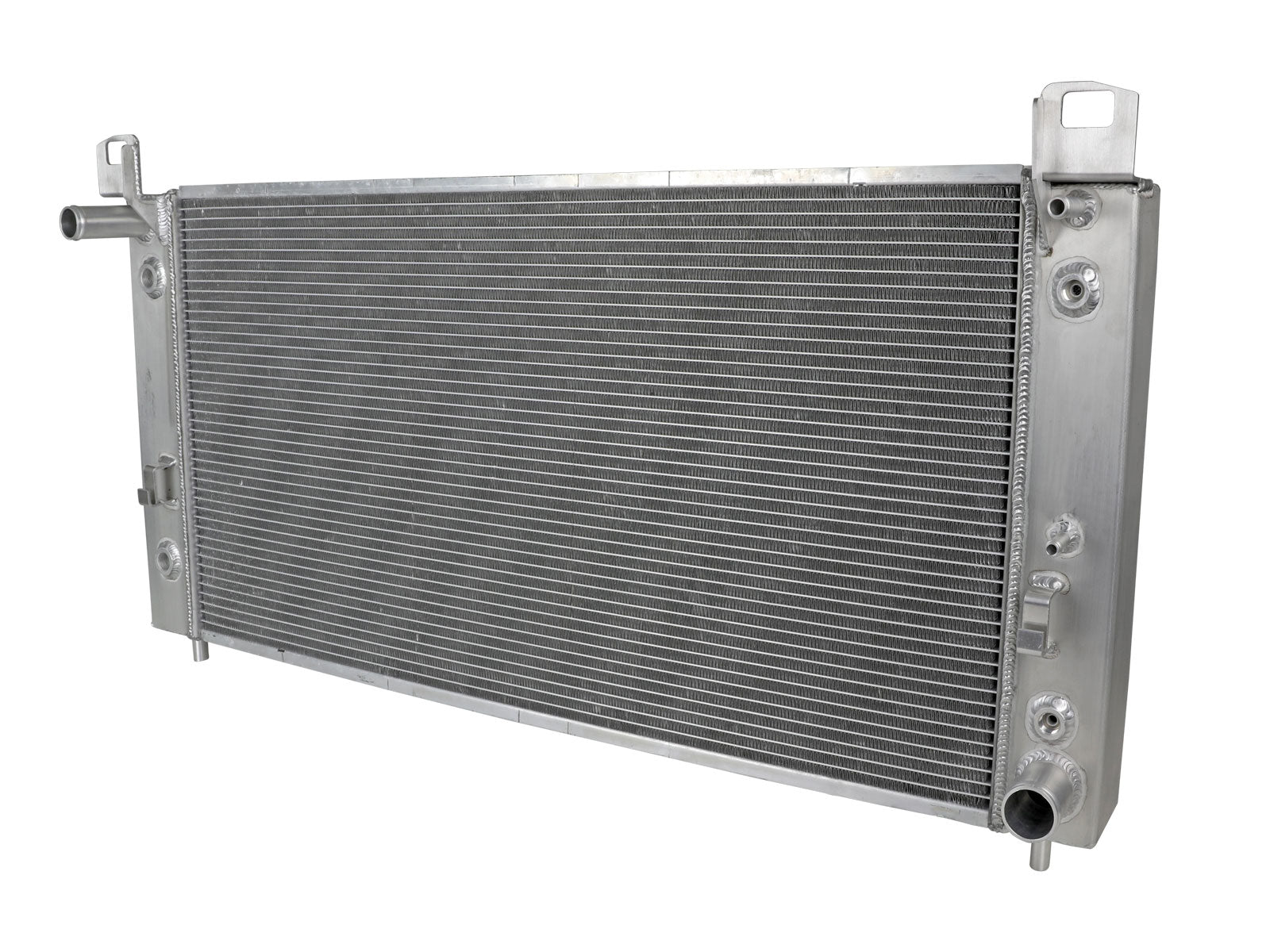

The aFe BladeRunner Street Series heavy-duty radiator 46-52161 replaces the factory heavy-duty radiator with a larger-core, higher-capacity unit engineered to maintain safe coolant temperatures under the sustained loads that overwhelm the OEM cooler. Built with an expanded core design compared to the factory unit, this is a direct bolt-on replacement that uses factory mounting points, hoses, and connections without any cutting or custom fabrication. For diesel trucks, towing rigs, and high-output builds running harder than the factory heavy-duty radiator was designed for, the 46-52161 is a critical upgrade.

Key Features

• Expanded core design for superior thermal dissipation
• Direct bolt-on using factory mounting brackets and hose connections
• Higher coolant capacity than OEM for improved thermal buffering
• Compatible with factory coolant hoses and fittings
• Designed for high-load applications: towing, diesel trucks, and performance builds
• Backed by aFe Power BladeRunner limited manufacturer warranty

Fitment

Specifications

What's Included

• aFe BladeRunner heavy-duty radiator (46-52161)
• All required hardware and fittings
• Installation instructions

Frequently Asked Questions

Yes. The 46-52161 is designed to interface with the factory coolant overflow reservoir using OEM-compatible hose fittings. No reservoir modification or replacement is required in most applications.

Yes. Whenever replacing a radiator or cooler, flush the entire cooling system with clean distilled water before installing the new unit. This ensures no old degraded coolant or debris is introduced into the fresh system.

Use the coolant type and concentration specified in your owner's manual. For diesel and high-output applications, a fully formulated extended-life coolant with a supplemental coolant additive (SCA) package is recommended. Do not mix different coolant chemistries.

The 46-52161 is designed around OEM fan placement and clearances. For electric fan upgrades, confirm radiator thickness and fan positioning against your specific fan kit before ordering.

Yes. The expanded core capacity of the 46-52161 is specifically designed to address coolant temperature excursions during sustained towing or high-load operation that the factory radiator cannot adequately manage.

Many OEM radiators have integrated transmission cooler ports. If the 46-52161 replicates these ports, your factory trans cooler lines will connect directly. Verify this with the product listing or contact us before ordering if you have an integrated cooler.

aFe Power provides a limited manufacturer warranty on BladeRunner radiators covering defects in materials and workmanship. Warranty does not cover damage from improper installation, overheating events, or using incompatible coolant chemistry. Contact us for full warranty documentation.

Most experienced installers complete a radiator swap in two to four hours. Budget additional time if the vehicle has significant rust on hose connections or a complex fan shroud mounting system.

Installation Overview

1. Allow the engine to cool completely and safely lift the vehicle for access to the front fascia
2. Drain the cooling system using the factory drain petcock or lower radiator hose
3. Remove the upper and lower radiator hoses and any transmission cooler lines
4. Disconnect the fan shroud and carefully remove it before lifting the radiator out
5. Remove the factory mounting bolts and lift the radiator straight up and out
6. Compare the new 46-52161 to the old unit for mounting hole alignment before installation
7. Lower the new radiator into position and secure all mounting hardware
8. Reinstall the fan shroud, reconnect all hoses, and transfer any transmission cooler line fittings
9. Refill with fresh coolant at the correct concentration, start the engine, and bleed the system of air
10. Check for leaks at all connections after reaching operating temperature
