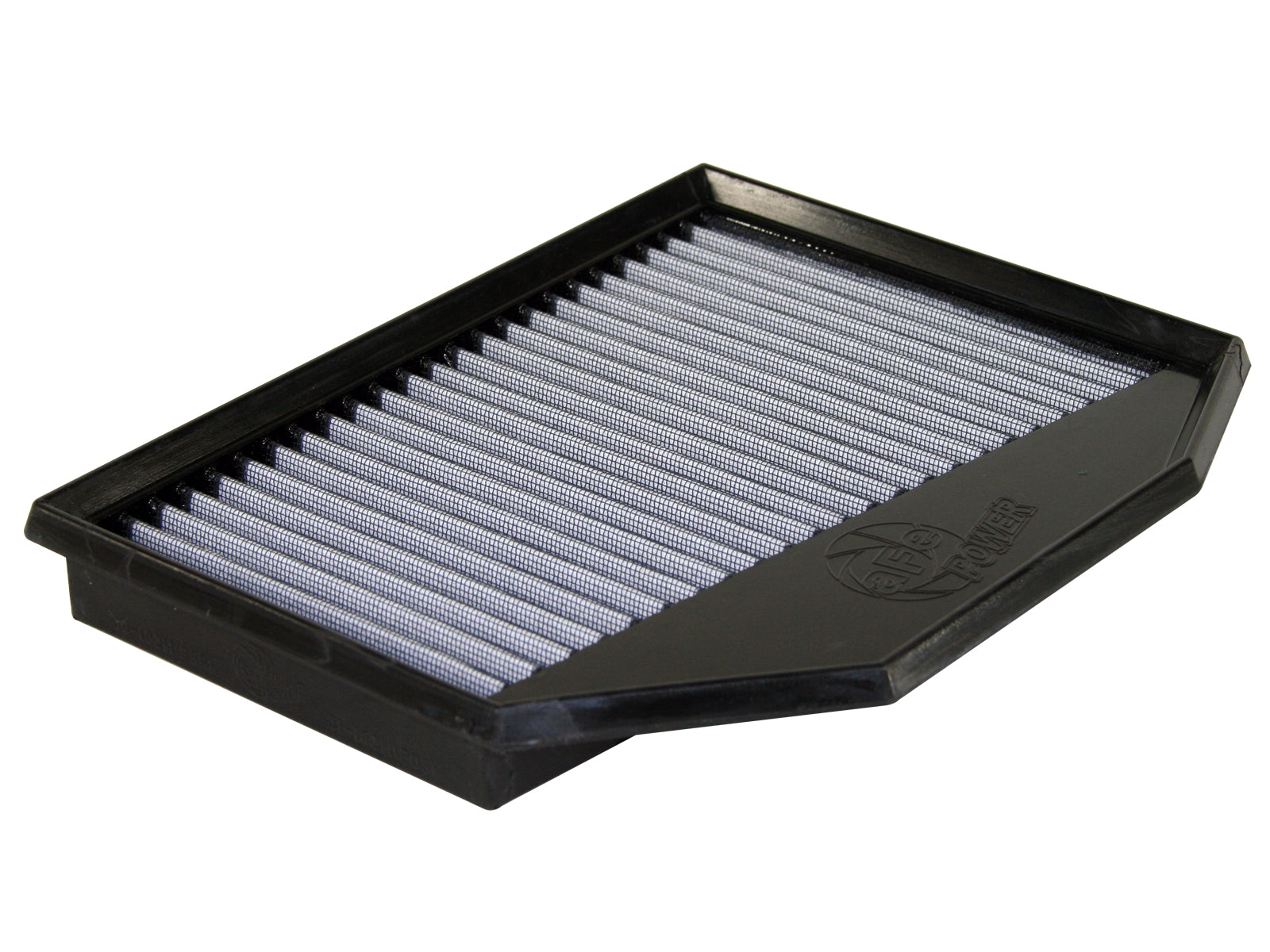

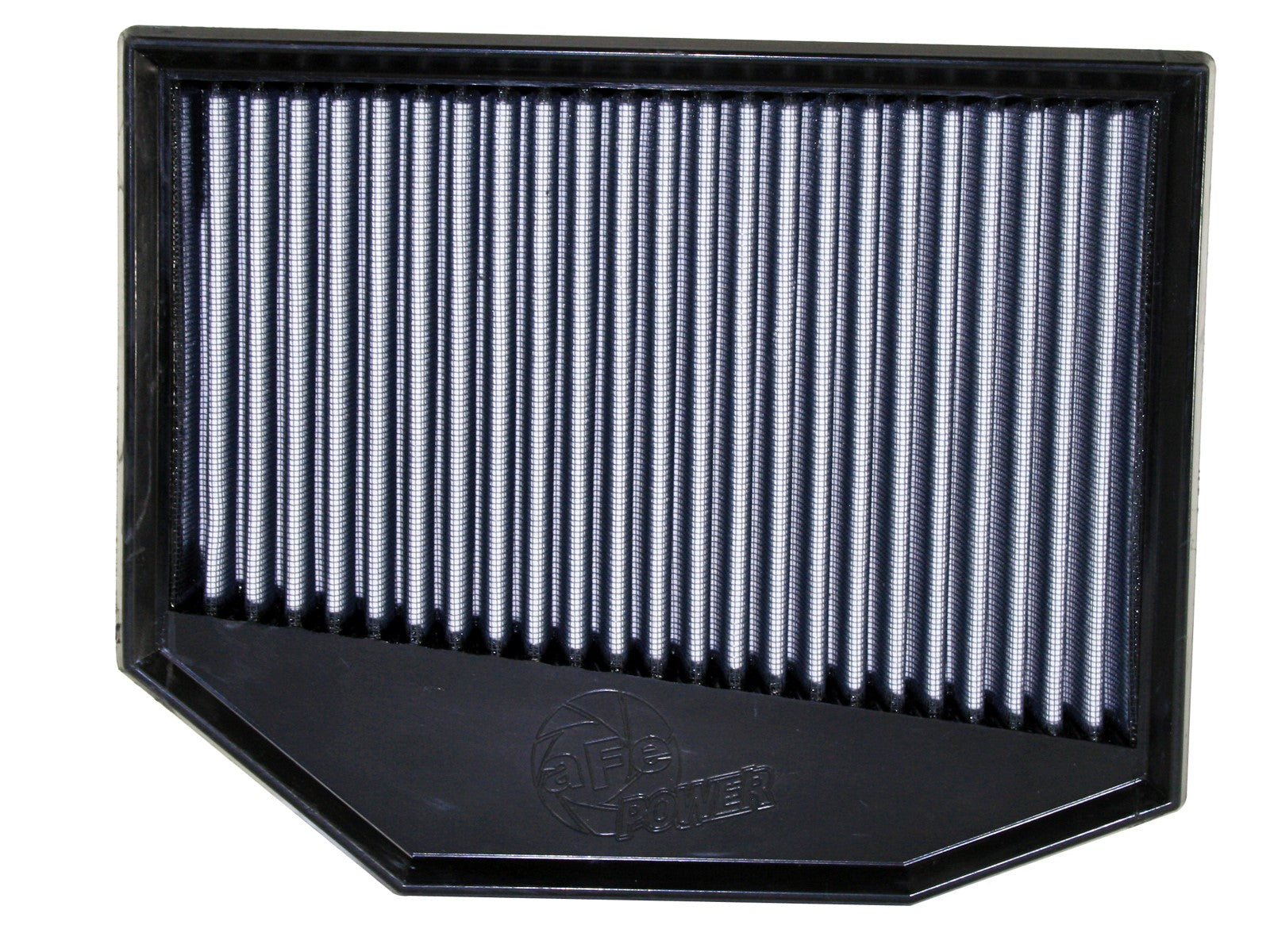

aFe MagnumFLOW Air Filters OER PDS A/F PDS BMW X3 05-10 / Z4 06-08 L6-3.0L

Pro DRY S replacement with the correct engine and housing

The aFe 31-10211 replaces the original airbox filter in the specified applications with oil-free synthetic media. The exact current manufacturer identifies X3 E83 2006–2010 and Z4 E85/E86 2006–2008 with the N52 3.0L engine. Exact ECS and Element Wheels engine tables likewise identify N52, while the exact ML Performance North America table retains X3 3.0i 2005–2006. That original early row is preserved as an unresolved engine/year/housing source conflict, not newly certified M54 interchange and not a claim of physical incompatibility. Original later X3 3.0si/xDrive30i and Z4 coupe/roadster individual ranges remain unchanged. An unbounded ECS sDrive30i entry does not establish a new later E89 Z4 application. The current primary overview contains cotton-gauze wording while the manufacturer Pro DRY S media guidance and exact specialist description identify oil-free synthetic filtration; do not apply oil based on the overview phrase. Its published three-layer and 99.2 percent media statements are not independent boxed-revision inspection.

Key Features

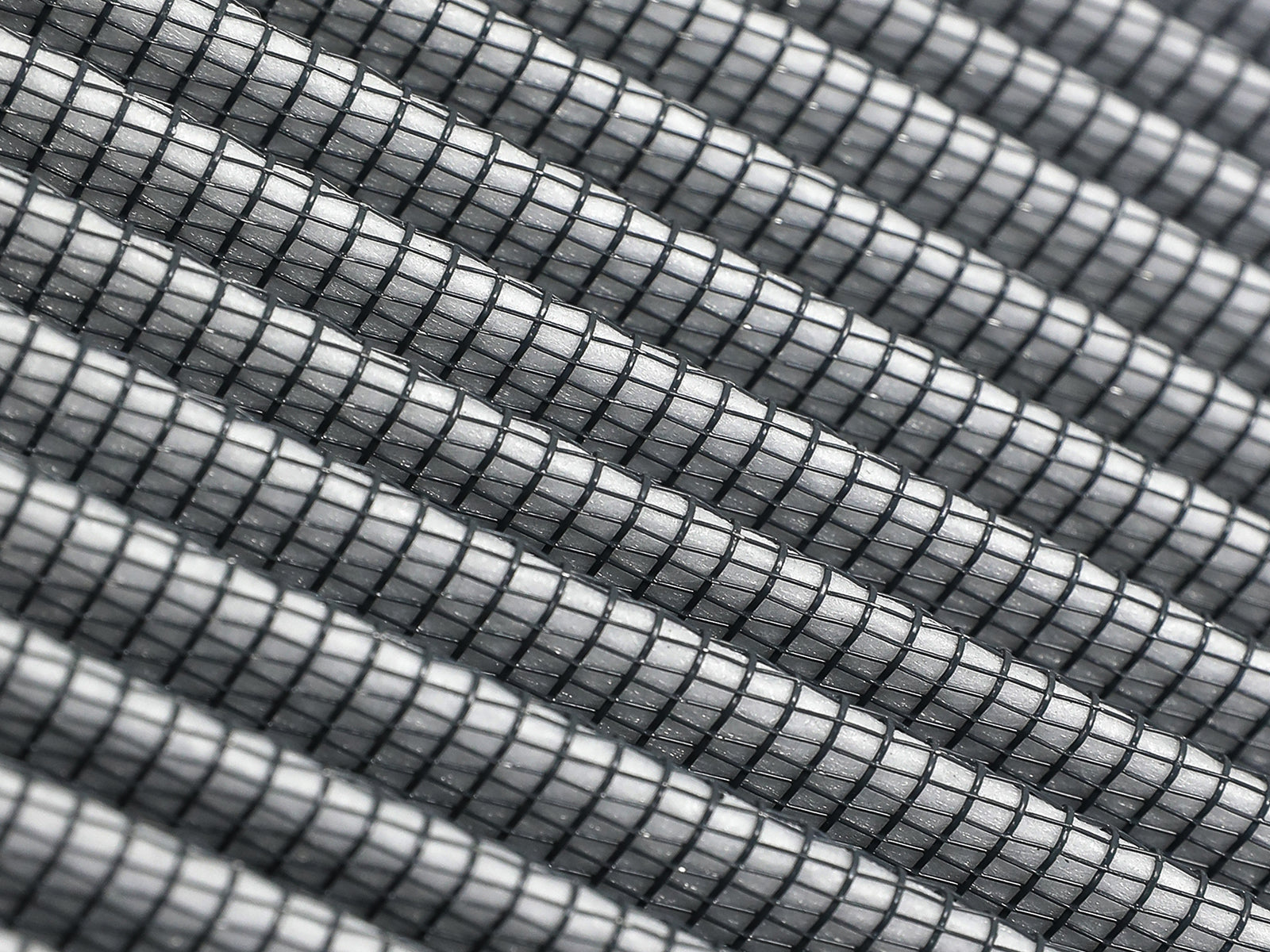

• Oil-free synthetic filtration media.
• Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.
• Rounded open pleats provide usable filter area and dust-holding capacity.
• Full polyurethane perimeter frame and progressive bump seal.
• The exact current manufacturer publishes 99.2 percent Pro DRY S media efficiency but no numerical airflow-gain or engine-power test for this element. This is a published media rating, not a guaranteed installed-engine result.

Fitment

31-10211: verify the exact engine, original element and housing. Model or trim names alone do not establish all-engine interchangeability.

Specifications

What's Included

• One Pro DRY S OE-replacement air-filter element.
• No complete airbox, intake tube, sensor, separate coupler kit or filter-service supplies are documented as included.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power filter configurations; compare the exact original housing and engine.
• Manufacturer filter-media maintenance guidance; follow the oil-free Pro DRY S cleaning routine.

Frequently Asked Questions

One Pro DRY S OE-replacement air-filter element for the verified housing and engine application described here; this is not a complete intake system.

The exact current manufacturer identifies X3 E83 2006–2010 and Z4 E85/E86 2006–2008 with the N52 3.0L engine. Exact ECS and Element Wheels engine tables likewise identify N52, while the exact ML Performance North America table retains X3 3.0i 2005–2006. That original early row is preserved as an unresolved engine/year/housing source conflict, not newly certified M54 interchange and not a claim of physical incompatibility. Original later X3 3.0si/xDrive30i and Z4 coupe/roadster individual ranges remain unchanged. An unbounded ECS sDrive30i entry does not establish a new later E89 Z4 application. The current primary overview contains cotton-gauze wording while the manufacturer Pro DRY S media guidance and exact specialist description identify oil-free synthetic filtration; do not apply oil based on the overview phrase. Its published three-layer and 99.2 percent media statements are not independent boxed-revision inspection.

Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.

The exact current manufacturer publishes 99.2 percent Pro DRY S media efficiency but no numerical airflow-gain or engine-power test for this element. This is a published media rating, not a guaranteed installed-engine result.

Its progressive bump seal and full polyurethane perimeter frame conform to the original housing. The manufacturer says separate filter gaskets or sealants are not required; the existing housing must still close and secure correctly.

The exact listing identifies an OE-replacement filter. A generic Coupler Included field does not establish a separate hose package; no airbox, tube, sensor, cleaner or oil bottle is documented as supplied.

No. Exact retailer detail positively retains it, but the current N52 manufacturer heading and the earlier engine/year scope conflict. Verify the original element and housing; shared E83 naming or displacement is not sufficient proof.

Inspect according to actual dust exposure and restriction. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media. Use low-pressure rinse from the clean side toward the dirty side, let the element dry naturally before reinstalling. Do not use heat, compressed air or any filter oil. Do not treat an older general-care mileage example as a guaranteed interval for every vehicle or environment.

Installation Instructions

1. Read the exact manufacturer product information for 31-10211 and the original vehicle airbox service procedure.
2. With the engine off and cool, compare the new filter and original element, including the sealing interface. Resolve an engine or housing mismatch before installation.
3. Open the original housing according to its service procedure, remove the old element and keep debris out of the clean intake path. Clean the housing seat.
4. Seat the polyurethane frame evenly without folding the bump seal or adding sealant. Close and secure the original housing and inspect all its attachments.
5. Washable oil-free synthetic media. Use the specified aFe POWER CLEANER, rinse appropriately and dry fully; do not apply air-filter oil. The current exact manufacturer specifies three layers of oil-free synthetic media.

No vehicle-specific installation PDF or numeric airbox torque is linked on this exact manufacturer page. Follow the original housing service procedure and the correct oil-free Pro DRY S maintenance directions. Read the manufacturer media maintenance guidance.

31-10211: verify the original filter interface before operation.
