aFe BladeRunner Street Wastegate Actuator Dodge 5.9L 1994-1998

Application-specific wastegate control

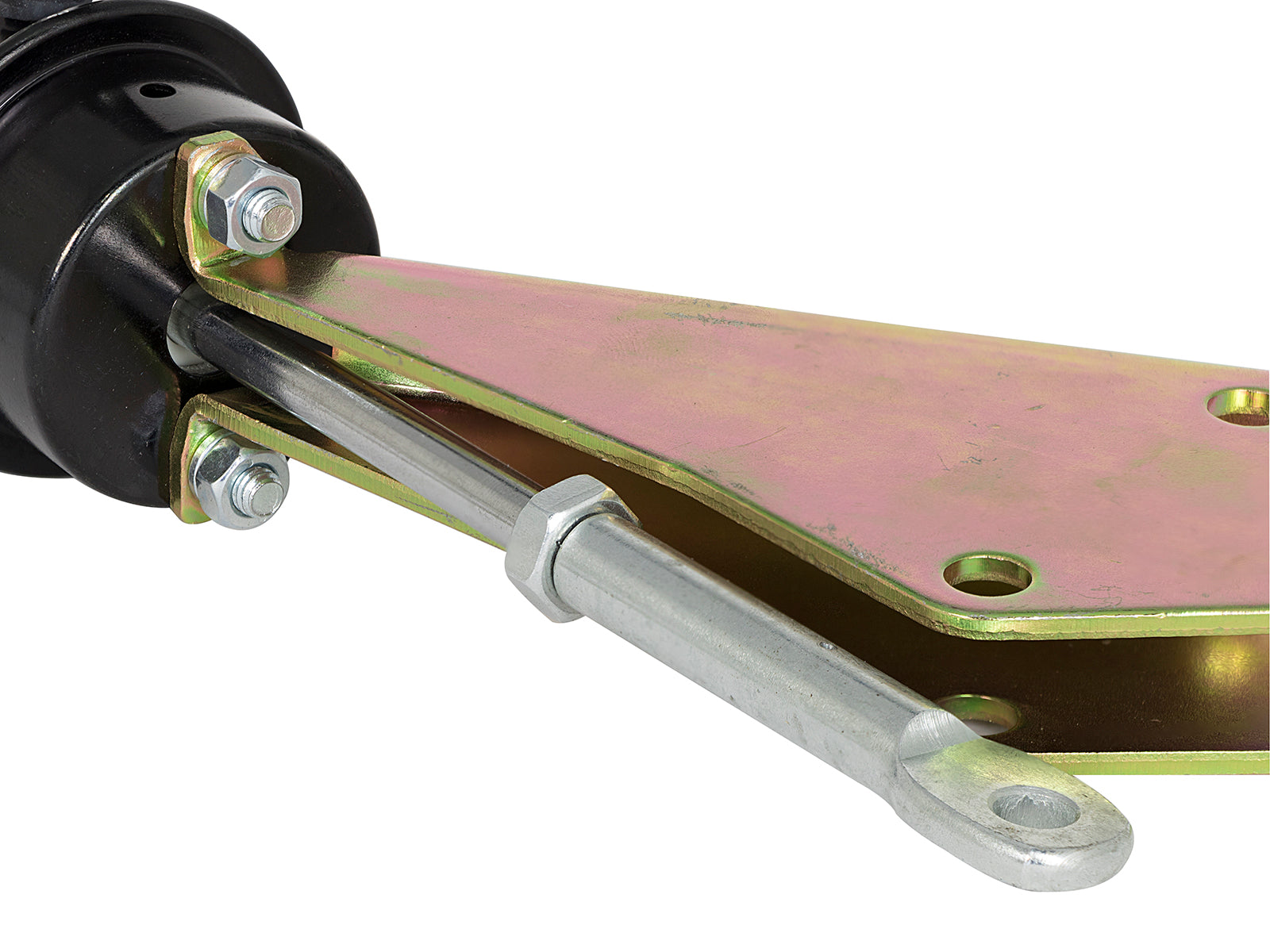

The aFe 46-60118 wastegate-control component is for the specified 1994-1998 Dodge Ram 2500/3500 5.9L turbo-diesel with actual documented factory-turbo/linkage configuration application. Street Series hard-coated black stamped-steel pneumatic actuator with adjustable rod/end link and locking jam nut; current primary describes heavier spring and larger diaphragm.

Key Features

• Street Series hard-coated black stamped-steel pneumatic actuator with adjustable rod/end link and locking jam nut; current primary describes heavier spring and larger diaphragm.
• Match the exact cooling component, engine, chassis and supplied hardware.
• Verify turbocharger identity, pneumatic signal, linkage and matching boxed revision.
• The current exact primary listing says no CARB EO number is required, but its November 2016 linked manual visibly carries a race-use-only restriction. This is a primary-source conflict; the Street series name does not certify road legality. Actual current boxed/jurisdictional approval remains unresolved.

Fitment

46-60118: The current exact listing and November 2016 own-part manual identify 1994-1998 Dodge Ram 2500/3500 5.9L turbo-diesel. Original year bounds are preserved while Base pseudo-labels become model-level coverage conditional on actual turbo/linkage. The 1998 transition is not permission to fit the other 1998.5 actuator interchangeably; verify engine/turbo production and exact rod/hose interfaces. The later actuator's transmission-year restrictions or broader 2007 bounds are not transferred to this part.

Specifications

What's Included

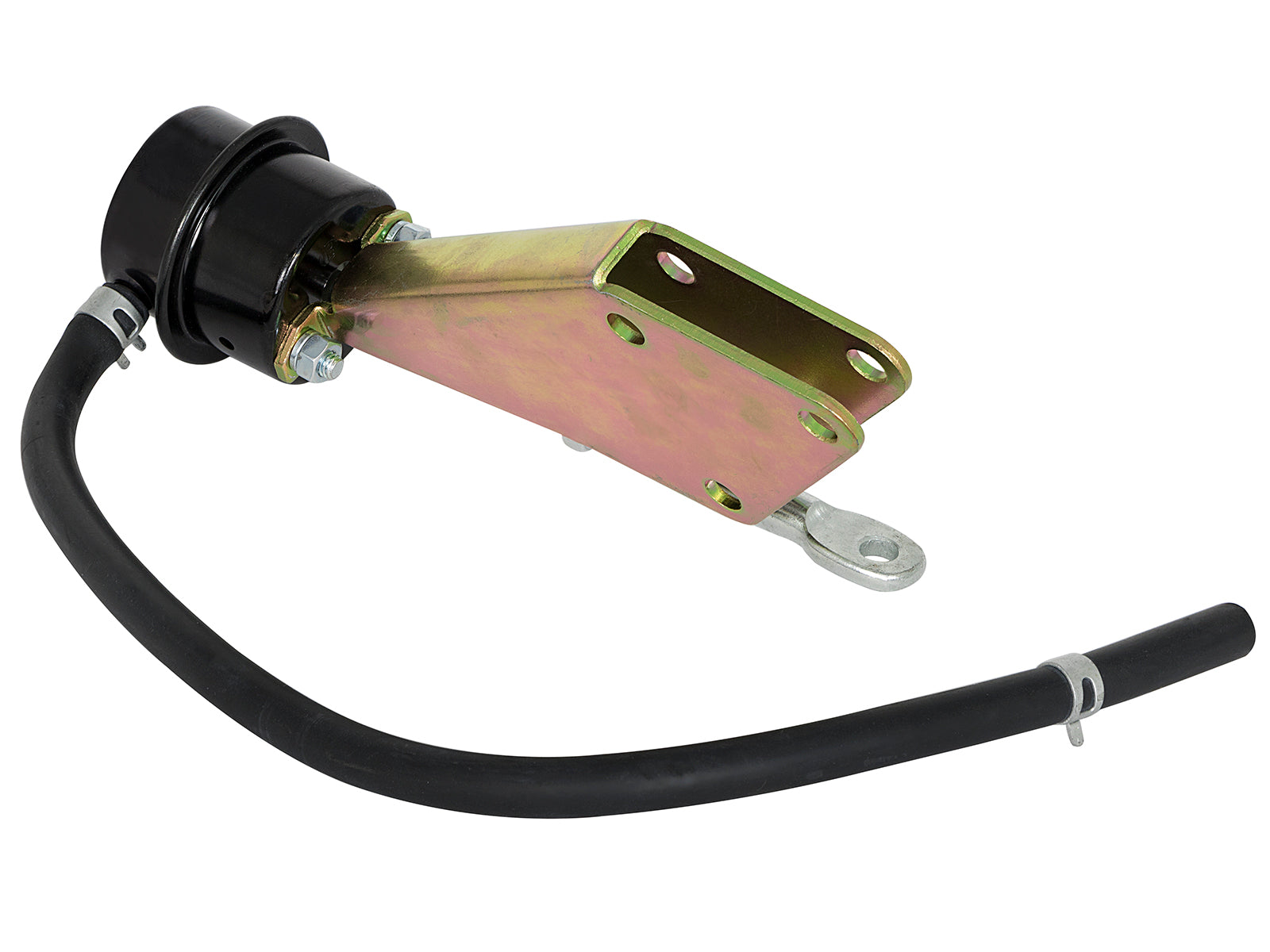

• One actuator, two mini clamps, two additional washers, twelve inches of 1/4-inch-ID hose, two M6 lockwashers and two M6 nuts as printed in its own exact sheet. Original wastegate-arm E-clip is retained. The two extra washers and 1/4-inch hose belong to this kit; the later kit's seven-inch 3/16-inch hose is not substituted. No turbocharger, filter, controller, intercooler coupler or fluid is supplied.
• The November 2016 exact sheet describes its just-engaging starting point plus one clockwise end-link rotation for approximately 40 psi actuator opening and limits installation compressed air to 50 psi maximum. This is not a universal engine boost setting or validated 20-60 psi operating range. Resolve boxed revision and race-only manual restriction before assuming use approval.

Related Parts

Explore aFe Power cooling parts. Match the wastegate actuator to the exact engine, turbocharger and linkage.

Frequently Asked Questions

Street Series hard-coated black stamped-steel pneumatic actuator with adjustable rod/end link and locking jam nut; current primary describes heavier spring and larger diaphragm. Engine requirement: 1994-1998 Dodge Ram 2500/3500 5.9L turbo-diesel with actual documented factory-turbo/linkage configuration.

The current exact listing and November 2016 own-part manual identify 1994-1998 Dodge Ram 2500/3500 5.9L turbo-diesel. Original year bounds are preserved while Base pseudo-labels become model-level coverage conditional on actual turbo/linkage. The 1998 transition is not permission to fit the other 1998.5 actuator interchangeably; verify engine/turbo production and exact rod/hose interfaces. The later actuator's transmission-year restrictions or broader 2007 bounds are not transferred to this part.

One actuator, two mini clamps, two additional washers, twelve inches of 1/4-inch-ID hose, two M6 lockwashers and two M6 nuts as printed in its own exact sheet. Original wastegate-arm E-clip is retained. The two extra washers and 1/4-inch hose belong to this kit; the later kit's seven-inch 3/16-inch hose is not substituted. No turbocharger, filter, controller, intercooler coupler or fluid is supplied.

Match the supplied 1/4-inch-ID hose to actual actuator/compressor barbs, seating and clamping both ends with the two mini clamps. Use this kit's supplied washer/lockwasher/nut hardware with the actual mounting arrangement and restore the original arm E-clip. The manual does not give a separate universal placement/torque for each loose washer; follow actual assembly instructions.

This pneumatic actuator service does not open engine oil, coolant or ATF circuits. Check matching linkage travel, secured jam nut/E-clip and both signal-hose clamps. No universal boost target, service-fluid amount or numerical torque is supplied.

The exact sheet supplies no numerical mounting-nut or jam-nut torque; its 10 mm socket size is a tool dimension. Use matching factory/boxed-hardware tightening instructions rather than a different actuator or pipe-clamp torque.

The own sheet removes original mounting bolts, E-clip and signal hose/clamps, removes the actuator and fits the replacement with supplied hardware. Verify the exact mounting/rod arrangement instead of copying a different kit's fastener count or hose size.

The November 2016 exact sheet describes its just-engaging starting point plus one clockwise end-link rotation for approximately 40 psi actuator opening and limits installation compressed air to 50 psi maximum. This is not a universal engine boost setting or validated 20-60 psi operating range. Resolve boxed revision and race-only manual restriction before assuming use approval. Cool fully and verify exact 1994-1998 engine/turbo and boxed actuator. A qualified installer should remove original bolts, retained E-clip and hose/clamps, remove actuator and install the replacement using this kit's specific hardware. Follow its own just-engaging linkage starting point and matching one-turn service setup, securing the jam nut. Fit twelve-inch 1/4-inch-ID hose with supplied mini clamps; apply only regulated air within the 50 psi installation maximum when positioning the rod as directed, reinstall the retained E-clip and connect/clamp the hose at the compressor housing. Verify hardware, hose routing and free operation. Do not borrow later hose dimensions, transmission restrictions or another part's setup. The primary-listing versus race-only-manual use restriction remains a hold.

Installation Instructions

Read the current manufacturer listing for 46-60118 and full exact-family installation manual.

Cool fully and verify exact 1994-1998 engine/turbo and boxed actuator. A qualified installer should remove original bolts, retained E-clip and hose/clamps, remove actuator and install the replacement using this kit's specific hardware. Follow its own just-engaging linkage starting point and matching one-turn service setup, securing the jam nut. Fit twelve-inch 1/4-inch-ID hose with supplied mini clamps; apply only regulated air within the 50 psi installation maximum when positioning the rod as directed, reinstall the retained E-clip and connect/clamp the hose at the compressor housing. Verify hardware, hose routing and free operation. Do not borrow later hose dimensions, transmission restrictions or another part's setup. The primary-listing versus race-only-manual use restriction remains a hold.

The own sheet removes original mounting bolts, E-clip and signal hose/clamps, removes the actuator and fits the replacement with supplied hardware. Verify the exact mounting/rod arrangement instead of copying a different kit's fastener count or hose size.

The exact sheet supplies no numerical mounting-nut or jam-nut torque; its 10 mm socket size is a tool dimension. Use matching factory/boxed-hardware tightening instructions rather than a different actuator or pipe-clamp torque.

This pneumatic actuator service does not open engine oil, coolant or ATF circuits. Check matching linkage travel, secured jam nut/E-clip and both signal-hose clamps. No universal boost target, service-fluid amount or numerical torque is supplied.

46-60118: The November 2016 exact sheet describes its just-engaging starting point plus one clockwise end-link rotation for approximately 40 psi actuator opening and limits installation compressed air to 50 psi maximum. This is not a universal engine boost setting or validated 20-60 psi operating range. Resolve boxed revision and race-only manual restriction before assuming use approval.
