aFe Takeda Catback — Civic Type R FK8, Tri-Polished Tips

FK8 Civic Type R Takeda cat-back with three black outlets

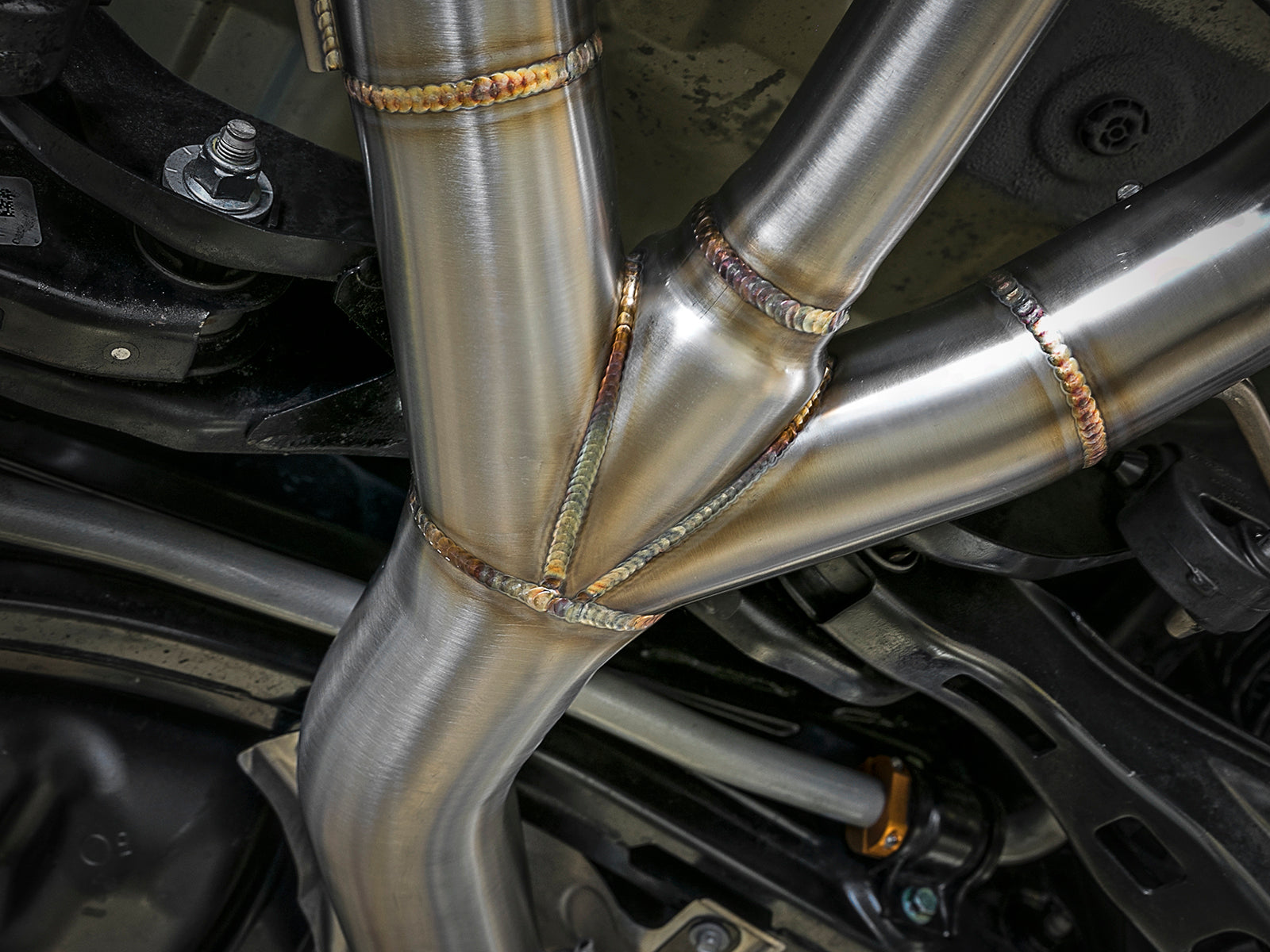

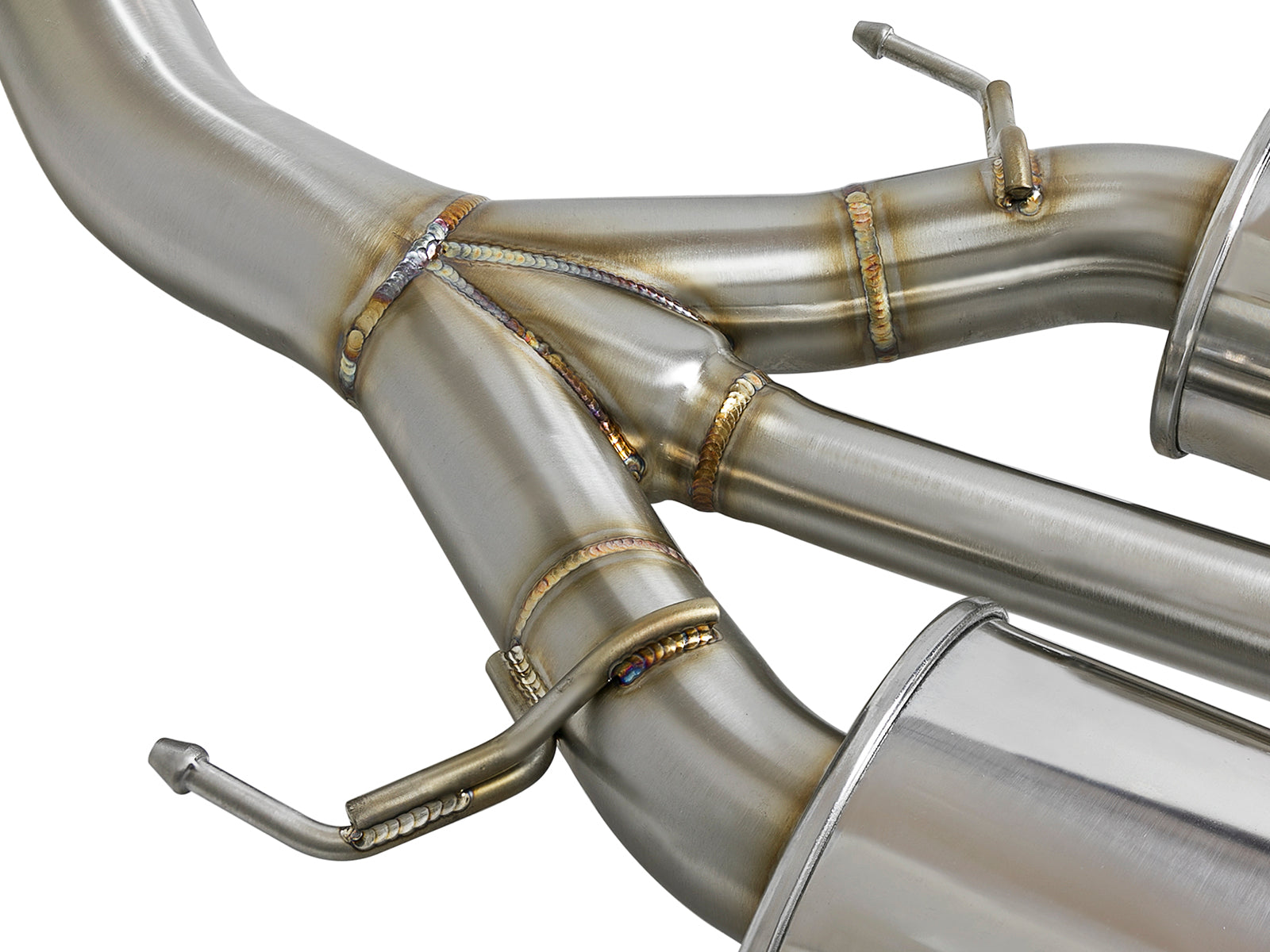

The aFe 49-36623-P Takeda cat-back uses 3-inch mandrel-bent brushed 304 stainless tubing, hand TIG welds and a mitered three-way collector. Two free-flowing 304 stainless mufflers flank a center open pipe, ending in three 4-inch double-wall polished stainless tips. The selected current manufacturer application is gasoline turbo 2.0L Civic Type R, 2017–2021; the selected guide identifies FK8/K20C1.

Key Features

• Selected aFe part 49-36623-P.
• 3-inch brushed 304 stainless main tubing, hand TIG welds and mitered three-way collector.

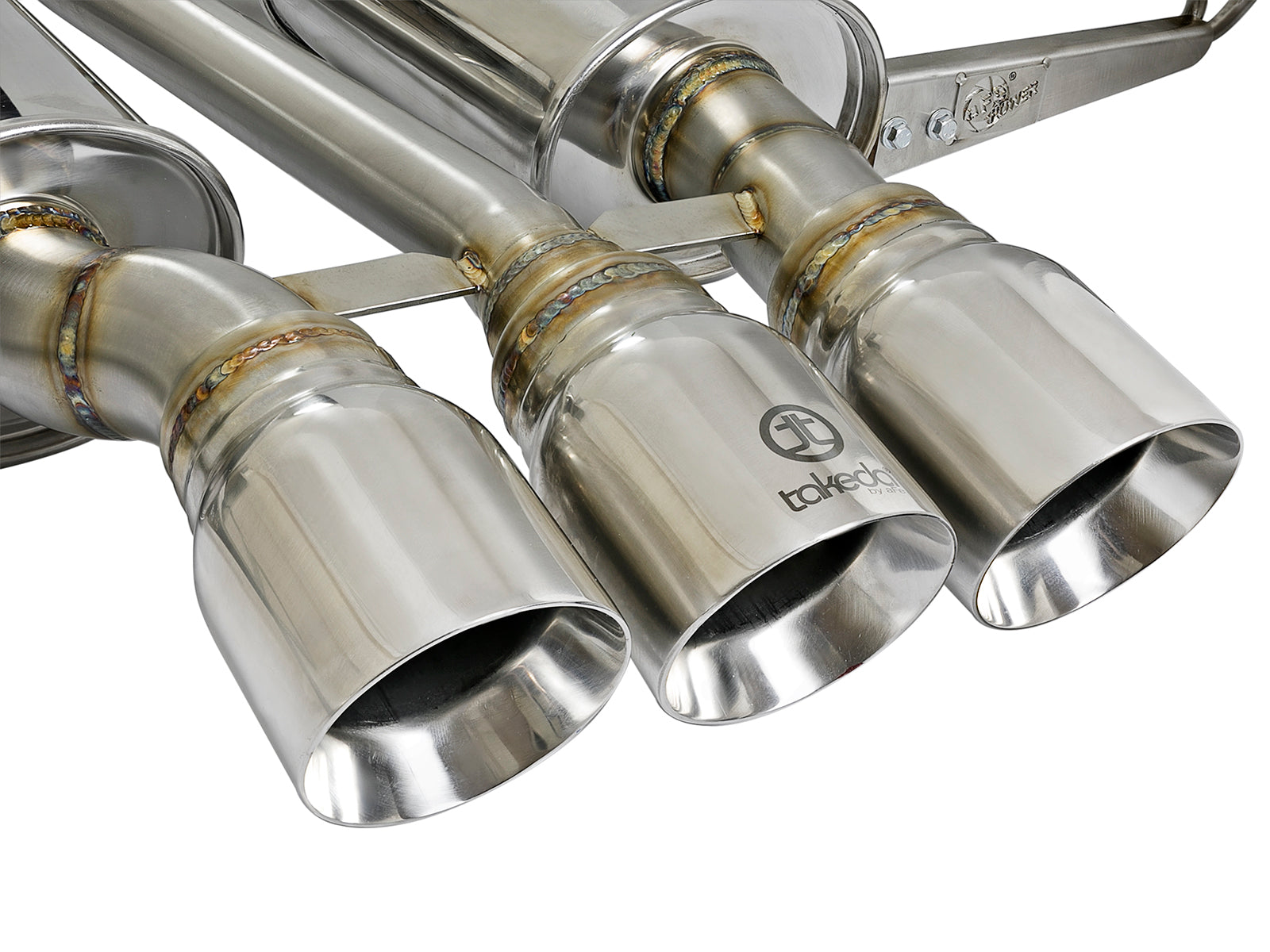

• Two free-flowing 304 stainless mufflers plus a center open pipe, with three 4-inch double-wall polished stainless outlets; no unprinted tip-alloy grade is guaranteed.
• Current exact application is 2017–2021 Civic Type R FK8 turbo 2.0L. aFe explicitly excludes the European FK2; the older guide’s 2022 header does not create a U.S. 2022 FK8 or later FL5 approval.
• one front pipe 05-145192, one resonator 49-91042, one mid-pipe 05-145194, one selected polished-tip muffler assembly 05-145402P, one passenger bracket 05-46284, one driver bracket 05-46285, four screws 03-50100, four nylon-insert locknuts 03-50073 and one three-hole gasket 05-46192. The muffler assembly contains two mufflers and three polished tips; alternative finish assemblies are not also supplied.
• The diagram labels two 3-inch bands 05-41055, while steps 8, 9 and 10 each call for one 3-inch band at three joints. The actual supplied clamp quantity remains unresolved: confirm the correct packing list and all three connections with aFe before disassembly; do not silently treat two illustrated bands as a complete three-joint bill or invent an extra supplied clamp.
• The selected guide requires negative-battery disconnection and later reconnection. Transfer original rubber mounts, reuse original front nuts and install the one supplied three-hole gasket.
• No numeric torque or fixed clearance dimension is printed. Obtain applicable settings, align before final tightening and retighten all clamps and bolts after 50–100 miles.
• The current selected page claims +19 hp/+20 lb-ft, but its own linked chart’s red run is explicitly titled 49-36616-C 3-inch exhaust, a different selected part number/finish. At 4,861 rpm its point values differ by +18.96 hp and +20.47 lb-ft; separate maxima differ by +8.97 hp and +17.08 lb-ft at different peak rpm. This chart is not established as a measured result for the selected polished-tip system.

Fitment

The exact current manufacturer application row and independently read exact-part named table agree on Civic Type R 2017–2021, gasoline turbo 2.0L. The selected May 2020 guide identifies FK8/K20C1 but prints 2017–2022: retain the current 2021 endpoint rather than extending a named U.S. year from that older header. European FK2 is explicitly excluded; no FL5, ordinary Civic, Si, non-turbo or different-engine mapping is inferred.

Specifications

What's Included

• The 49-36623-P kit includes one front pipe 05-145192, one resonator 49-91042, one mid-pipe 05-145194, one selected polished-tip muffler assembly 05-145402P, one passenger bracket 05-46284, one driver bracket 05-46285, four screws 03-50100, four nylon-insert locknuts 03-50073 and one three-hole gasket 05-46192. The muffler assembly contains two mufflers and three polished tips; alternative finish assemblies are not also supplied.
• The diagram labels two 3-inch bands 05-41055, while steps 8, 9 and 10 each call for one 3-inch band at three joints. The actual supplied clamp quantity remains unresolved: confirm the correct packing list and all three connections with aFe before disassembly; do not silently treat two illustrated bands as a complete three-joint bill or invent an extra supplied clamp.
• Reuse original front nuts and original rubber mounts. One new three-hole gasket is explicitly supplied; no new battery, catalyst, sensor, intake filter or separate ECU controller is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact selected manufacturer system and FK2 exclusion
• Complete selected 17-step guide and component diagram
• Selected-page linked different-part-number chart with explicit qualification
• Full exact-part named application table
• Shop cat-back exhausts

FAQ

It is the selected 3-inch 304 stainless Takeda cat-back for FK8 Civic Type R turbo 2.0L, with dual mufflers, center open pipe and three polished tips.

Current exact manufacturer and named secondary table support 2017–2021 FK8/K20C1. The guide’s 2022 header does not create a new U.S. year. European FK2 is explicitly excluded and no FL5 approval is inferred.

No. The exact current primary specifies two mufflers and a center open pipe, ending in three polished tips. The selected rear assembly is 05-145402P; the other listed finishes are alternatives.

one front pipe 05-145192, one resonator 49-91042, one mid-pipe 05-145194, one selected polished-tip muffler assembly 05-145402P, one passenger bracket 05-46284, one driver bracket 05-46285, four screws 03-50100, four nylon-insert locknuts 03-50073 and one three-hole gasket 05-46192. The muffler assembly contains two mufflers and three polished tips; alternative finish assemblies are not also supplied.

The diagram labels two 3-inch bands 05-41055, while steps 8, 9 and 10 each call for one 3-inch band at three joints. The actual supplied clamp quantity remains unresolved: confirm the correct packing list and all three connections with aFe before disassembly; do not silently treat two illustrated bands as a complete three-joint bill or invent an extra supplied clamp.

Secure the original exhaust, disconnect the negative battery terminal, remove the three front nuts and original exhaust, and transfer its rubber mounts. The selected guide later reconnects the battery before starting and checking for leaks.

No numeric torque is printed. Obtain applicable factory and supplied-hardware settings, align the system and brackets before final tightening, then retighten all clamps and bolts after 50–100 miles.

The current selected page claims +19 hp/+20 lb-ft, but its own linked chart’s red run is explicitly titled 49-36616-C 3-inch exhaust, a different selected part number/finish. At 4,861 rpm its point values differ by +18.96 hp and +20.47 lb-ft; separate maxima differ by +8.97 hp and +17.08 lb-ft at different peak rpm. This chart is not established as a measured result for the selected polished-tip system.

Installation Instructions

1. Confirm aFe 49-36623-P against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Confirm FK8 turbo 2.0L/K20C1, named 2017–2021 range and selected polished rear assembly. Resolve the two-illustrated-versus-three-procedure band quantity with aFe before disassembly. Cool the vehicle; use at least two stands or jacks to support original and new exhaust as the guide requires.
3. Secure the stock exhaust and disconnect the negative battery terminal. Remove the three nuts at the original front connection, release original muffler rubber mounts from the chassis and remove the original exhaust. Transfer its rubber mounts to the Takeda system.

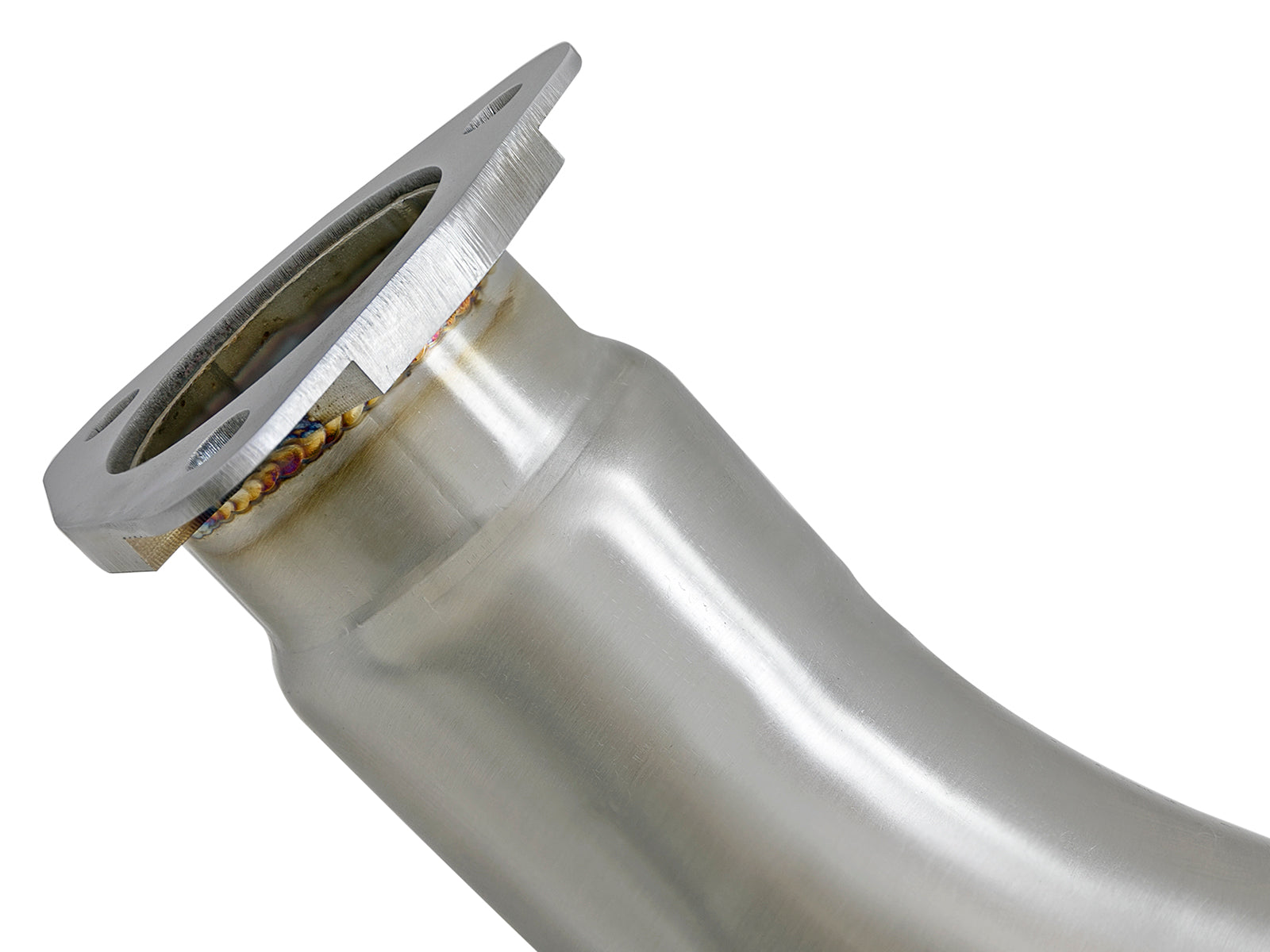

4. Install the selected front pipe using original nuts and the one supplied three-hole gasket, then install the resonator with the selected 3-inch band and tighten as step 8 directs. No numeric torque is supplied.
5. Install mid-pipe to resonator and selected polished muffler assembly to mid-pipe using the remaining confirmed 3-inch bands, leaving those joints loose. The three procedural joints require the confirmed complete packing arrangement.
6. Install right and left bracket hangers using supplied screws and locknuts, leaving them loose. Adjust the complete system and brackets, then tighten once aligned using applicable settings.
7. Reconnect the battery as the selected guide directs, start and check for leaks, and double-check all work. Retighten all clamps and bolts after 50–100 miles. No numeric torque, fixed clearance, sensor or ECU procedure is borrowed.
