SKU: 24-329200

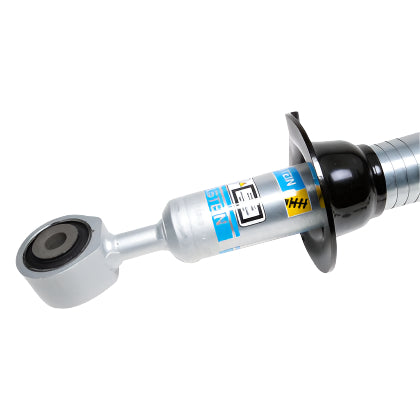

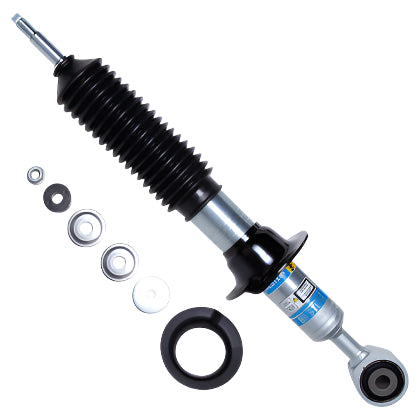

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Overview
- 46mm monotube design ensures consistent fade-free performance in all conditions
- Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
- Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
Features & Benefits
- Adjustable Front Lift Height, Multiple Positions
- Great solution to level your vehicle (superior to coil/strut spacers found in many leveling kits)
- Improved off-road performance
- Front shocks adjust from 0 to 2.8 inches (6 positions)
- Rear shocks fit with 0 to 1 inches of lift
- Mono-Tube Gas Design
- Replaces Factory Struts, Keeps Coil Springs
- Zinc Plated Finish with Clear Coat for Maximum Protection

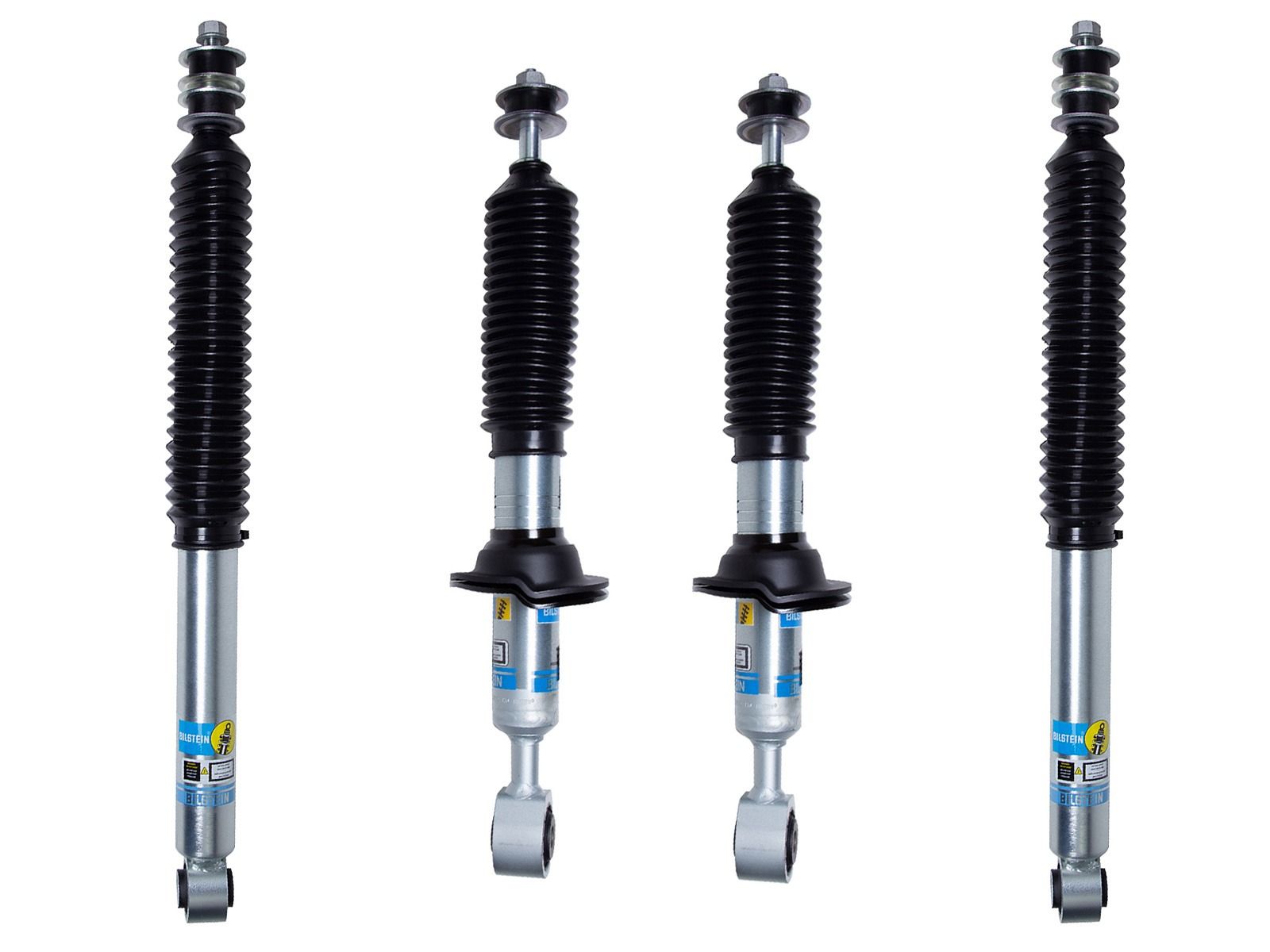

- Complete set of 4 matching shocks
- Limited Lifetime Warranty
All Front Lift Height Settings:
- Position #1: Stock (4WD & 2WD)
- Position #2: .6 inch (4WD), .6 inch (2WD)
- Position #3: 1.2 inch (4WD), 1.1 inch (2WD)
- Position #4: 1.7 inch (4WD), 1.6 inch (2WD)
- Position #5: 2.3 inch (4WD), 2.1 inch (2WD)
- Position #6: 2.8 inch (4WD), 2.6 inch (2WD)
Shock Specs
- Front Shock Extended Length: 20.22 inches
- Front Shock Compressed Length: 15.91 inches
- Rear Shock Extended Length: 25.06 inches
- Rear Shock Compressed Length: 16.59 inches
- Finish: Zinc Plated
- Piston: 46mm
- Body Size: 46mm ID
Coil Springs: Not included, uses factory springs
More Info
Manufacturer: Bilstein
Pricing Group: Bilstein Truck
Description: Bilstein 22-24 Toyota Tundra Front B8 5100 Shock
Product Name: BIL B8 5100 Series Shocks
Box 1 Dims (LxWxH-W): 27 x 6.3 x 6.2 - 8.3
Born On Date: 12-04-2024
About BILSTEIN Of America Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3, 500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.:
