Yukon Deluxe Pinion Depth Setting Tool/Gauge

YUKYT D02
883584103097
Tools
20+ Units In Stock - Ships Next Business Day
$ 694.89
$ 694.89

SKU: YT D02 | UPC: 883584103097

Yukon Gear YT D02 Deluxe Pinion Depth Setting Tool/Gauge

Precision tool for accurately setting pinion depth during differential rebuilds on Jeep Wrangler JL models from 2018 to 2022. Designed for Dana 30 front and Dana 44 rear axles found in Rubicon, Sport, Sahara and other trims. Delivers exact measurements to achieve proper gear mesh, reducing noise and extending gear life.

Key Features

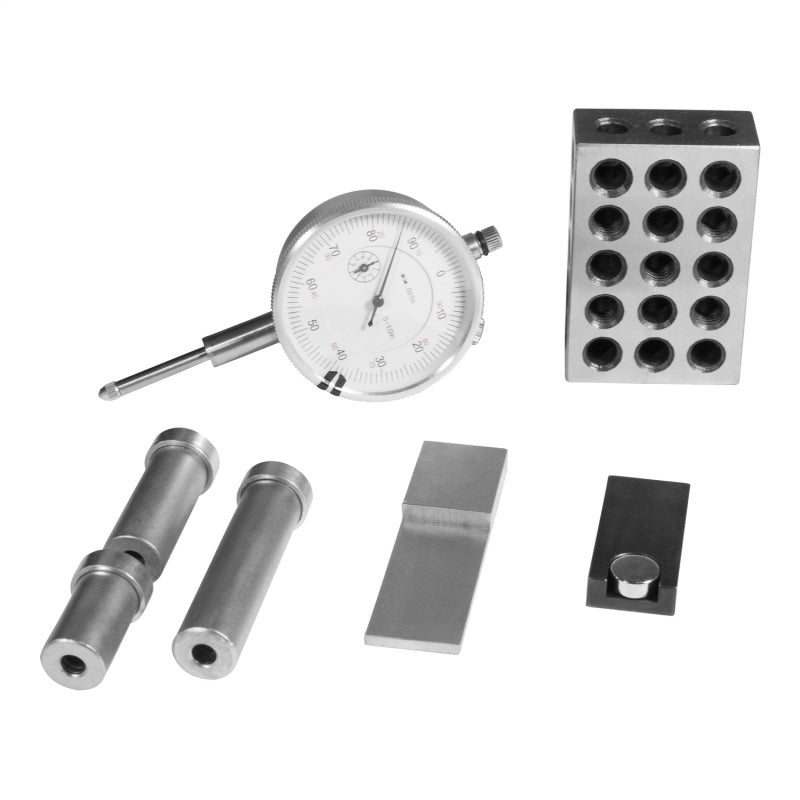

  • Precision Gauge Block – Provides accurate reference for pinion depth measurement down to 0.001 inches.
  • Adjustable Measuring Bar – Fits various housing sizes for Dana 30, 44 and compatible axles.
  • Comprehensive Shim Kit – Includes shims from 0.005 to 0.050 inches in 0.005 increments for fine tuning.

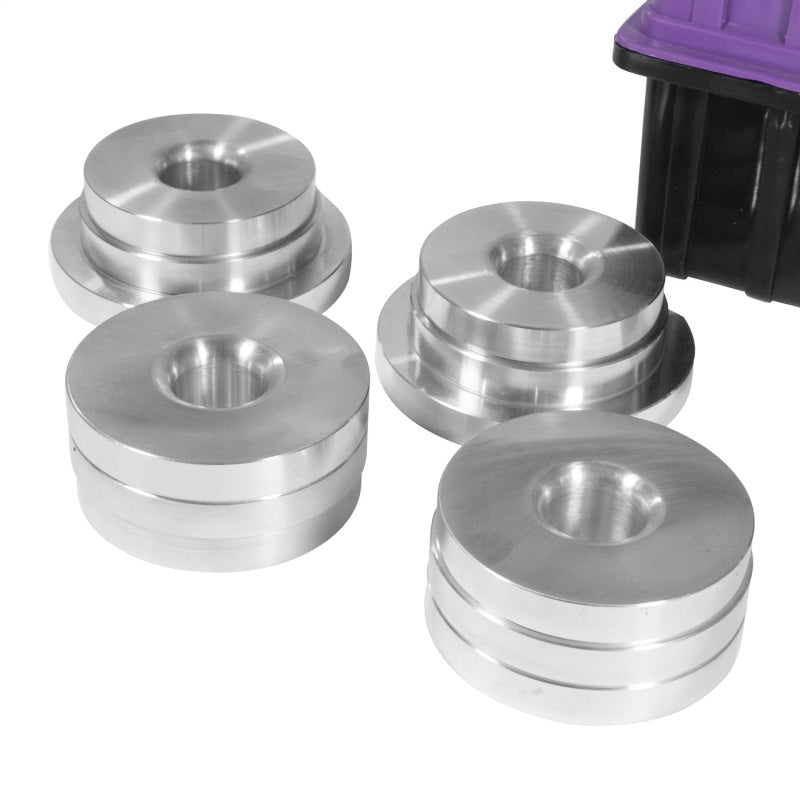

  • Spacer Ring – Ensures stable setup during measurement process.
  • Durable Construction – Machined aluminum and steel components resist wear in shop environments.
  • Easy Read Markings – Clear engravings simplify shim selection and installation.

Specifications

Detail Value
Brand Yukon Gear & Axle
Type Deluxe Pinion Depth Setting Tool
Compatibility 2018-2022 Jeep Wrangler JL Dana 30/44 axles
MPN YT D02
Weight 1.9 lbs
Shipping Dimensions 11 x 7 x 2 inches
Country of Origin USA
Warranty Limited Lifetime on Manufacturing Defects

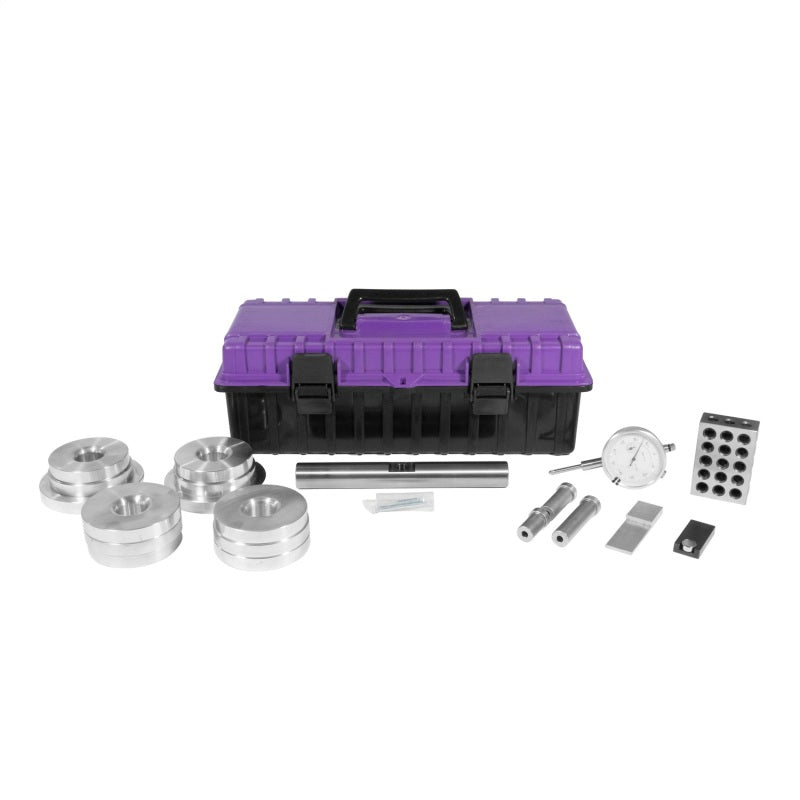

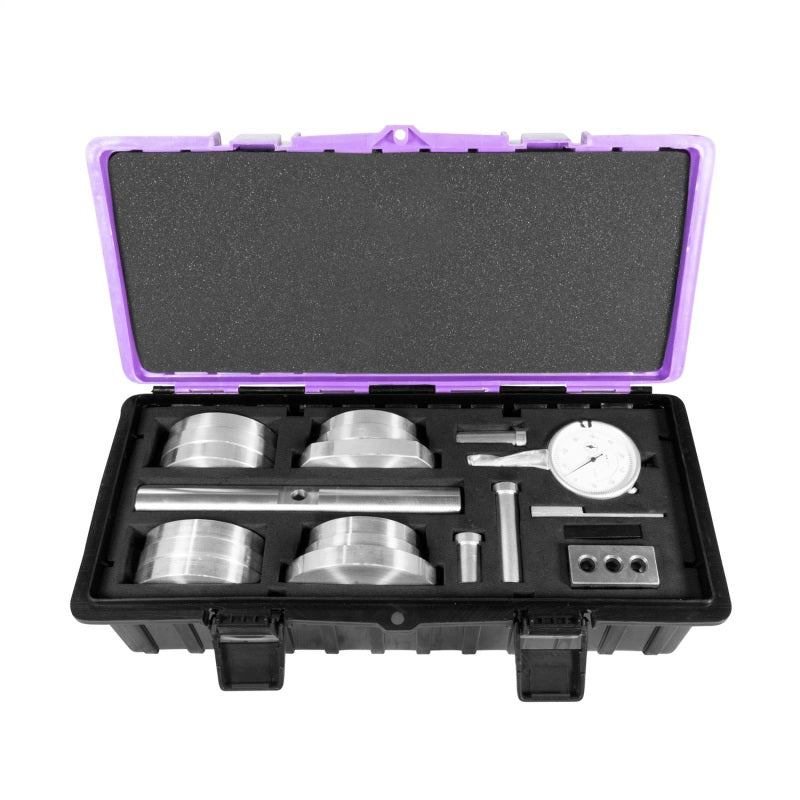

Whats Included

  • Gauge Block
  • Measuring Bar
  • Spacer Ring
  • Pinion Head Shim Kit (15 shims)
  • Instruction Sheet

Product Notes

  • Ideal for professional and DIY differential gear installations
  • Compatible with Yukon ring and pinion sets
  • Requires basic differential housing preparation

This Part Fits

Year Range Make Model Notes
2021 Jeep Wrangler 80th Anniversary
2021 Jeep Wrangler Freedom
2021 Jeep Wrangler Islander
2018-2022 Jeep Wrangler Rubicon
2018-2022 Jeep Wrangler Sport
2018-2022 Jeep Wrangler Sport S
2021 Jeep Wrangler Unlimited 80th Anniversary
2021 Jeep Wrangler Unlimited Freedom
2021 Jeep Wrangler Unlimited High Altitude
2021-2022 Jeep Wrangler Unlimited High Altitude 4xe
2021 Jeep Wrangler Unlimited Islander
2019 Jeep Wrangler Unlimited Moab
2018-2022 Jeep Wrangler Unlimited Rubicon
2021-2022 Jeep Wrangler Unlimited Rubicon 392
2021-2022 Jeep Wrangler Unlimited Rubicon 4xe
2018-2022 Jeep Wrangler Unlimited Sahara
2021-2022 Jeep Wrangler Unlimited Sahara 4xe
2021-2022 Jeep Wrangler Unlimited Sahara Altitude
2018-2022 Jeep Wrangler Unlimited Sport
2021-2022 Jeep Wrangler Unlimited Sport Altitude
2018-2022 Jeep Wrangler Unlimited Sport S
2021-2022 Jeep Wrangler Unlimited Willys
2021-2022 Jeep Wrangler Unlimited Willys Sport
2021-2022 Jeep Wrangler Willys
2021-2022 Jeep Wrangler Willys Sport

Why Choose Yukon Gear?

  • American-made quality for reliable performance
  • Complete line of differential components
  • Proven in off-road and racing applications
  • Backed by expert technical support

Frequently Asked Questions

  • Q: What axles does this tool work with?
  • A: Dana 30 front and Dana 44 rear on Jeep Wrangler JL.
  • Q: Do I need additional shims?
  • A: Kit includes full range. extras available separately.
  • Q: Is installation straightforward?
  • A: Yes, follows included step-by-step instructions.

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock – ships same or next business day
  • Packaging: Compact box with protective foam inserts
