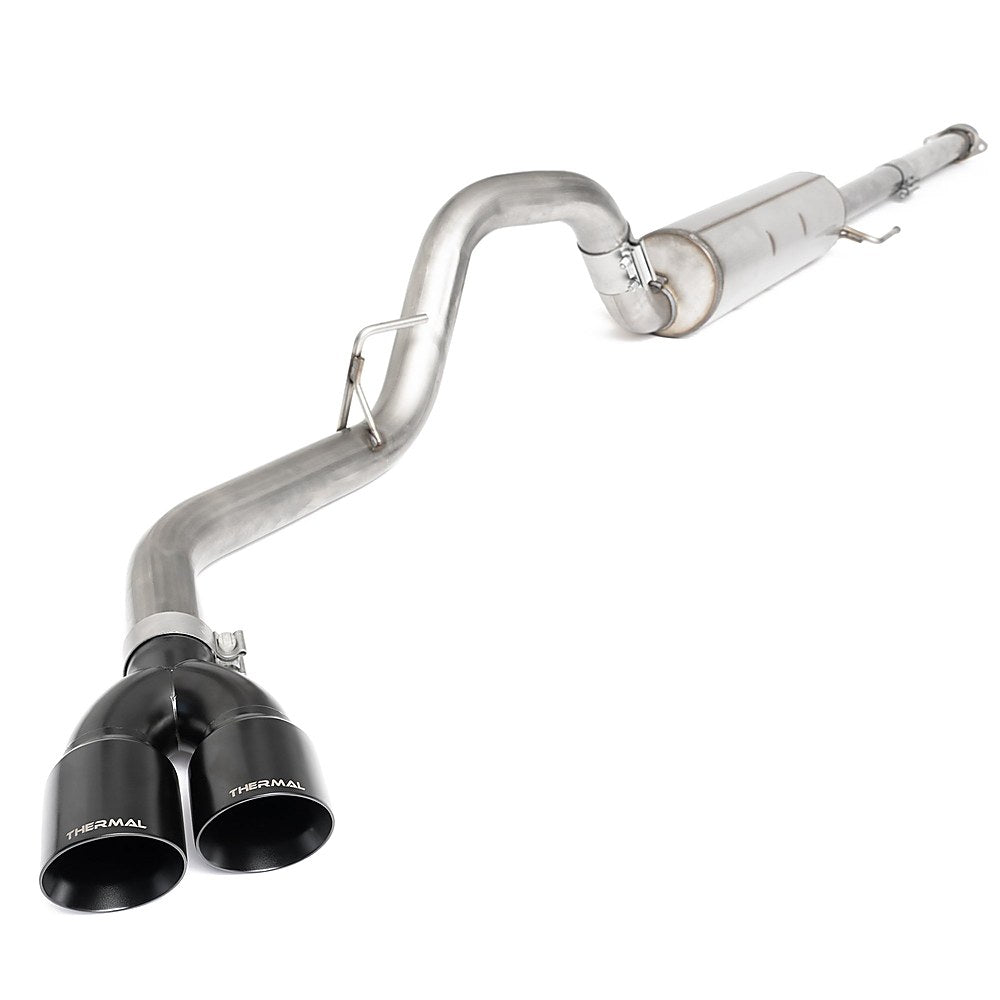

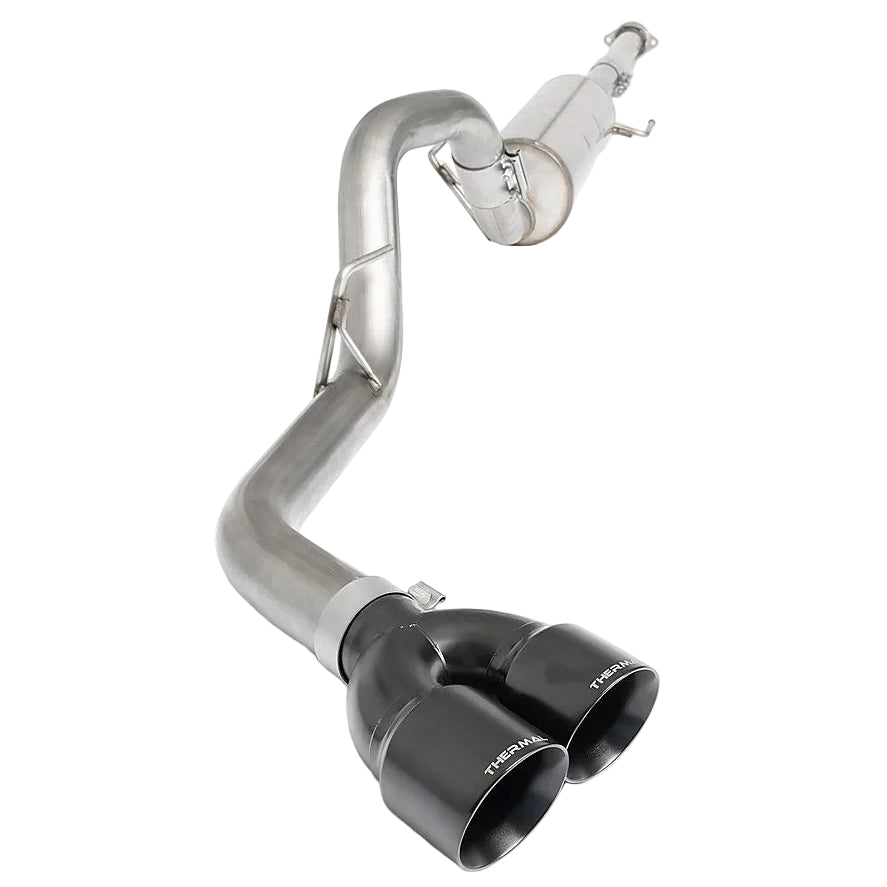

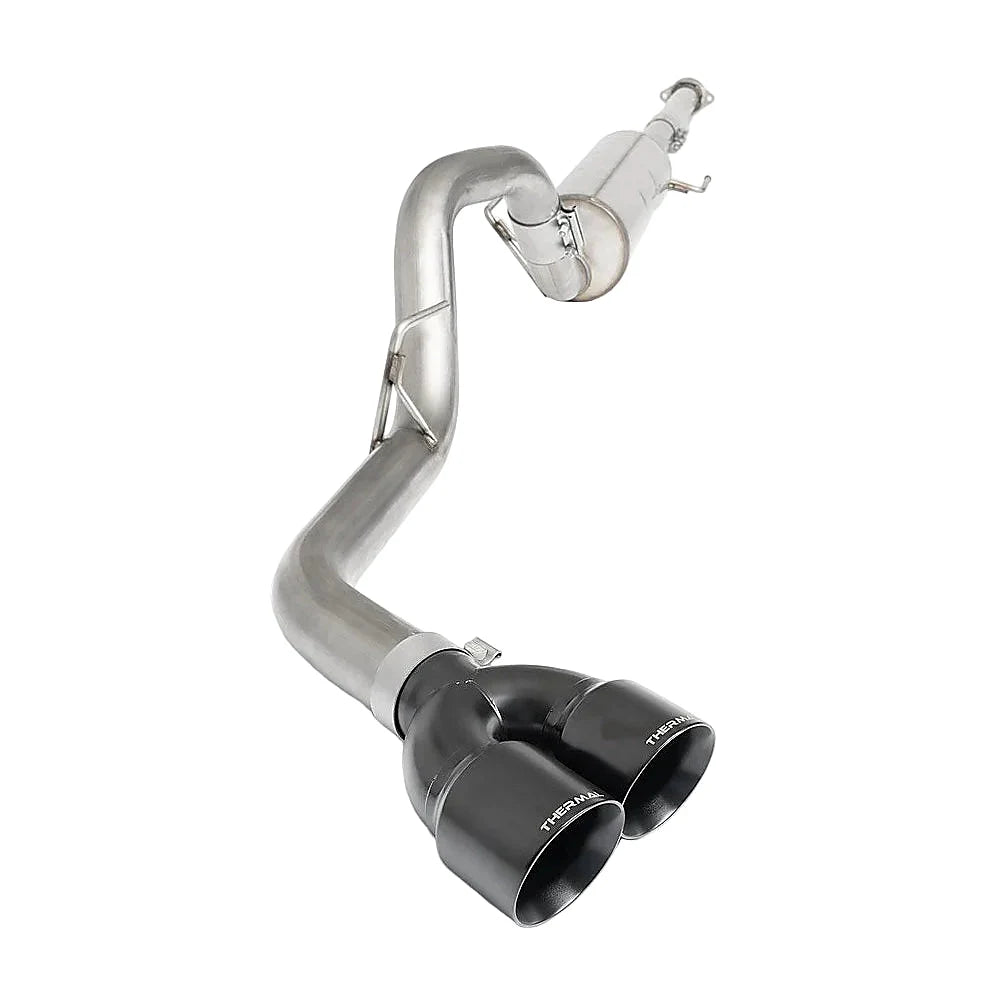

2015-2020 Ford F-150 5.0L Coyote V8 Single Exit Catback Exhaust - Dual Coated Tips (Super Cab 8ft Bed)

A V8 Rumble Without the Highway Headache

Ford built the 5.0L Coyote to sound like a V8, then buried that character behind a restrictive factory system. The B944-C920-CD single exit catback exhaust unlocks the natural tone of your F-150's V8 with a deep, confident growl under throttle and a composed, drone-free cabin once you settle into cruise.

Key Features

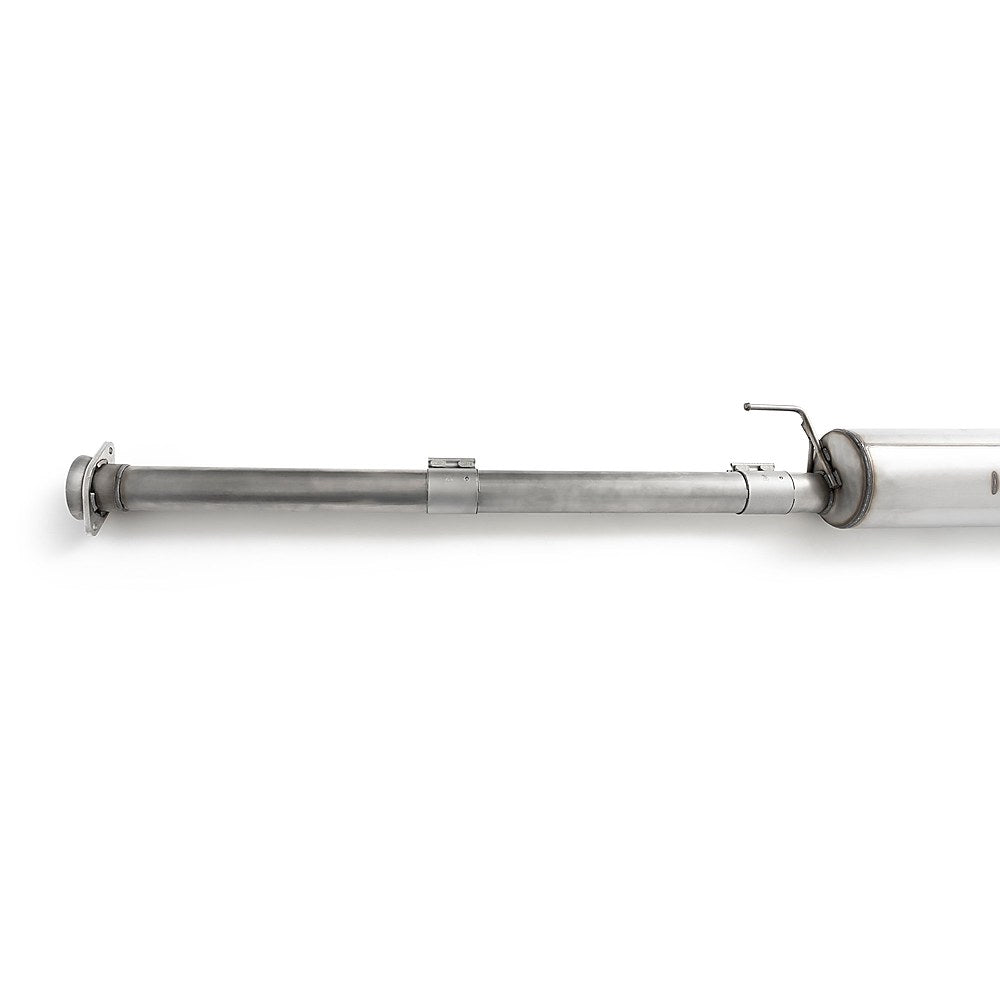

• Full 3 inch mandrel bent T304 stainless steel construction for the life of the truck
• True Helmholtz Technology cancels low frequency cabin drone at highway speeds
• Single exit configuration with dual black ceramic coated tips
• Direct bolt-on installation using factory hanger locations, no cutting or welding
• Mounts to the factory catalytic converters and downpipes
• Corrosion resistant finish built for daily driving in any climate
• Backed by a Lifetime Manufacturer's Warranty
• Engineered specifically for the Super Cab 8ft Bed 5.0L Coyote platform

Fitment

Specifications

What's Included

• One complete B944-C920-CD single exit catback exhaust system
• Dual black ceramic coated exhaust tips
• All necessary clamps and hardware for bolt-on installation
• Installation instructions

About Thermal R&D

Thermal R&D designs and manufactures performance exhaust systems in the USA, using True Helmholtz Technology to eliminate cabin drone without sacrificing an aggressive exhaust tone. Every system is built from mandrel bent T304 stainless steel and backed by a lifetime warranty for long-term reliability.

FAQ

The B944-C920-CD is a Thermal R&D single exit catback exhaust system with dual black ceramic coated tips, built specifically for the 2015-2020 Ford F-150 5.0L Coyote V8 in Super Cab 8ft Bed configuration.

This system is engineered for the Super Cab 8ft Bed F-150 with the 5.0L Coyote V8. Confirm your cab style and bed length before ordering since Thermal R&D builds each system to a specific wheelbase.

This is a complete catback system that replaces everything from the factory catalytic converter back, so there is nothing else to buy or replace at the same time.

Most owners complete the install in a few hours in a home garage using basic hand tools and a jack. The system bolts to factory hanger locations, so no cutting or welding is required.

No. This system installs behind the factory catalytic converters, so your emissions equipment remains untouched and no check engine light should be triggered.

The coated tips have a black ceramic finish for a more stealth appearance, while the polished tips offer a bright stainless steel look. Both use the same core exhaust system.

No. This is an exhaust system only and does not affect suspension or steering components, so no alignment is needed.

Thermal R&D backs this system with a Lifetime Manufacturer's Warranty against manufacturing defects for as long as you own your truck.

Install Instructions

1. Raise the vehicle safely and support it on jack stands
2. Remove the factory exhaust system starting at the rear hangers
3. Disconnect the factory system from the catalytic converter flange
4. Position the new flange pipe and secure it with factory hardware
5. Install the midpipe section using the supplied double compression clamp

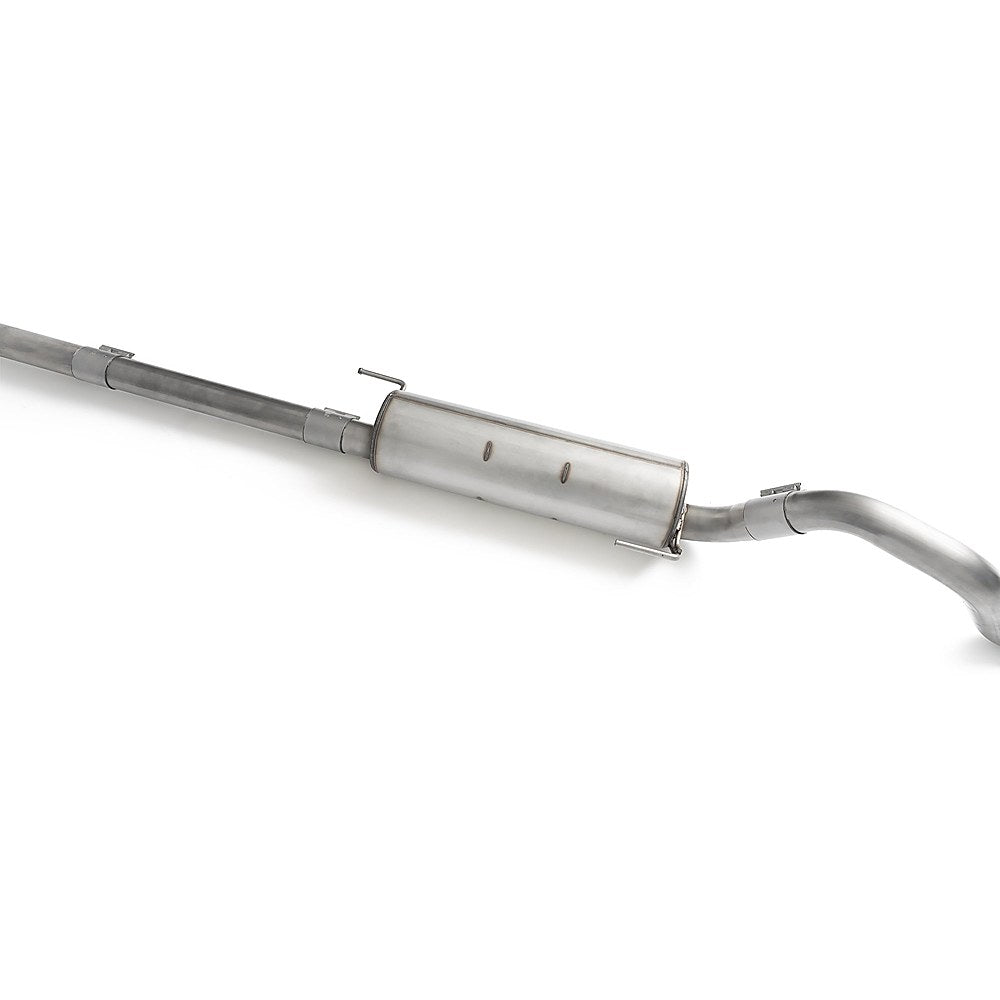

6. Mount the muffler assembly to the factory hanger locations

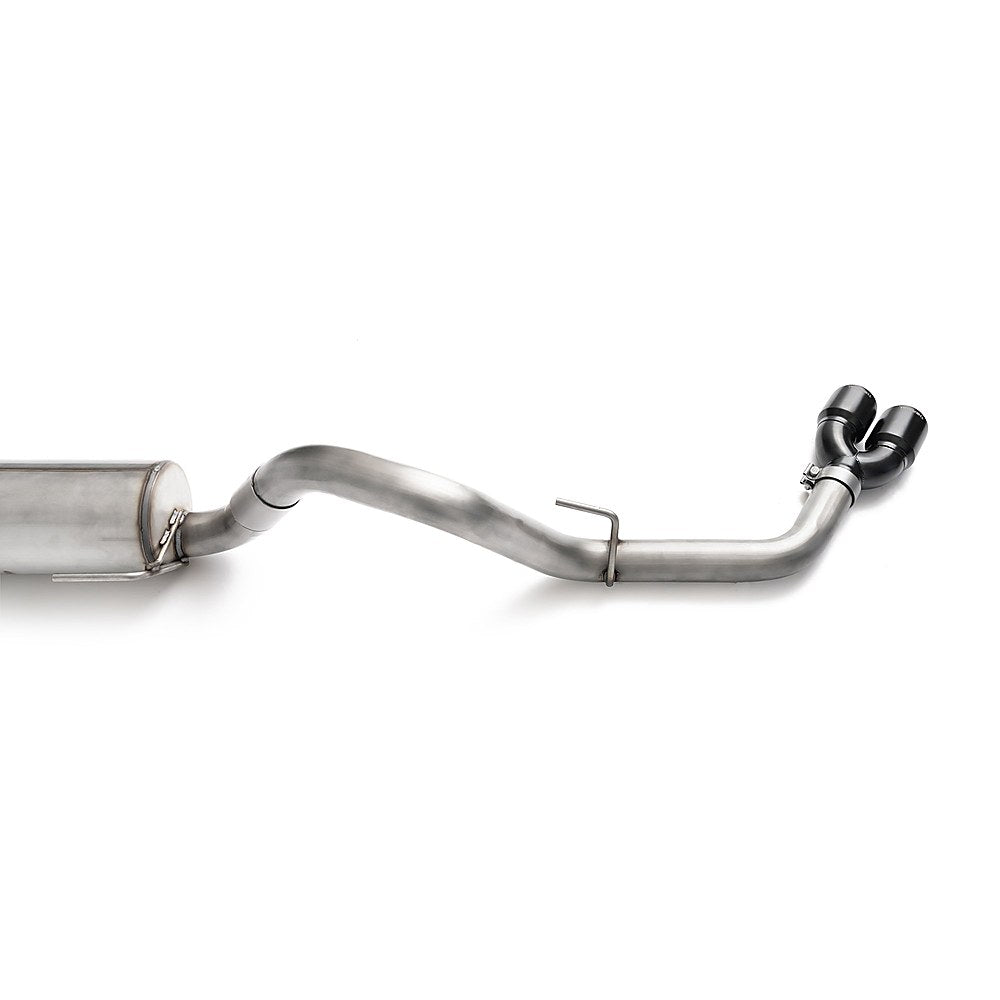

7. Attach the tailpipe section and secure with the provided clamp
8. Install the dual black ceramic coated tips and align for level appearance
9. Tighten all clamps and hardware, then lower the vehicle and test drive
