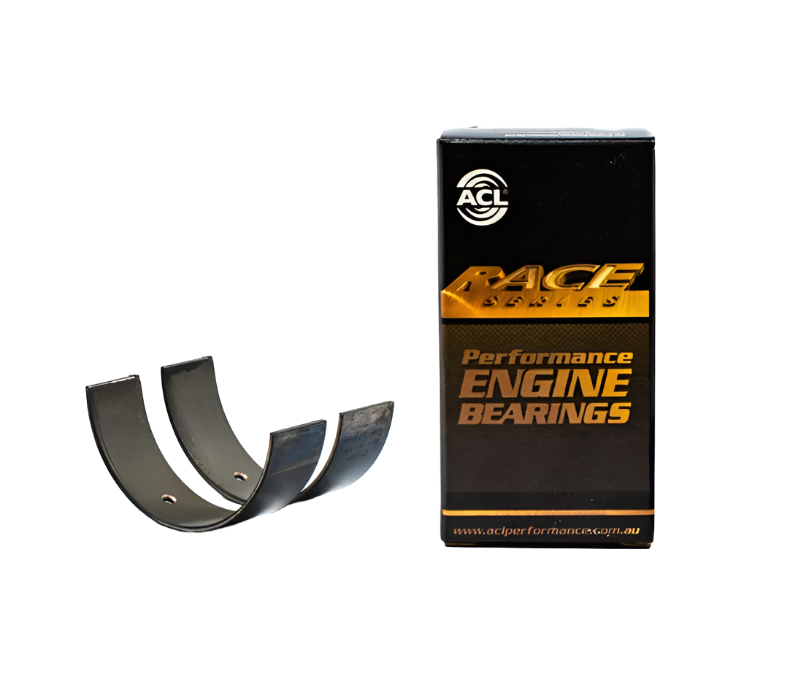

ACL engine bearing shells and retail packaging — representative product photo

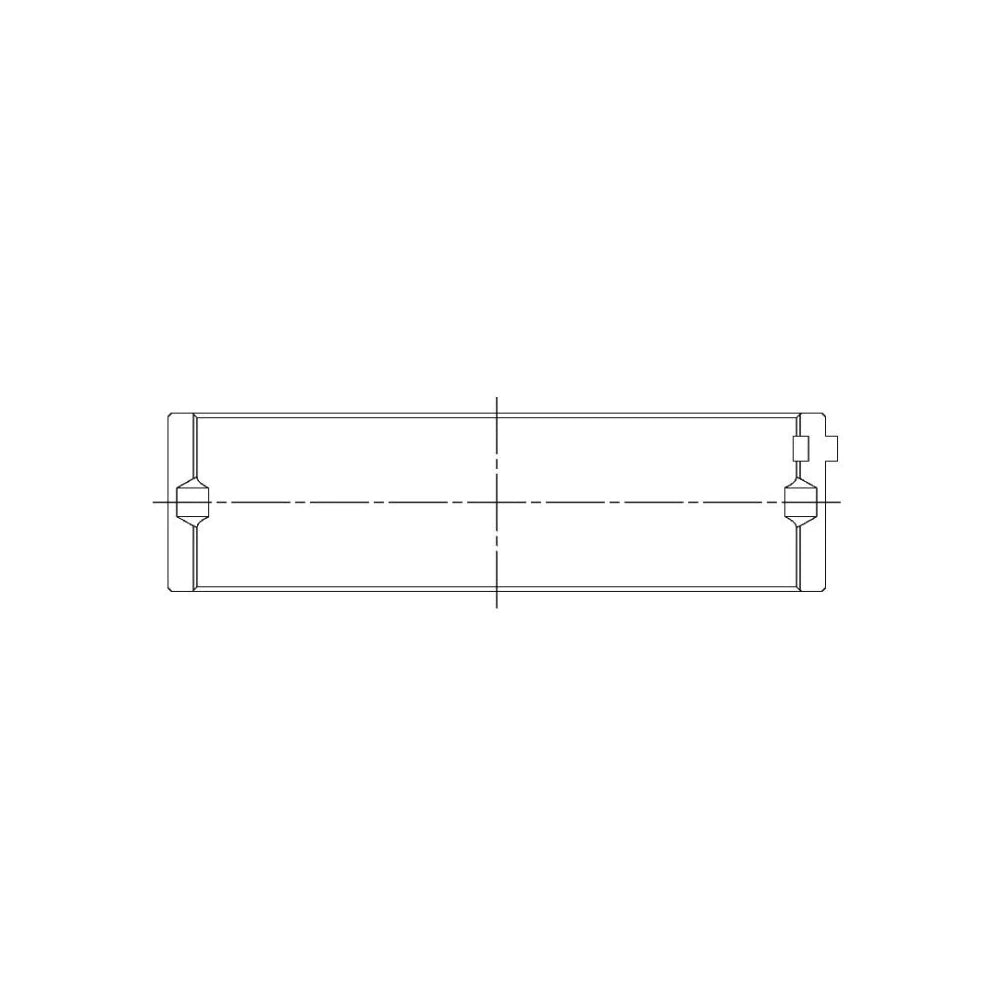

ACL 6M5587HX bearing-shell profile drawing

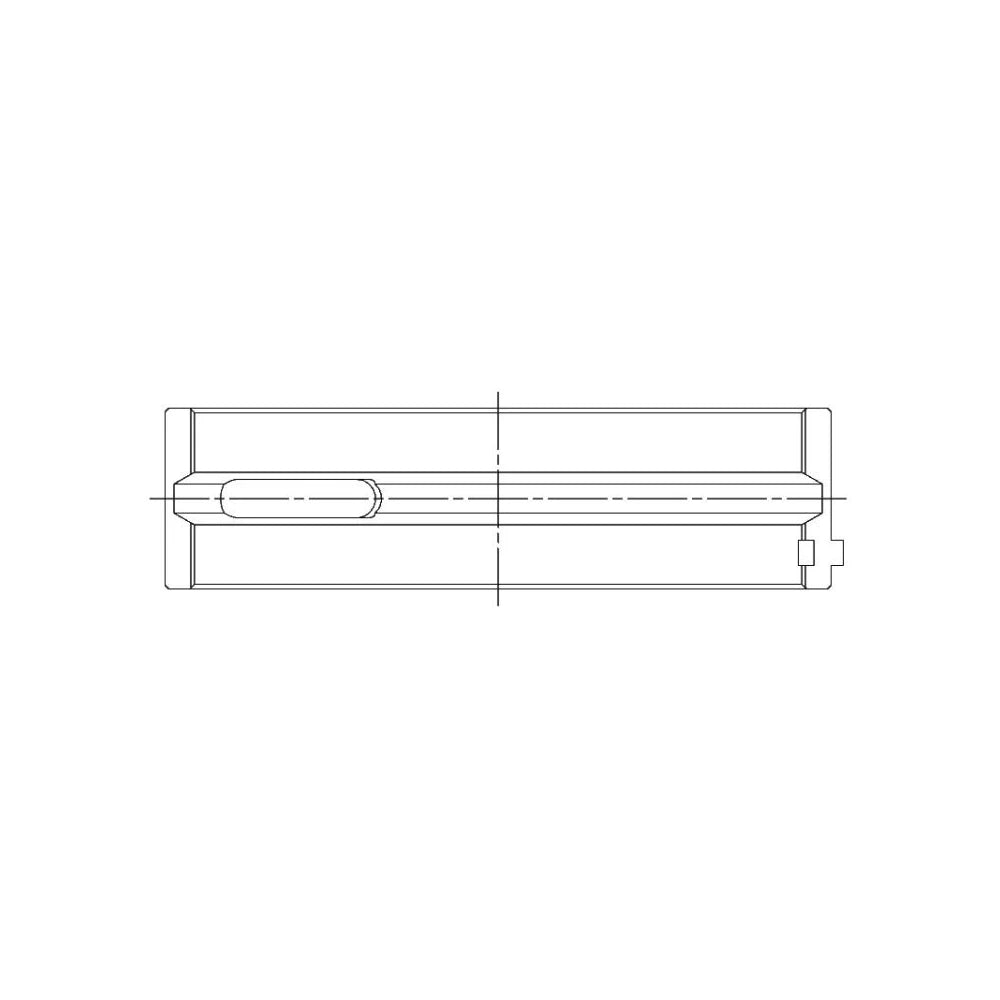

ACL 6M5587HX bearing-shell profile drawing
Click to zoom in

ACL Audi RS3 2480cc 5 Cyl. Turbo (EA855 EVO) RACE Series Main Bearings - STD Size (Extra Oil Clrnc)

ACL
ACL6M5587HX-STD
9315726464601
Bearings
14 Units In Stock
$ 405.61
$ 405.61

ACL 6M5587HX-STD is a main bearing set for the cataloged Audi DAZA, DNWA engine configurations. STD manufacturer size designation; verify the exact engine and assembled clearance.

Bearing Configuration

HX specifies 0.001 inch (0.025 mm) additional oil clearance relative to the corresponding H-STD set on the specified standard-size shaft. It is separate from any repair-size or housing-oversize designation.

ACL’s 2023 application guide places this main-bearing family in five-cylinder EA855 EVO engines DAZA and DNWA. Earlier EA855 engines such as CEPA and CEPB use a separately cataloged main-bearing family. Confirm the exact engine code before pairing components.

Engine Application

Manufacturer / Engine Audi — DAZA
Manufacturer / Engine Audi — DNWA

The engine-family list identifies catalog applications, not universal vehicle fitment. Confirm the exact engine version, crankshaft, rods, block and bearing location. Vehicle names and photos do not replace dimensional verification.

Specifications

Brand ACL
Manufacturer Part Number 6M5587HX-STD
Component Main Bearing Set
Size Selection STD manufacturer size designation; verify the exact engine and assembled clearance.
Catalog Housing Bore (STD journal) 57.000–57.019 mm
Catalog Shaft Diameter (STD) 51.958–51.978 mm
Catalog Family ACL Race Series
Half Type Upper & lower
Catalog Size Options STD

Quantity and Assembly Checks

Confirm the set contents, bearing positions and any separate thrust components against the complete manufacturer number. The photo is representative of the part family.

Measure shaft journals, housing bores and assembled oil clearance using the engine builder’s specification. Check oil-hole alignment, groove placement and crankshaft fillet clearance before final assembly. Catalog standard dimensions must not be treated as the finished dimensions for a different repair size. ACL specifies that abrasive pads or paper must not be used on the bearing surface to alter oil clearance.

Frequently Asked Questions

Is the year and model enough to choose this bearing? No. Match 6M5587HX-STD to the exact engine and measured build specification.

What size is this listing? STD manufacturer size designation; verify the exact engine and assembled clearance.

Can I substitute a different suffix? Compare the complete grade, size, locating features and assembled clearance before substituting any bearing.
