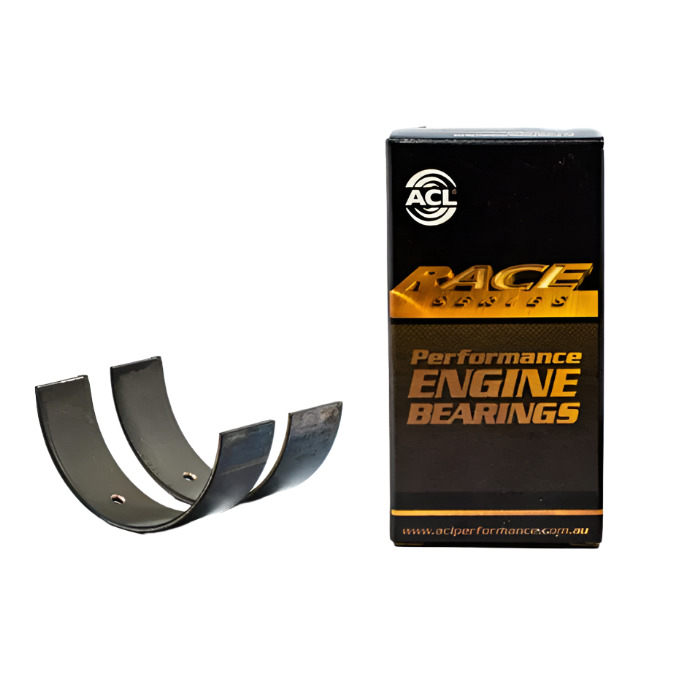

ACL Chevrolet V8 305-350-400 Race Series Con Rod Bearing Set
ACL Chevrolet V8 305-350-400 Race Series Con Rod Bearing Set

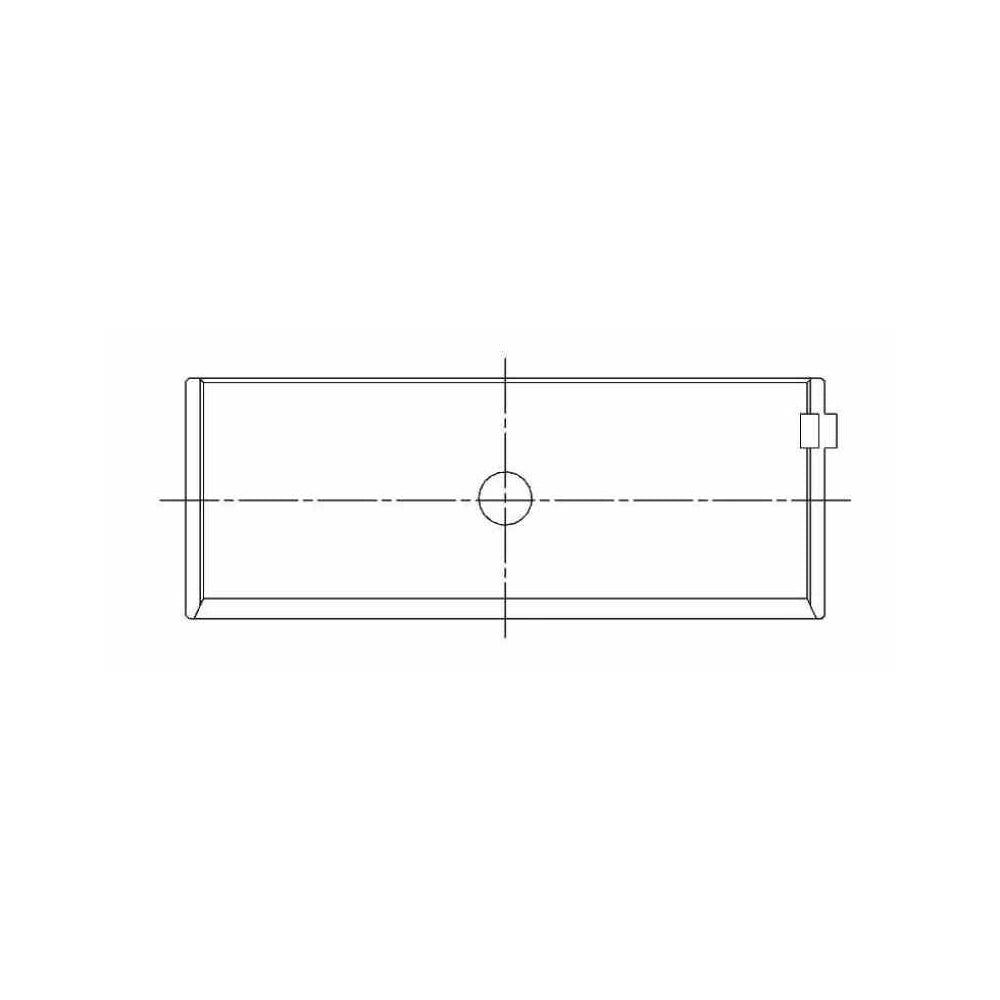

Technical Drawing ACL Chevrolet V8 305-350-400 Race Series Con Rod Bearing Set
Click to zoom in

ACL Chevrolet V8 305-350-400 Race Series Con Rod Bearing Set

ACL
ACL8B663HD-STD
9315726273210
Bearings
Out of stock
ACL, Bearings, Engine, Engine Block
$ 229.43

SKU: 8B663HD-STD

Chevrolet V8 305-350-400 Race Series Con Rod Bearing Set

CONROD BEARING - STD, 001, 010

  • High performance Trimetal engine bearings
  • Designed to withstand higher RPM conditions
  • High strength overlay plate with reduced thickness for improved fatigue properties

Specifications for STD size only

Sizes

STD, 001, 010

Oil Clearance


Half Type

Lower

Material

F781

Min. Std Shaft Size

53,315 mm / 2.0990 in

Max. Std Shaft Size

53,34 mm / 2.1000 in

Min. Std Tunnel Size

56,507 mm / 2.2247 in

Max. Std Tunnel Size

56,52 mm / 2.2252 in

Max Wall at Crown

1,575 mm / 0.0620 in

Max Overall Length

21,25 mm / 0.8366 in (2376HD)

21,25 mm / 0.8366 in (2376H)


  • HIGH STRENGTH OVERLAY PLATE with reduced thickness for improved fatigue properties
  • HARDENED STEEL BACKS on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • INCREASED CRUSH for improved bearing retention
  • ELIMINATION OF FLASH PLATING on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • INCREASED ECCENTRICITY to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 GROOVED MAIN BEARINGS to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • TIGHT CONSISTENT WALL TOLERANCES to help you maintain consistent clearances.
  • ENLARGED ID CHAMFERS on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Applications

Make

Engine

Description

Vehicles

Chevrolet

262 V8

Chevrolet 262ci (4.3L) V8 OHV 2v


Chevrolet

265ci L99

Chevrolet 265ci (4.3L) L99 V8 OHV 2v


Chevrolet

267

Chevrolet 267ci (4.4L) V8 OHV 2v


Chevrolet

4.8L Gen III LR4

Chevrolet 294ci (4.8L) LR4 Vortec V8 OHV 2v


Chevrolet

4.8L Gen IV LY2

Chevrolet 294ci (4.8L) LY2 Vortec V8 OHV 2v


Chevrolet

302ci Large Pin

Chevrolet 302ci (5.0L) Large Pin V8 OHV 2v


Chevrolet

305

Chevrolet 305ci (5.0L) V8 OHV 2v


Chevrolet

307

Chevrolet 307ci (5.0L) V8 OHV 2v

Holden HK

Chevrolet

5.3L Gen III

Chevrolet 325ci (5.3L) Vortec V8 OHV 2v


Chevrolet

327ci Large Pin

Chevrolet 327ci (5.4L) Large Pin V8 OHV 2v


Chevrolet

5.7L Gen III LS1

Chevrolet 346ci (5.7L) LS1 V8 OHV 2v


Chevrolet

5.7L Gen III LS6

Chevrolet 346ci (5.7L) LS6 V8 OHV 2v


Chevrolet

350

Chevrolet 350ci (5.7L) V8 OHV 2v

Holden HG

Chevrolet

350 Vortec

Chevrolet 350ci (5.7L) Vortec V8 OHV 2v

Holden Suburban

Chevrolet

6.0L Gen IV LFA

Chevrolet 364ci (6.0L) LFA Vortec Hybrid V8 OHV 2v


Chevrolet

6.0L Gen IV LS2

Chevrolet 364ci (6.0L) LS2 V8 OHV 2v


Chevrolet

6.0L Gen III Vortec

Chevrolet 364ci (6.0L) Vortec V8 OHV 2v


Chevrolet

6.2L Gen IV L99

Chevrolet 376ci (6.2L) L99 V8 OHV 2v


Chevrolet

6.2L Gen IV LS3

Chevrolet 376ci (6.2L) LS3 V8 OHV 2v


Chevrolet

6.2L Gen IV LS9

Chevrolet 376ci (6.2L) LS9 V8 OHV 2v S/Charged


Chevrolet

6.2L Gen IV LSA

Chevrolet 376ci (6.2L) LSA V8 OHV 2v S/Charged


Chevrolet

6.2L Gen IV Vortec

Chevrolet 376ci (6.2L) Vortec V8 OHV 2v


Chevrolet

400 Small Block

Chevrolet 400ci (6.6L) Small Block V8 OHV 2v


Chevrolet

7.0L Gen IV LS7

Chevrolet 427ci (7.0L) LS7 V8 OHV 2v


Holden

355 Stroker

Holden 355ci Stroker V8 OHV 2v

Holden Ute VP, Holden Commodore VP

Holden

5.7L Gen III LS1

Holden 5.7L Gen III LS1 V8 OHV 2v

Holden Adventra VY II, Holden Adventra VZ, Holden Caprice WH, Holden Caprice WH II, Holden Caprice WK, Holden Statesman WH, Holden Statesman WH II, Holden Statesman WK, Holden Ute VU II, Hold

Holden

6.0L Gen IV L76

Holden 6.0L Gen IV L76 V8 OHV 2v

Holden Commodore VZ, Holden Crewman VZ, Holden Ute VZ

Holden

6.0L Gen IV L98

Holden 6.0L Gen IV L98 V8 OHV 2v

Holden Commodore VE, Holden Commodore VE II, Holden Ute VE II, Holden Ute VE

HSV

6.0L Gen IV LS2

HSV 6.0L Gen IV LS2 V8 OHV 2v

HSV Clubsport E Series

HSV

6.2L Gen IV LS3

HSV 6.2L Gen IV LS3 V8 OHV 2v

HSV Clubsport E Series

Manufacturer: ACL

Description: ACL Chevrolet V8 305-350-400 Race Series Con Rod Bearing Set

Product Name: ACL Race Series Rod Bearings

Box 1 Dims (LxWxH-W): 7.5 x 3 x 1 - 0.9

Born On Date: 07-24-2014
