ACL 5M8309HXO/S2-STD is a main bearing set for the cataloged Subaru EJ18E, EJ205, EJ20D, EJ20E engine configurations. STD manufacturer size designation; verify the exact engine and assembled clearance.
Bearing Configuration
HX specifies 0.001 inch (0.025 mm) additional oil clearance relative to the corresponding H-STD set on the specified standard-size shaft. It is separate from any repair-size or housing-oversize designation.
0.002 inch oversize housing configuration. Keep the housing-oversize requirement separate from the crankshaft size suffix.

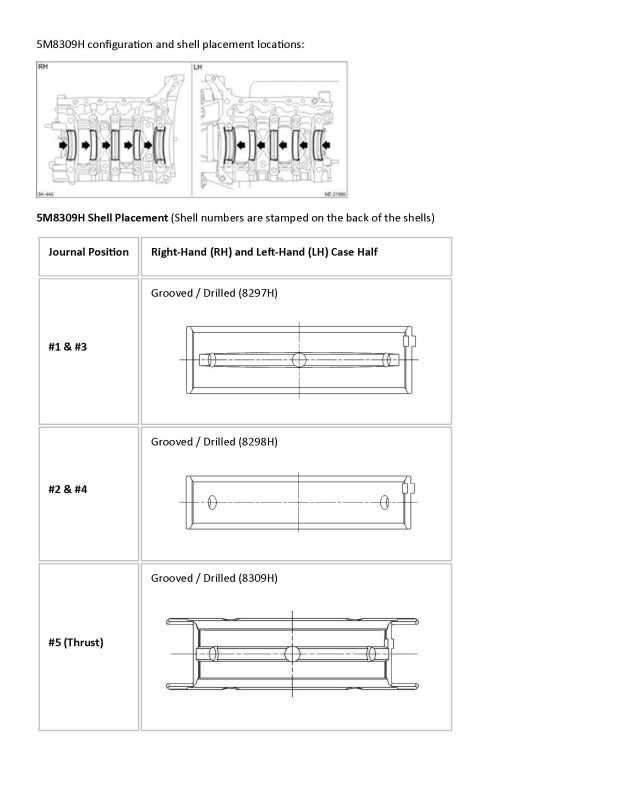

For the cataloged Subaru configuration with the thrust bearing in position five. Verify the block and thrust arrangement before ordering.
Engine Application
| Manufacturer / Engine | Subaru — EJ18E |
|---|---|
| Manufacturer / Engine | Subaru — EJ205 |
| Manufacturer / Engine | Subaru — EJ20D |
| Manufacturer / Engine | Subaru — EJ20E |
| Manufacturer / Engine | Subaru — EJ20G |
| Manufacturer / Engine | Subaru — EJ20T |
| Manufacturer / Engine | Subaru — EJ20TT |
| Manufacturer / Engine | Subaru — EJ22E |
| Manufacturer / Engine | Subaru — EJ22EZ |
| Manufacturer / Engine | Subaru — EJ22G |
| Manufacturer / Engine | Subaru — EJ22T |
| Manufacturer / Engine | Subaru — EJ251 |
| Manufacturer / Engine | Subaru — EJ25D |
| Manufacturer / Engine | Subaru — EJ25T |
The engine-family list identifies catalog applications, not universal vehicle fitment. Confirm the exact engine version, crankshaft, rods, block and bearing location. Vehicle names and photos do not replace dimensional verification.
Specifications
| Brand | ACL |
|---|---|
| Manufacturer Part Number | 5M8309HXO/S2-STD |
| Component | Main Bearing Set |
| Size Selection | STD manufacturer size designation; verify the exact engine and assembled clearance. |
| Catalog Housing Bore (STD journal) | 64.051–64.071 mm |
| Catalog Shaft Diameter (STD) | 59.984–60.000 mm |
| Catalog Family | ACL Race Series |
| Half Type | Identical halves |
| Catalog Size Options | STD |
Quantity and Assembly Checks

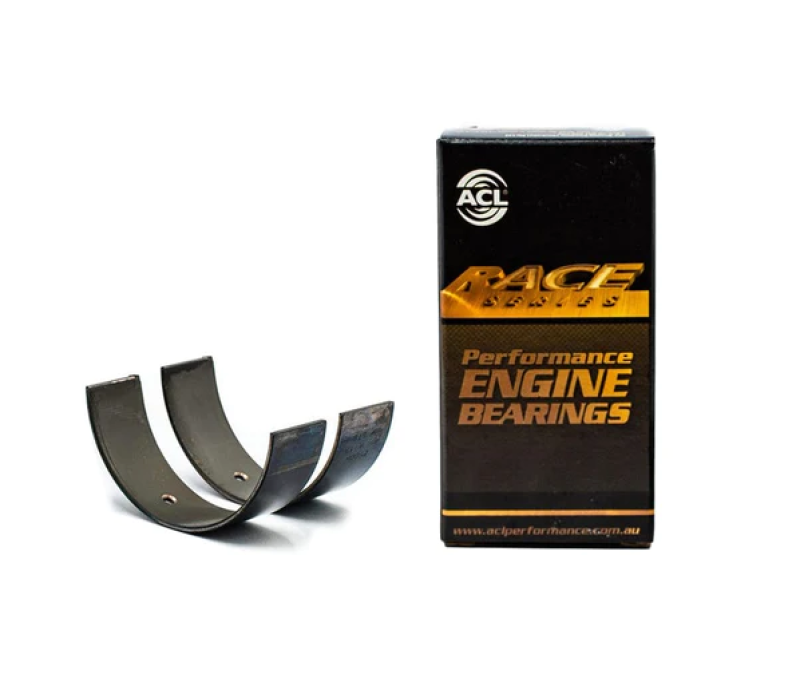

Confirm the set contents, bearing positions and any separate thrust components against the complete manufacturer number. The photo is representative of the part family.
Measure shaft journals, housing bores and assembled oil clearance using the engine builder’s specification. Check oil-hole alignment, groove placement and crankshaft fillet clearance before final assembly. Catalog standard dimensions must not be treated as the finished dimensions for a different repair size.
Frequently Asked Questions
Is the year and model enough to choose this bearing? No. Match 5M8309HXO/S2-STD to the exact engine and measured build specification.
What size is this listing? STD manufacturer size designation; verify the exact engine and assembled clearance.
Can I substitute a different suffix? Compare the complete grade, size, locating features and assembled clearance before substituting any bearing.
