-18%

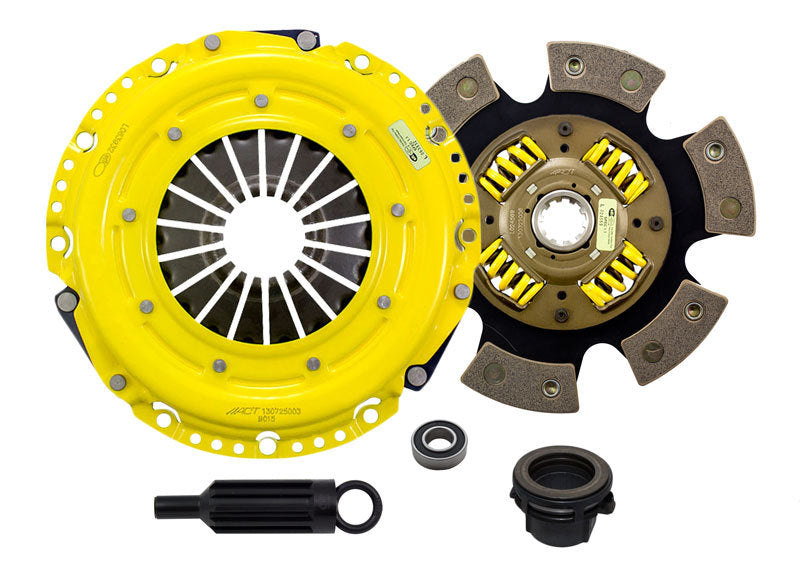

ACT ACT 01-06 BMW M3 E46 HD/Race Sprung 6 Pad Clutch Kit
Click to zoom in

ACT 01-06 BMW M3 E46 HD/Race Sprung 6 Pad Clutch Kit

ACT
ACTBM9-HDG6
842385018092
Clutch Kits - Single
1 Units In Stock - Ships Next Business Day
$ 1,154.00 $ 935.00
FREE Ground Shipping!
$ 935.00

ACT HD/Race Sprung 6 Pad Kit: BM9-HDG6. Excellence in Performance, backed by the best one-year warranty in the industry!

BM9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

  • Clutch Master Cylinder Included:No
  • Grease Included:Yes
  • Grade Type:Performance
  • Pilot Bushing Included:No
  • Pressure Plate Type:Heavy Duty
  • Release Bearing Included:Yes
  • Clutch Disc Diameter:9.4 IN
  • Disc Material:Ceramic
  • Input Spline Quantity:10
  • Input Shaft Diameter:1.375 IN
  • Alignment Tool Included:Yes
  • Disc Type Sprung Solid:Sprung
  • New Or Remanufactured Clutch:New
  • Clutch Slave Cylinder Included:No
  • Pilot Bearing Included:Yes
  • Part Fitment Requirement:Must use ACT flywheel with sprung hub discs for proper clearance (flywheel not included). Pressure plate bolts included (M8-1.25 x 20mm).
  • Product Weight (lbs.):15.3
  • Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Prop 65 Long Label:Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
  • Prop 65 Yes/No:Yes
  • SFI:1.1
  • Title:ACT HD/Race Sprung 6 Pad Kit
  • Torque Capacity (ft/lbs.):596
  • Torque Capacity Over OE:94%
  • Clutch Disc Diameter:240 mm
