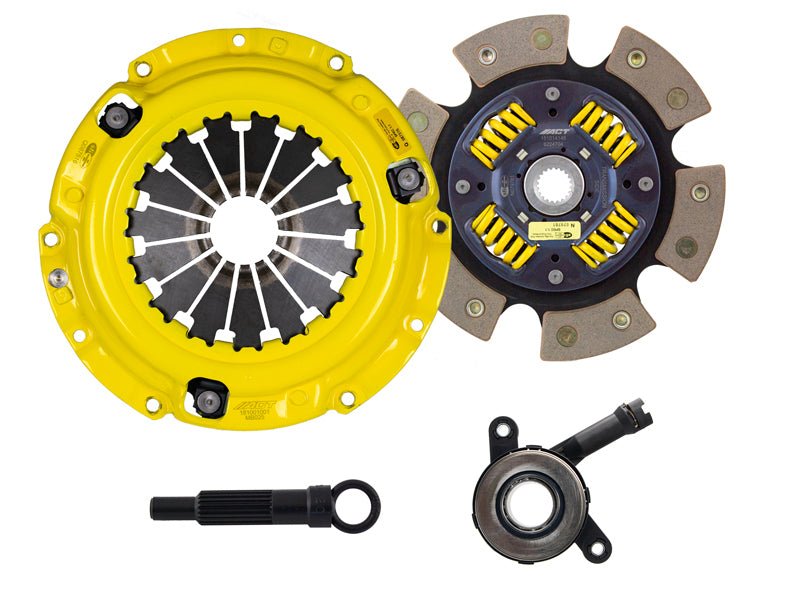

ACT HD/Race Sprung 6 Pad Kit: MB11-HDG6. Excellence in Performance, backed by the best one-year warranty in the industry!
MB11-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
- Clutch Master Cylinder Included:No
- Grease Included:Yes
- Grade Type:Performance
- Pressure Plate Type:Heavy Duty
- Release Bearing Included:Yes
- Clutch Disc Diameter:9 IN
- Disc Material:Ceramic
- Input Spline Quantity:24
- Input Shaft Diameter:1 IN
- Alignment Tool Included:Yes
- Disc Type Sprung Solid:Sprung
- New Or Remanufactured Clutch:New
- Clutch Slave Cylinder Included:No
- Part Fitment Requirement:Pressure plate bolts included (M8-1.25 x 16mm).
- Product Weight (lbs.):14.6
- Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Long Label:Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
- Prop 65 Yes/No:Yes
- Title:ACT HD/Race Sprung 6 Pad Kit
- Torque Capacity (ft/lbs.):354
- Torque Capacity Over OE:87%
- Clutch Disc Diameter:228 mm
