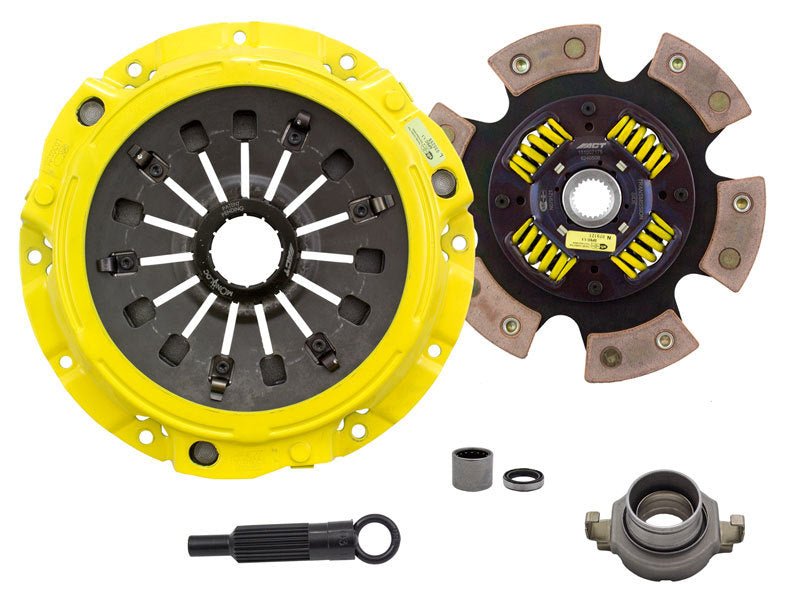

ACT XT-M/Race Sprung 6 Pad Kit: ZX6-XTG6. Excellence in Performance, backed by the best one-year warranty in the industry!
ZX6-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
- Clutch Master Cylinder Included:No
- Grease Included:Yes
- Grade Type:Performance
- Pilot Bushing Included:No
- Pressure Plate Type:Xtreme
- Release Bearing Included:Yes
- Clutch Disc Diameter:9.4 IN
- Disc Material:Ceramic
- Input Spline Quantity:23
- Input Shaft Diameter:1 IN
- Alignment Tool Included:Yes
- Disc Type Sprung Solid:Sprung
- New Or Remanufactured Clutch:New
- Clutch Slave Cylinder Included:No
- Pilot Bearing Included:Yes
- Product Weight (lbs.):17.0
- Prop 65 - Short Label:WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Long Label:Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
- Prop 65 Yes/No:Yes
- Title:ACT XT-M/Race Sprung 6 Pad Kit
- Torque Capacity (ft/lbs.):575
- Torque Capacity Over OE:103%
- Clutch Disc Diameter:240 mm
