ACT 2004 BMW 330Ci Alignment Tool - ACT AT103
ACT 2004 BMW 330Ci Alignment Tool - ACT AT103
Click to zoom in

ACT 2004 BMW 330Ci Alignment Tool

ACT
ACTAT103
842385018382
Pressure Plates
12 Units In Stock
$ 8.00 $ 6.00
$ 6.00

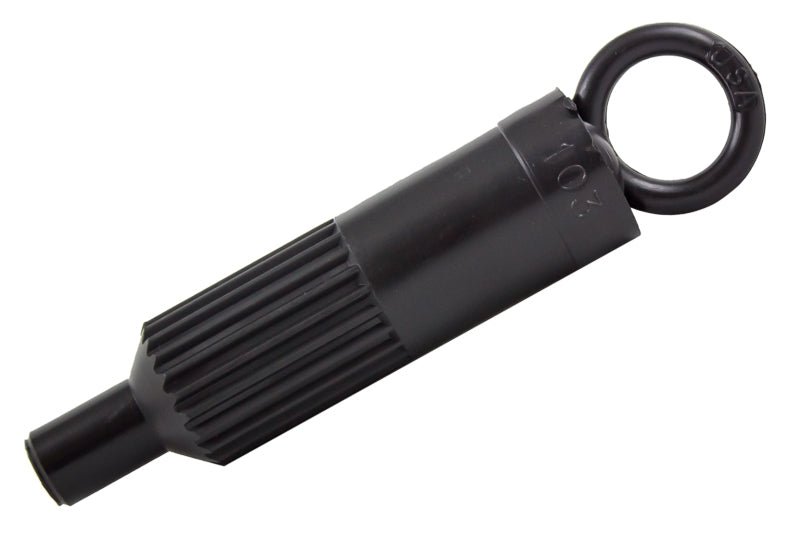

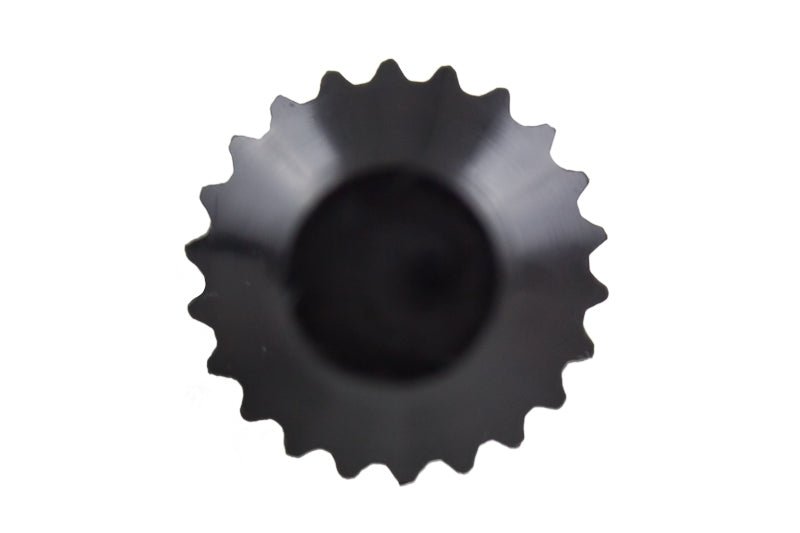

AT103 is an alignment tool that facilitates the installation of an ACT pressure plate by correctly aligning the clutch disc with the pilot bearing. This results in easy alignment with the transmission input shaft. Browse the complete ACT performance clutch collection , compare related clutch components , or shop additional drivetrain parts for a complete matched setup.

Key Features

  • AT103 is an alignment tool that facilitates the installation of an ACT pressure plate by correctly aligning the clutch disc with the pilot bearing.

Fitment

Years Make Model Application
2008-2013 BMW 128i Base
2006 BMW 325i Base
2004-2006 BMW 325xi Base
2007-2013 BMW 328i Base
2009-2013 BMW 328i xDrive Base
2007-2008 BMW 328xi Base
2004-2006 BMW 330Ci Base
2004-2006 BMW 330i Base
2004-2006 BMW 330xi Base
2006-2007 BMW 525i Base
2008-2010 BMW 528i Base
2008 BMW 528xi Base
2004-2007 BMW 530i Base
2006-2007 BMW 530xi Base
2004-2005 BMW X3 2.5i
2004-2006 BMW X3 3.0i
2007-2008 BMW X3 3.0si
2009-2011 BMW Z4 sDrive30i

Vehicle fitment is a starting point. Confirm every drivetrain specification and the exact ACT part number before installation.

Specifications

Brand ACT
Manufacturer Part Number AT103
Product Type Pressure Plates
Condition New

What's Included

The exact ACT pressure plate and quantity identified by the product title and MPN. Bearings, alignment tools, flywheel bolts, pressure-plate bolts, hydraulic parts, and related hardware are included only when specifically stated.

About ACT

ACT develops application-specific clutch kits, friction discs, pressure plates, flywheels, bearings, and supporting drivetrain components for street and motorsport use. Black Ops Auto Works organizes every ACT listing by exact MPN and verified vehicle application.

Related Parts

Frequently Asked Questions

What is ACT part AT103?
It is the pressure plate described on this page in the exact listed configuration.

How do I confirm fitment?
Match the exact MPN plus year, make, model, trim, engine, transmission, drivetrain, and every application note.

Can I choose a clutch component by vehicle alone?
No. Clutch diameter, input-shaft spline, flywheel step, release system, engine code, and transmission can vary within one vehicle listing.

What is included?
Only the ACT components and quantity identified by this exact title and MPN are included. Related hardware or drivetrain parts may be separate.

Is break-in required?
Follow the current ACT instructions for the exact friction material and kit. Street clutch assemblies commonly require a controlled break-in period before full-load use.

Is professional installation recommended?
Yes. Clutch and flywheel work requires transmission removal, correct fastener procedures, alignment, release-system setup, and final operational checks.

Is this product new?
Yes. The item condition is new unless the product page explicitly states otherwise.

What should I verify before checkout?
Confirm the MPN, application, torque requirement, friction material, spline and diameter, flywheel compatibility, included items, and required hardware.

Installation Instructions

  1. Confirm ACT part AT103 and the complete engine, transmission, flywheel, spline, and release-system application before disassembly.
  2. Inspect every component and compare the new part with the removed assembly before modifying or installing anything.
  3. Inspect the flywheel or friction surface, pilot support, release bearing, fork, pivot, hydraulic system, seals, and mounting hardware.
  4. Clean friction surfaces correctly and keep oil, grease, and fingerprints away from the clutch disc and mating faces.
  5. Use the vehicle service procedure and current ACT instructions for alignment, fasteners, torque sequence, release travel, and clearances.
  6. Verify smooth release, correct free play, clean gear engagement, and leak-free operation before road use.
  7. Complete the manufacturer-specified break-in procedure before launches, dyno pulls, racing, towing, or full-torque operation.
