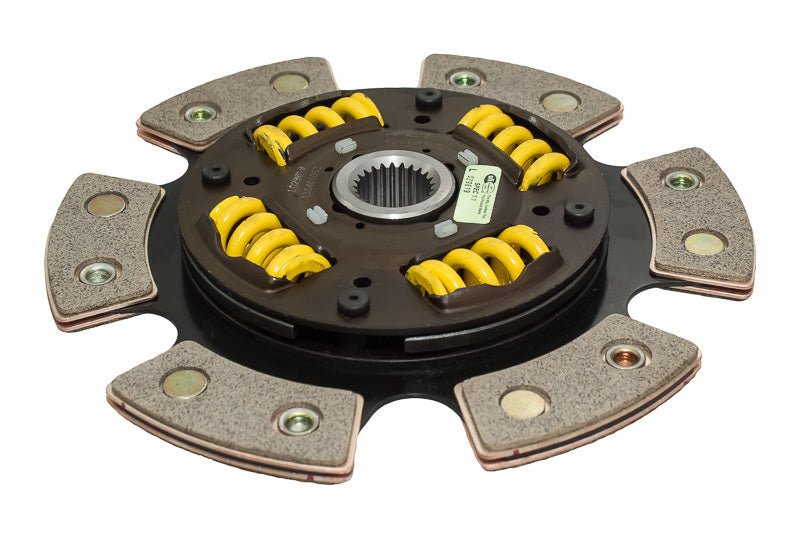

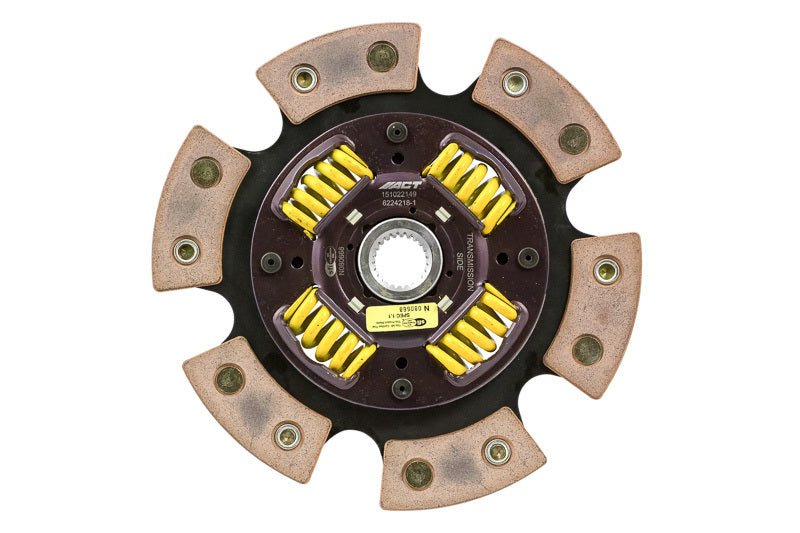

ACT 2013 Scion FR-S 6 Pad Sprung Race Disc

Ceramic Six-Pad Race Clutch Disc for Maximum Torque on the FA20 Platform

The ACT 6224218-1 is a 6-Pad Sprung Race clutch disc engineered for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2013-2020 Toyota 86. Where the street-spec organic disc is built for smooth daily engagement, the 6224218-1 is built for drivers who push their FA20 platform hard at the track. The ceramic six-pad design dramatically increases friction surface contact area, expanding heat capacity and extending disc life under sustained high-temperature track conditions. Engagement is noticeably firmer and shift action is faster than a street disc. The spring-centered hub uses heavy-duty torsional dampening springs that are stronger than standard springs, sized and rated specifically for the application, to absorb shock while maintaining fast mechanical response. The 6224218-1 must be used with an ACT pressure plate and is recommended for larger clutch sizes where extra heat absorption and smooth engagement under load are priorities.

Key Features

• Six-pad ceramic friction material for maximum heat capacity and extended track life
• Heavy-duty torsional dampening springs stronger than standard for firm, controlled engagement
• Increased pad surface contact area for better torque distribution under load
• 8.8 inch / 224mm disc diameter, 24-spline, 1-inch spline bore
• SFI 1.1 certified
• Must be used with an ACT pressure plate and flywheel (not included)
• Backed by ACT's industry-leading warranty

Fitment

Specifications

What's Included

• 1 x ACT 6224218-1 6-Pad Sprung Race clutch disc

Related Parts on Our Site

• ACT 3000504 — Perf Street Sprung Disc (street-use alternative)
• ACT ACT3000506 — Performance Street Sprung Disc (high-torque street option)
• ACT RB004 — Release Bearing for FR-S / BRZ / 86
• ACT AT90 — Clutch Alignment Tool

About ACT

Advanced Clutch Technology (ACT) has designed and manufactured performance clutch components in the USA since 1991. Every ACT disc is engineered to precise tolerances using premium materials and validated through dyno and track testing. ACT backs its performance line with an industry-leading warranty and full technical support.

Frequently Asked Questions

The ACT 6224218-1 is a 6-Pad Sprung Race clutch disc for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2013-2020 Toyota 86. It uses ceramic friction material across six pads with a heavy-duty spring-centered hub for high-torque track applications where maximum heat resistance is required.

The 6224218-1 is a race-oriented disc. Engagement is firmer and less progressive than the organic street disc. It can be driven on the street but is not optimized for smooth low-speed city traffic. If you need a disc that is comfortable for daily commuting and occasional track use, the ACT 3000504 or ACT3000506 is a better choice.

The six ceramic pads distribute clamping force across a larger total contact area, which reduces heat concentration per pad, delays fade onset during extended braking and repeated hard launches, and extends disc service life under sustained track conditions compared to a full-face organic disc in high-heat environments.

The 6224218-1 must be used with an ACT pressure plate. ACT Heavy Duty and Xtreme pressure plates are both compatible with this disc on the FA20 platform. Do not use with the OEM pressure plate.

Yes. The ACT 6224218-1 fits the 2018 and 2020 Subaru BRZ TS in addition to all other listed BRZ, FR-S, and 86 trims on the FA20 platform.

Yes, it is strongly recommended. The ACT RB004 is the correct direct-fit release bearing for the FR-S, BRZ, and 86 platform and is available separately on our site.

Yes. The ACT AT90 clutch alignment tool is the correct tool for this application. Proper centering of the disc is critical for smooth transmission input shaft engagement during reinstallation.

Ceramic discs require a specific heat-cycling break-in procedure. Avoid hard launches or high-slip engagement for the first 200-500 miles. Perform several moderate acceleration runs from low speed to allow the pads to seat evenly against the flywheel and pressure plate surfaces before full-power use.

Installation Instructions

1. Safely lift and support the vehicle and remove the driveshaft and transmission.
2. Remove the OEM pressure plate and clutch disc assembly.
3. Inspect and resurface or replace the flywheel friction surface as needed.
4. Install the ACT 6224218-1 disc using the ACT AT90 alignment tool or equivalent to center it in the spline bore.
5. Install the ACT pressure plate and torque the bolts to factory spec in a star pattern.
6. Replace the release bearing with ACT RB004 or equivalent.
7. Reinstall the transmission and driveshaft to factory torque specifications.
8. Follow ACT's ceramic disc break-in procedure before sustained track use.
