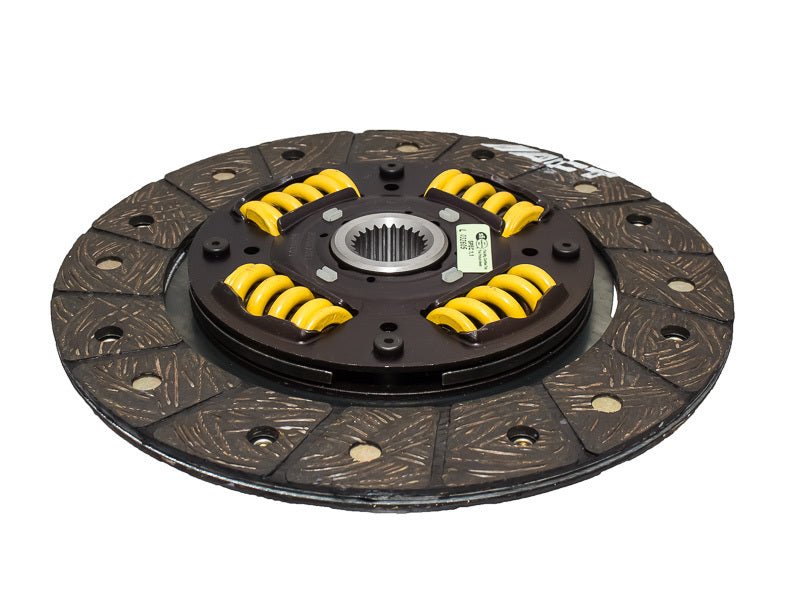

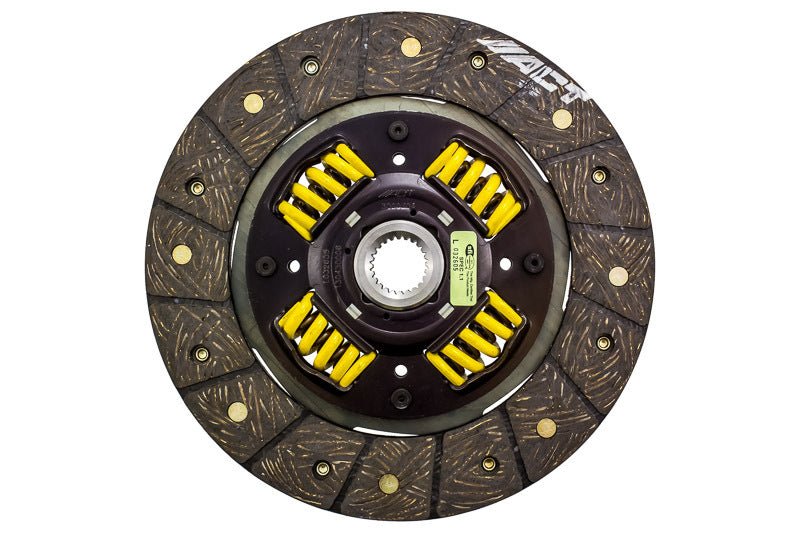

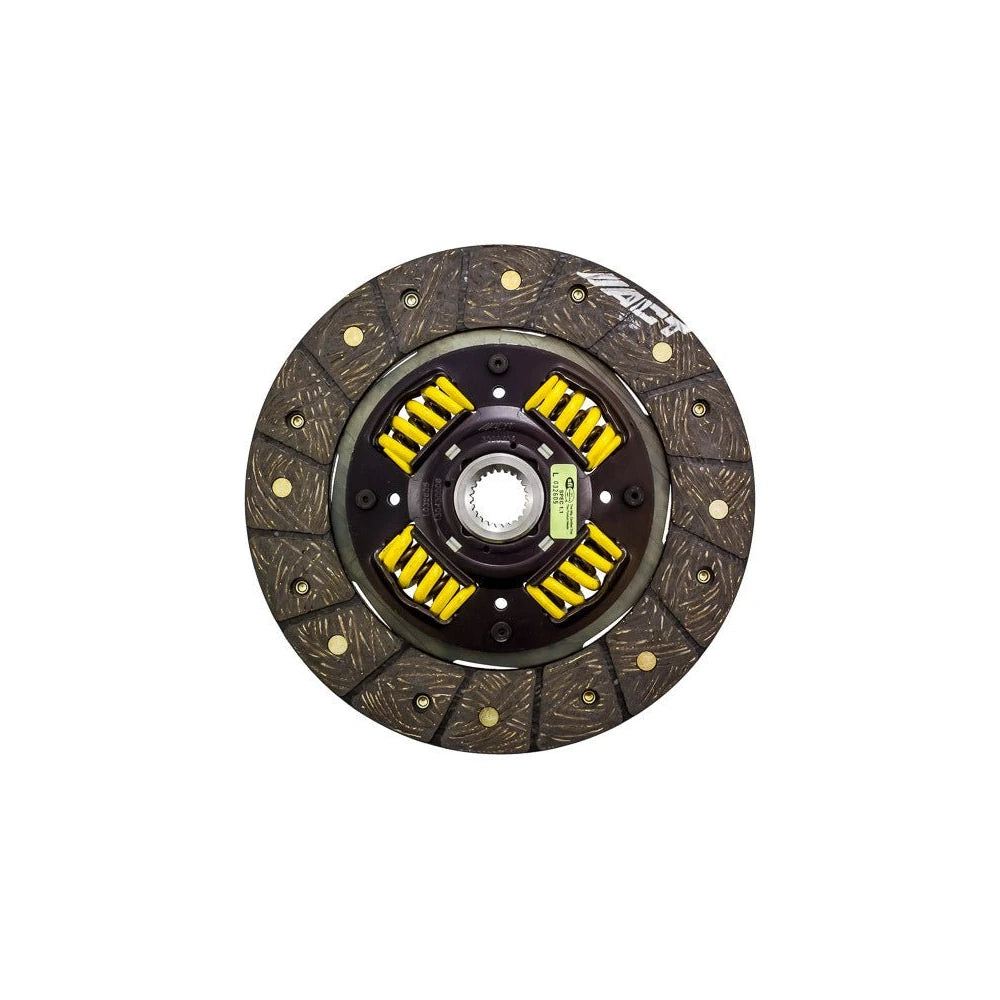

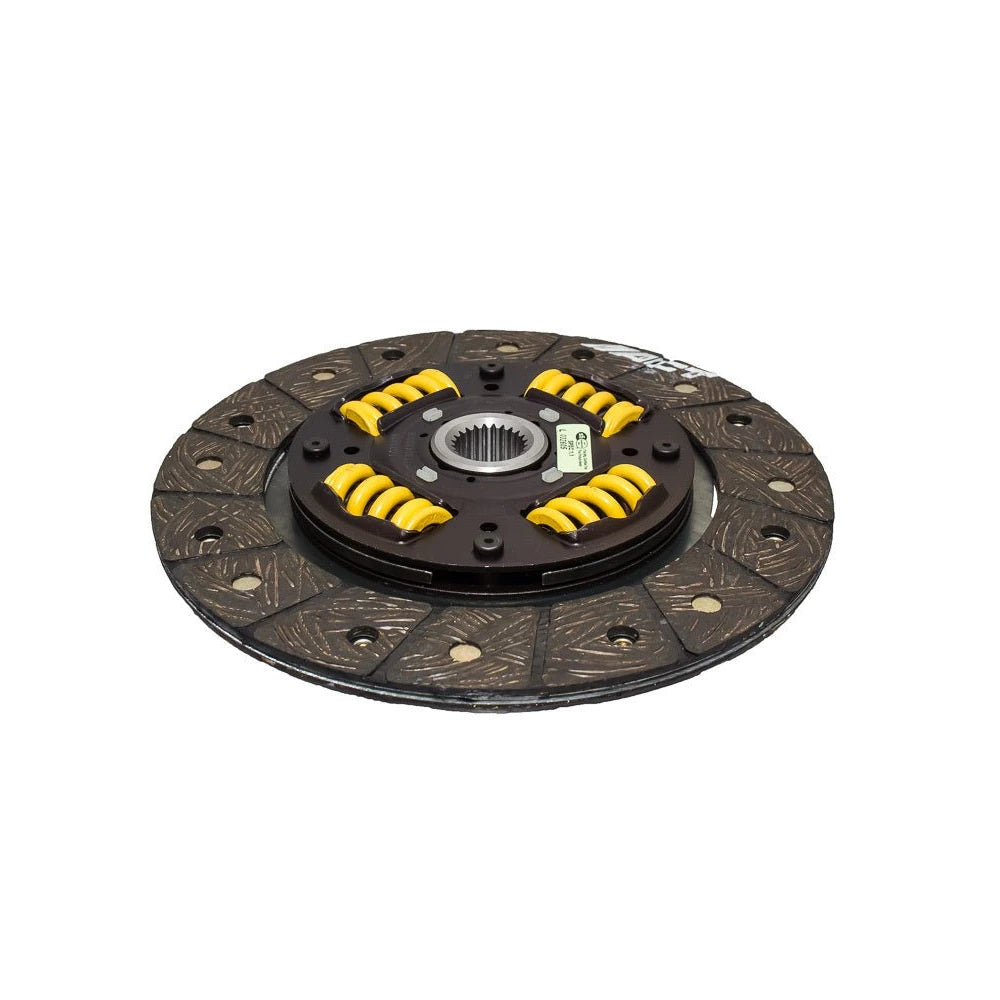

Organic Street Sprung Clutch Disc Built for the FA20 Platform
The ACT 3000504 is a Performance Street Sprung clutch disc designed for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2013-2020 Toyota 86. It is the most popular ACT disc for this platform and represents the ideal first performance clutch upgrade for drivers stepping up from the OEM disc. The 3000504 uses premium organic friction material with high copper content for improved heat transfer and consistent bite across a wide temperature range. Its spring-centered hub absorbs drivetrain shock with cone springs and bushings similar in design to OEM clutch assemblies, providing quiet operation and smooth engagement that is suited to daily street driving with occasional spirited use. The reduced marcel delivers faster shift action compared to stock while maintaining the linear pedal feel most street drivers prefer. The 3000504 must be used with an ACT pressure plate.
Key Features
- Premium organic friction material with high copper content for better heat transfer and consistent bite
- Spring-centered hub with cone springs and bushings for smooth, quiet engagement
- Reduced marcel for faster shift action compared to OEM disc
- 8.8 inch / 224mm disc diameter, 24-spline, 1-inch spline bore
- SFI 1.1 certified
- Must be used with an ACT pressure plate and flywheel (not included)
- Backed by ACT's industry-leading warranty
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2013-2016 | Scion | FR-S | Base |
| 2013-2020 | Subaru | BRZ | Limited, Premium, Series.Blue, Series.HyperBlue, TS |
| 2017-2020 | Toyota | 86 | Base, GT, TRD Special Edition |
Specifications
| Detail | Value |
|---|---|
| Part Number | 3000504 |
| SKU | ACT3000504 |
| UPC | N/A |
| Disc Diameter | 8.8 in / 224mm |
| Spline Count | 24 |
| Spline Bore Diameter | 1 in |
| Disc Material | Organic |
| Hub Type | Spring Centered |
| Grade | Performance |
| SFI Rating | 1.1 |
| Weight | 3.3 lbs |
What's Included
- 1 x ACT 3000504 Performance Street Sprung clutch disc
Related Parts on Our Site
- ACT 6224218-1 — 6 Pad Sprung Race Disc (track-focused upgrade)
- ACT ACT3000506 — Performance Street Sprung Disc (higher torque capacity variant)
- ACT RB004 — Release Bearing for FR-S / BRZ / 86
- ACT AT90 — Clutch Alignment Tool
About ACT
Advanced Clutch Technology (ACT) has designed and manufactured performance clutch components in the USA since 1991. Every ACT disc is engineered to precise tolerances using premium materials and validated through dyno and track testing. ACT backs its performance line with an industry-leading warranty and provides technical support for all fitment and installation questions.
Frequently Asked Questions
What is the ACT 3000504?The ACT 3000504 is a Performance Street Sprung clutch disc for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, and 2013-2020 Toyota 86. It uses premium organic friction material with a spring-centered hub for smooth daily-driver engagement and is the most popular ACT disc on this platform.
Does the ACT 3000504 work for daily driving?Yes. The organic friction material and spring-centered hub design give the 3000504 a pedal feel that is very close to stock. It is well suited to a daily driven BRZ, FR-S, or 86 with light bolt-on modifications.
What pressure plate does this disc require?The 3000504 must be used with an ACT pressure plate. It is not designed for use with the OEM pressure plate. ACT offers Heavy Duty and Xtreme pressure plates for this platform depending on your power level and use case.
What is the difference between the 3000504 and the ACT3000506?Both are Street Sprung discs for the FA20 platform. The ACT3000506 is a higher-specification disc with greater torque capacity, better suited to more aggressively modified engines. The 3000504 is the standard street disc for mildly modified or stock-power builds.
What is the difference between the 3000504 and the 6224218-1 race disc?The 3000504 uses organic friction material for smooth street engagement. The ACT 6224218-1 is a 6-pad ceramic race disc with harsher engagement and faster shift action, suited to track-only or dual-use builds that need maximum torque capacity and heat resistance.
Does this disc fit the 2019 Toyota 86 TRD Special Edition?Yes. The ACT 3000504 fits all listed FA20-powered Toyota 86 trims from 2017 to 2020, including the TRD Special Edition.
Do I need an alignment tool for installation?Yes. A clutch alignment tool is required to center the disc in the pressure plate before torquing the bolts. The ACT AT90 alignment tool is the correct tool for this application and is available separately on our site.
What warranty does ACT provide?ACT provides an industry-leading warranty on all performance clutch discs. Contact ACT directly or review the documentation included with the product for full warranty terms specific to your application.
Installation Instructions
- Safely lift and support the vehicle, then remove the driveshaft and transmission.
- Remove the OEM pressure plate and clutch disc assembly.
- Inspect the flywheel friction surface for grooves or hot spots. Resurface or replace as needed.
- Install the ACT 3000504 disc using the alignment tool (ACT AT90 or equivalent) to center it in the spline.
- Install the ACT pressure plate and torque the bolts to the factory specification in a star pattern.
- Replace the release bearing with ACT RB004 or equivalent.
- Reinstall the transmission and driveshaft to factory torque specifications.
- Bed in the new clutch with several progressive engagement cycles before full-load use.
