-9%
Click to zoom in

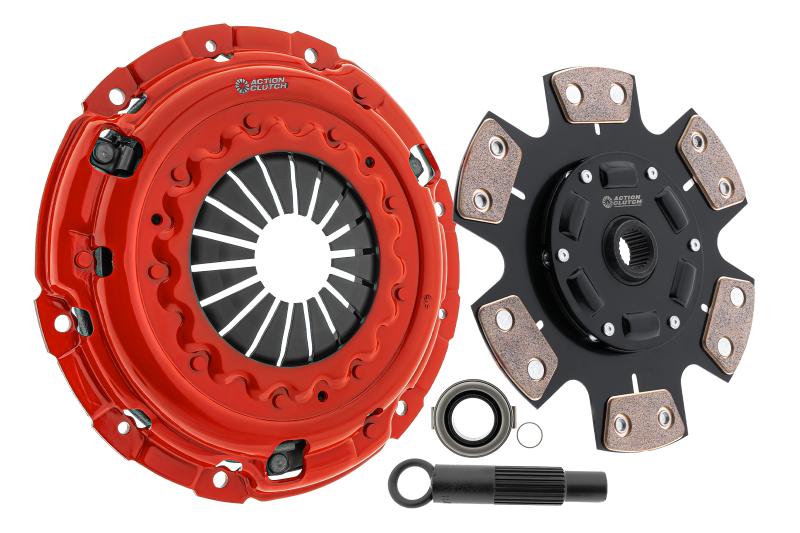

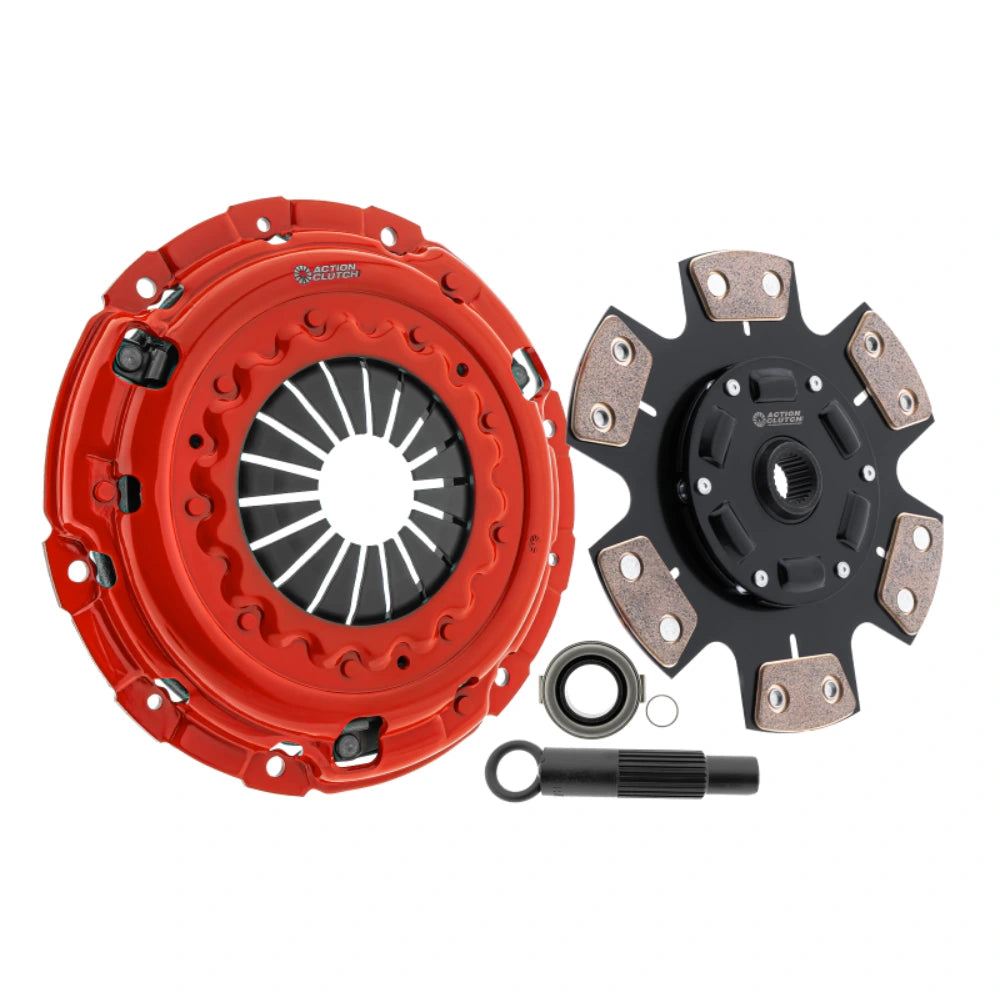

Action Clutch 94-01 Acura Integra Stage 5 Clutch Kit
Action Clutch ACR-0478 is a Stage 5 (2MS) single-disc clutch package for the 1994-2001 Acura Integra manual application. No flywheel is listed among the supplied components. Confirm the exact manual gearbox, flywheel and release-system application before ordering.
Key Features
- ACR-0478 combines a sprung miba ceramic six-puck disc with a dual clamp-load heavy-duty pressure plate.
- Primarily racing and heavy track use, with only light street use where appropriate. Ceramic engagement can chatter and should be selected for the intended engine output.
- No flywheel is listed among the supplied components.
Fitment
| Years | Make | Model | Engine | Transmission |
|---|---|---|---|---|
| 1994-2001 | Acura | Integra | 1.8L B18, VTEC or non-VTEC | Manual only |
Confirm the exact manual gearbox, flywheel and release-system application before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | Action Clutch |
| Manufacturer Part Number | ACR-0478 |
| Product Type | Clutch Kits - Single |
| Stage | 5 (2MS) |
| Disc | Sprung MIBA ceramic six-puck disc |
| Pressure Plate | Dual clamp-load heavy-duty pressure plate |
| Flywheel | No flywheel is listed among the supplied components. |
| Manufacturer holding-capacity rating | 536 lb-ft of crank torque |
| Condition | New |
What’s Included
- Sprung MIBA ceramic six-puck disc
- Dual clamp-load heavy-duty pressure plate
- Pilot bearing or bushing where applicable
- Clutch alignment tool
- Conventional release bearing
About Action Clutch
Action Clutch develops application-specific clutch and flywheel packages for street and performance use. Use manufacturer part number ACR-0478 to confirm the exact package, friction material and assembly requirements.
Related Parts
- Action Clutch Stage 3 1MS Clutch Kit for 1994-2001 Acura Integra 1.8L (B18)
- Action Clutch Stage 2 1SC Clutch Kit for 1994-2001 Acura Integra 1.8L (B18)
- Action Clutch Stage 1 1OS Clutch Kit for 1994-2001 Acura Integra 1.8L (B18)
Compare the application and package requirements on each linked product before choosing components.
Frequently Asked Questions
What is the ACR-0478?It is a Stage 5 (2MS) clutch package for the 1994-2001 Acura Integra with the listed engine and manual transmission.
How do I confirm fitment?Match the 1.8L B18, VTEC or non-VTEC engine, model years, gearbox, flywheel and release system to the application table. Automatic transmissions and engine or gearbox swaps require separate confirmation.
Is a flywheel included?No flywheel is listed among the supplied components.
Are there additional application requirements?Confirm the exact manual gearbox, flywheel and release-system application before ordering.
What components are supplied?Sprung MIBA ceramic six-puck disc; Dual clamp-load heavy-duty pressure plate; Pilot bearing or bushing where applicable; Clutch alignment tool; Conventional release bearing. Confirm the contents against the current manufacturer instructions.
What use is this clutch intended for?Primarily racing and heavy track use, with only light street use where appropriate. Ceramic engagement can chatter and should be selected for the intended engine output.
How should the clutch be broken in?Complete 500 street miles below 4,500 rpm, at no more than half throttle and without boost if applicable. Follow the supplied Action Clutch instructions before hard use.
How should I assess torque capacity?The manufacturer lists 536 lb-ft of crank torque, rather than wheel torque. Confirm current guidance against engine output and intended use; the rating is not a service-life guarantee.
Is professional installation recommended?Yes. Correct flywheel inspection, fastener torque, disc alignment, pilot support and release-system setup are essential.
Installation Instructions
- Confirm ACR-0478, the exact manual application and every flywheel or tuning requirement before disassembly.
- Use the vehicle service manual and current Action Clutch instructions for removal, fasteners, alignment and release-system setup.
- Inspect the flywheel, pilot support, input shaft, release bearing and hydraulics; correct wear or leaks before assembly.
- Install the matched components and verify full release, engagement and clearances before road use.
- Complete the specified 500-mile break-in below 4,500 rpm, at no more than half throttle and without boost if applicable.
