AEM 2 BAR MAP or 30 PSIA Stainless Steel Sensor Kit
AEM 30-2130-30 measures 0–30 PSIa using a stainless-steel transducer with a 1/8-inch NPT male connection. Its pressure reference is absolute vacuum. Match the sensor range, wiring and analog-input calibration to the actual measurement task.
Key Features
- 30 PSIa full-scale range in the nominal 2 bar MAP class.
- Regulated 5 V sensor supply and nominal linear 0.5–4.5 V output.
- 304L stainless body and 316L wetted material listed in the family manual.
- ±1% full-scale accuracy, per AEM’s manual.
- Mating three-pin connector kit and application fittings identified below.
Fitment
| Requirement | Supported configuration |
|---|---|
| Pressure reference | Absolute, referenced to vacuum |
| Range | 0–30 PSIa |
| Mechanical port | 1/8-inch NPT male; matching sealed pressure connection required |
| Electrical system | Compatible regulated 5 V supply, sensor ground and analog signal input |
| Controller setup | Exact range, reference and calibration required; not automatically compatible with every OEM ECU or gauge |
The 2 bar name is a nominal absolute-pressure class, not 2 bar of boost above atmosphere. Absolute sensors can measure manifold vacuum; gauge-pressure sensors use a different pressure reference. No year/make/model fitment is implied by the connector or port size alone.
Specifications
| Detail | Value |
|---|---|
| Brand / manufacturer part number | AEM / 30-2130-30 |
| Range / reference | 0–30 PSIa / absolute |
| Output endpoints | 0.5 V = 0 PSIa; 2.5 V = 15 PSIa; 4.5 V = 30 PSIa |
| Supply | 5 V ±0.5 V; supply current below 6 mA |
| Accuracy | ±1% of full scale, per manufacturer |
| Operating temperature | −40 to 105 °C |
| Body / wetted material | 304L / 316L stainless steel |
| Port / connector | 1/8-inch NPT male / Packard three-pin |
| Condition | New |
AEM’s linked chart displays a PSI curve with an atmospheric offset, including negative values, while the sensor is specified as absolute. The PSI-absolute endpoints here express that same curve relative to absolute vacuum. The printed PSI transfer equation also differs from the plotted/table endpoints. Verify the exact calibration against a known pressure reference and confirmed AEM/controller guidance; do not rely on that inconsistent equation.

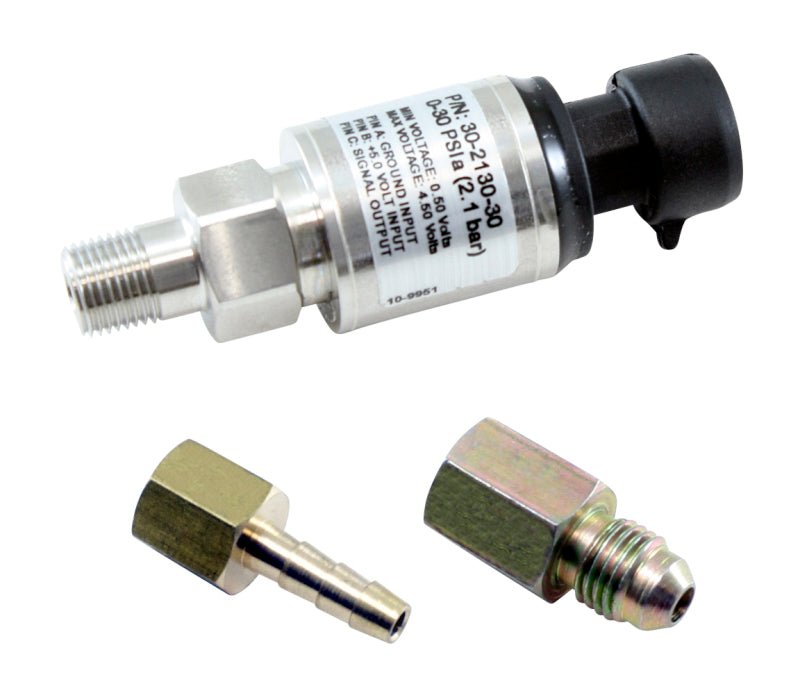

What’s Included
- One 30 PSIa stainless-steel pressure sensor
- Mating connector and terminal-pin kit
- 1/8-inch NPT to -4 adapter
- 1/8-inch NPT to 3/16-inch hose-barb adapter, per the exact kit matrix
A display, ECU, logger, complete vehicle harness and installation plumbing are separate. Select fittings and hose appropriate for the installation; the adapters do not establish vehicle-specific fitment.
About AEM
AEM develops performance electronics, monitoring, fueling, ignition, and water-methanol products for enthusiast and motorsport applications. Black Ops Auto Works organizes AEM listings by exact part number and available application data to support accurate product selection.
Related Parts
Choose companion electronics by analog-input compatibility and exact pressure calibration. Shared branding does not establish plug-in compatibility.
FAQ
What is the 30-2130-30?It is an AEM stainless-steel absolute MAP sensor kit with a 0–30 PSIa measurement range and a 1/8-inch NPT male port.
Is this pressure range absolute or gauge?It is absolute pressure, referenced to vacuum. Atmospheric pressure is already part of the reading; the full-scale label is not the same amount of boost above atmosphere.
What supply voltage is required?The family manual specifies a regulated 5 V supply within ±0.5 V. Do not connect it directly to a 12 V vehicle power feed.
How should the output be configured?Configure a compatible analog input for this exact sensor range and pressure reference. The nominal linear output spans 0.5–4.5 V; verify the documented endpoints and check the result against a known reference.
Does a matching connector prove it fits my vehicle?No. Verify the supply, ground, signal pin positions, input capability, calibration, port and operating conditions. This is a specification-selected sensor, not a guaranteed plug-in replacement for every vehicle.
Is a hose-barb adapter included?Yes. AEM’s exact kit-content matrix lists the connector kit, -4 adapter and 3/16-inch hose barb with this absolute-pressure kit.
What does ±1% accuracy mean?The manual specifies ±1% of full scale, which is different from ±1% of each displayed reading. Correct wiring, calibration and operating temperature still matter.
How is the connector assembled?The supplied connector uses pull-to-seat terminals. Feed the wire through the housing before crimping, then pull the terminal into its seat as shown in the AEM instructions.
Installation Instructions
- Confirm the exact pressure range and reference, intended fluid/system, 1/8-inch NPT port and operating conditions before installation.
- Isolate electrical power and safely depressurize the system. Mount the sensor and suitable fittings without applying installation force through the electrical housing.
- Follow the AEM connector diagram and pull-to-seat assembly sequence. Connect regulated sensor power, sensor ground and the compatible analog input; do not assume an OEM connector shares the same pinout.
- Configure the exact calibration and pressure units in the receiving device. For absolute sensing, distinguish the actual absolute-pressure channel from any atmosphere-relative display.
- Restore the system, inspect for leakage and verify the reading against an appropriate known pressure reference before relying on it for logging or control.
Read the AEM pressure-sensor wiring and kit-content manual; view the exact sensor output data.
