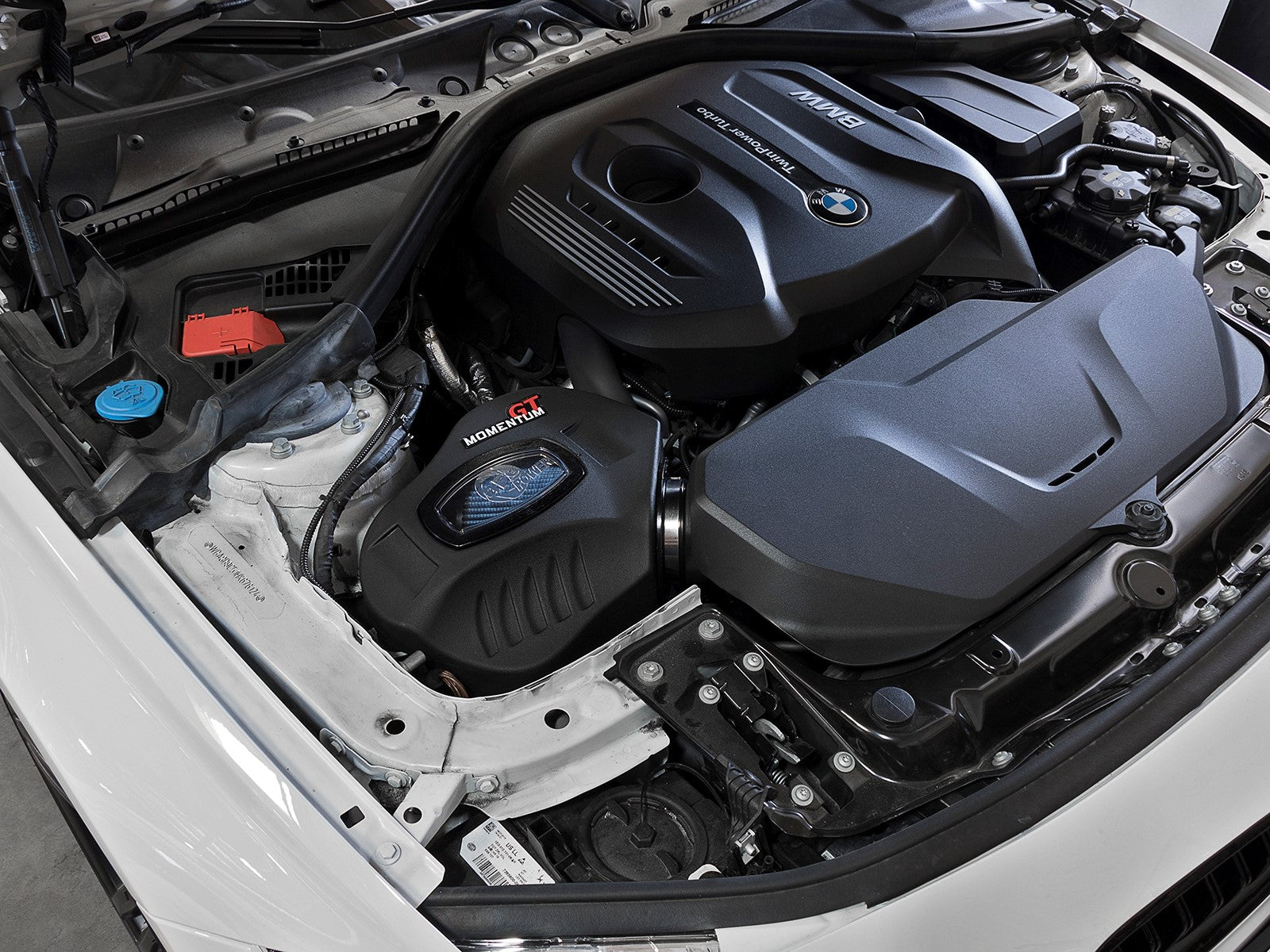

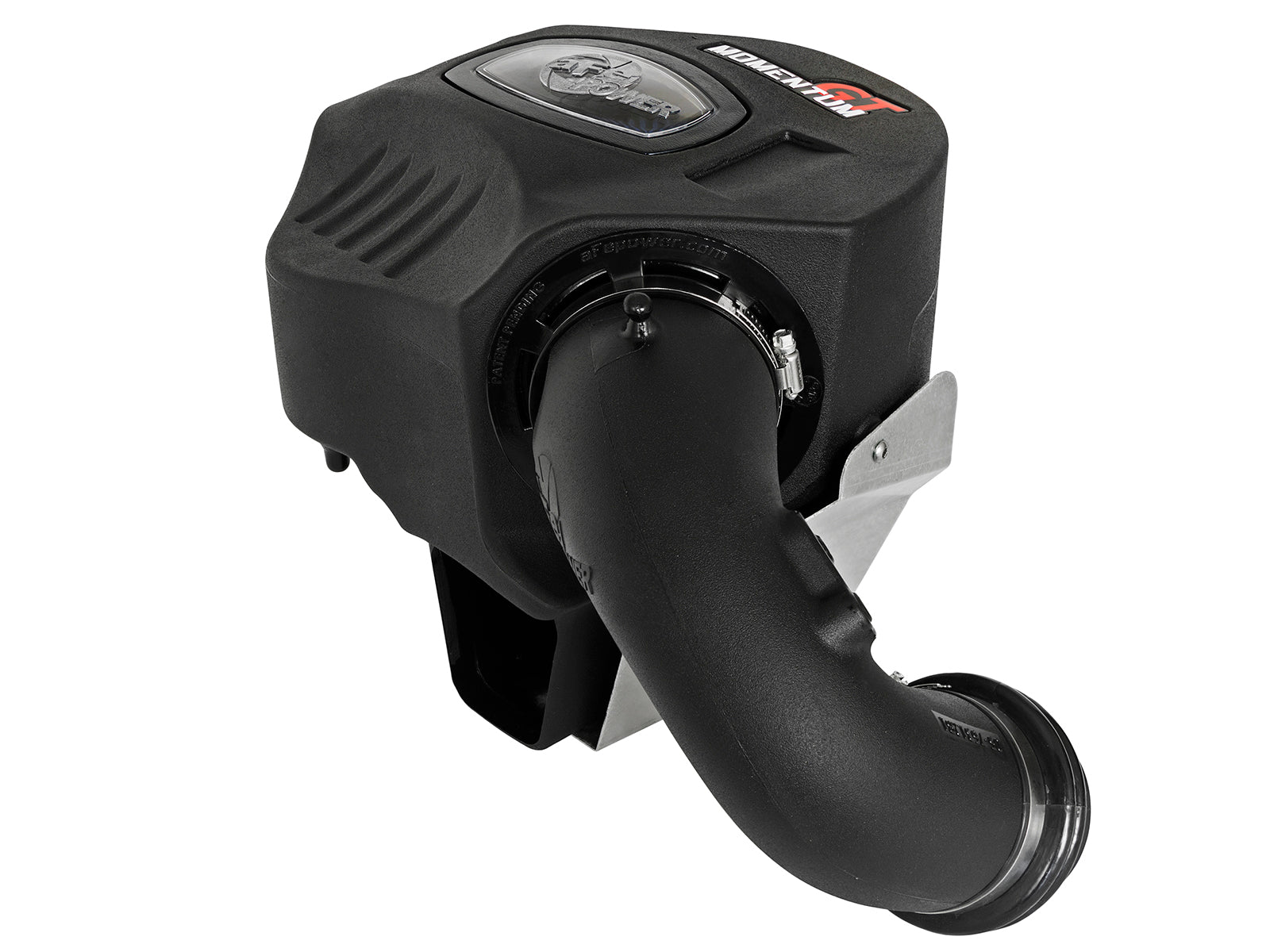

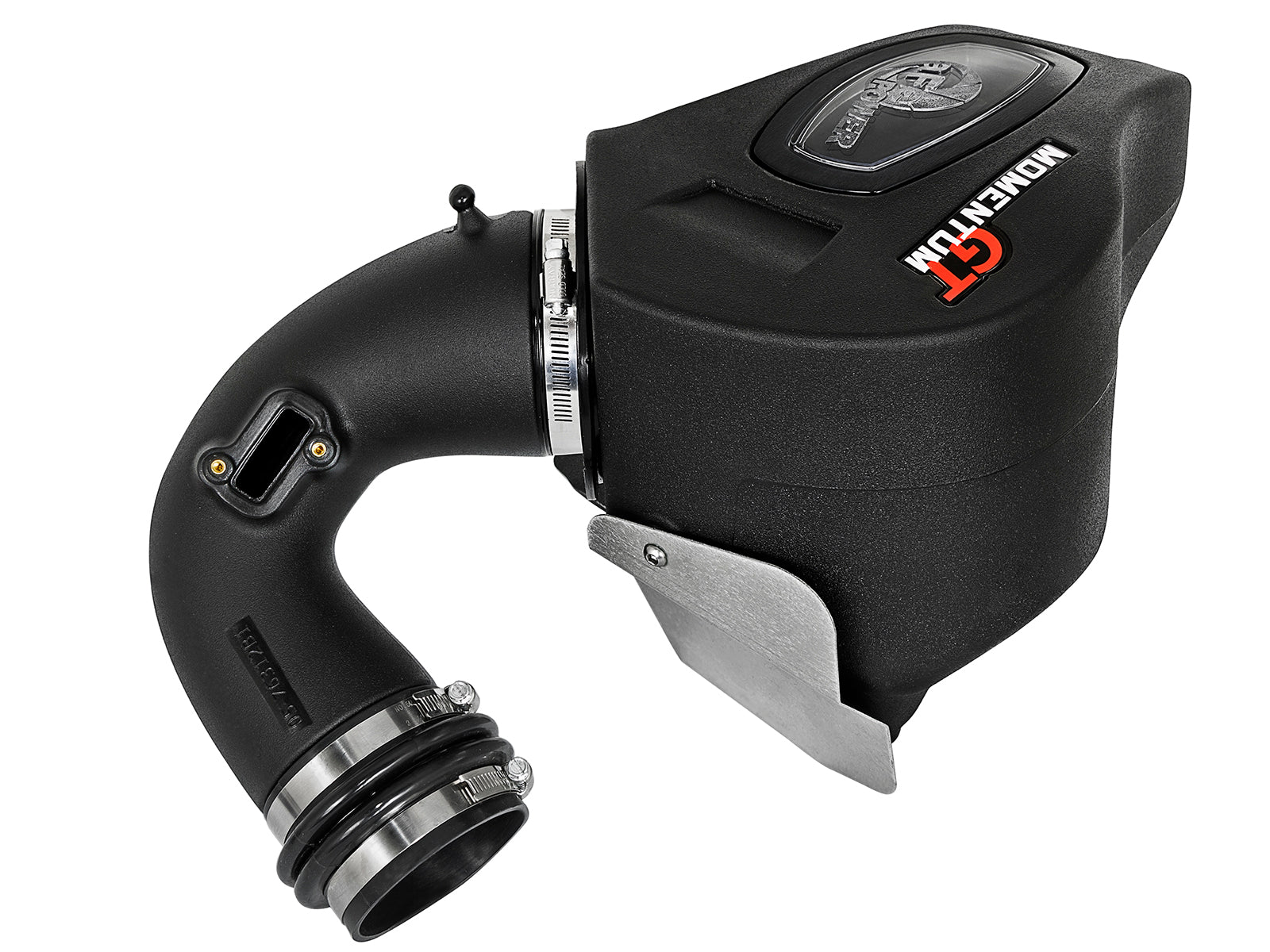

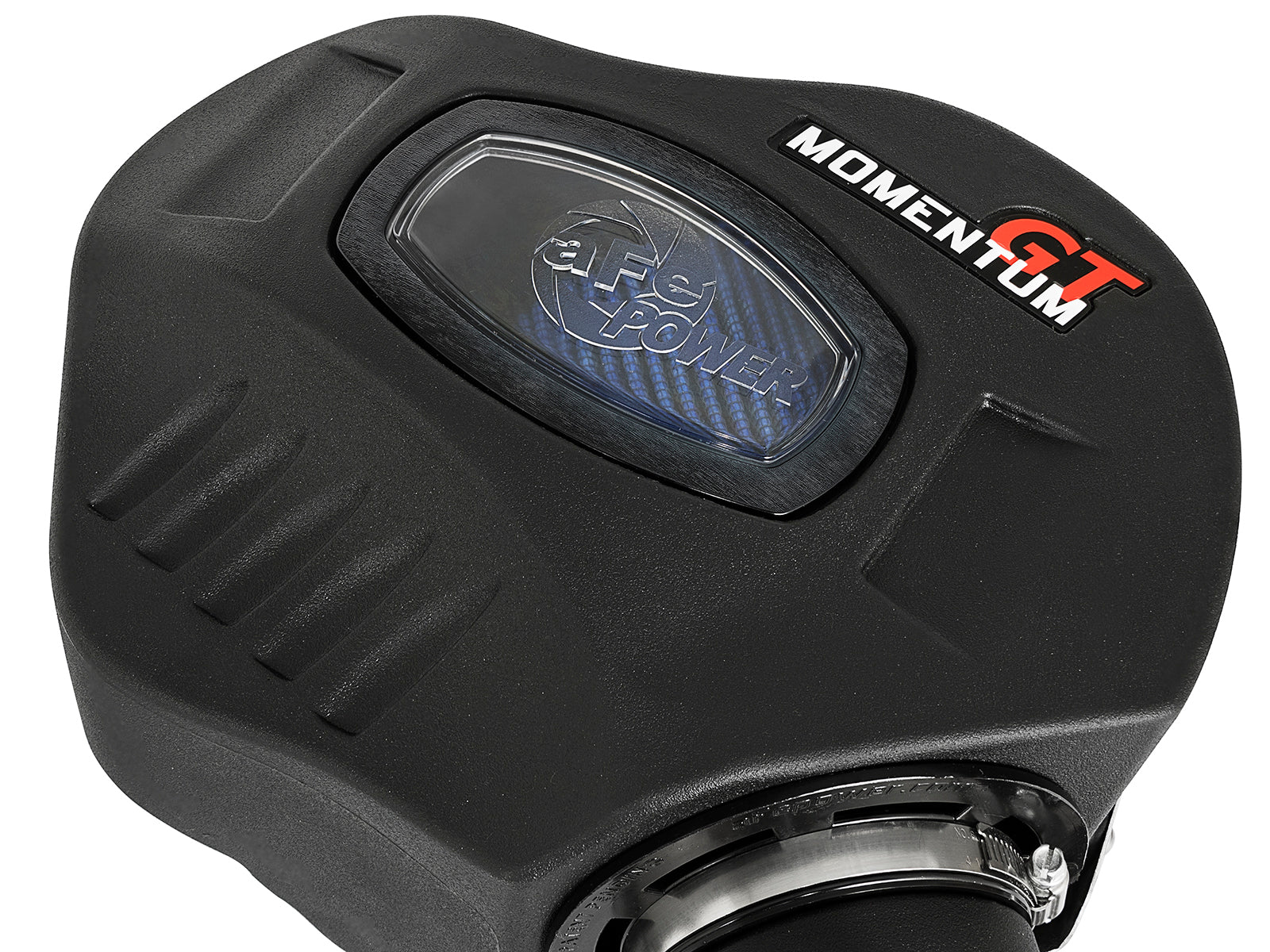

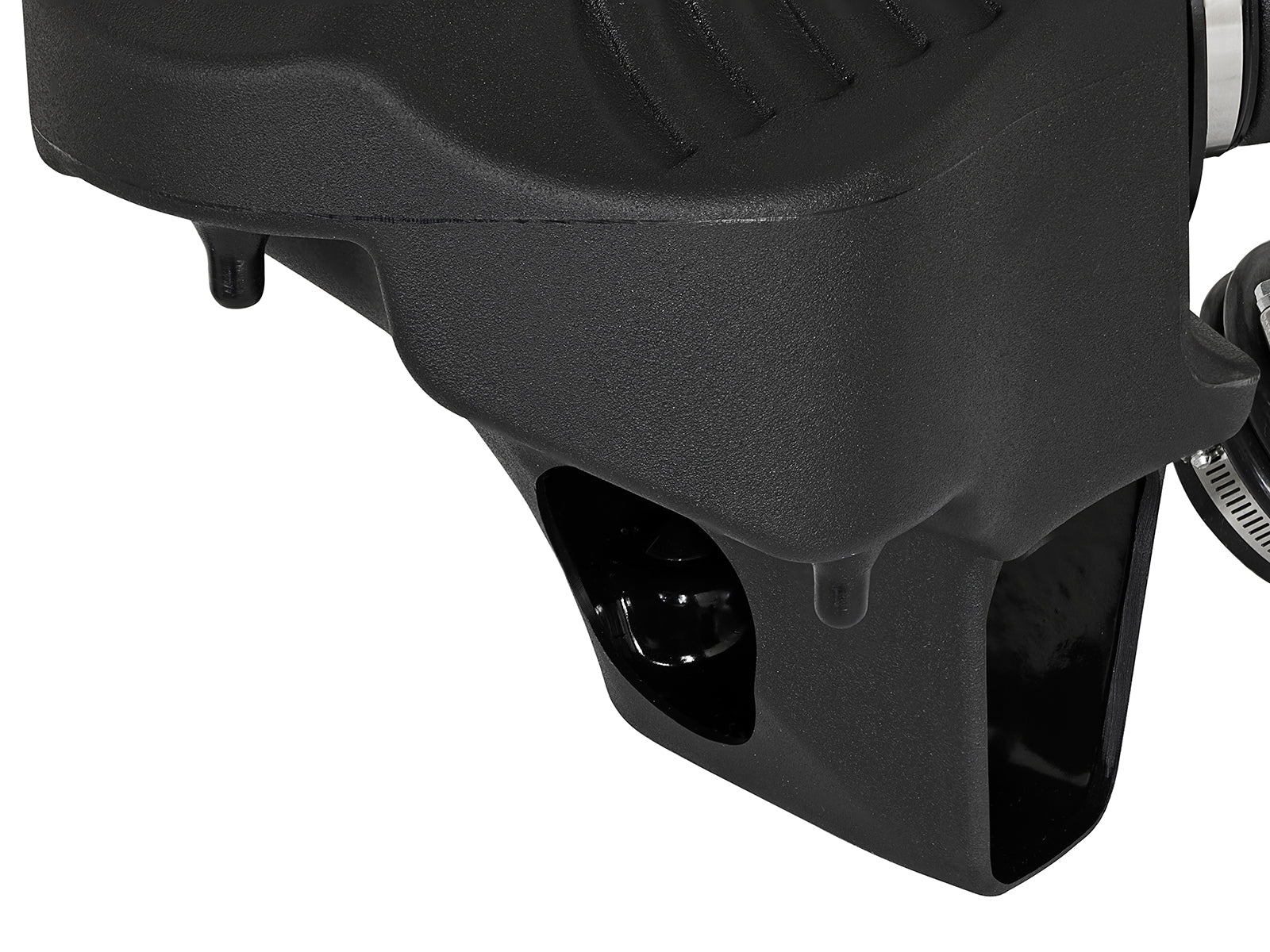

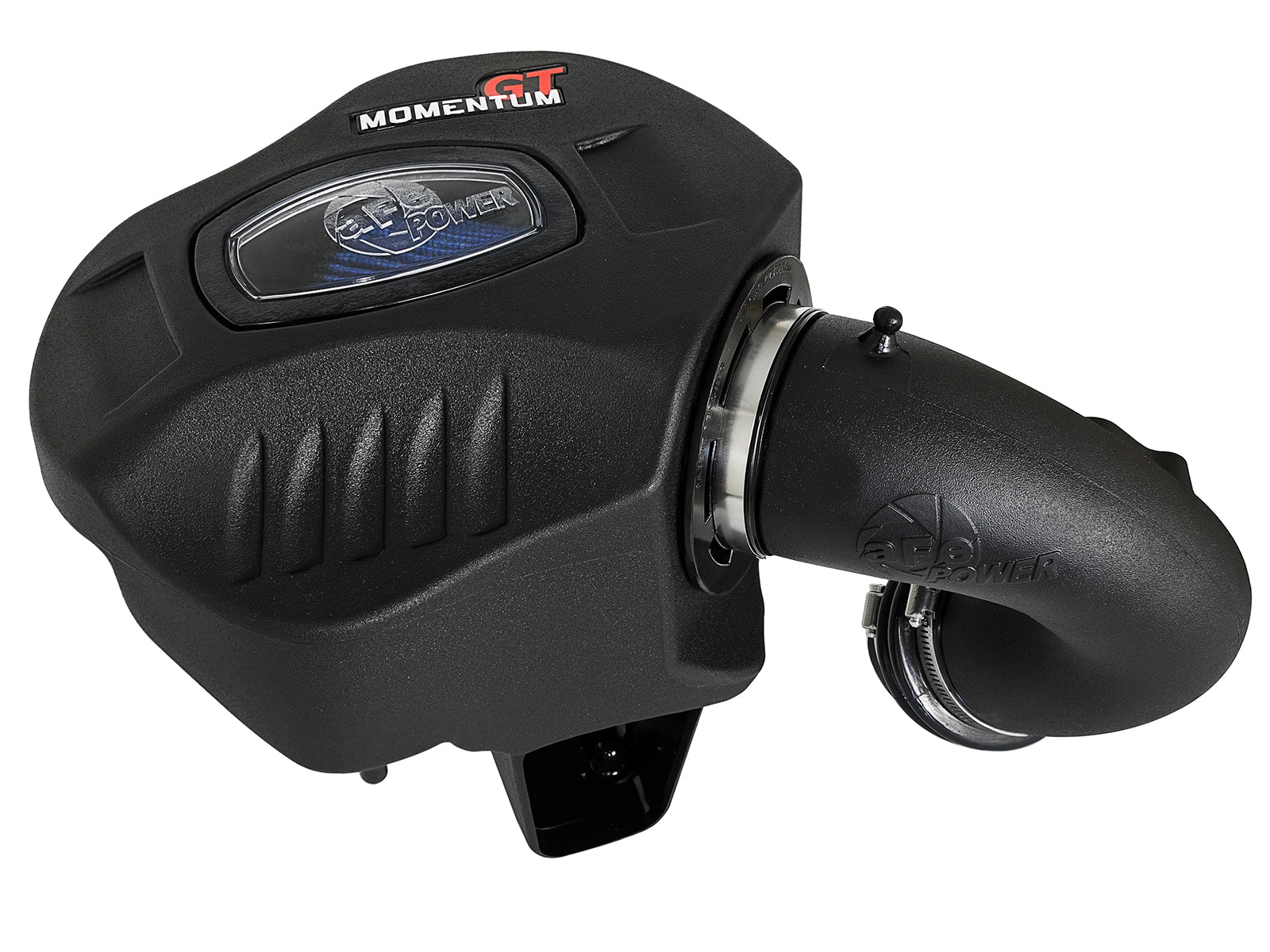

aFe 54-76312 Momentum GT intake combines a Pro 5R oiled filter, molded housing and tube, silicone double-hump coupling and aluminum turbo heat shield for qualified BMW B46/B48 F-chassis applications. The manufacturer explicitly excludes convertible models because of the factory strut brace.
Use the actual F-chassis, B46/B48 2.0L turbo engine and body configuration. Convertibles are excluded by the current manufacturer despite generic F23/F33 references on the manual cover. Existing named ranges remain 230i and 230i xDrive 2017-2021; 330i 2017-2018; 330i GT xDrive and 330i xDrive 2017-2019; 430i, 430i Gran Coupe and 430i xDrive 2017-2020. Exact selected-part retailer tables and the manual explicit F36 Gran Coupe application support the missing 430i xDrive Gran Coupe Base 2017-2020 row. Existing 230i 2021 retailer-positive endpoints exceed the manual 2020 limit and require exact configuration confirmation. The 2019 330i xDrive entry requires F-chassis confirmation and does not establish G20 compatibility. No broad 2016 named-trim mapping is inferred.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2017-2021 | BMW | 230i | Base |
| 2017-2021 | BMW | 230i xDrive | Base |
| 2017-2018 | BMW | 330i | Base |
| 2017-2019 | BMW | 330i GT xDrive | Base |
| 2017-2019 | BMW | 330i xDrive | Base |
| 2017-2020 | BMW | 430i | Base |
| 2017-2020 | BMW | 430i Gran Coupe | Base |
| 2017-2020 | BMW | 430i xDrive | Base |
| 2017-2020 | BMW | 430i xDrive Gran Coupe | Base |
Verify 54-76312 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-76312 |
| Product line | Momentum GT cold air intake |
| Selected filter | One 24-91103 Pro 5R; five oiled cotton-gauze layers |
| Filter dimensions qualification | Current replacement 3.5-inch flange and 7.5-inch height; overview rounds height to 8 inches |
| Housing / tube / shield | Molded housing and plastic tube / aluminum turbo heat shield |
| Body restriction | Convertible models excluded because of factory strut brace |
| Bench flow | Actual chart 179 versus stock 144 CFM at 1.5 inches H2O; approximately 24.3% |
| Other airflow rating | 350 CFM stated at 7 inches H2O; matching comparison at that pressure not reviewed |
| Dyno qualification | Manufacturer-linked differently numbered chart; marked points approximately 12 hp / 12 lb-ft, run maxima +6.18 hp / +1.83 lb-ft |
| Emissions | Not CARB exempt; current California purchase/use restriction applies |
| UPC | 802959542873 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

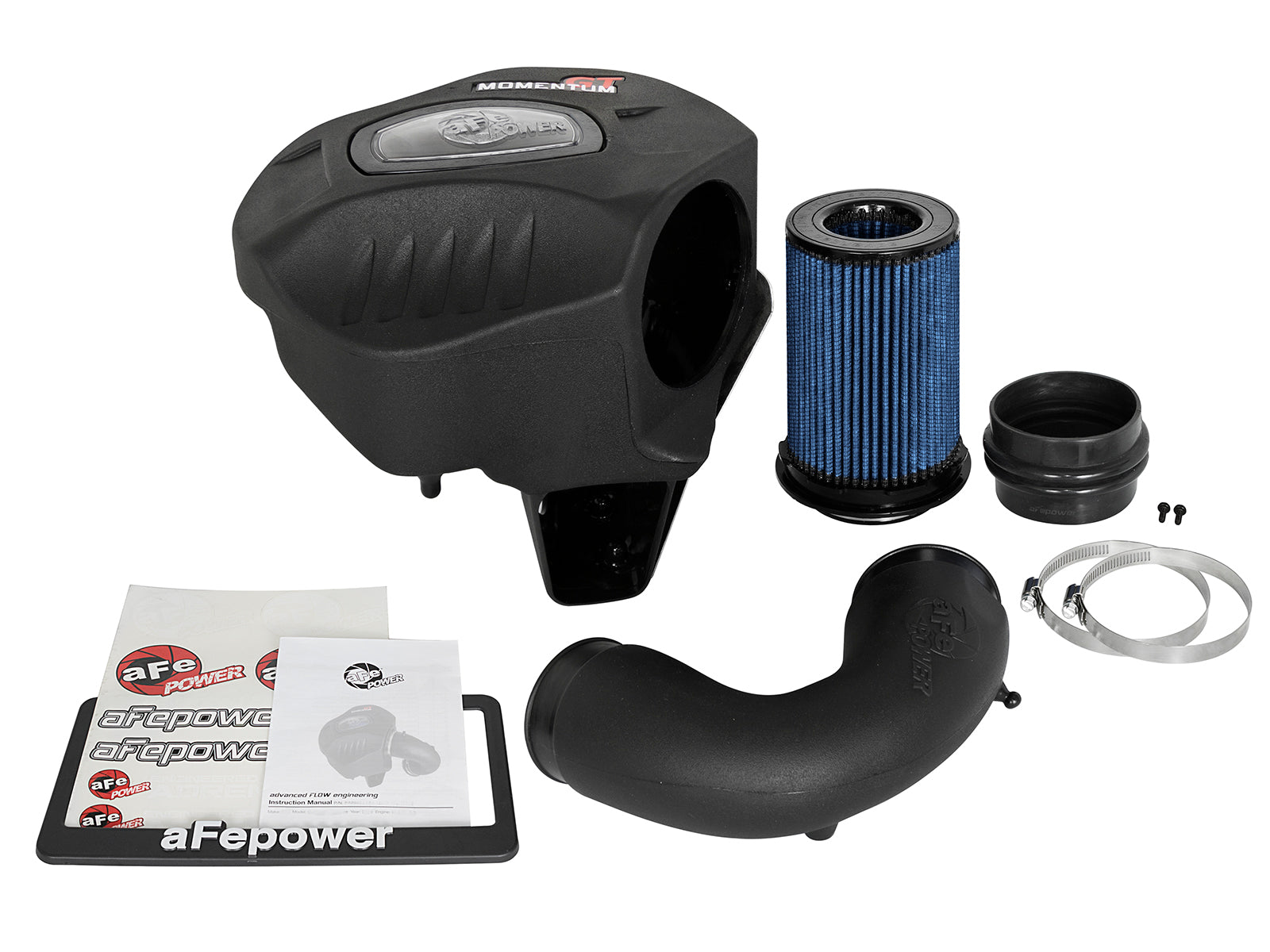

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91103 | Selected Pro 5R oiled filter |
| 1 | 05-76309B2 | Housing with inspection window and heat shield |
| 1 | 05-76312B1 | Molded intake tube |
| 1 | 03-50534 | Lower rubber housing mount |
| 2 | 03-50490 | M4 Torx sensor screws; length not stated |
| 1 | 05-01416 | Silicone double-hump coupling |
| 2 | 03-50008 | No. 052 coupling clamps |

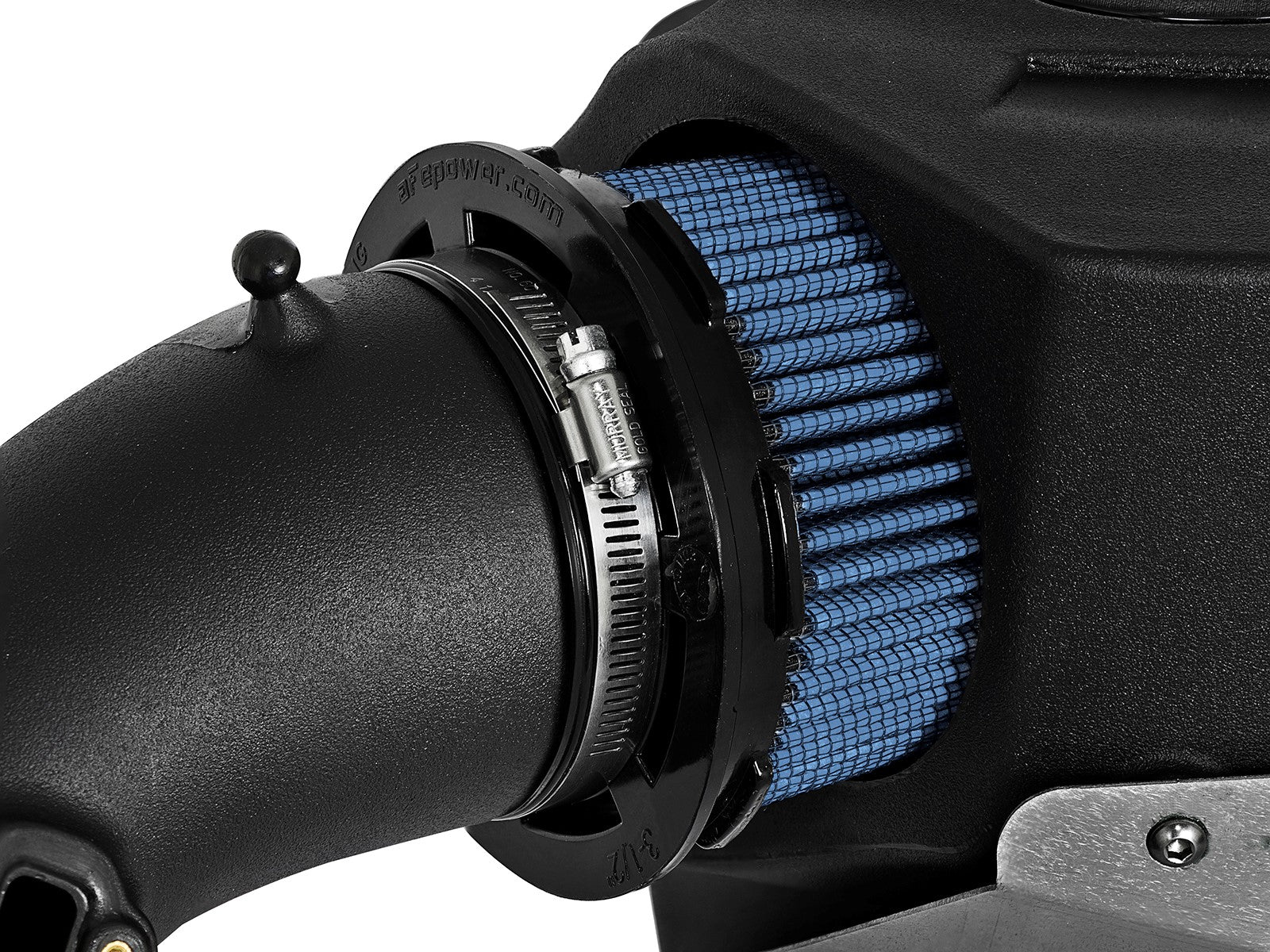

The dry filter in the shared bill belongs to another version. The illustrated filter-flange clamp is separate from the two coupling clamps. Retain the original MAF sensor and both vehicle mounting grommets; the supplied rubber mount is a third, distinct housing support. No replacement sensor, tuning module, separate dynamic scoop or auxiliary plug is itemized. The manual accessory-page scoop is optional and does not establish its inclusion in this kit.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 24-91103 Pro 5R oiled filter with five cotton-gauze layers. The current replacement specification lists a 3.5-inch flange and 7.5-inch height.
Does it fit convertible models?The current manufacturer explicitly excludes convertibles because of the factory strut brace, despite generic F23/F33 references on the shared manual cover.
Which Gran Coupe row is supported?The manual explicitly identifies F36 430i/ix Gran Coupe, and exact selected-part retailer tables support 430i xDrive Gran Coupe Base 2017-2020.
Does a 2019 330i model name establish fitment?No. Confirm the actual F-chassis and connections. Existing retailer-positive 2019 xDrive coverage does not establish G20 compatibility.
How many housing mounts are involved?One supplied rubber mount is installed in the new housing, while the two original vehicle mounting grommets remain in place.
Is the separate dynamic scoop included?It is an optional accessory shown separately in the manual; the exact intake bill does not itemize it.
Is the linked dyno an independent selected-part test?Its filename names another intake number. It is disclosed as the manufacturer-linked basis; the run-maxima differences are 6.18 hp and 1.83 lb-ft.
What recheck and torque does the manual specify?Check clamps and connectors after 200 miles. The exact manual does not give a numeric tightening torque.
Verify aFe 54-76312. Read all sixteen pages and figures A-G. Work on a cool engine and disconnect the negative battery terminal. Pull off the original intake cover, disconnect the MAF, release the housing-side tube clamp and remove the original airbox. Loosen the turbo-inlet connection and remove the original intake tube. Snap the selected filter into the new housing with its clamp loose. Install the supplied rubber mount in the small lower housing hole. Verify the two original vehicle grommets remain seated, reinstalling them if necessary, then push the housing onto its mounts. Transfer the original MAF using the supplied screws. Fit the coupling and clamps to the tube loosely. Install toward the turbo inlet first, then insert the tube into the filter. Align the tube, coupling and filter before securing every clamp. Reconnect the MAF and reinstall the original intake cover if desired. The exact manual specifies a connection and clamp check after 200 miles, and provides no numeric tightening torque.
The actual selected-part flow chart shows 179 versus 144 CFM at 1.5 inches H2O, about 24.3 percent above stock. The separately stated 350-CFM rating uses 7 inches H2O and is not verified by that comparison. The current product page links a dyno file named for 50-83012-RB; it is reviewed as the manufacturer-linked test basis, not independent proof of the selected part number. Its 2016 BMW 330i file shows separately marked horsepower and torque comparisons near 5,400-5,500 rpm; they are not one common-rpm point. Run maxima are 225.41 versus 219.23 hp and 243.88 versus 242.05 lb-ft, differences of 6.18 hp and 1.83 lb-ft. March 29 and 30, 2017 runs use SAE 1.00 and 0.99, different temperature and humidity, original exhaust and automatic fourth gear; the intake run notes miles without quantifying them. Results do not certify every listed year or body. Current manufacturer convertible and California restrictions control over generic manual-cover chassis or older race-use wording. Turn14 access is unavailable and prices remain unchanged.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
