aFe CONTROL Infiniti Q50/Q60 Front and Rear Sway Bar Set — RWD

Coordinated front and rear roll-resistance adjustment for RWD Infinitis

The aFe 440-711001-L aFe CONTROL front-and-rear sway bar set combines a two-position front bar with a three-position rear bar, polyurethane bushings and billet aluminum brackets. This selection is for rear-wheel-drive cars only and expressly excludes AWD.

Key Features

• Selected aFe part 440-711001-L.
• Blue powder-coated tubular steel bars.
• Three rear adjustment positions change roll resistance; the outer hole is softest.
• Greaseable black-anodized billet brackets and 90A polyurethane bushings.
• Published bar-rate comparisons describe the manufacturer’s chart references; they do not guarantee elimination of understeer or better tire grip.
• Current drivetrain scope: RWD ONLY; excludes AWD.

Fitment

Current manufacturer vehicle rows identify Q50 2016–2024 and Q60 2017–2022, with the 3.0L twin-turbo gas engine. The exact-part Sport Compact Warehouse table supports the named scopes below through those model endpoints. Every row is restricted to RWD ONLY; excludes AWD. The 2019 and 2021 Signature Edition scopes remain separate; no 2020 gap fill. No 2.0L, 3.7L or hybrid application is established. The current selected set and its linked May 2021 guide both exclude AWD. The shared rear-only component’s broader drivetrain coverage does not extend this front-and-rear set to AWD. The guide covers Q50 2016–2021/Q60 2017–2021; current manufacturer vehicle rows establish later model endpoints separately.

Specifications

What's Included

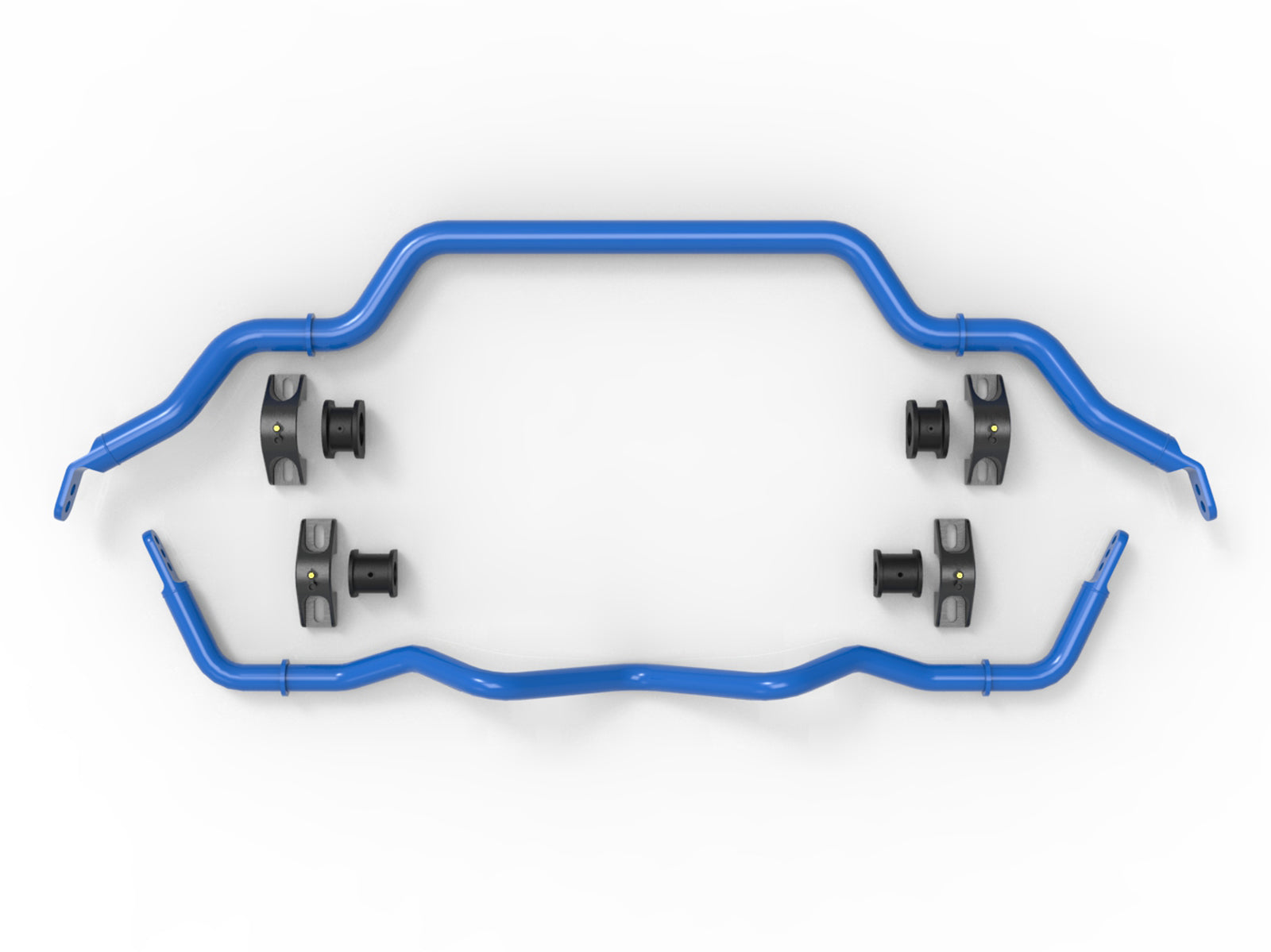

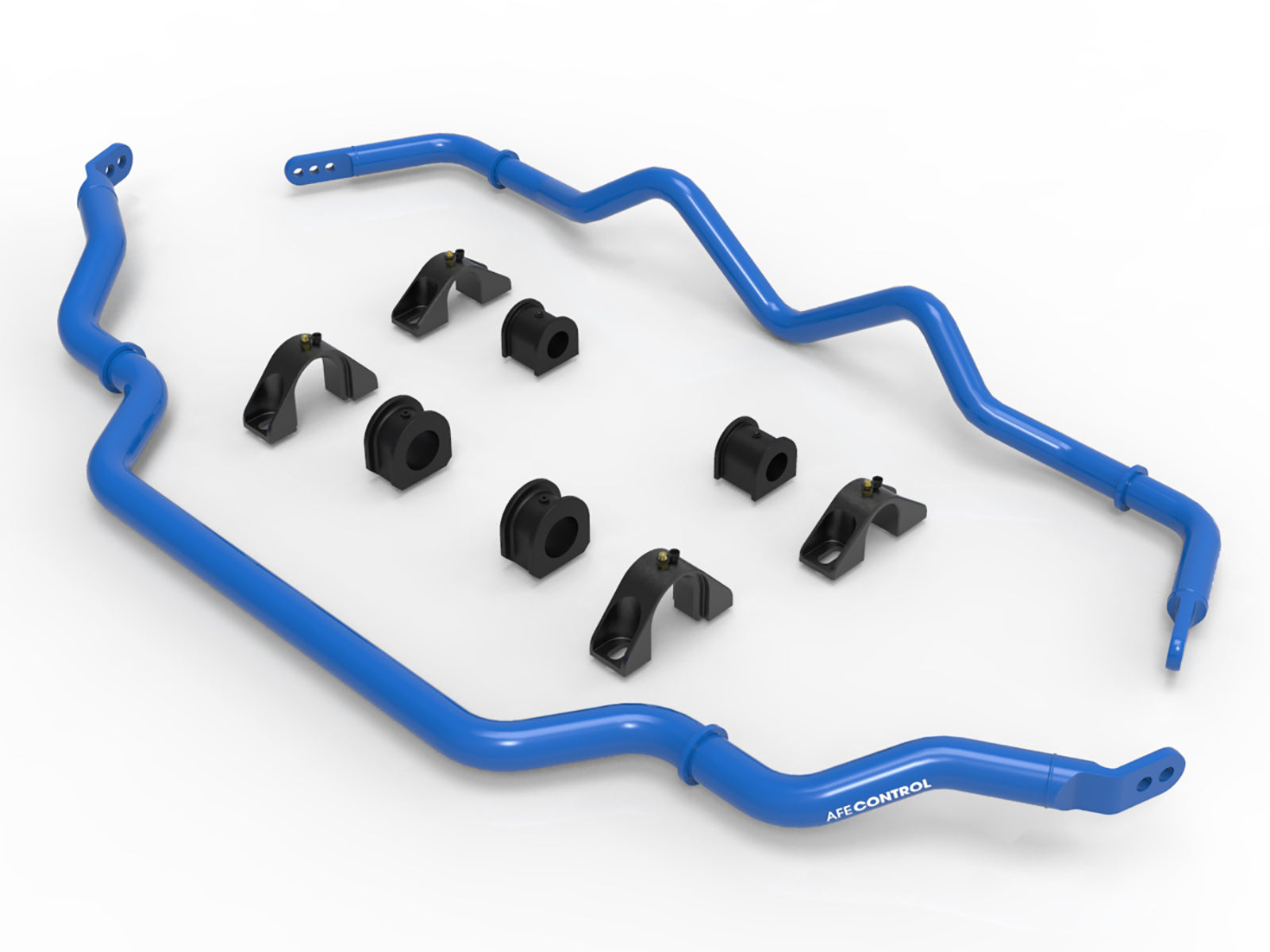

• The 440-711001-L kit includes one front bar 00P-0P2554-L and one rear bar 00P-0P2555-L.

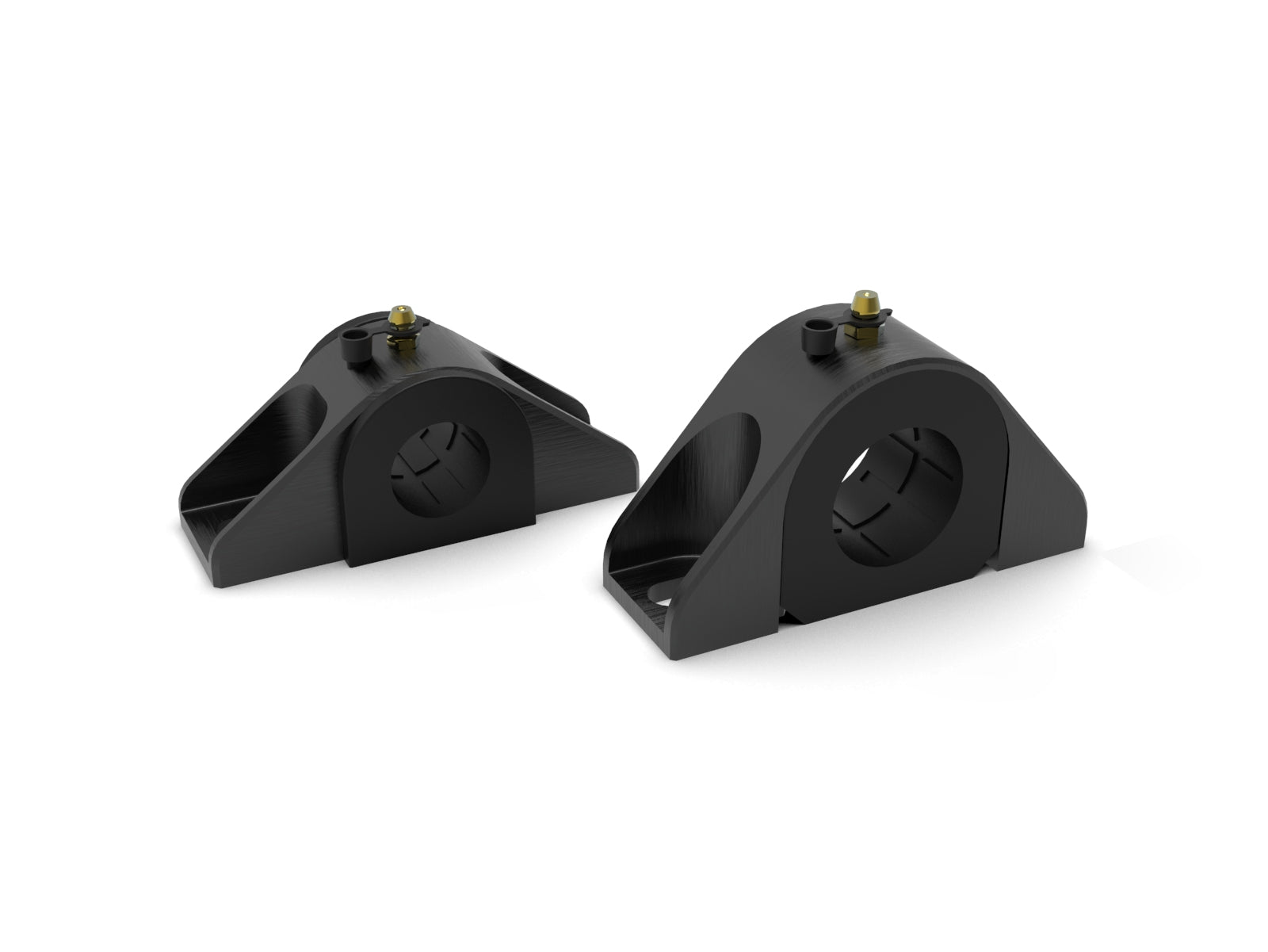

• Two Type 2 brackets 00P-0P2510-B and two Type 4 brackets 00P-0P2511-B.
• Two 1.375-inch ID polyurethane bushings 00P-0C1664-B and two 1.125-inch ID bushings 00P-0C1726-B.
• Four 1/4-28 self-tapping grease fittings 00P-0C1175-A, four grease-fitting caps 00P-0C1698-A, and two 0.5 oz grease packets 00P-0C1007-A, as listed in the selected full-kit bill.

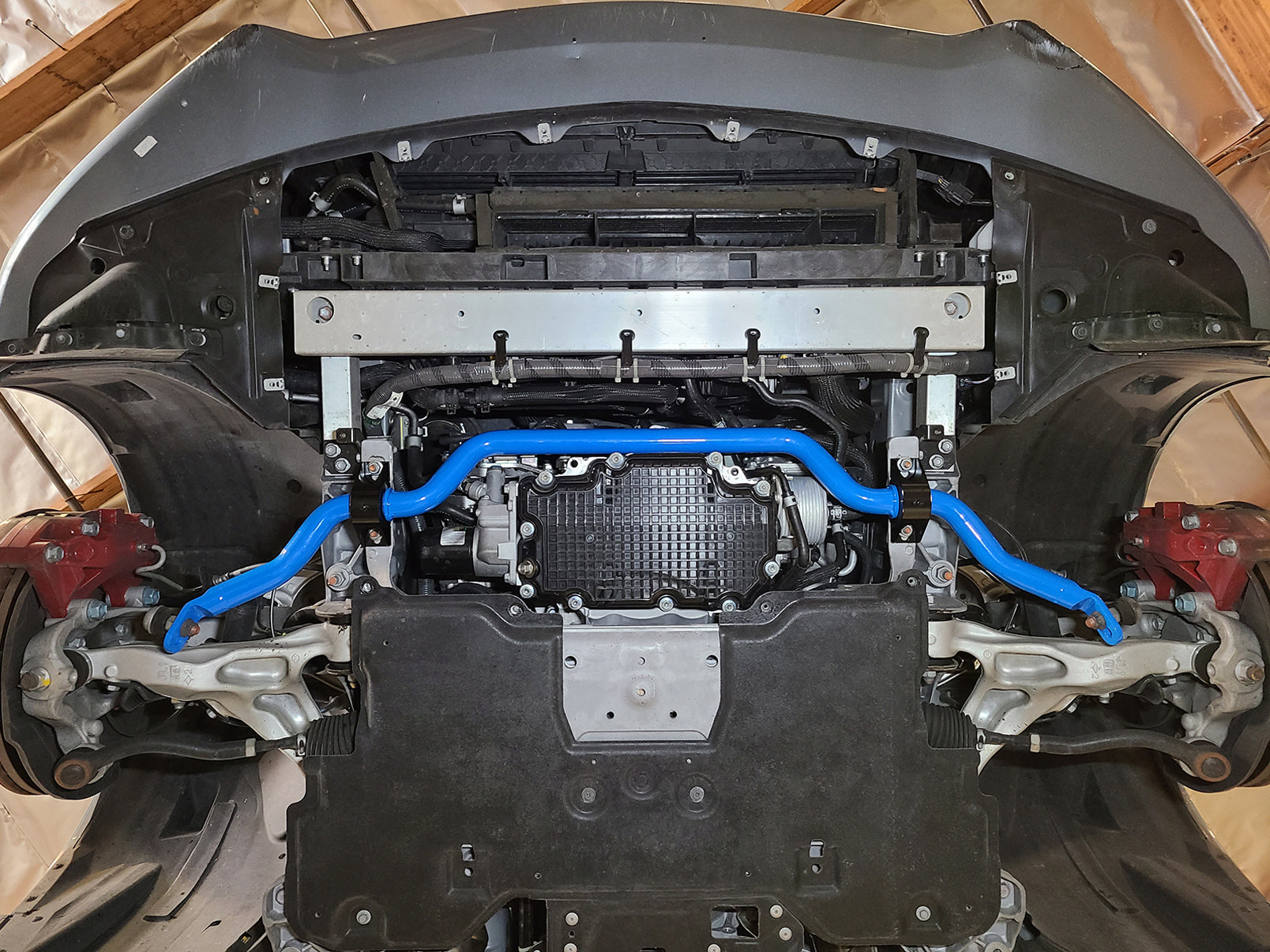

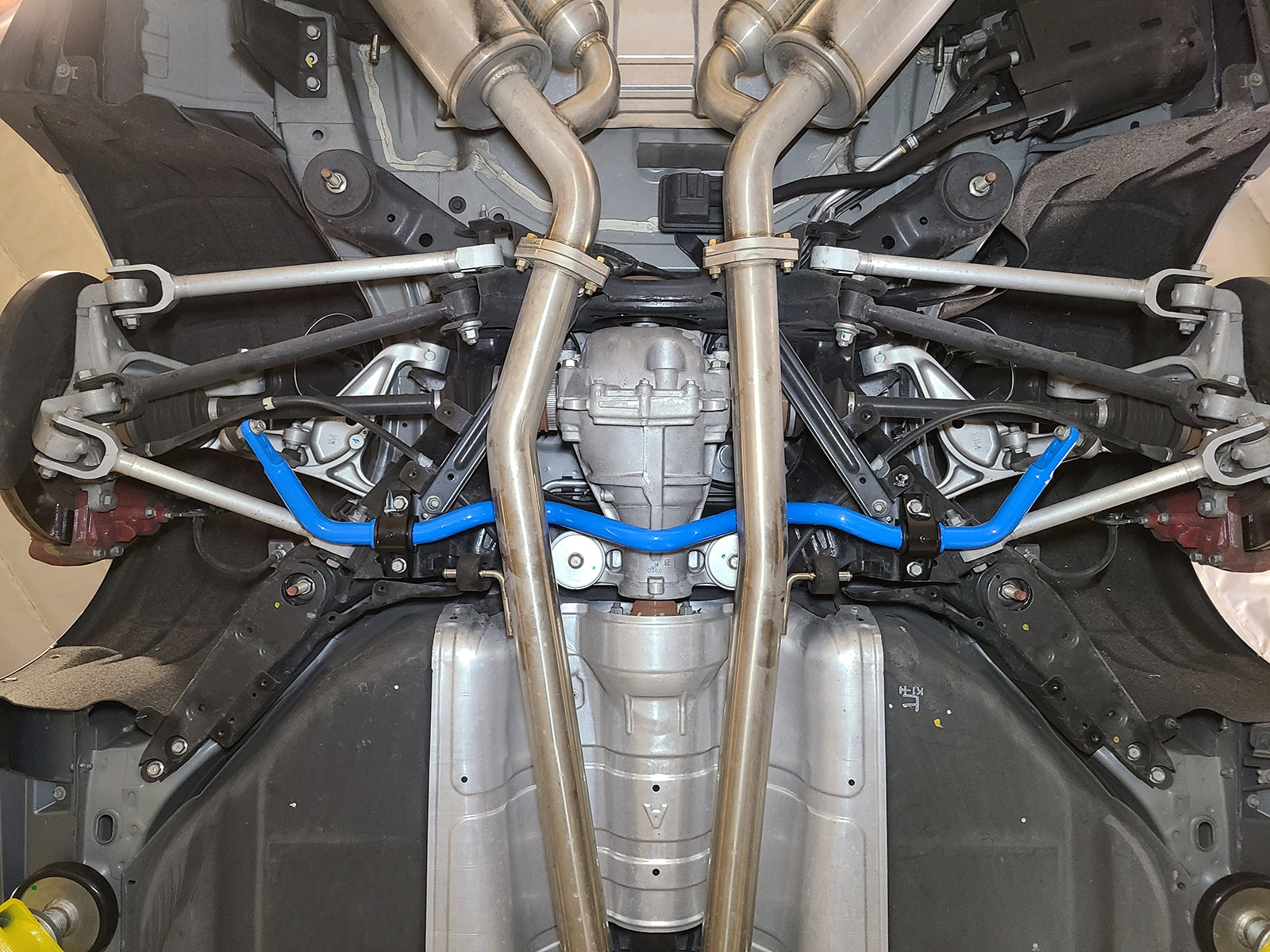

• Factory end links and documented nuts/bolts are retained; the bill does not list replacement end links. Installed photos include existing vehicle components for reference.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Current selected manufacturer specifications and drivetrain restriction
• Manufacturer-linked shared May 2021 guide; note its RWD scope
• Full exact-part named-trim table; engine and drivetrain restrictions still apply
• Shop the complete aFe Power collection

FAQ

It is a matched front-and-rear adjustable sway bar set for the documented 3.0L twin-turbo Infiniti applications.

No. Both the current manufacturer fitment note and the selected set guide specify RWD only. Do not borrow the standalone rear bar’s broader AWD coverage.

The bars are tubular 1026 DOM steel. The black-anodized billet bushing brackets are 6061-T6 aluminum; that bracket material does not describe the bars.

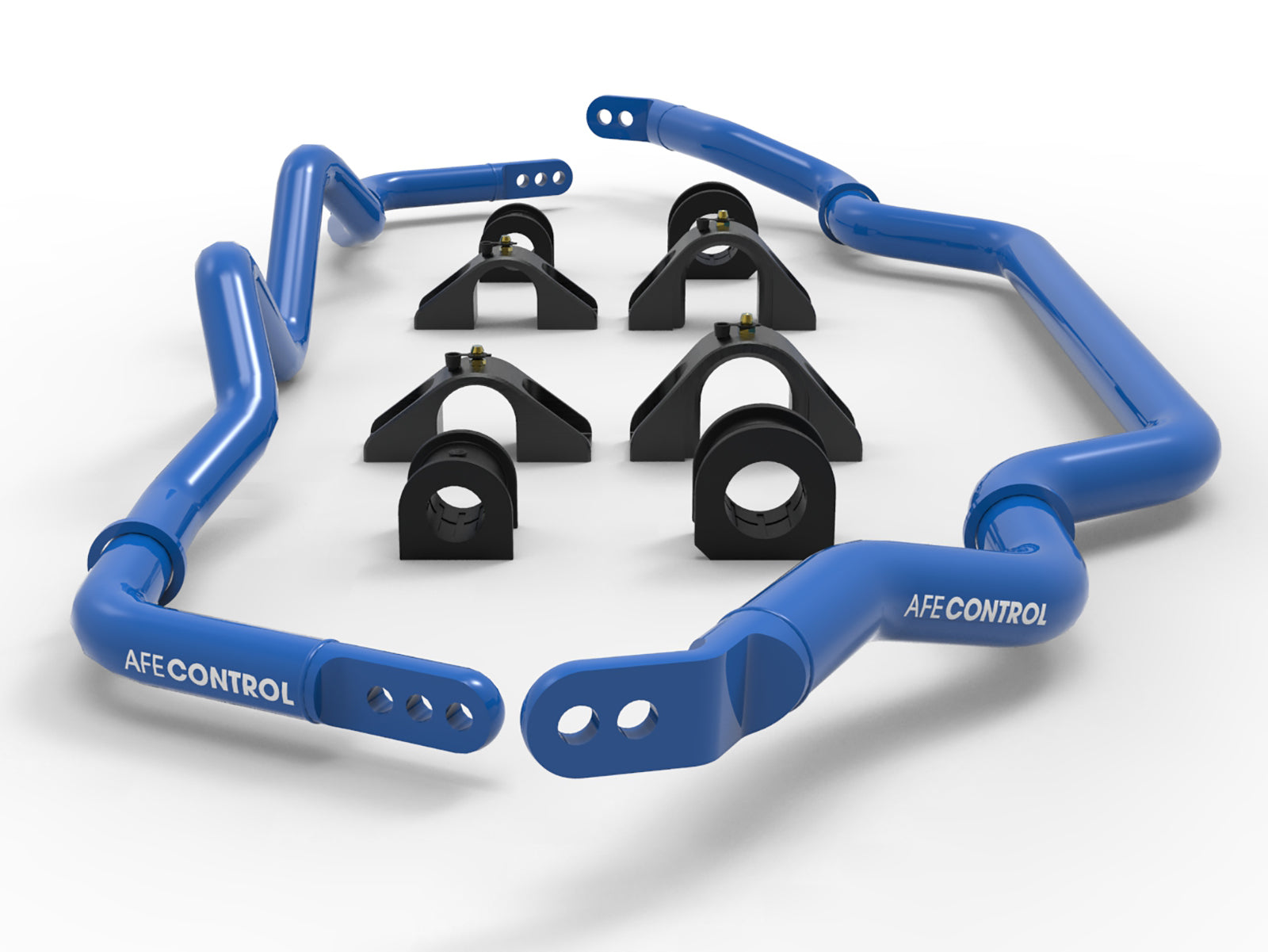

The hole nearest the end is the soft setting. Moving inward increases stiffness. Published rear rates are 730, 875 and 1040 lb/in; these are sway-bar rates, not coil-spring rates.

No. The selected guide warns that increasing roll resistance can make the corresponding tires reach their grip limit sooner. Handling also depends on tire grip and alignment; no universal neutral-handling setting is guaranteed.

The RWD full-set guide suggests front position 2 full stiff and rear position 1 full soft as an initial combination. It is starting guidance, not a guarantee for every tire, alignment or driving condition.

The guide reuses factory end-link nuts and front bracket nuts/rear bracket bolts. Restore the front undertray when front work applies, and restore the rear exhaust bracket and four under-panels after rear access. No numeric factory torque is supplied in the guide.

Yes. The selected guide gives the nine-row full-kit bill listed above, including both bars, four brackets, four bushings, four fittings, four caps and two grease packets. End links are not listed as supplied.

Installation Instructions

1. Confirm aFe 440-711001-L against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. For the RWD front installation, the guide says front wheel removal is unnecessary. Safely raise/support the car, then remove the front undertray’s sixteen bolts and three pop clips using a 10 mm socket.
3. Disconnect the front end links and remove the bushing brackets with a 14 mm socket. The front end-link prose and photo reverse the 17 mm/19 mm tool assignments; match the actual fasteners and obtain manufacturer clarification instead of relying on the inconsistent assignment. Retain the factory hardware and note bar orientation.
4. Match replacement-bar orientation to the removed bar. Lubricate front bushings with supplied silicone grease and position them just outside the centering rings. Fit the billet brackets and reuse the factory subframe nuts to factory specifications. Reattach end links with the original nuts and restore the undertray and clips.
5. The manufacturer-linked shared guide documents the RWD rear procedure: safely raise/support the vehicle; if using a floor jack, it specifies stands at all four factory-designated jack points. Remove the four rear under-panels with a 10 mm socket.
6. For bar clearance, the RWD guide removes the exhaust bracket with a 12 mm socket to lower the exhaust enough for passage. Remove the rear end-link nut with a 14 mm socket while holding the stud with a 17 mm wrench; remove the bushing brackets using a 14 mm socket. Retain the original hardware.
7. Note the original bar orientation and lay it beside the replacement to match it. Apply supplied silicone lubricant to the rear bushings. The guide suggests feeding the bar through in its protective plastic bag, then removing the bag once positioned.
8. Place bushings just outside the centering rings, install the brackets and reuse the original subframe bolts to factory specifications. Reattach the original end links with their nuts. The outermost hole is softest; inward holes are stiffer. Thread-locking compound is optional in the guide, with no formulation or numeric torque specified.
9. Reverse the rear access steps to restore the exhaust bracket and all four under-panels before completing the work. The selected old guide does not establish an AWD-specific access procedure; obtain that confirmation from aFe for an AWD rear-only installation.
