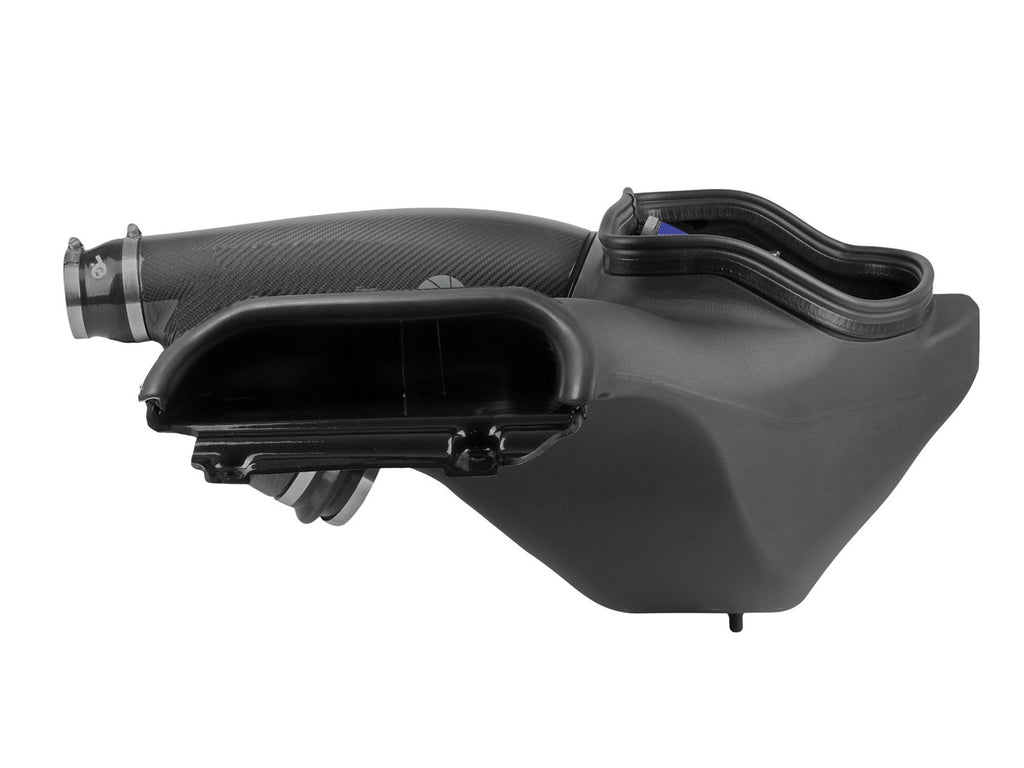

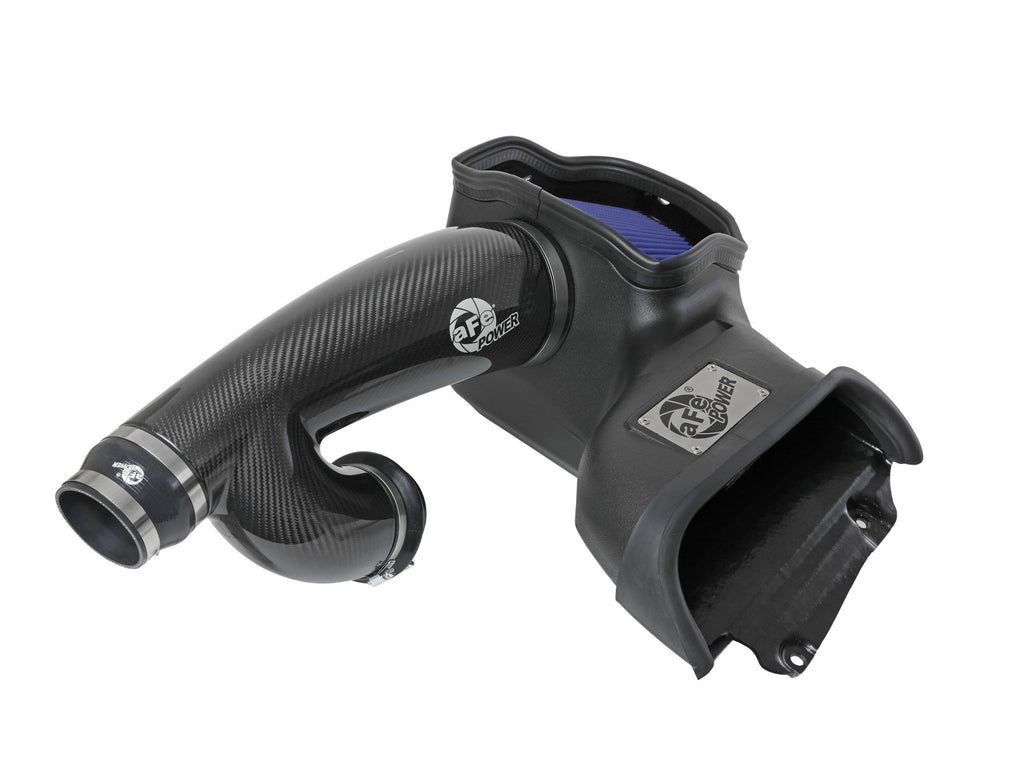

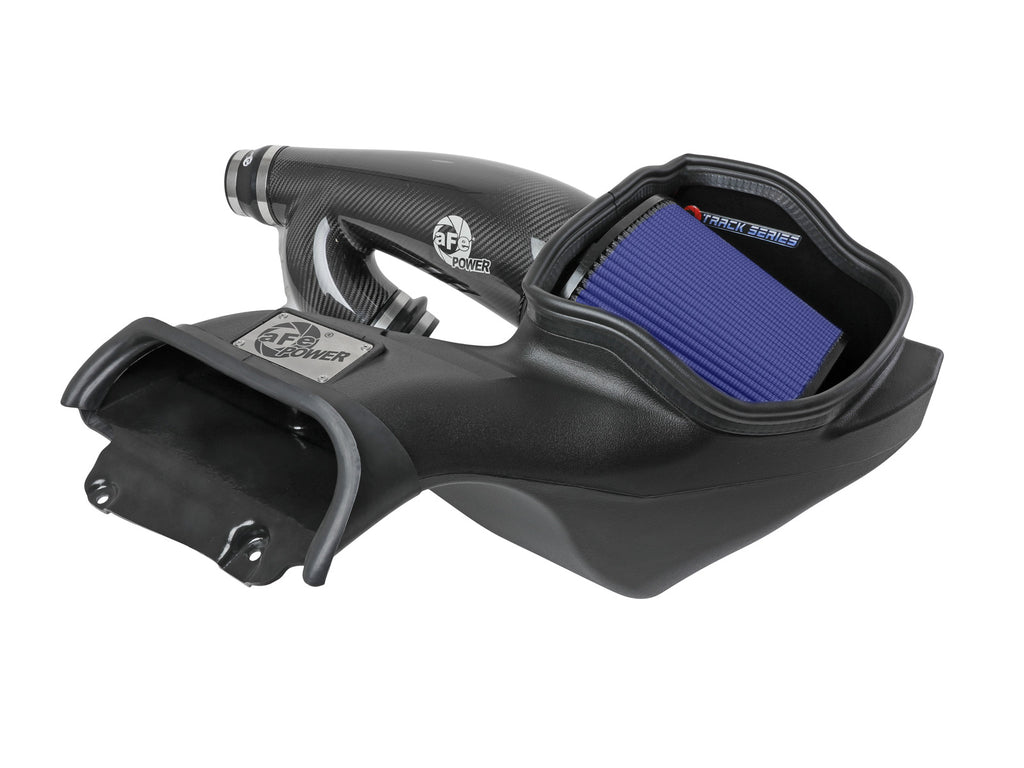

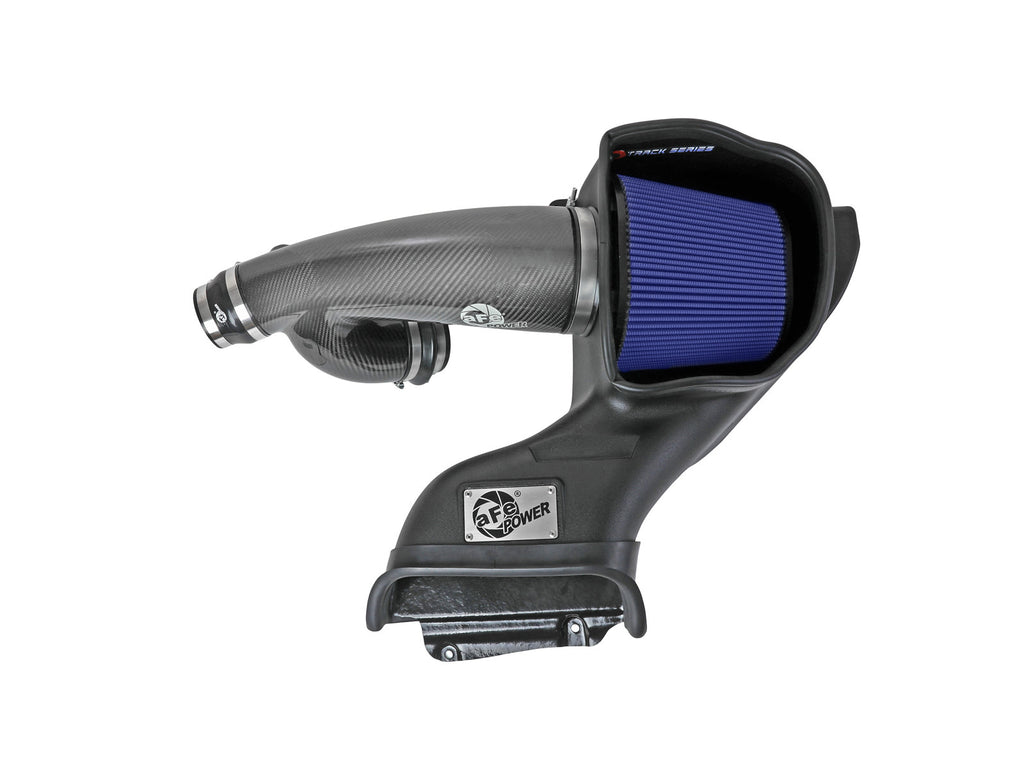

The aFe 57-10010R is a complete Track Series intake with one 9-inch Pro 5R filter, one clear-coated twill-weave carbon-fiber tube and an open-element XLPE housing. It is made for the documented twin-turbo 3.5L V6 Ford and Lincoln applications, with factory temperature-sensor and wastegate-control-component transfers.
| Years | Make | Model | Application |
|---|---|---|---|
| 2017–2020 | Ford | F-150 | Twin-turbo 3.5L V6 |
| 2017–2020 | Ford | F-150 | Raptor; twin-turbo 3.5L V6 |
| 2018–2021 | Ford | Expedition | Twin-turbo 3.5L V6 |
| 2018–2021 | Lincoln | Navigator | Twin-turbo 3.5L V6 |
These applications follow the exact shared 57-10010R installation manual. They do not establish fitment for other engines, later F-150 generations, the 5.2L Raptor R or Subaru vehicles.
| Detail | Value |
|---|---|
| Manufacturer part number | 57-10010R |
| System | Complete Track Series cold air intake; one filter |
| Filter | 24-91149; Pro 5R; 9 inches tall; 5.5-inch flange |
| Tube / housing | Twill-weave carbon fiber / XLPE polymer |
| Reducer coupler | 3-1/2 × 3-inch inside diameters; 2-1/2 inches long |
| Bellows coupler | 4-inch inside diameter; 2-1/2 inches long |
| Separate clamp inventory | One #44, one #52 and two #64 |
| Trim seal | 41-1/2-inch double-bulb seal |
| Emissions | Not currently CARB exempt |

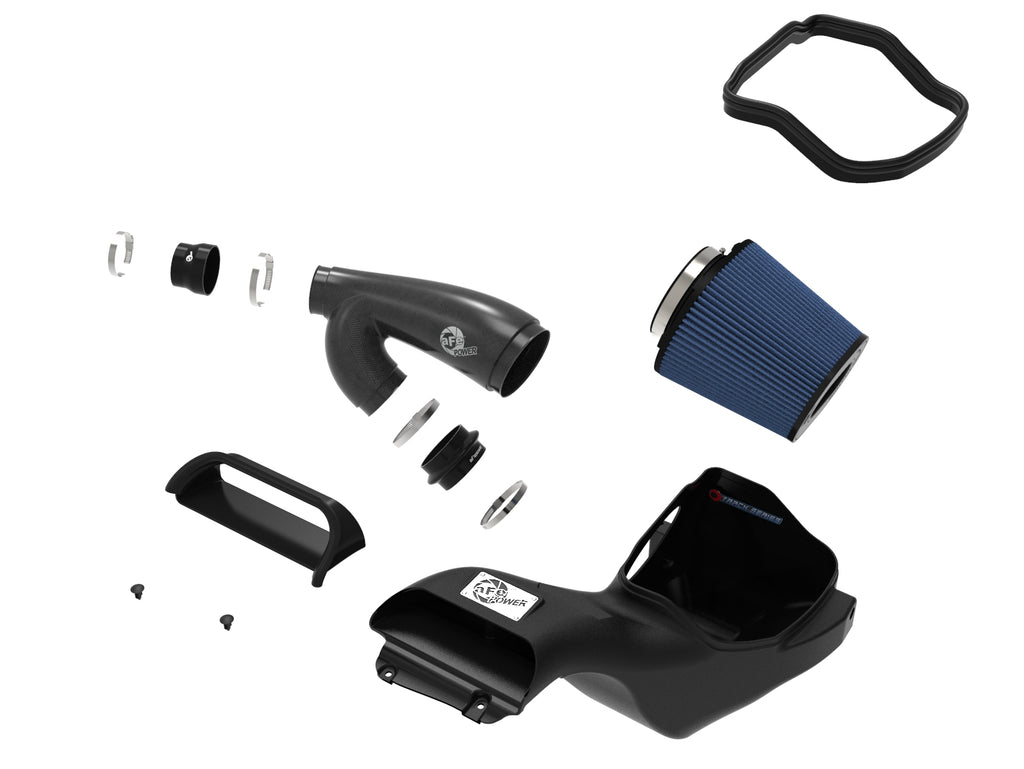

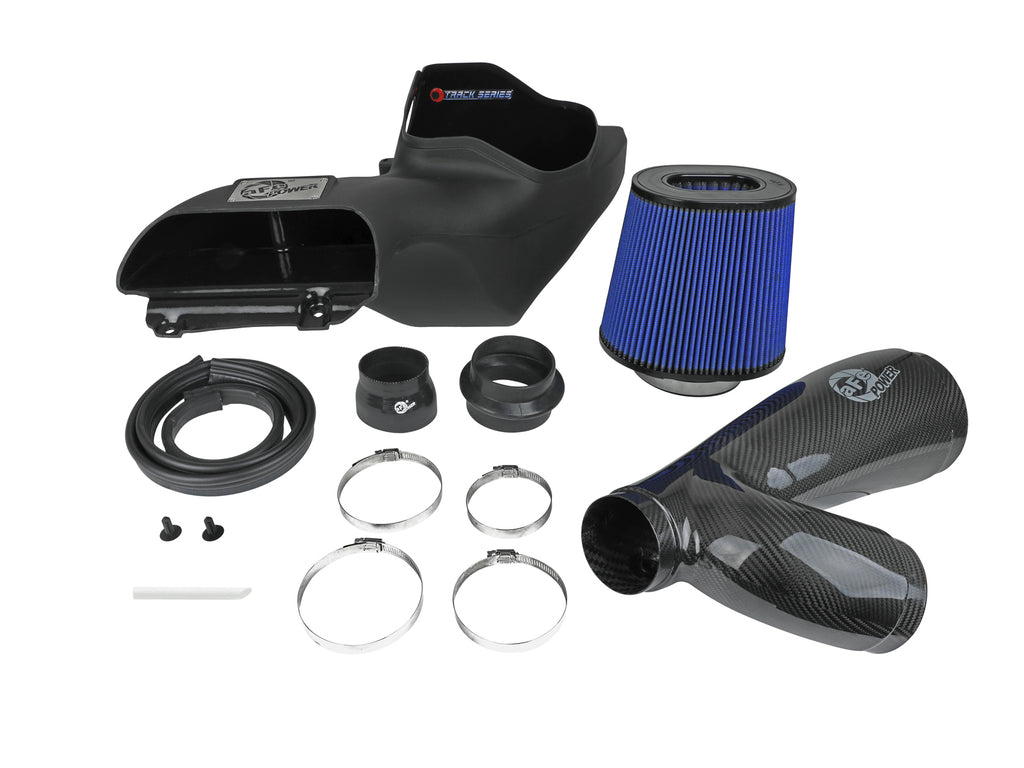

The 57-10010R kit list identifies one 24-91149 filter, one carbon-fiber tube, one plastic housing, one silicone reducer, one silicone bellows coupling, one #44 clamp, one #52 clamp, two #64 clamps, one vent insert and 41-1/2 inches of double-bulb trim seal. The push-in clip row omits its quantity, while the installation procedure specifies two provided front clips. The original IAT sensor, housing grommet, metal sleeve, mounting screw and housing-mounted wastegate control component are reused. A new sensor, actuator or sensor extension harness is not listed.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Use the exact 24-91149 replacement filter and its Pro 5R cleaning and re-oiling service procedure. Browse carried aFe Power products.
What is the manufacturer part number?
The manufacturer part number is 57-10010R. This complete Track Series kit has one Pro 5R filter, not multiple filters.
Which vehicles are documented?
The shared exact manual lists 2017–2020 Ford F-150 and V6 Raptor, plus 2018–2021 Ford Expedition and Lincoln Navigator, all with the twin-turbo 3.5L V6. Match the engine; a broad model or trim name alone does not identify the correct intake.
Does it fit Subaru models?
No Subaru application is listed or supported by this Ford/Lincoln intake's exact manufacturer page or manual. Crosstrek, Forester and Impreza assignments do not belong to this intake.
Does the filter need oil?

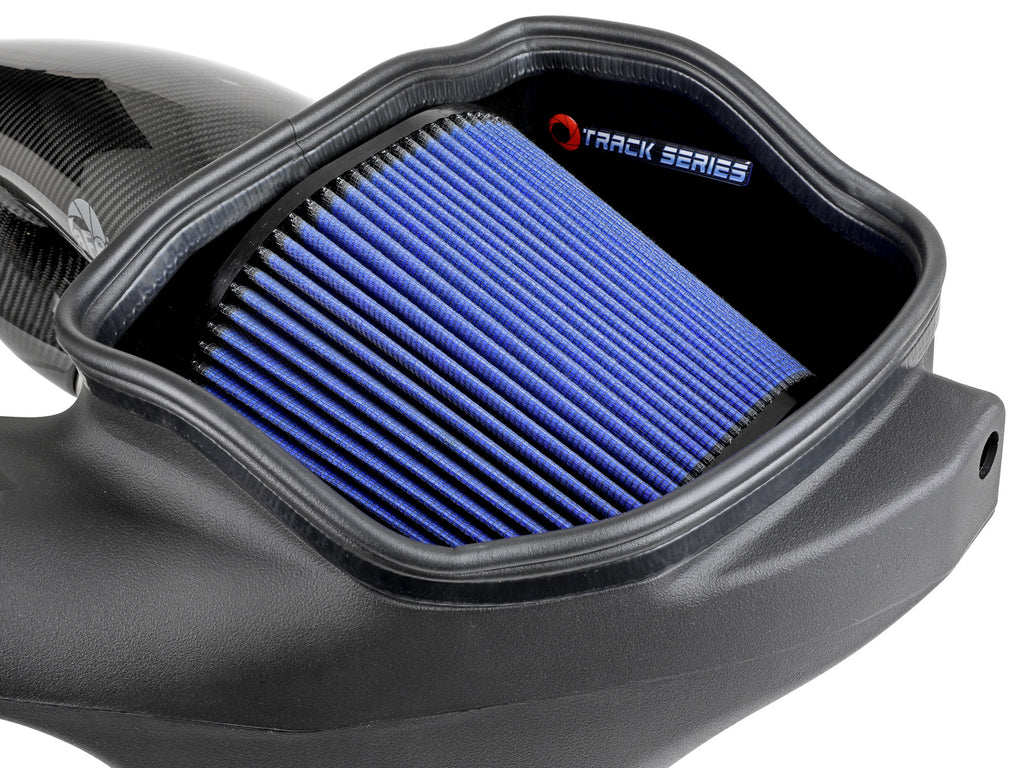

Yes. Pro 5R uses five layers of pre-oiled cotton gauze and requires the matching cleaning and re-oiling procedure.
Is the entire housing carbon fiber?
No. The tube is clear-coated twill-weave carbon fiber; the open-element housing is XLPE polymer with a built-in air scoop. Its carbon-fiber tube does not make the housing carbon fiber.
Is a new sensor or extension harness included?
The manual transfers the original intake-air-temperature sensor into the tube's fitting. It does not list a new sensor or an extension harness. A harness shown among optional page accessories is not proof of inclusion.
Why must the wastegate component and vent insert be retained?
The manual transfers the factory housing-mounted wastegate control component to the new housing. It also requires the directional insert in the driver-side turbo-inlet vent connection with its slash cut facing the turbo, firmly seated so it cannot rotate. Protect the original vent sensor and wiring.
Are the kit's clip count and California status clear?
The parts-list row leaves the push-clip quantity blank, but installation step 19 expressly uses two provided front clips. The exact page and manual state that this intake is not currently CARB exempt and is unavailable for California purchase or use on California-registered vehicles.
See the exact aFe product page for the individual Pro 5R configuration. Its optional accessories and test results do not change the kit inventory or guarantee a specific result on every vehicle.
