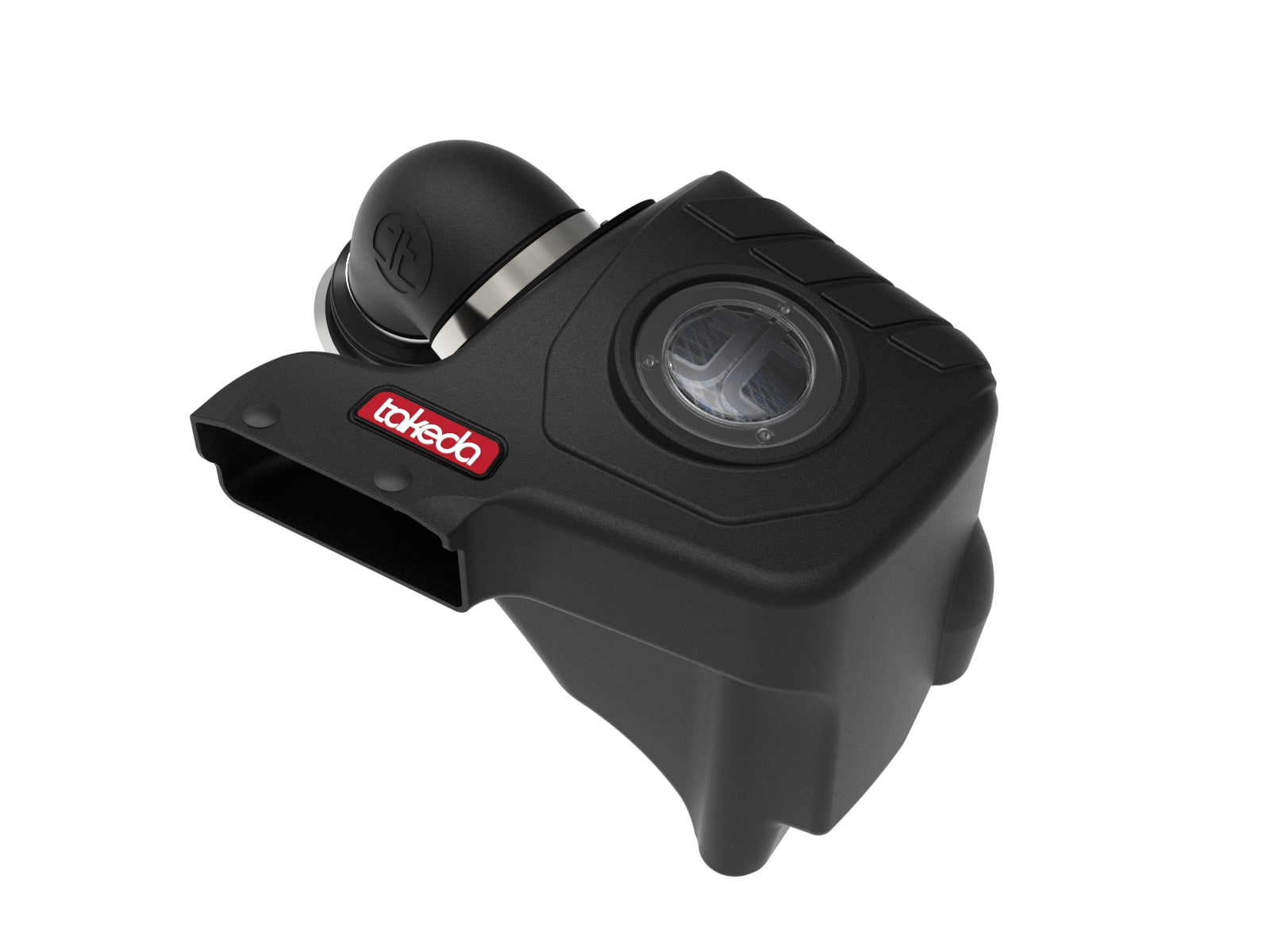

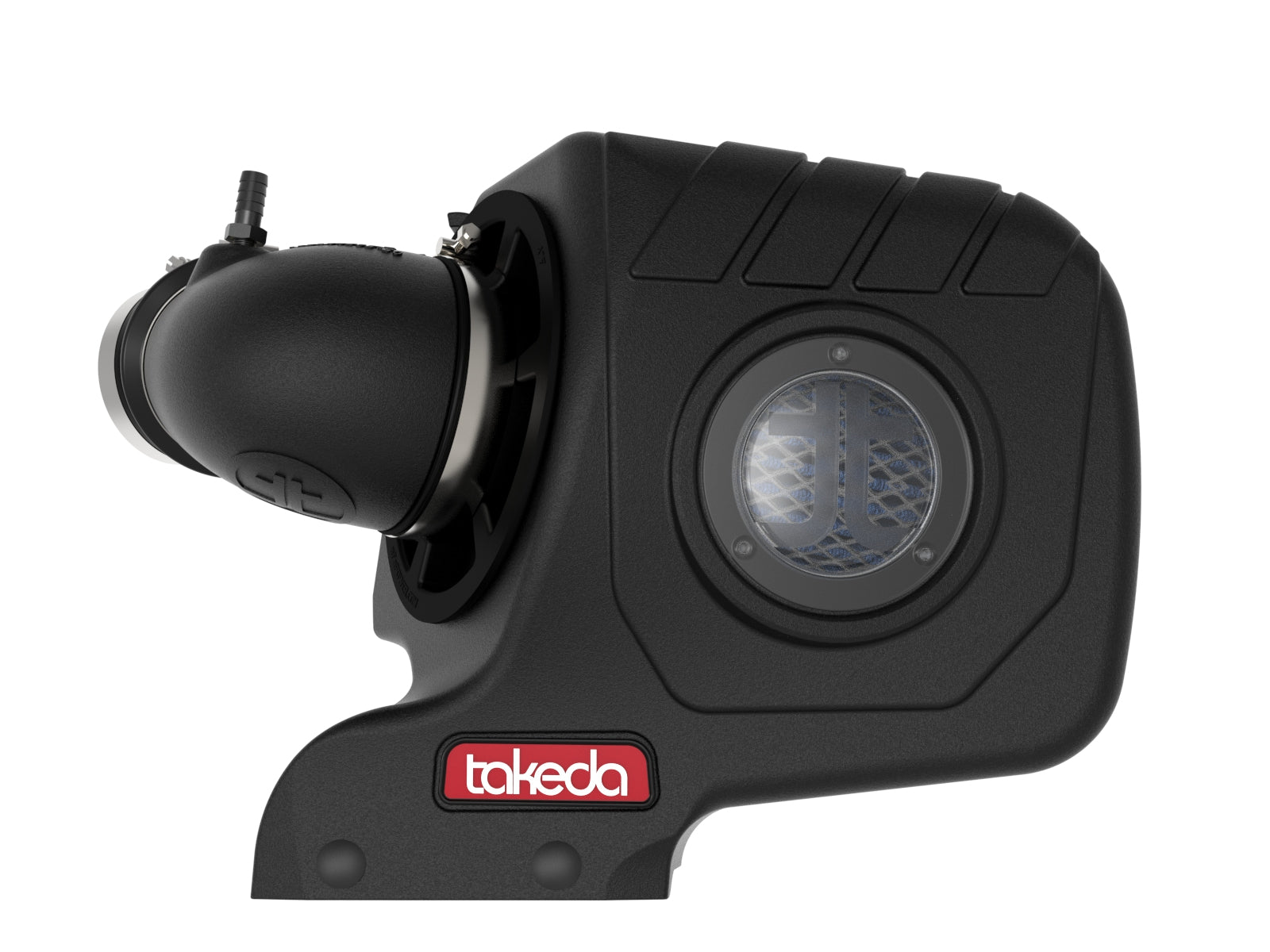

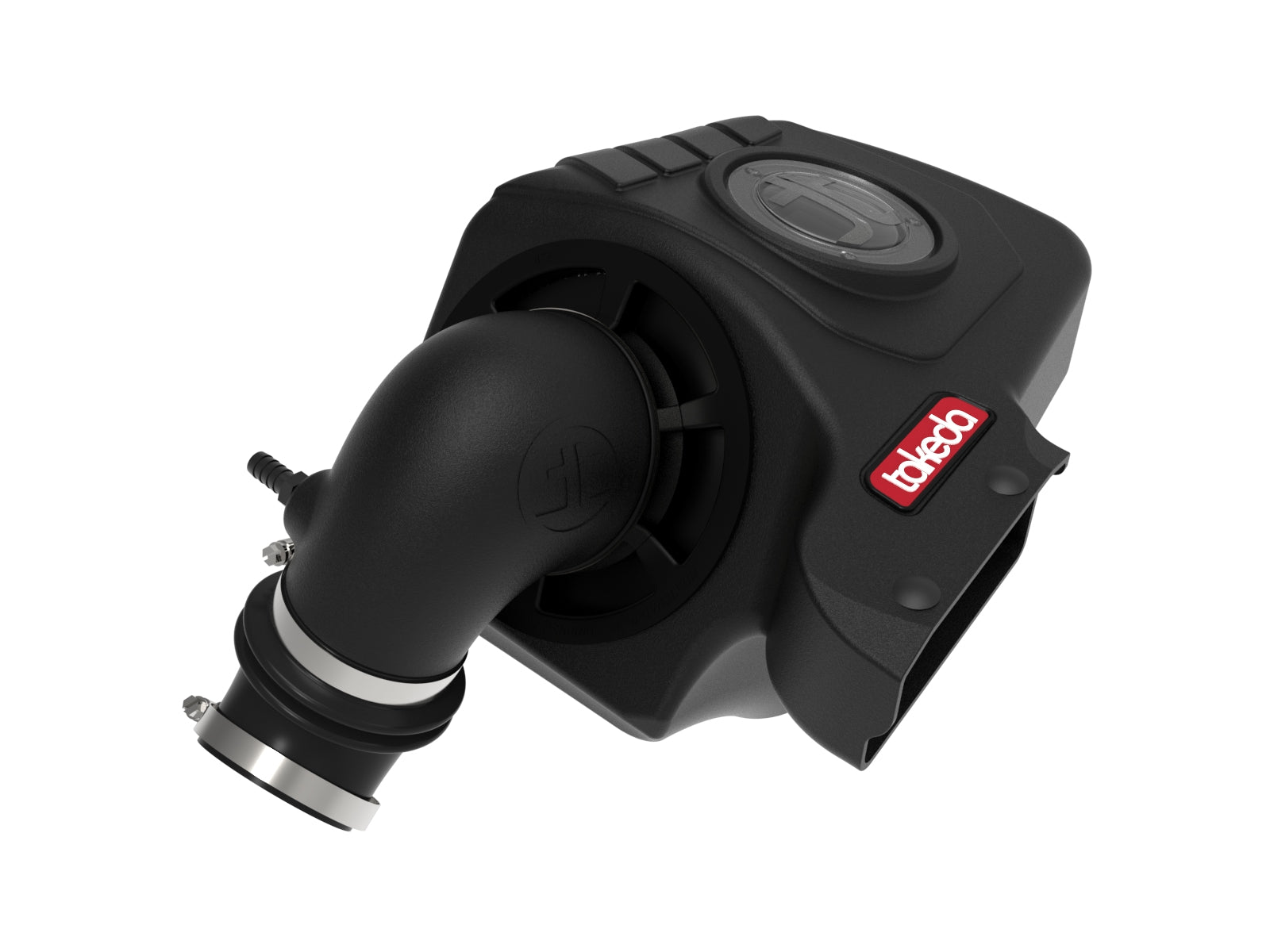

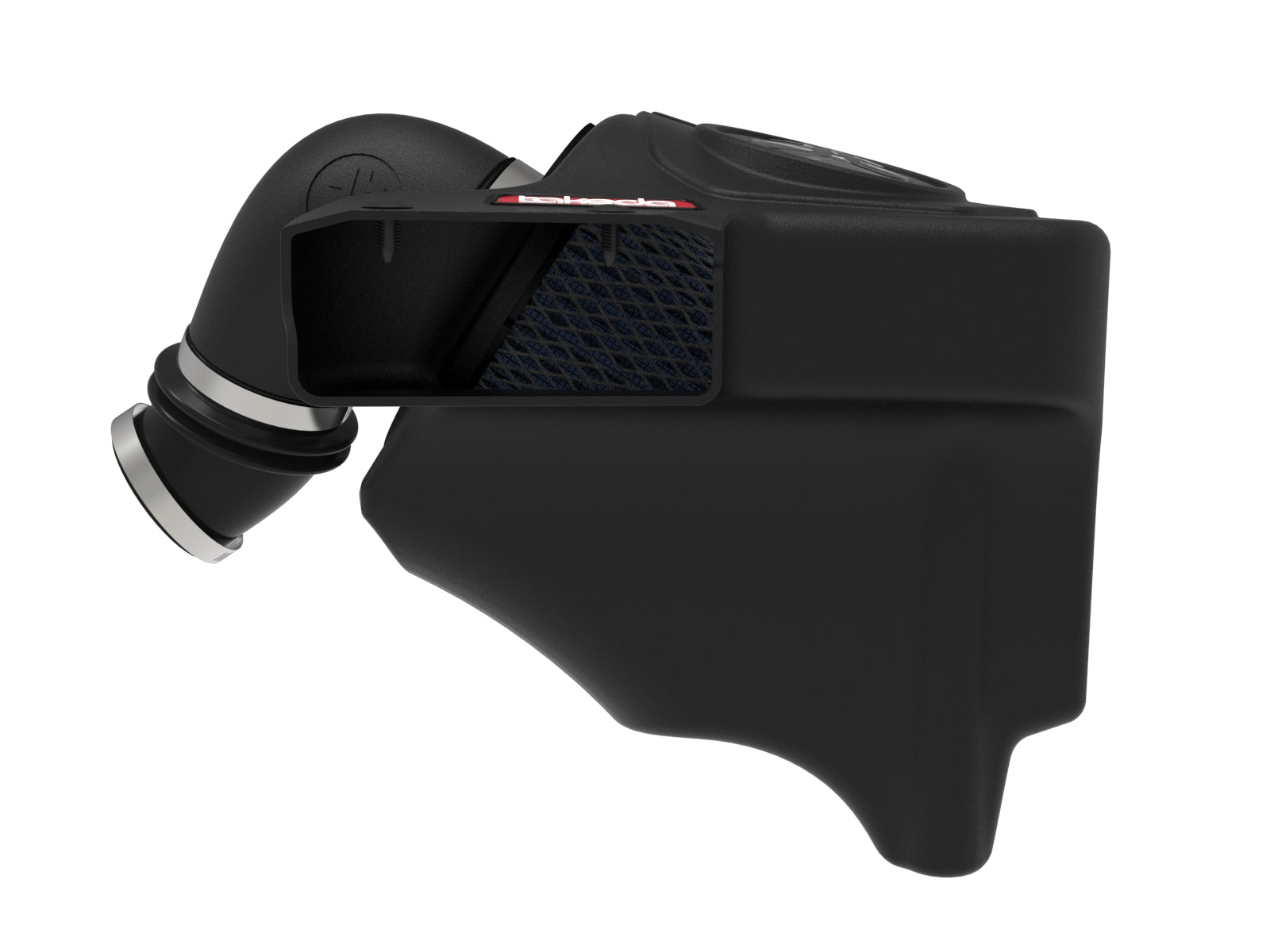

aFe 56-70036R is the Takeda Momentum intake for Hyundai Kona 2018–2021 naturally aspirated 2.0L. One pre-oiled Pro 5R filter locks into the enclosed XLPE housing with a clear inspection window. The exact manual specifies a silicone elbow reducer at the throttle body and an aluminum breather fitting in the tube.
The current exact manufacturer page and 16-page manual specify Kona 2018–2021 naturally aspirated 2.0L. Existing SE and SEL named applications and year bounds are retained. Verify the actual engine and original airbox connections. The shared Kona name does not authorize 1.6L turbo, Kona N 2.0T or electric models.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2018-2021 | Hyundai | Kona | SE |
| 2018-2021 | Hyundai | Kona | SEL |
Verify 56-70036R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 56-70036R |
| Product type | Takeda Momentum enclosed cold air intake |
| Selected filter | One 24-91153, 4-inch flange x 6.5-inch base x 6.5-inch inverted top x 8-inch height |
| Media | Five-layer pre-oiled cotton gauze; washable/reusable |
| Tube / housing | XLPE 05-5670036B1 / enclosed 05-5670032B2 with clear window |
| Coupling | 05-01693 silicone elbow reducer |
| Coupling clamps | One #044 03-50019 and one #052 03-50008 |
| Breather connection | One 11mm aluminum NPT 03-50615 in tube; original pry clamp |
| Mounting | Three original grommets/sleeves and screws; two inside housing, third outside at battery tray |
| Inlet clips | Two replacement 03-50616 push clips |
| Recheck / torque | 100–200-mile connection recheck; no numeric torque supplied |

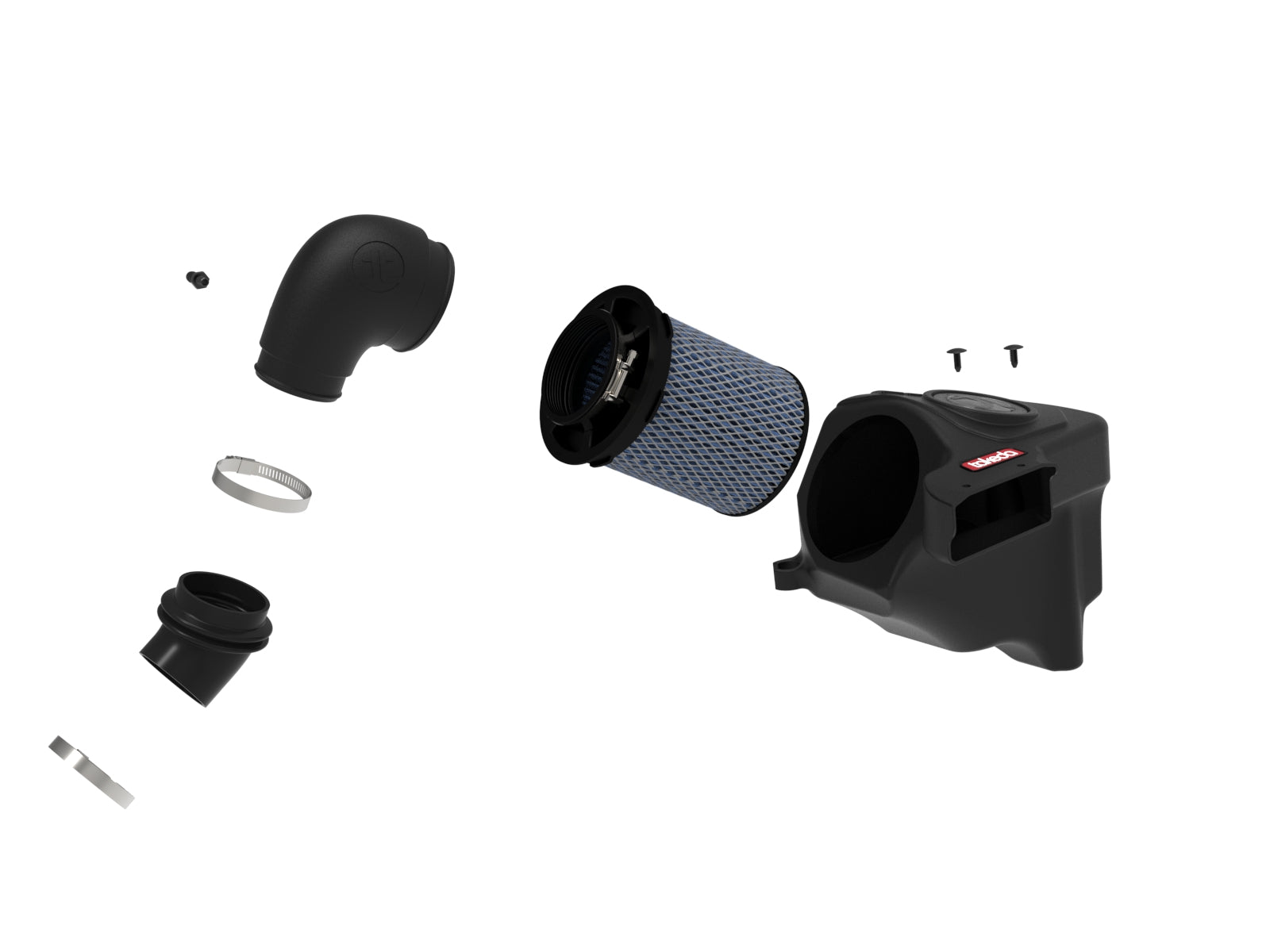

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91153 | Selected Pro 5R filter; dry-media row is an alternate |
| 1 | 05-5670036B1 | XLPE intake tube |
| 1 | 05-5670032B2 | Enclosed window housing |
| 1 | 05-01693 | Silicone elbow reducer |
| 1 | 03-50019, #044 | Throttle-body coupling clamp |
| 1 | 03-50008, #052 | Tube coupling clamp |
| 1 | 03-50615 | 11mm aluminum NPT barbed fitting |
| 2 | 03-50616 | Replacement inlet clips |
Transfer the three original mounting grommets and metal sleeves and reuse all three screws: two inside the new housing and the third outside at the battery tray. The exact manual lists an elbow reducer despite the current product overview’s generic bellows wording. The filter-flange clamp has no separate BOM service code/count; confirm the actual assembly for service. The small gap between the fitting’s hex and tube is normal for its NPT connection. Reuse the original breather clamp. Cleaning and re-oiling supplies are separate.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 24-91153 Pro 5R filter. The dry-media manual row is an alternate, not a second filter.
Does this filter require oil?Yes. Five-layer cotton-gauze Pro 5R is supplied pre-oiled; follow its cleaning and re-oiling procedure.
Is the coupling a bellows or elbow?The exact manual specifies silicone elbow reducer 05-01693; the product overview uses generic bellows wording.
Where does the breather hose connect?To the aluminum 11mm NPT fitting in the tube, using the retained original pry clamp.
Where are the three housing screws installed?Two inside the new housing and the third outside at the battery tray.
Why is the small clamp snugged before inserting the tube?The #044 clamp holds the elbow on the throttle body so it cannot move off while inserting the tube.
Are the dyno point and peak differences identical?No. The marked 3,338-rpm differences are 9.62 hp and 15.13 lb-ft; independent maxima differ by 6.57 hp and 6.79 lb-ft.
What torque and recheck interval apply?No numeric torque is supplied. Recheck screws, clamps and connectors after 100–200 miles.

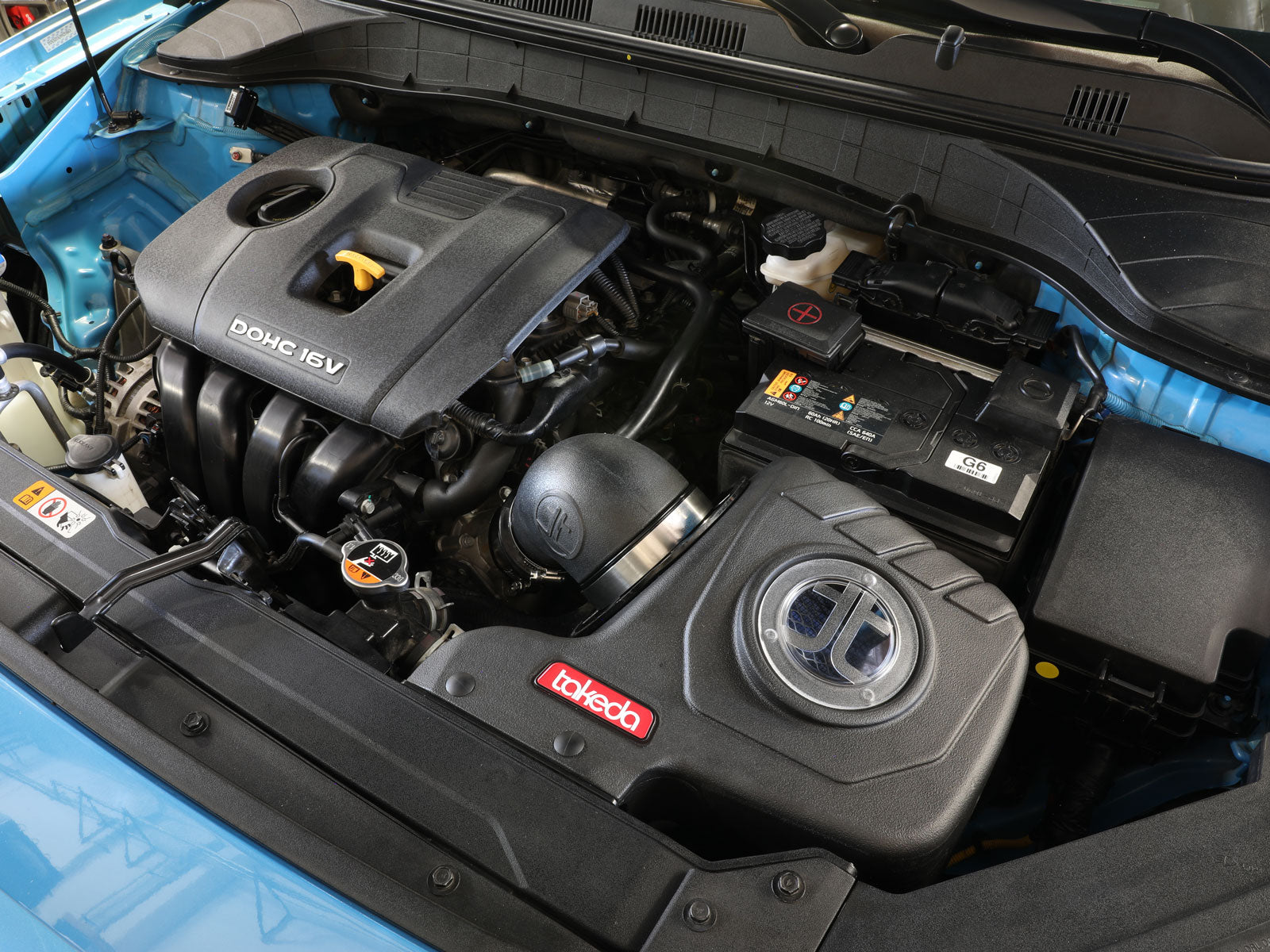

Verify aFe 56-70036R. Work on a cool engine. Release the breather clamp and retain it, loosen the airbox and throttle-body tube clamps, unlock the two inlet rivets and lift the original scoop. Retain the three housing screws, remove the original tube and disconnect the breather, then lift out the original housing/inlet. Transfer all three grommets and sleeves. Secure the new housing with two original screws inside and the third outside at the battery tray. Push the filter into place until its tabs lock. Use a 16mm wrench to install the aluminum NPT fitting in the tube; a small hex-to-tube gap is normal. Leave the filter clamp loose. Fit the elbow’s small end onto the throttle body and snug the #044 clamp first so the coupling cannot move off during tube installation. Leave #052 loose on the larger elbow end. Insert the tube’s smaller end into the elbow and larger end into the filter, then snug #052. Align the tube, filter and coupling before tightening all clamps. Reconnect the breather to the aluminum fitting with its original pry clamp. Secure the housing inlet with the two supplied push clips and check every connection. Recheck screws, clamps and connectors after 100–200 miles. No numeric torque or sensor-transfer step is supplied.
The exact linked bench chart shows Pro 5R at 295 CFM versus stock 190 CFM at 7 inches H2O, approximately 55% higher. The alternate dry-media curve is not this selected filter. The linked Dynojet image identifies a 2019 Kona 2.0L, both runs September 10, 2021, fourth gear, 2,000-rpm start, Sport mode, red and silver fans, SAE factor 1.04 and smoothing 5. The baseline notes all stock; the intake run identifies the Takeda intake with original exhaust. At the marked 3,338 rpm, 72.92 versus 63.30 hp and 114.74 versus 99.61 lb-ft differ by 9.62 hp and 15.13 lb-ft. Independent maxima of 135.93 versus 129.36 hp and 124.68 versus 117.89 lb-ft differ by 6.57 hp and 6.79 lb-ft. Marked-point and independent-maximum comparisons are distinct and do not guarantee gains on every vehicle. The manufacturer page and exact manual state this product is not CARB exempt and unavailable for purchase in California or use on California-registered vehicles.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
