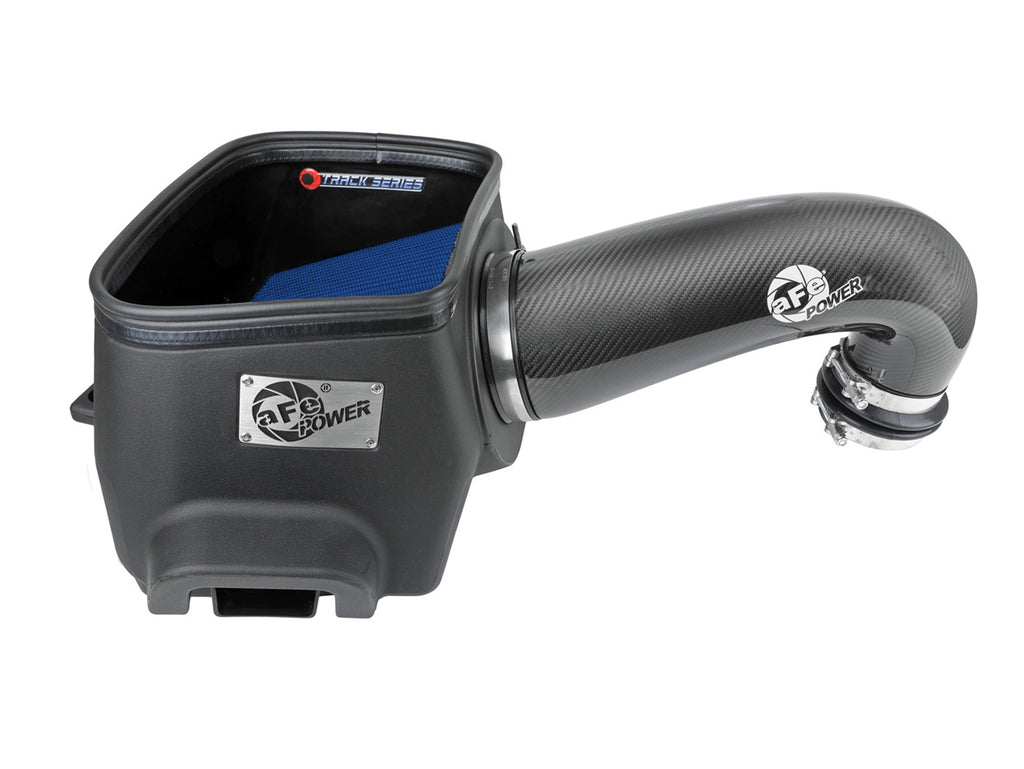

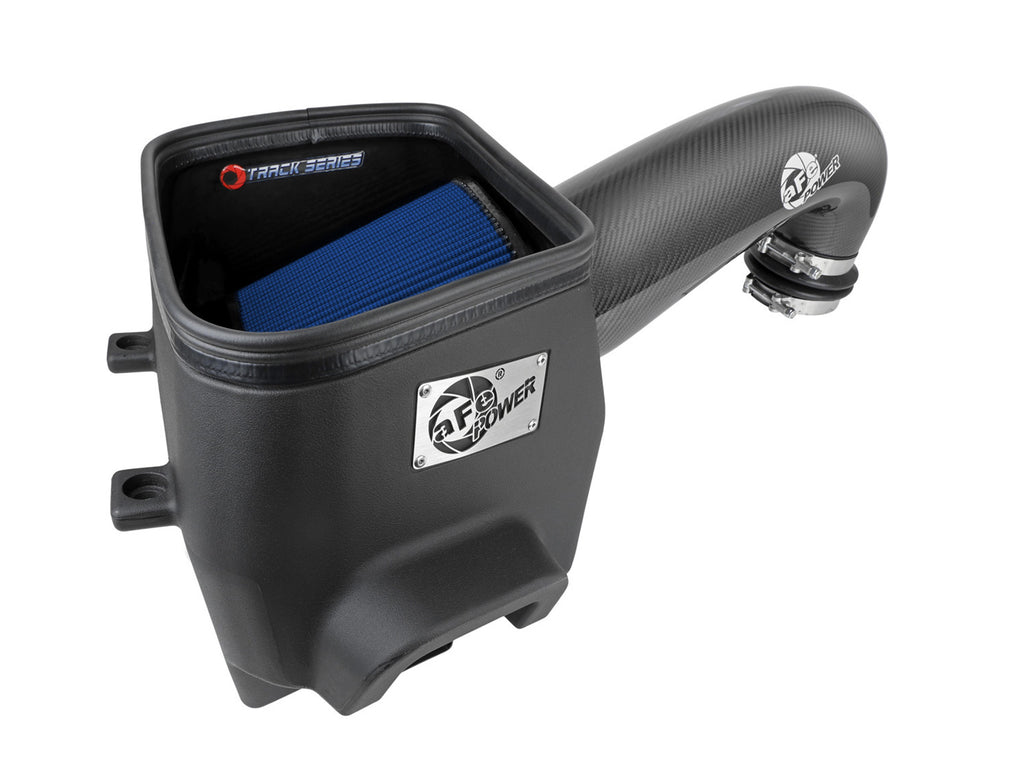

The aFe 57-10011R Track Series intake combines one Pro 5R oiled filter, one carbon fiber tube and an open XLPE housing for the specified Ram 1500 DT 5.7L HEMI applications. The current exact manual separates 2019–2024 HEMI/eTorque from the additional 2026 eTorque application; it does not list 2025. The original temperature sensor and four housing grommets are transferred.
| Years | Make | Model | Application |
|---|---|---|---|
| 2019–2024 | Ram | 1500 (DT) | 5.7L HEMI V8, including the manual’s eTorque application |
| 2026 | Ram | 1500 (DT) | 5.7L V8 eTorque, specifically listed in the current manual |
57-10011R: the current product page uses a generic 2019–2026 headline, while the exact manual explicitly lists 2019–2024 and 2026 eTorque as separate rows. No 2025, Hurricane, 3.6L V6, TRX or Ram 1500 Classic/DS fitment is inferred. Existing saved named-trim ranges are retained without extending every trim to 2024 or adding an unqualified 2026 all-engine search row.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 57-10011R |
| Filter supplied | One 24-91149 Pro 5R; 5-1/2 in. flange, 9 in. height |
| Tube | Carbon fiber; 05-5710011C1 |
| Housing | Plastic/XLPE; 05-5710011B2 |
| Coupling | One silicone reducer 05-01508; small end at throttle body |
| Sensor | Original temperature sensor reused; quarter-turn locking fitting |
| Emissions | Not currently CARB exempt; unavailable for California purchase or use on California-registered vehicles. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
A single-filter Track Series intake with a carbon fiber tube and XLPE housing for the exact Ram 1500 DT 5.7L applications above.
Does the 2019–2026 headline include 2025?The current exact manual lists 2019–2024 HEMI/eTorque and a separate 2026 eTorque row. It does not establish a 2025 application, so a continuous range is not inferred.
Does it fit the Hurricane, V6 or Classic?Those engines/generations are not established by the reviewed exact 5.7L DT sources. Do not infer fitment from the Ram 1500 name alone.
Are both dry and oiled filters included?No. This R kit supplies one Pro 5R oiled filter. The manual’s dry filter is the alternative D configuration.
Which sensor is transferred?The original temperature sensor: rotate it one-quarter turn counterclockwise to remove, then one-quarter turn clockwise to lock into the new tube fitting.
Is the aluminum fitting tightened flush?No. The manual warns against overtightening and says some threads remain exposed when fully tightened. Do not force it flush or invent a torque value.
Does the housing require new mounting grommets?No. Transfer all four original housing grommets and seat the housing on the corresponding mounting pegs.
Is it CARB exempt?The exact manufacturer page and manual state it is not currently CARB exempt and is unavailable for California purchase or use on California-registered vehicles.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
