aFe BladeRunner F-150/Raptor 3.5L Cold Pipe 3.5–3in 17–20

BladeRunner charge piping for the exact engine

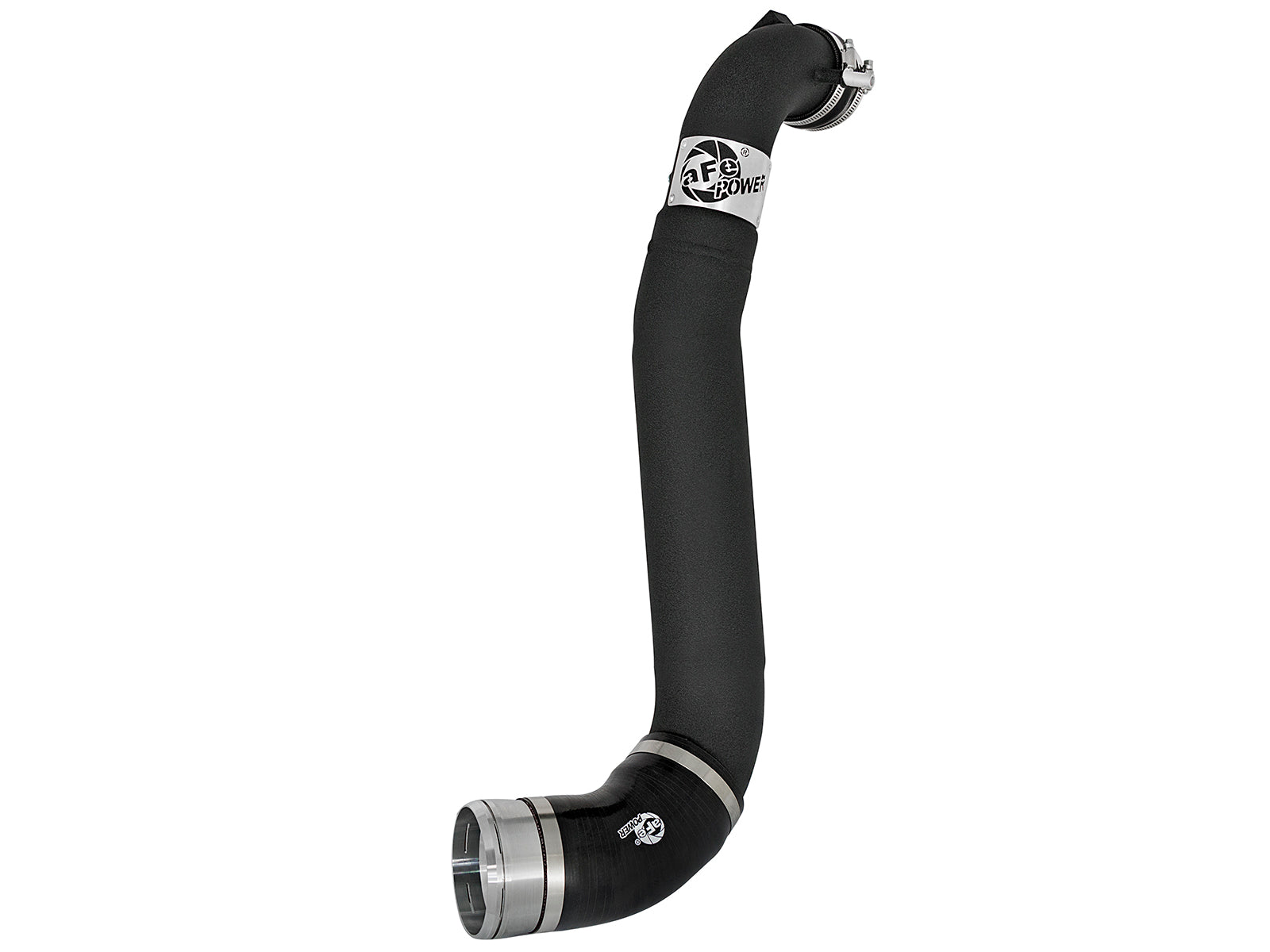

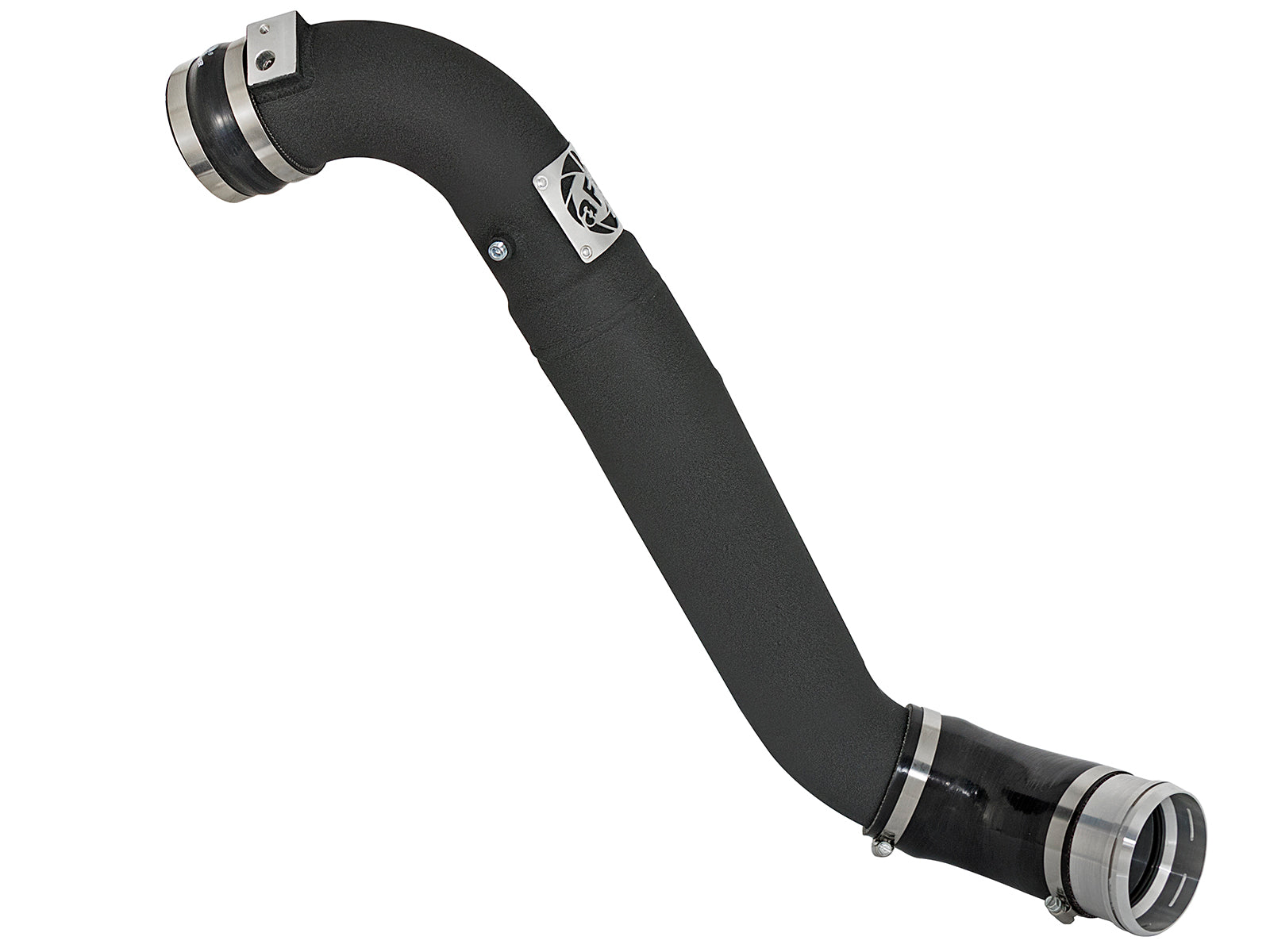

The aFe 46-20299-B is the single 3.5-to-3-inch aluminum cold-side tube for the 2017–2020 F-150/Raptor 3.5L twin-turbo EcoBoost. Its supplied quick-connect adapter uses the original retaining clip and a supplied O-ring. It does not include hot-side piping or an intercooler core.

Key Features

• Exact side-specific charge piping; the other side and intercooler remain separate.
• The current primary page reports up to 17% more flow than the stock tubes. No guaranteed horsepower, boost, temperature or fuel-economy result is inferred.
• Five-ply silicone couplings and stainless-steel clamps are listed by the manufacturer; exact contents follow the individual manual.

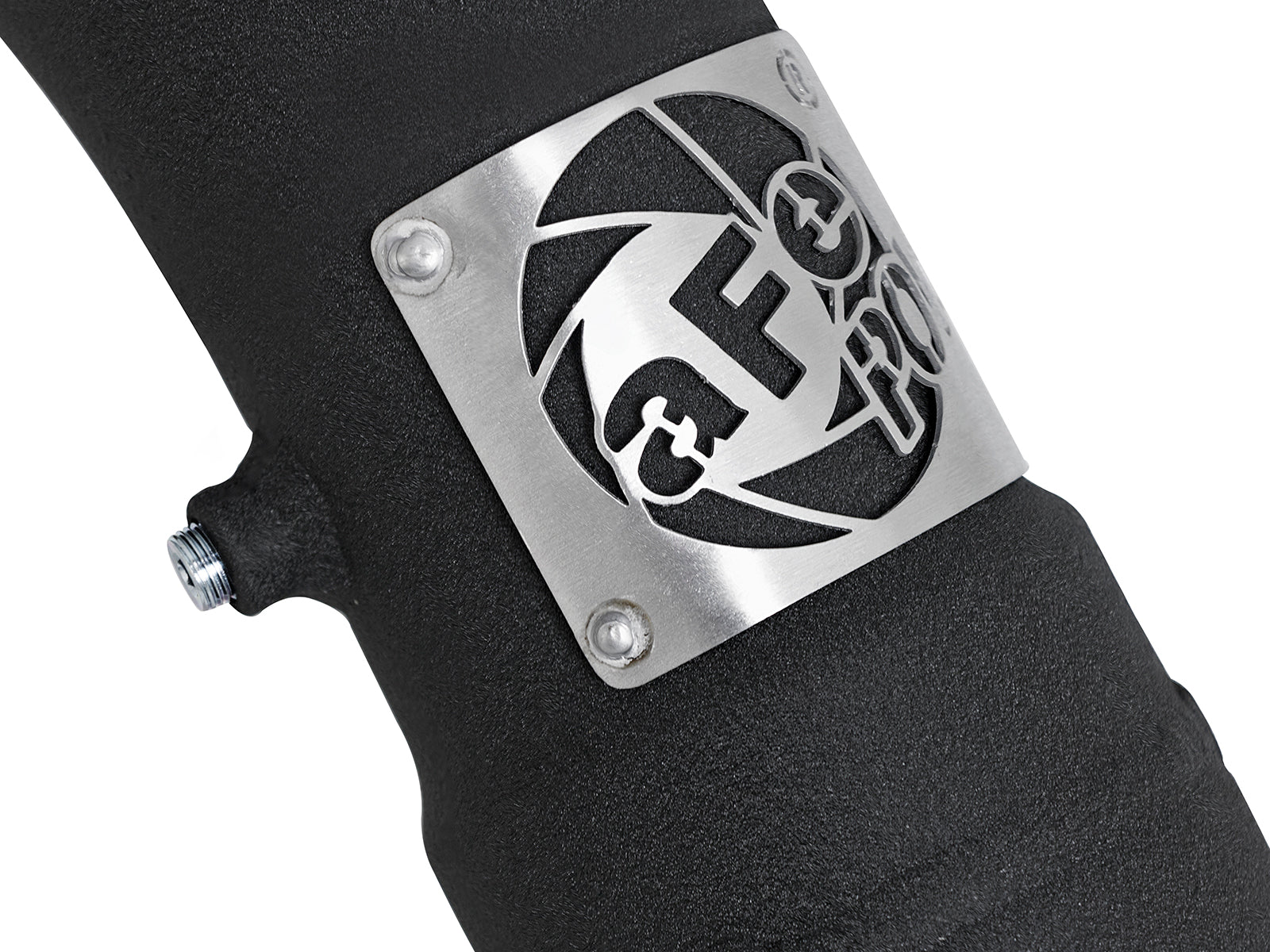

• Factory mounting locations and accessory 1/8 NPT port provision. An accessory port does not include a sensor or a complete water/methanol system.

Fitment

46-20299-B: The current primary heading names Raptor, while the freshly downloaded exact manual also explicitly lists 2017–2020 F-150 3.5L. Older indexed text omitted that second row and used a different emissions notice; actual boxed revision is not independently inspected. The small coupling row is labeled hump 3-inch ID x 2-1/4 inches without a clear second-dimension designation; do not invent a length or reducing bore. The current page Filter Included field is generic and does not add an air filter to the exact kit list.

Specifications

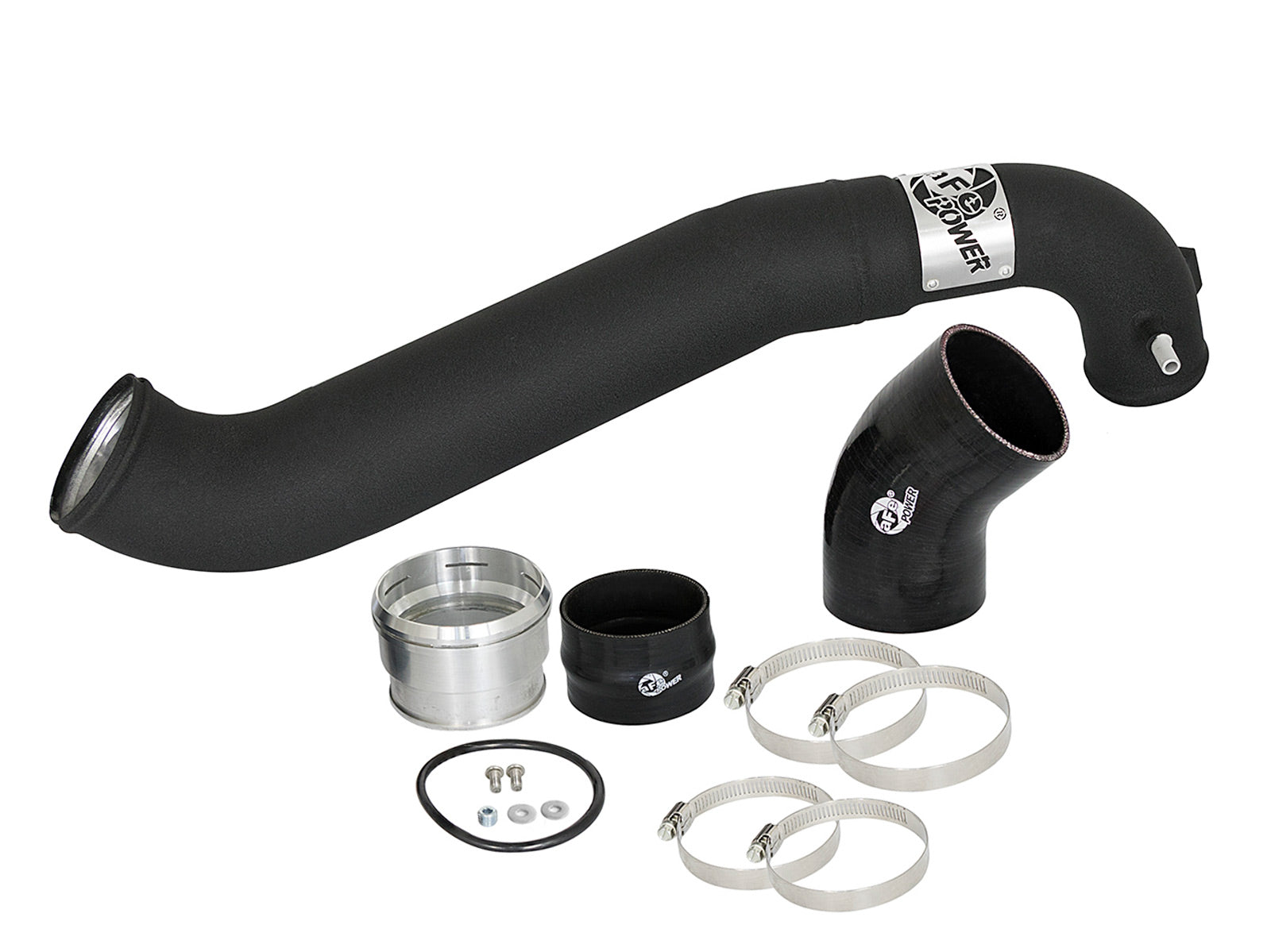

What's Included

• One cold tube, 05-60771B.
• Two silicone couplings: the manual labels the small 05-01245 coupling 3-inch ID x 2-1/4 inches and the large 05-60556 elbow 3.5-inch ID x 45 degrees. The small row does not clearly identify whether the second dimension is length or reducing diameter; confirm the actual coupling and connections.
• One aluminum adapter, one O-ring and one 1/8 NPT plug. The original intercooler retaining clip and original sensor are reused.
• Four clamps: two #052 and two #048. One M6 socket-head screw and one M6 washer; no hot-side pipes, air filter, new sensor or intercooler core.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.

is the single 3.5-to-3-inch aluminum cold-side tube for the 2017–2020 F-150/Raptor 3.5L twin-turbo EcoBoost. Its supplied quick-connect adapter uses the original retaining clip and a supplied O-ring. It does not include hot-side piping or an intercooler core.

No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.

Transfer the original cold-pipe sensor with the supplied small screw; retain its O-ring and reconnect its harness. Fit the original intercooler clip to the outside adapter groove and the supplied O-ring to the inside groove; lubricate adapter and sensor O-rings as directed. The clip must snap fully into the intercooler groove. Restore the vent lock, relief-valve tube, Y-pipe and intake sensor.

No numerical torque or mileage recheck interval is stated in this exact cold manual. Tighten the four clamps as directed with the tube clear of surrounding surfaces; do not borrow the hot kit 50–100-mile schedule as a cold-manual specification.

The current primary heading names Raptor, while the freshly downloaded exact manual also explicitly lists 2017–2020 F-150 3.5L. Older indexed text omitted that second row and used a different emissions notice; actual boxed revision is not independently inspected. The small coupling row is labeled hump 3-inch ID x 2-1/4 inches without a clear second-dimension designation; do not invent a length or reducing bore. The current page Filter Included field is generic and does not add an air filter to the exact kit list.

No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.

The current exact pages and freshly downloaded manuals state these kits are not CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV. Older indexed cold-manual text used a California race-only notice; that does not establish road-use approval.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20299-B, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Park level, engage the parking brake, cool the engine and follow the manual negative-battery disconnection guidance. Loosen the three intake Y-pipe clamps, disconnect its sensor and remove the Y-pipe.
3. Release the vent-tube clip, disconnect the cold-tube sensor wiring/harness attachment, and remove the original sensor for reuse. Release the throttle-body coupling.
4. Remove the skid plate as instructed. Rotate and move the pressure-relief-valve tube aside. Separate the upper cold pipe and rubber coupling, then release the lower wire retaining clip and remove the remaining factory cold-pipe section. Retain the clip.

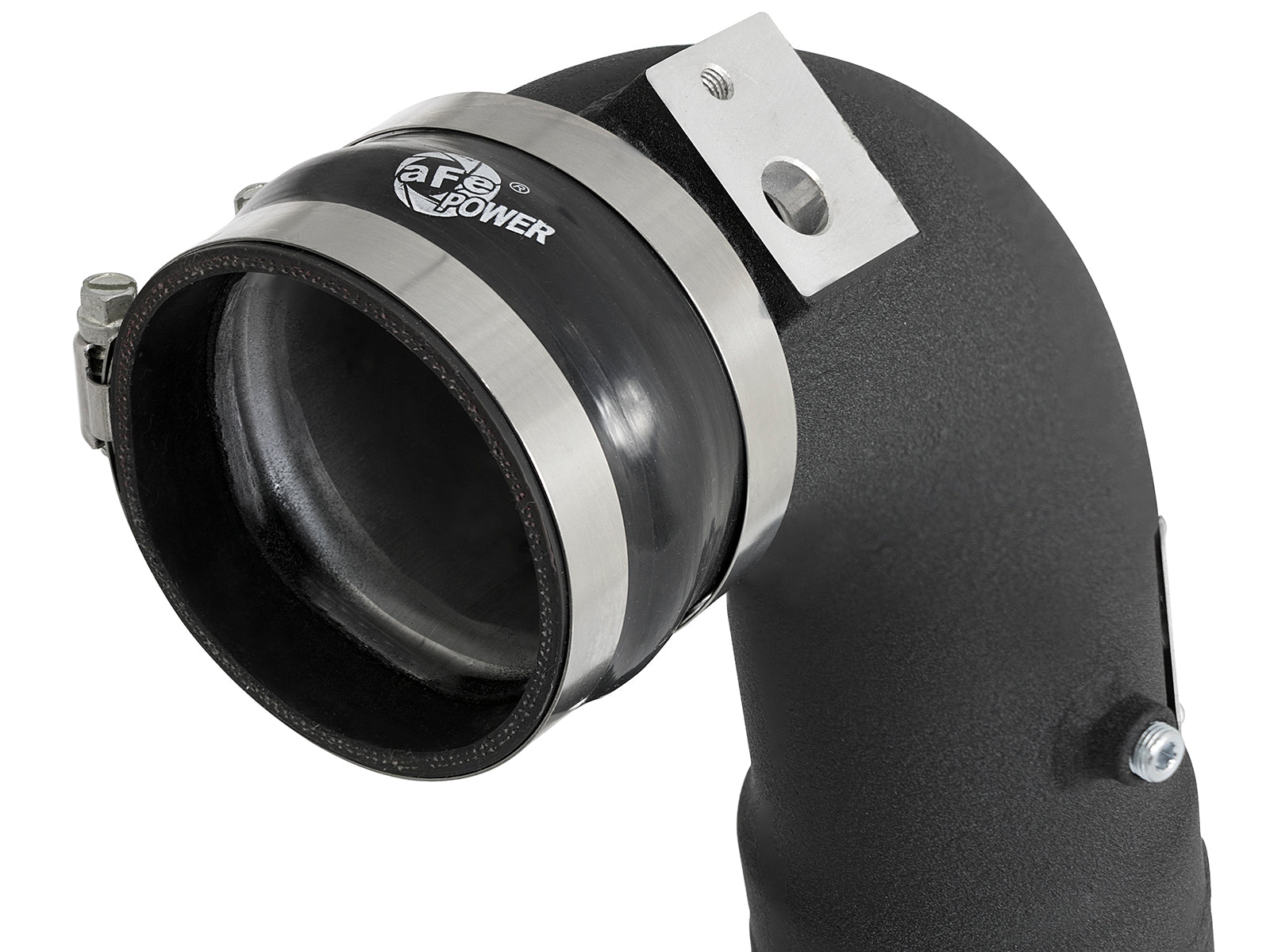

5. Fit the small supplied coupling and applicable smaller clamp to the new tube. Seal the unused 1/8 NPT port with the supplied plug and thread sealant. Install the original sensor with the supplied small screw.

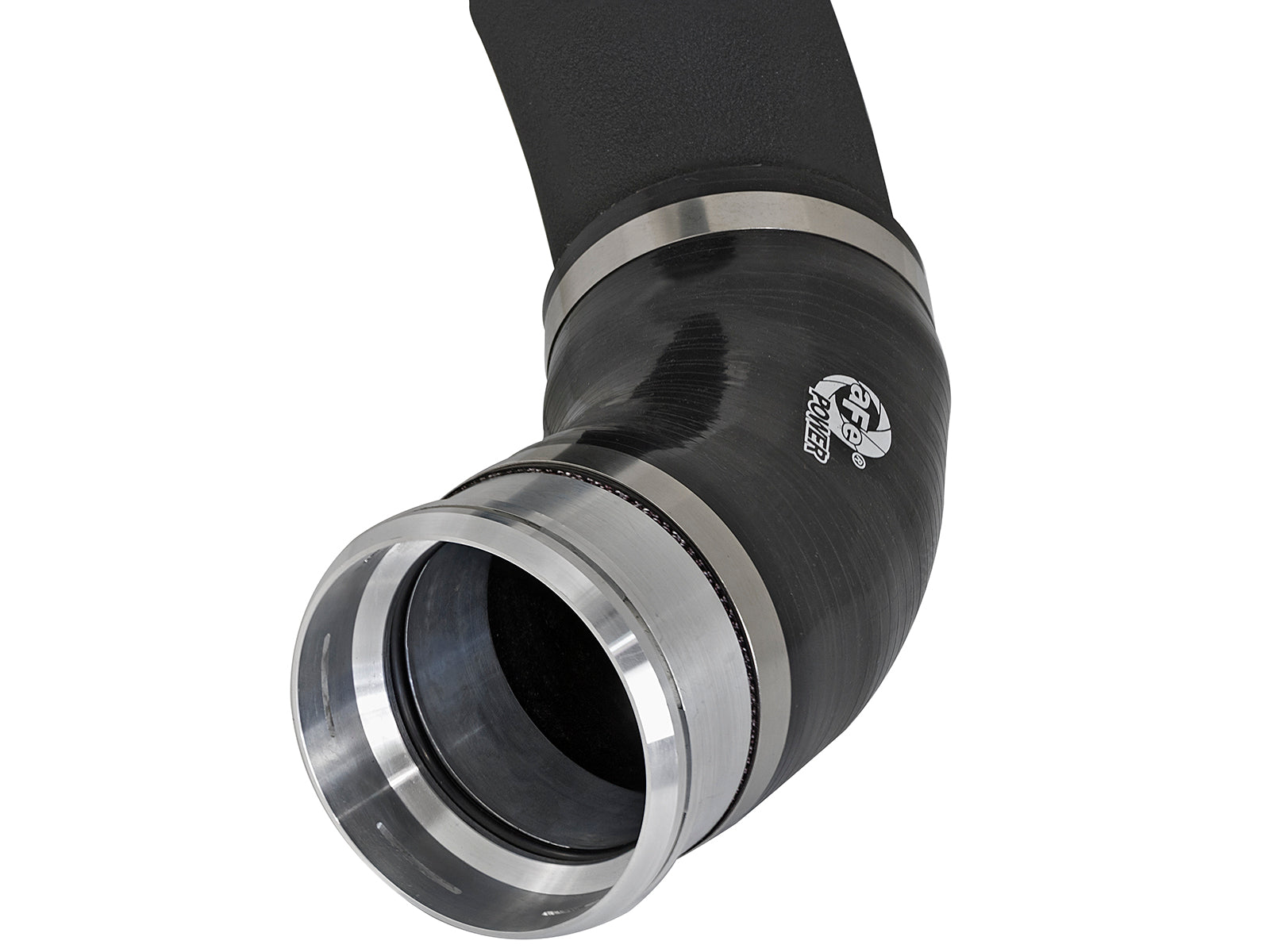

6. Fit the original retaining clip into the outer adapter groove and supplied O-ring into its inner groove. Lubricate the adapter and original sensor O-rings with the instructed small amount of grease to avoid tearing. Fit the large 45-degree coupling and larger clamps to the adapter.
7. Lower the tube into place, seat the adapter fully onto the intercooler and confirm the original clip snaps completely into its groove. Seat the tube in the adapter coupling and connect the upper coupling to the throttle body with the remaining clamp.
8. Restore the pressure-relief-valve tube. Confirm the tube does not rest against plastic or metal surfaces, then tighten all clamps as directed and reinstall the skid plate.
9. Reconnect and lock the vent tube, reconnect original sensor wiring and restore the intake Y-pipe and intake sensor. Restore the battery connection under the applicable service procedure and inspect secure, leak-free connections. This exact cold manual supplies no numerical torque or mileage-based recheck interval.

46-20299-B: inspect every connection and resolve the documented kit discrepancies before operation.
