aFe BladeRunner Charge Pipe Kit - Toyota GR Supra 3.0L Red 20–26

BladeRunner charge piping for the exact engine

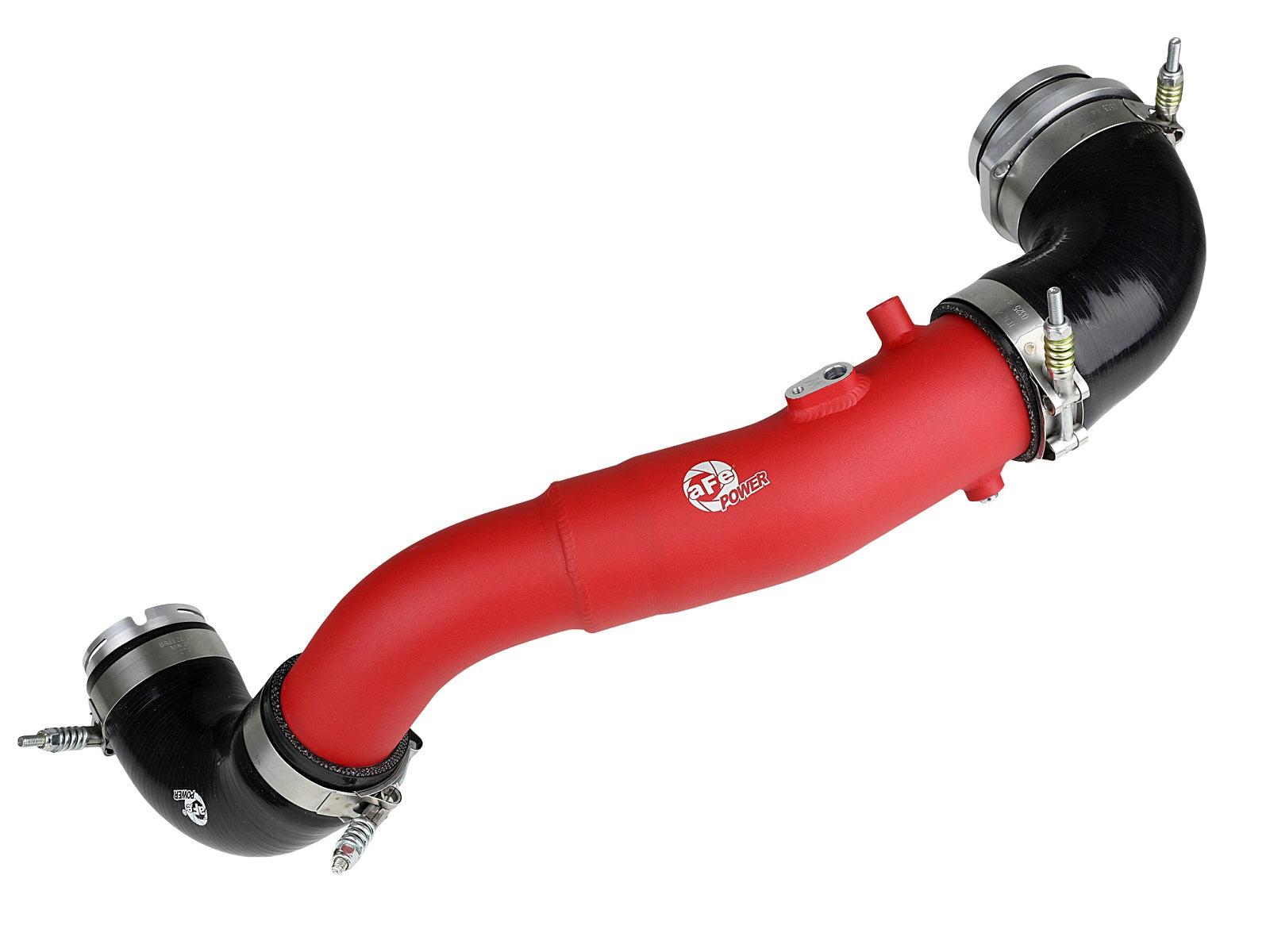

The aFe 46-20398-R is the single aluminum charge-pipe kit for the GR Supra A90 3.0L turbo, with two silicone elbows, four spring-loaded T-bolt clamps and separate turbo/throttle-body adapters. It reuses two original sensors and requires moving the original water pump/cradle for access; no Ford F-150 application is supported.

Key Features

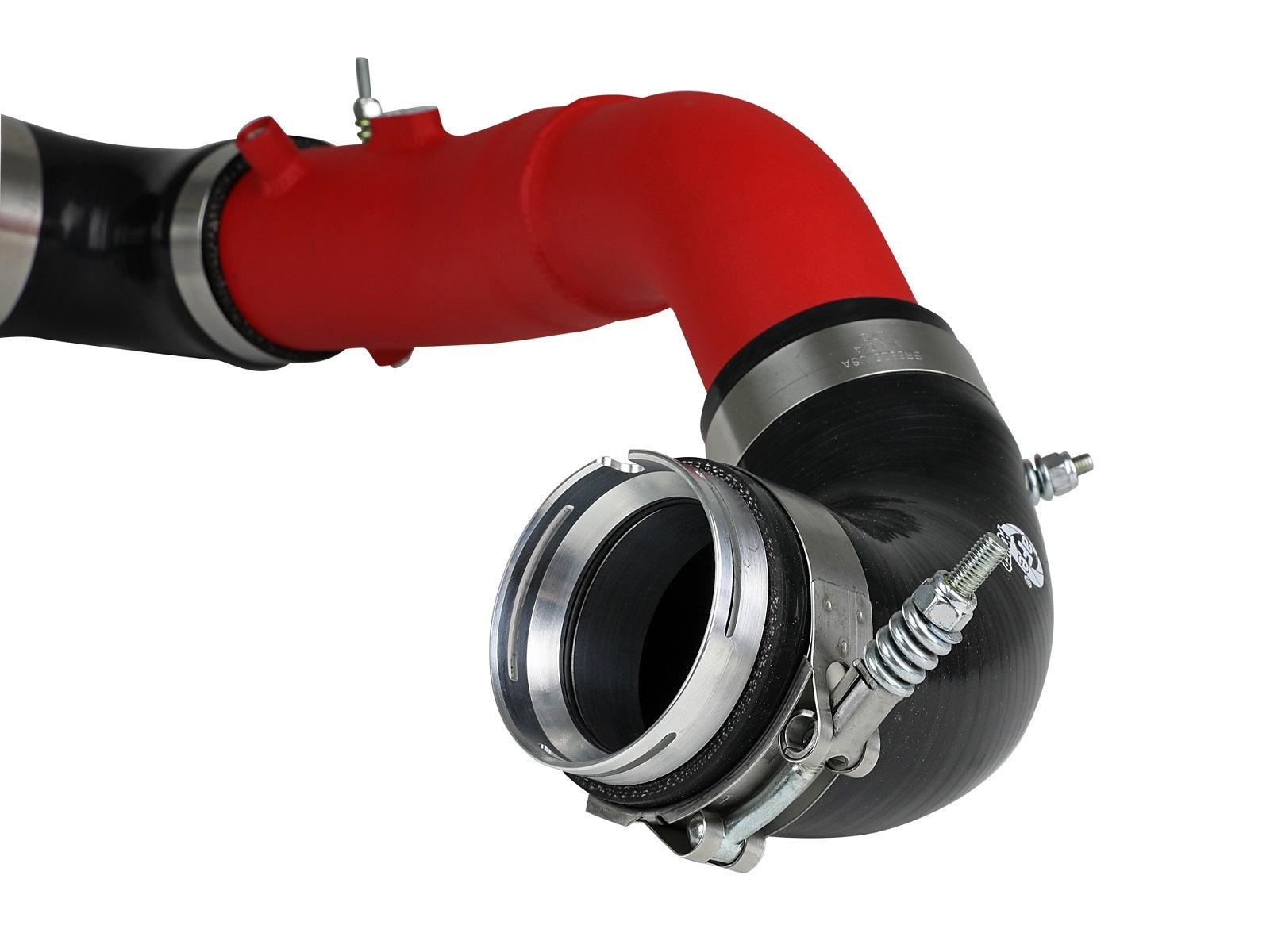

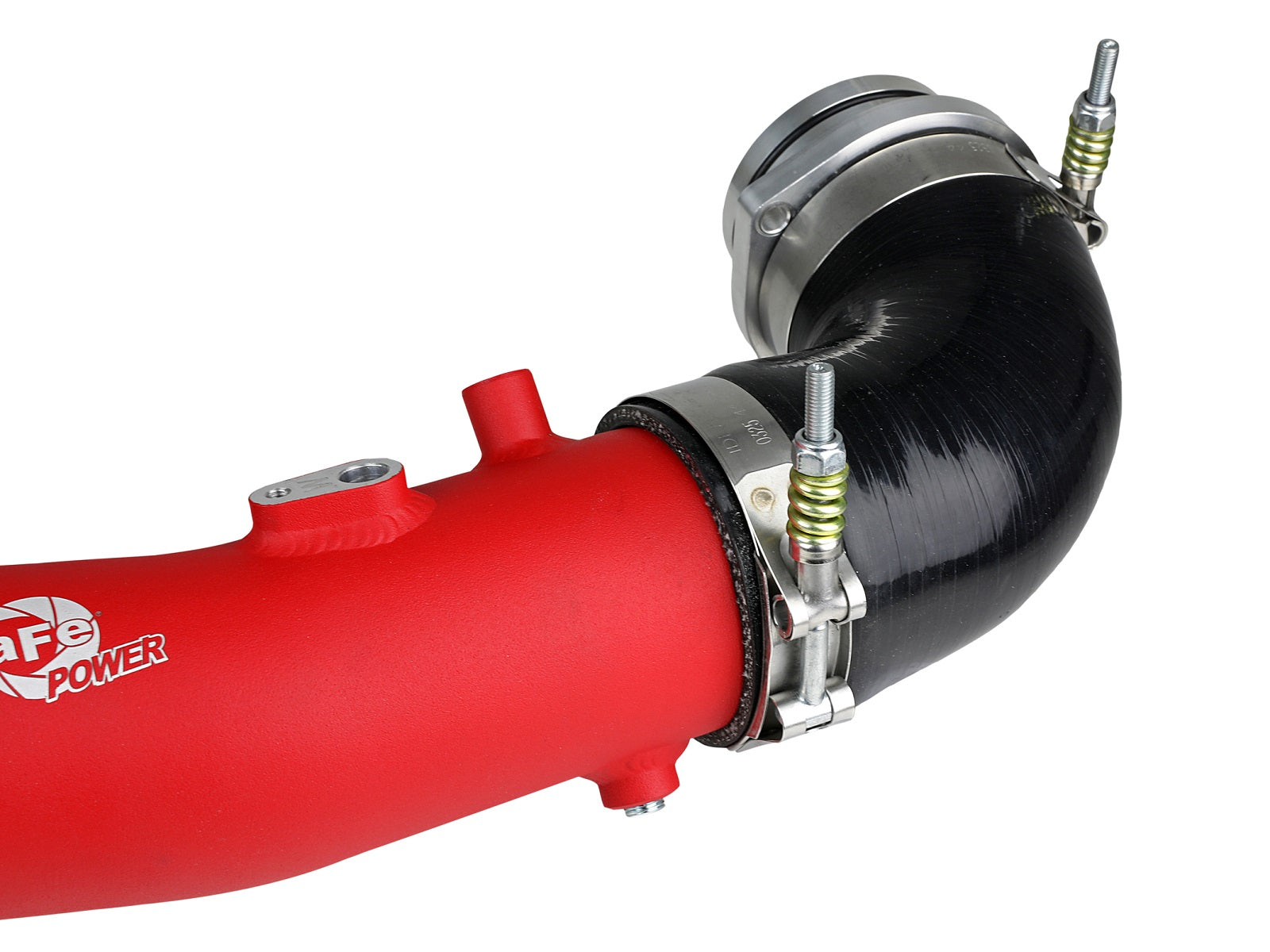

• TIG-welded mandrel-bent aluminum charge tube with five-ply polyester-reinforced silicone coupling hardware and stainless spring-loaded T-bolt clamps.
• Manufacturer reports up to 40% flow increase over the factory tube. That is not a guaranteed horsepower, boost or temperature change.

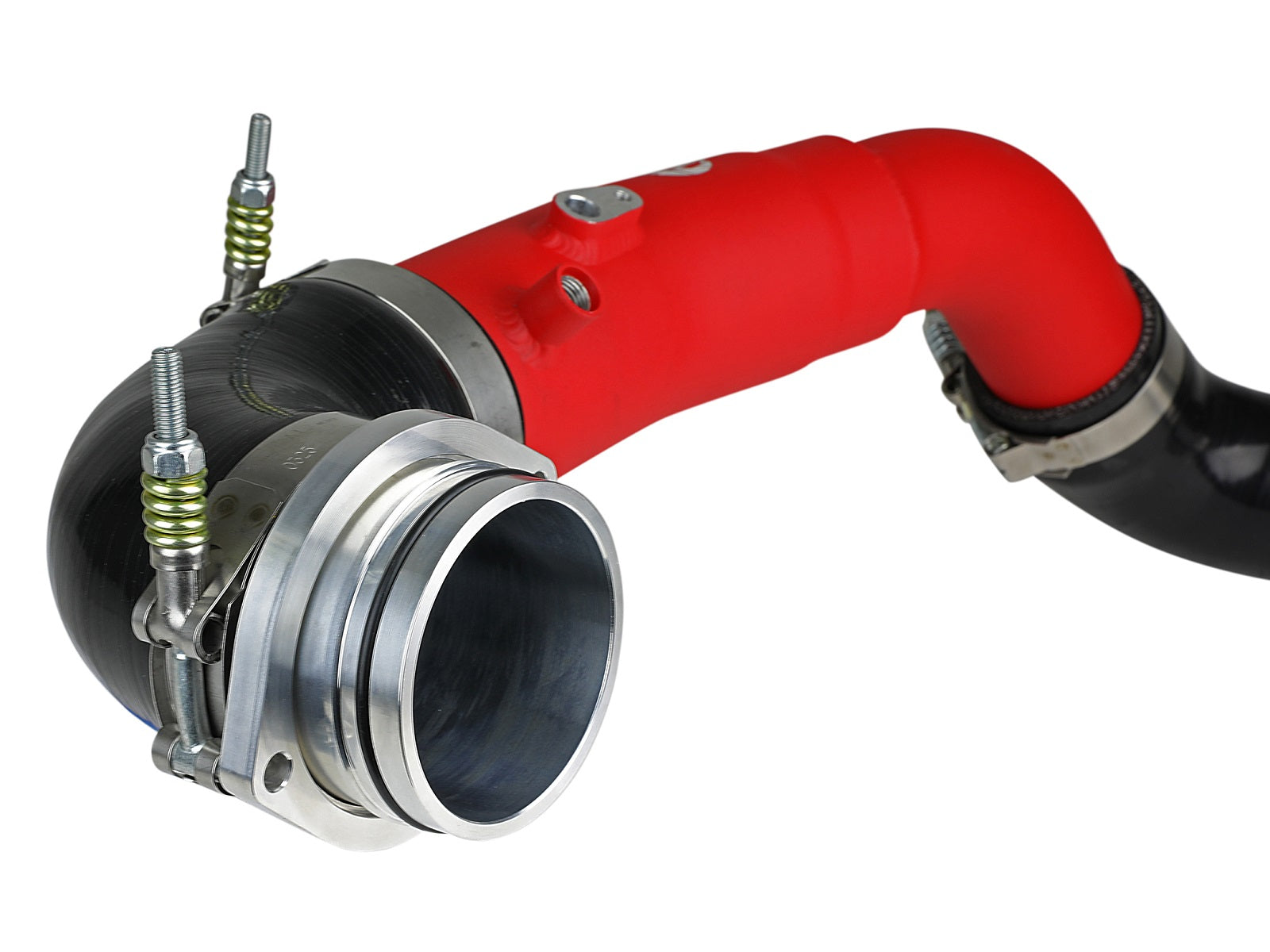

• Factory-style turbo quick-connect and separate throttle-body adapter/flange have different seals and coupling interfaces; keep the beaded elbow correctly seated in its adapter groove.
• Accessory NPT ports do not include a new sensor or water/methanol system. No air filter or intercooler core is listed despite the PDP’s generic Filter Included Yes field.

Fitment

46-20398-R: The current exact PDP and shared B/R manual agree on GR Supra A90 2020–2026 L6 3.0L turbo. Ford F-150 is not an application for this Supra-specific pipe. The manual lists two 73 mm O-rings but explicitly describes only one throttle-adapter groove installation near the positive stop; it does not establish a spare or the second ring’s position. Verify correct actual seal placement before assembly rather than stacking both or inventing a spare. Confirm the actual 3.0L engine and original connections; no broader BMW coverage is inferred.

Specifications

What's Included

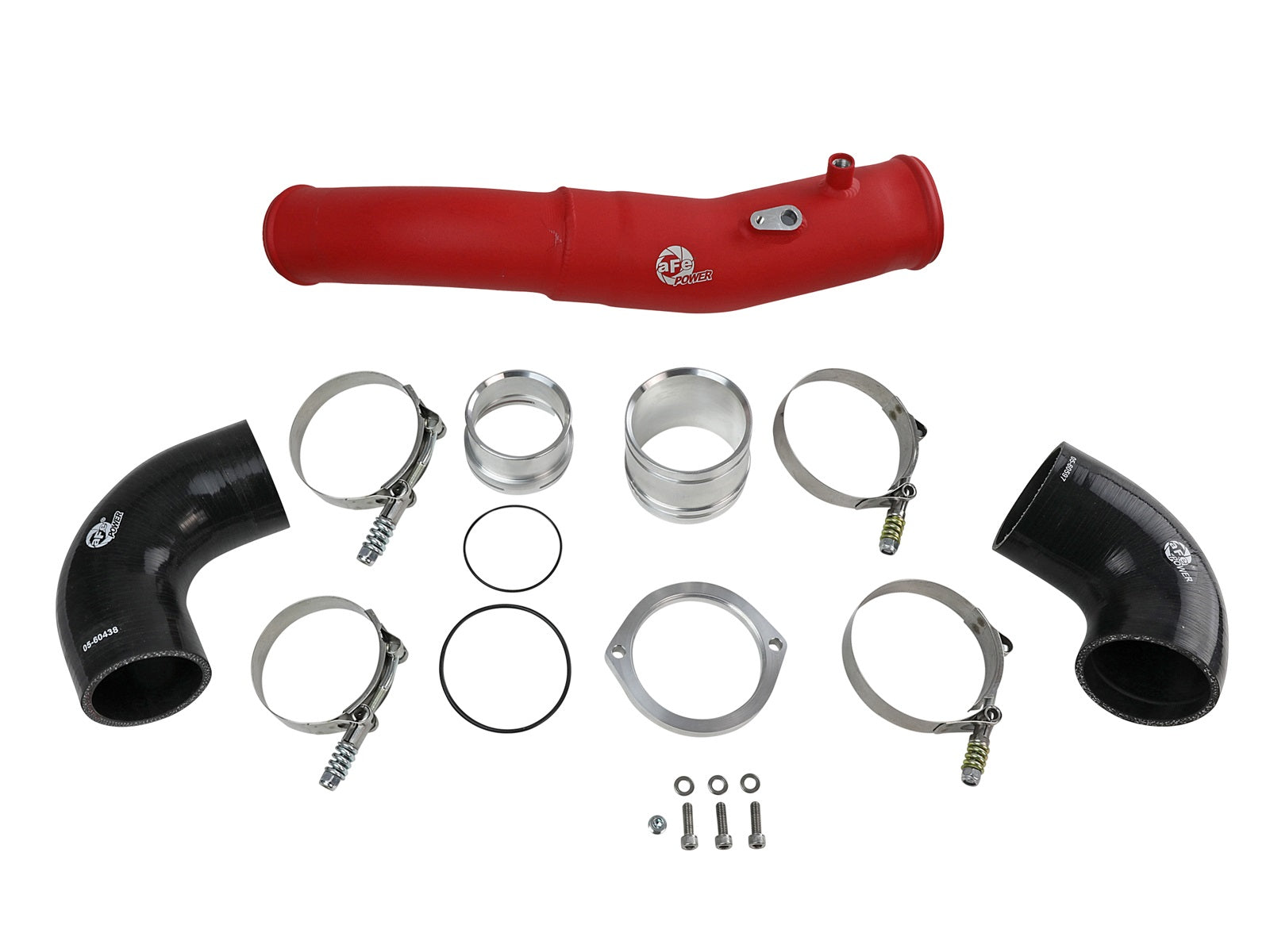

• One aluminum charge tube; one 3-inch ID 90° beaded silicone elbow and one 2½-inch ID 90° silicone elbow
• Four spring-loaded T-bolt clamps: two nominal 2¾-inch and two nominal 3¼-inch
• One throttle-body adapter, one throttle-body flange and one turbo adapter
• Three M6 × 1 × 20 mm screws, three M6 washers and one 1/8-inch NPT plug
• One 55 mm ID O-ring and two 73 mm O-rings per the exact matrix; the procedure establishes only one 73 mm groove location, so the second ring’s placement/role must be confirmed, not assumed to be a spare
• Original two sensors, turbo retaining clip and water pump/cradle reused; no new sensors, air filter, intercooler core or water/methanol system listed

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.

is the single aluminum charge-pipe kit for the GR Supra A90 3.0L turbo, with two silicone elbows, four spring-loaded T-bolt clamps and separate turbo/throttle-body adapters. It reuses two original sensors and requires moving the original water pump/cradle for access; no Ford F-150 application is supported.

No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.

Transfer both original charge-pipe sensors: the pressure sensor uses one supplied M6 × 20 mm screw/washer and the other threads into its intended fitting. Reuse the original turbo retaining clip and water pump/cradle, confirming full clip engagement and water-pump electrical reconnection.

The exact manual supplies no numeric clamp, sensor or mount torque. Use the applicable actual hardware/vehicle specifications, align clear of adjacent components before final tightening and recheck connections after 50–100 miles.

The current exact PDP and shared B/R manual agree on GR Supra A90 2020–2026 L6 3.0L turbo. Ford F-150 is not an application for this Supra-specific pipe. The manual lists two 73 mm O-rings but explicitly describes only one throttle-adapter groove installation near the positive stop; it does not establish a spare or the second ring’s position. Verify correct actual seal placement before assembly rather than stacking both or inventing a spare. Confirm the actual 3.0L engine and original connections; no broader BMW coverage is inferred.

No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.

The exact current PDP and manufacturer manual state this product is not CARB exempt and restrict California purchase/use on vehicles registered with the California DMV. No EO from another kit is inherited.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20398-R, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Resolve the two-listed versus one-described 73 mm O-ring placement before assembling the throttle adapter; do not assume a spare or install two rings in one groove.
3. On a cool, level vehicle with parking brake engaged and negative battery disconnected, remove engine cover and protect the core-support edge as the manual directs. Unlock airbox-sensor connector, release intake coupling and remove airbox.
4. Unclip intake wiring, release its plastic vacuum tube and turbo-inlet retaining clip and remove intake tube. Unlock both original charge-pipe sensor connectors.
5. Disconnect the water-pump electrical connector, remove its cradle fastener, release the cradle and move the pump aside as instructed for access; no pump replacement is listed. Remove old throttle-body fasteners and turbo retaining clip, then maneuver out the old charge pipe.
6. Transfer the pressure sensor using one supplied 20 mm screw/washer, thread the other original sensor into its intended fitting and seal unused NPT port with plug/thread sealant.
7. Grease/install the 55 mm turbo-adapter O-ring, transfer original retaining clip and fit the 2½-inch elbow/appropriate clamps at turbo. Install the confirmed-correct 73 mm throttle-adapter seal arrangement, orient the flange with its larger inside diameter toward the throttle body and use the two remaining 20 mm screws/washers.
8. Fit the 3-inch beaded elbow with its longer leg on the charge tube, install the tube from above and rotate the elbow onto the throttle adapter, ensuring its internal bead seats in the adapter groove. Rotate tube for sensor-connector access and align clear of adjacent parts before final clamp tightening.
9. Lock both sensor connectors, restore the original water pump/cradle and lock its electrical connector, then restore intake tube/clip, vacuum tube/harness, airbox/intake-sensor connection and engine cover without clamp interference. Remove protective tape, reconnect battery and recheck connections after 50–100 miles.

46-20398-R: inspect every connection and resolve the documented kit discrepancies before operation.

California Proposition 65 Warning

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
