aFe 2021-2023 Dodge Ram 1500 TRX V8 6.2L Bladerunner Auto Transmission Oil Cooler Kit

Application-specific oil cooling

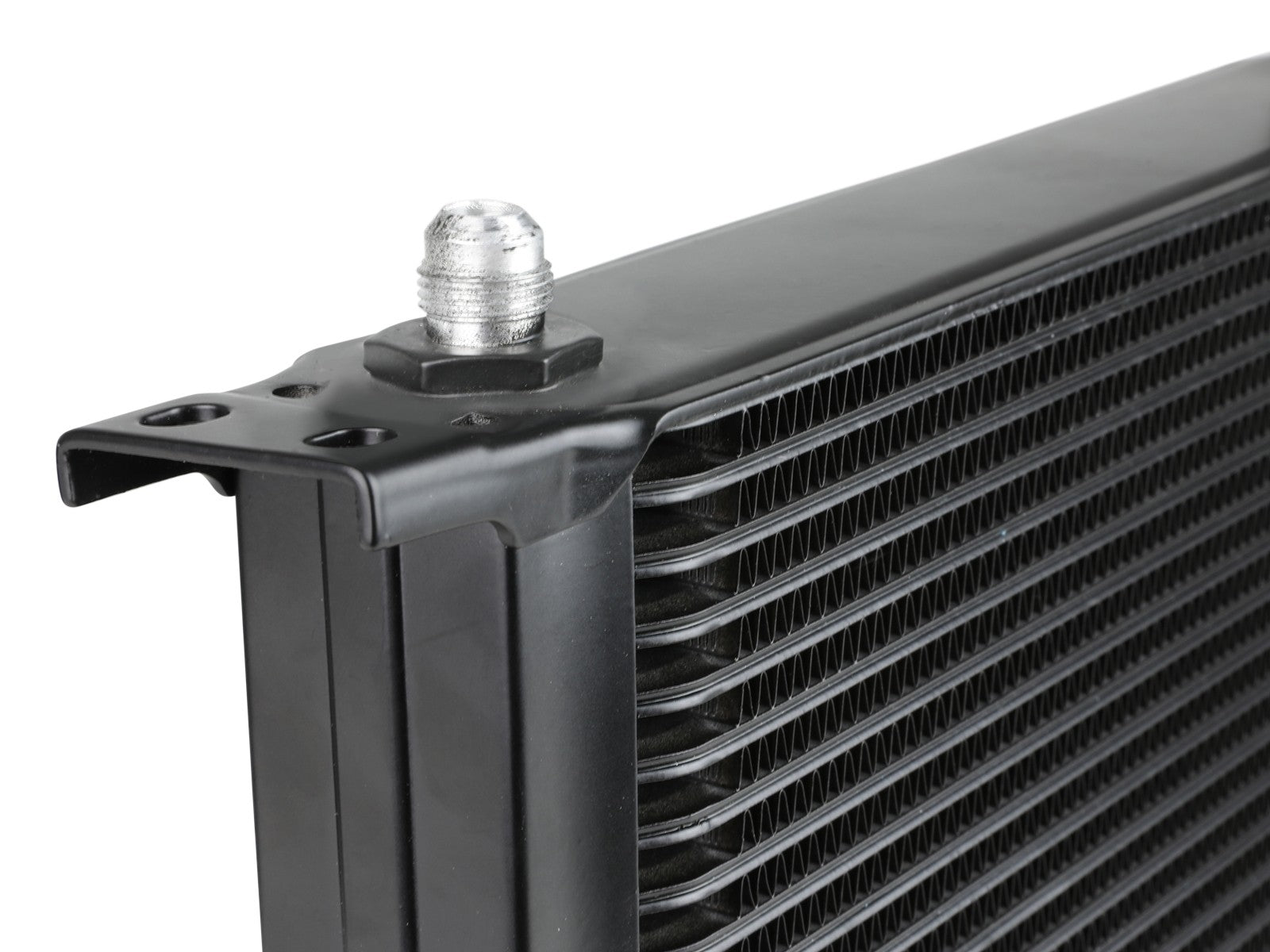

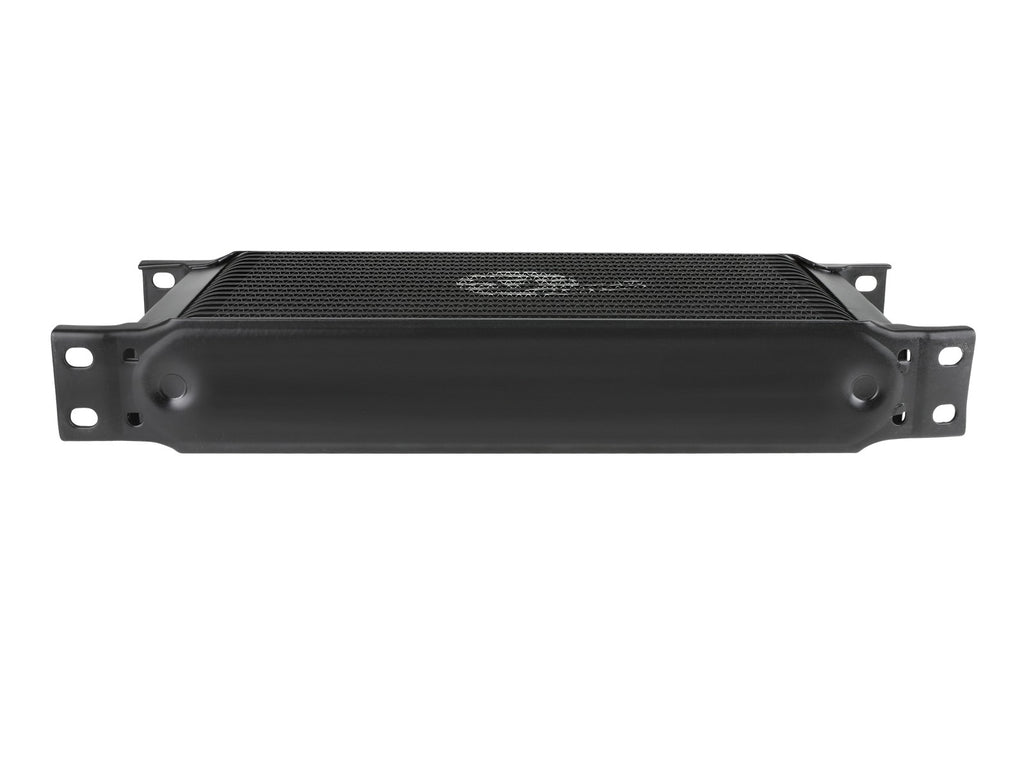

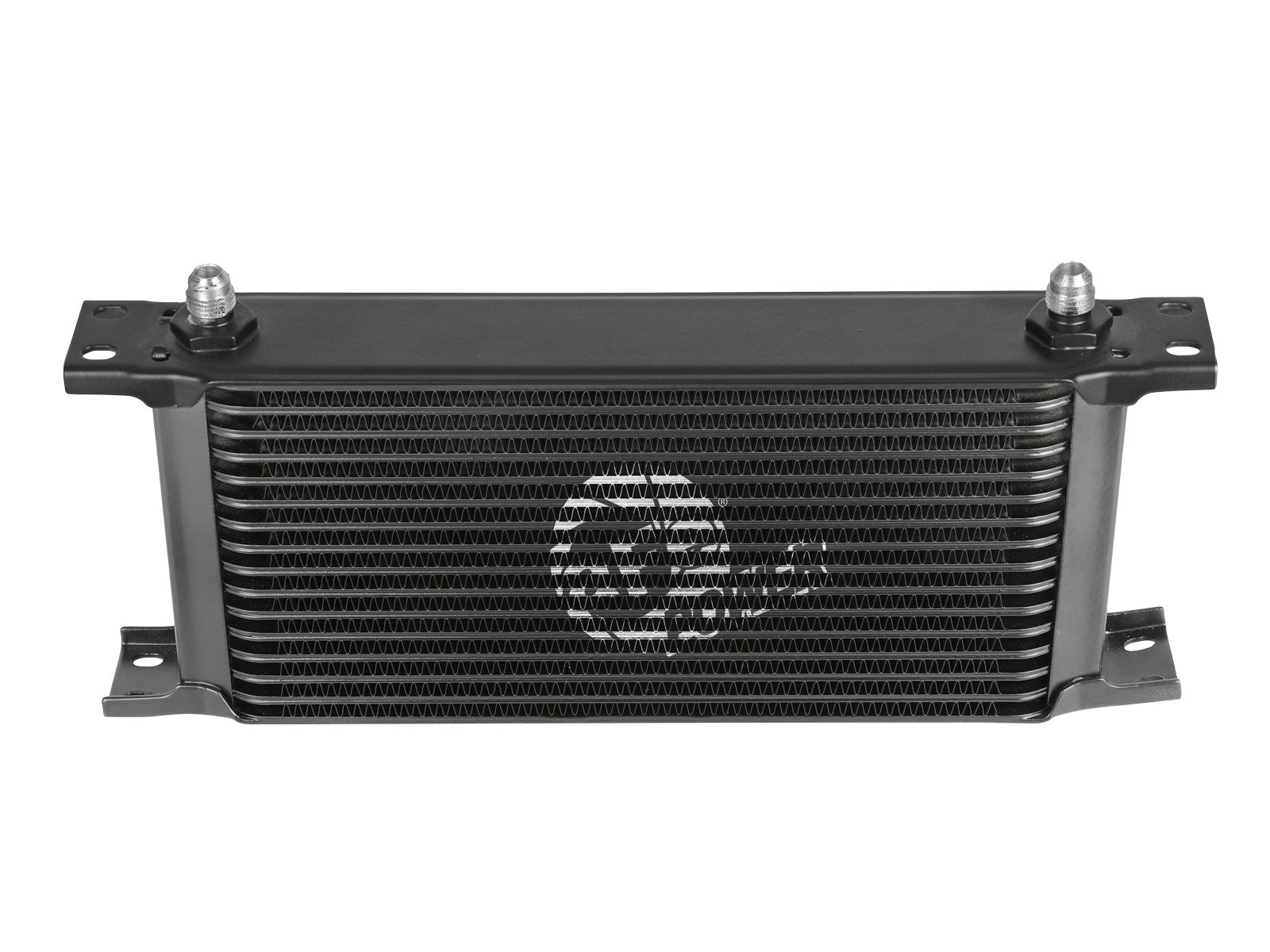

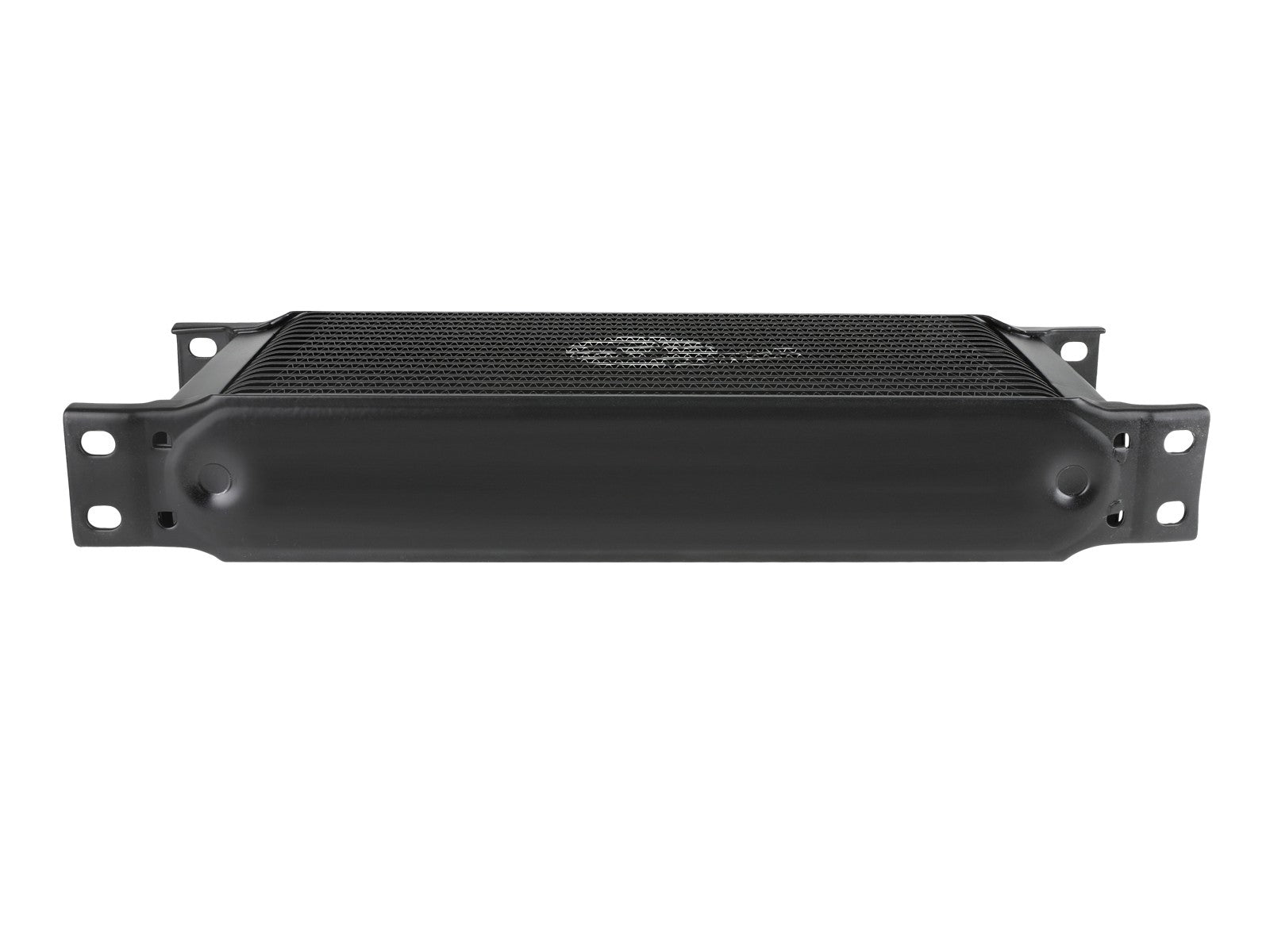

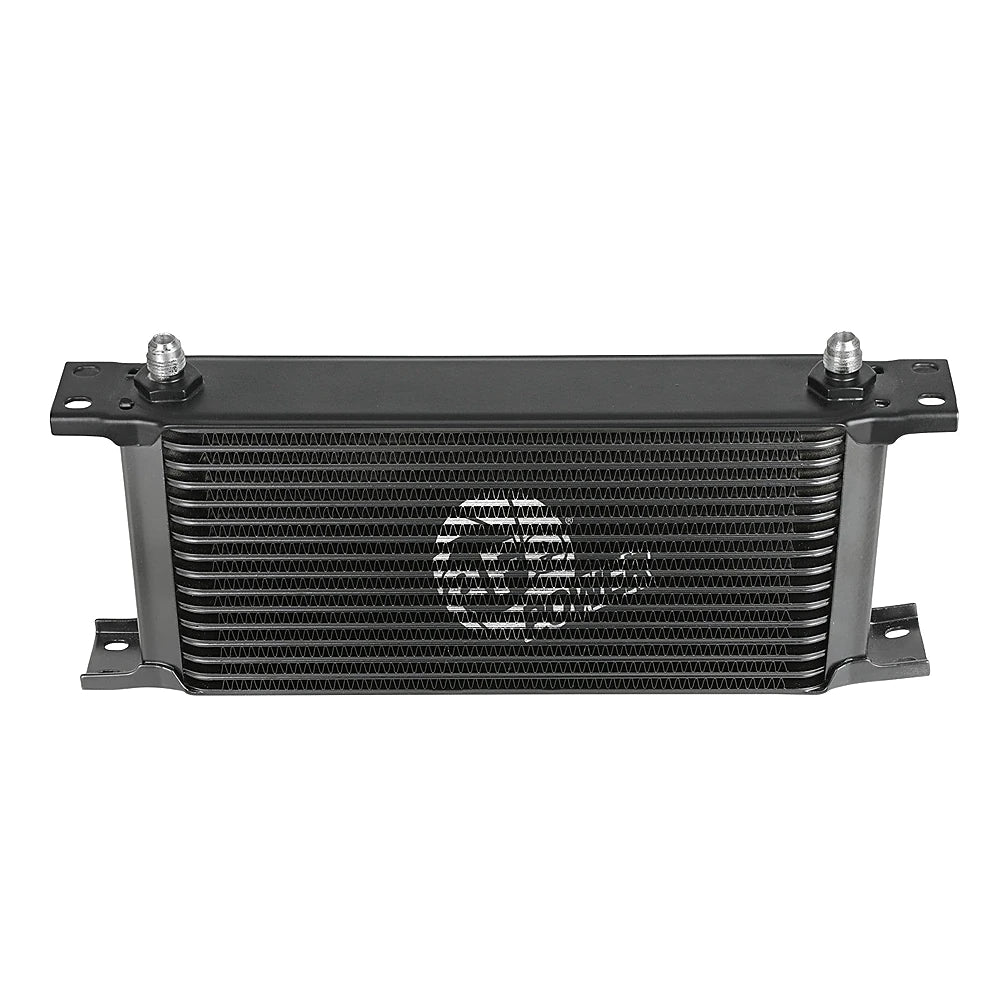

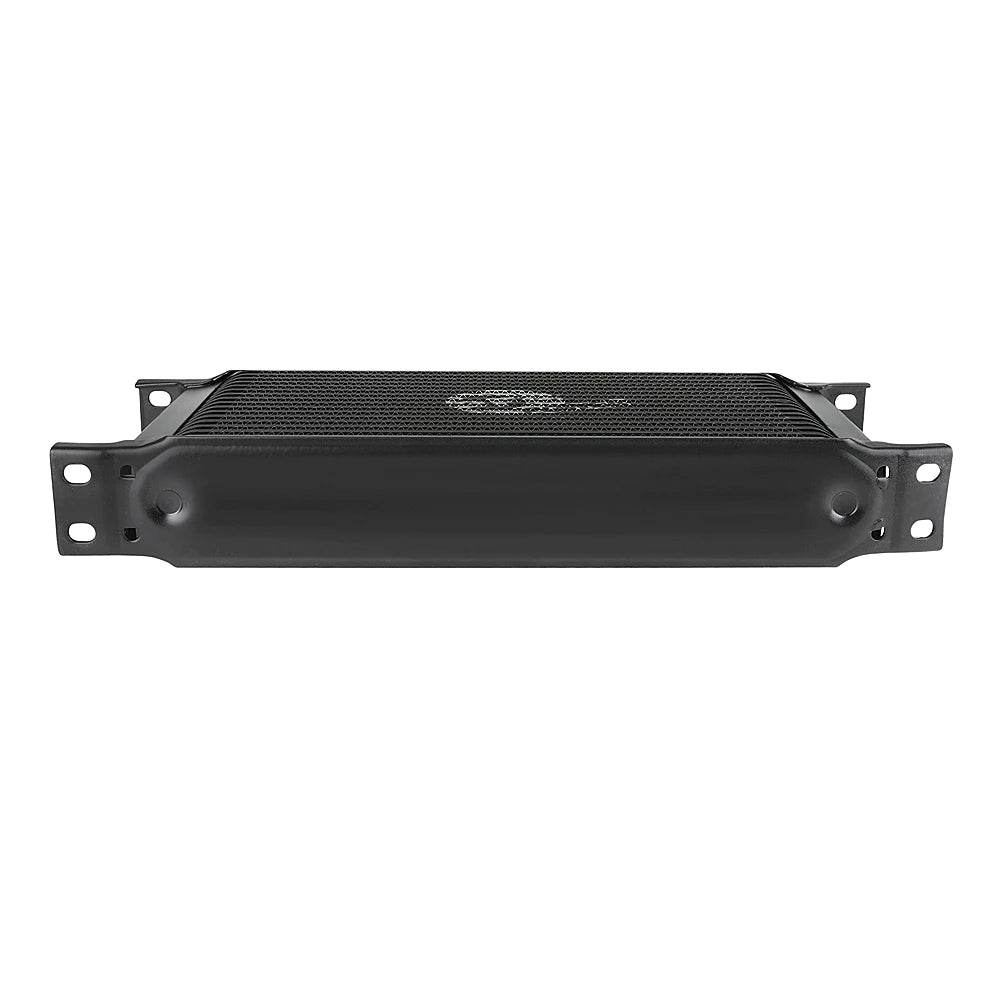

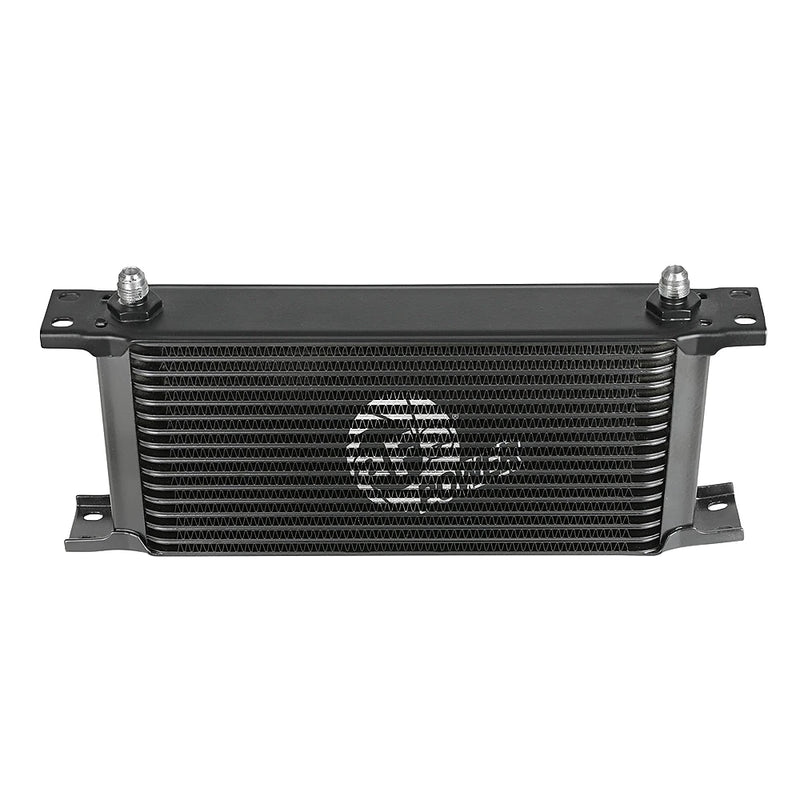

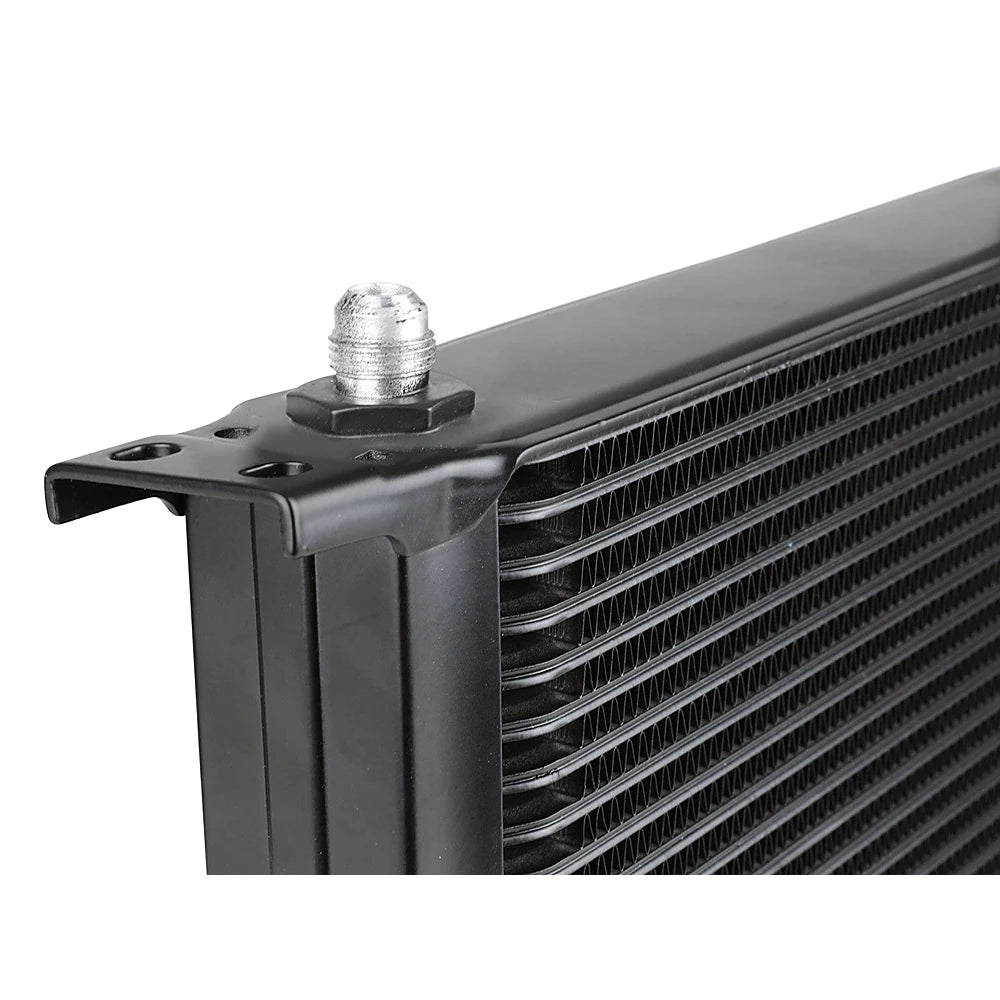

The aFe 46-80006 oil-cooling component is for the specified 2021-2023 Ram 1500 TRX 6.2L supercharged V8 automatic transmission application. Brazed all-aluminum stacked-plate supplemental automatic-transmission cooler with black finish, logo and black-anodized AN-8 fittings. The primary states reductions up to 30 degrees F, a conditional manufacturer claim rather than guaranteed vehicle performance. No exact row count is specified, so the Tundra/GM 25-row figure is not borrowed.

Key Features

• Brazed all-aluminum stacked-plate supplemental automatic-transmission cooler with black finish, logo and black-anodized AN-8 fittings. The primary states reductions up to 30 degrees F, a conditional manufacturer claim rather than guaranteed vehicle performance. No exact row count is specified, so the Tundra/GM 25-row figure is not borrowed.
• Match the exact cooling component, engine, chassis and supplied hardware.
• Use the actual engine-oil/coolant or automatic-transmission fluid service procedure for this component.
• The current exact manufacturer listing states that this product does not require a CARB EO number. Retain required emissions equipment; an oil cooler is not an EGR delete.

Fitment

46-80006: The current exact primary listing and full forty-five-page installation manual identify Ram 1500 TRX 2021-2023 6.2L supercharged V8. Existing TRX 2021-2023 coverage is retained without extending to later production, RHO, regular 5.7L Ram or 6.7L heavy-duty trucks. Cooler/body part numbers in the assembly BOM do not establish complete-kit cross-platform fitment or a bundled sale identifier.

Specifications

What's Included

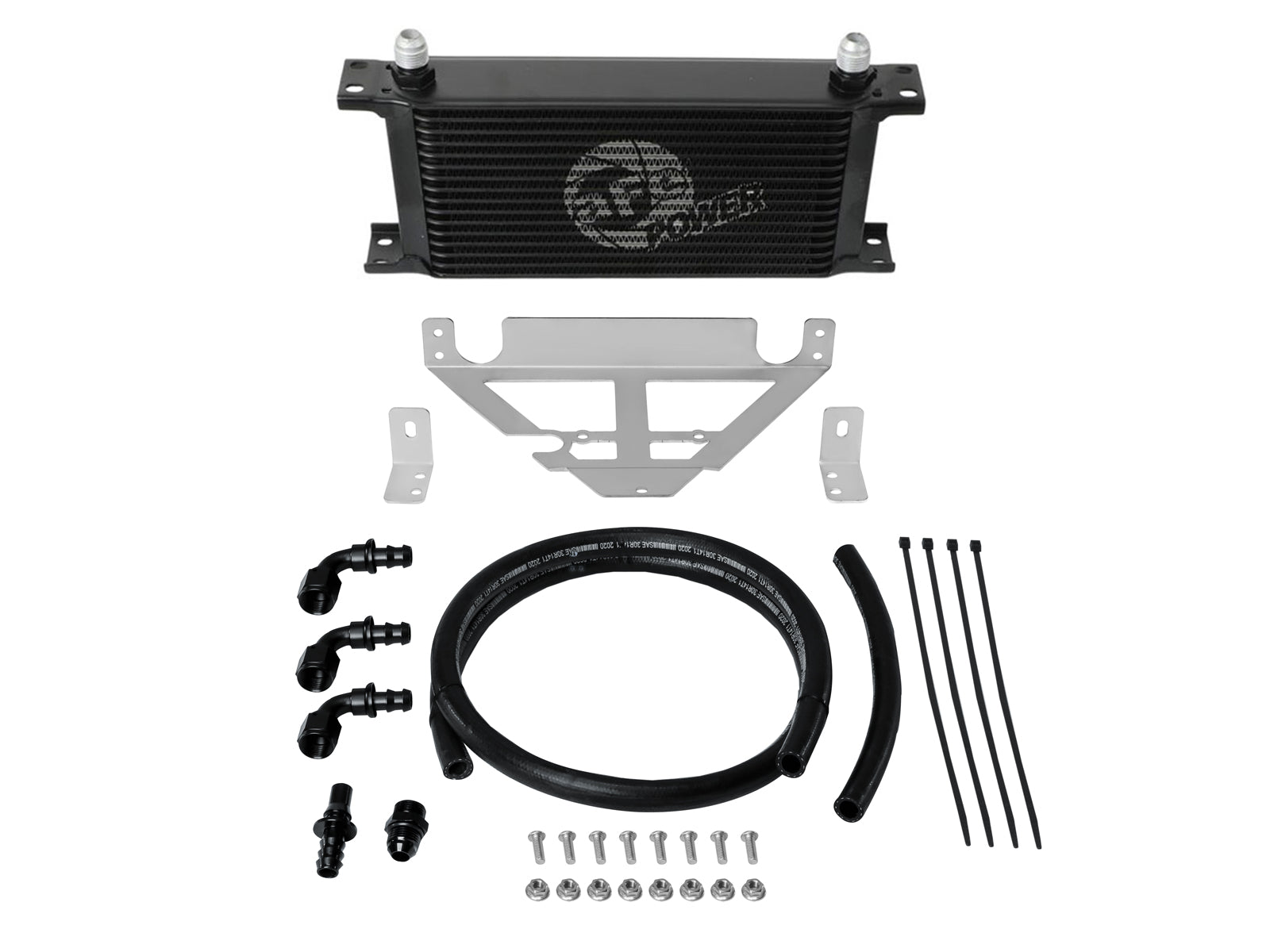

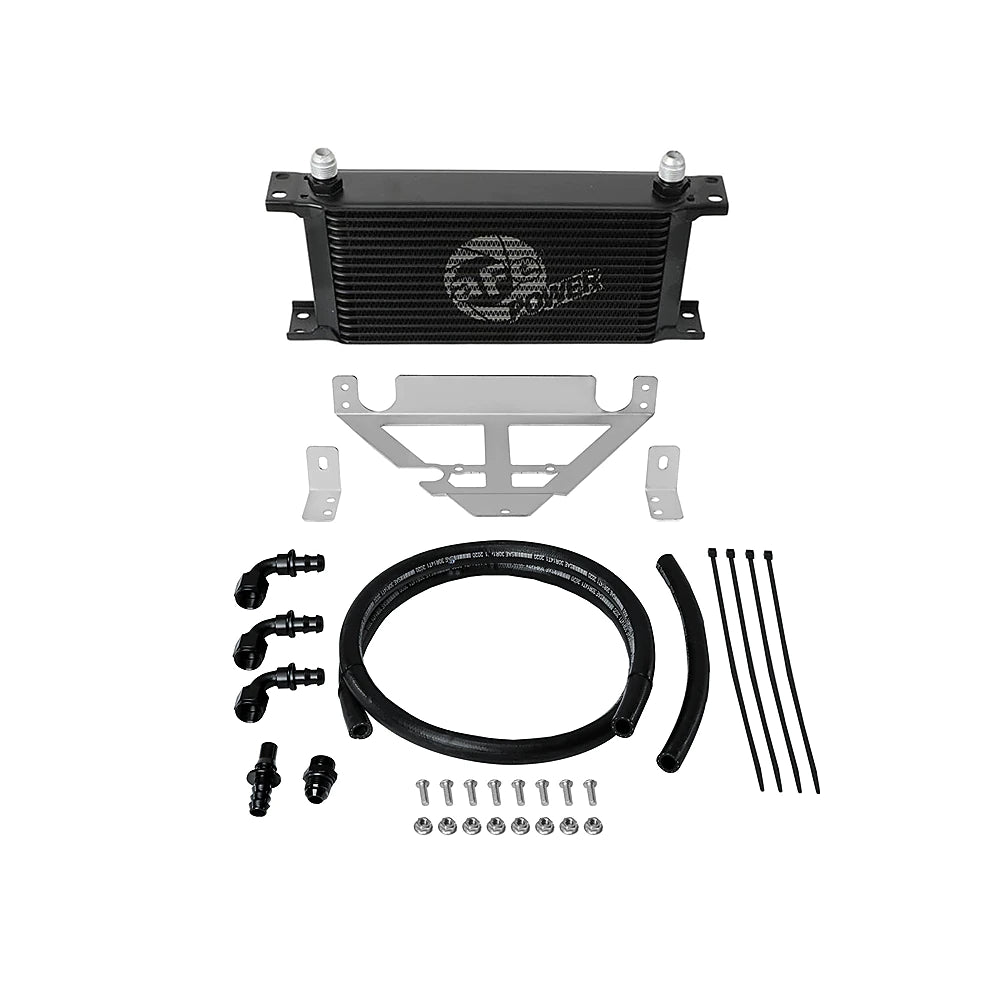

• One cooler core 05-60933; one Dodge transmission-line adapter; one 3/4-16 O-ring-to-AN-8 adapter with its sealing O-ring; three black AN-8 90-degree 1/2-inch push-on fittings; one upper and two side-specific lower brackets; one 50.5-inch and one 10-inch length of 1/2-inch Gates hose; four 12-inch cable ties; eight M6 nuts; and eight M6 x 20 button-head screws. The BOM labels hose as fuel-rated 50 psi stock, but this kit routes it as transmission-fluid hose; that marking is not a kit pressure-test limit. Factory horns and their hardware are transferred, not new supplied horns. No filter, radiator, intercooler or coolant is included.
• Assemble three brackets and cooler with eight supplied M6 screws/nuts left loose initially. The upper bracket mounts at the original horn location and the lower brackets sit at the lower core support. Restore original horn connector, route/tie the long hose and reinstall active-shutter housing so its original lower bolts also align with the new lower brackets before final tightening. Manual Step 35 calls the retained line a power-steering line, but expressly traces connection back to the transmission-line union opened in Step 20 and Figure AA: verify that actual transmission circuit, not a steering circuit.

Related Parts

Explore aFe Power cooling parts. Match the engine-oil or transmission cooler to the actual chassis, powertrain and fluid connections.

Frequently Asked Questions

Brazed all-aluminum stacked-plate supplemental automatic-transmission cooler with black finish, logo and black-anodized AN-8 fittings. The primary states reductions up to 30 degrees F, a conditional manufacturer claim rather than guaranteed vehicle performance. No exact row count is specified, so the Tundra/GM 25-row figure is not borrowed. Engine requirement: 2021-2023 Ram 1500 TRX 6.2L supercharged V8 automatic transmission.

The current exact primary listing and full forty-five-page installation manual identify Ram 1500 TRX 2021-2023 6.2L supercharged V8. Existing TRX 2021-2023 coverage is retained without extending to later production, RHO, regular 5.7L Ram or 6.7L heavy-duty trucks. Cooler/body part numbers in the assembly BOM do not establish complete-kit cross-platform fitment or a bundled sale identifier.

One cooler core 05-60933; one Dodge transmission-line adapter; one 3/4-16 O-ring-to-AN-8 adapter with its sealing O-ring; three black AN-8 90-degree 1/2-inch push-on fittings; one upper and two side-specific lower brackets; one 50.5-inch and one 10-inch length of 1/2-inch Gates hose; four 12-inch cable ties; eight M6 nuts; and eight M6 x 20 button-head screws. The BOM labels hose as fuel-rated 50 psi stock, but this kit routes it as transmission-fluid hose; that marking is not a kit pressure-test limit. Factory horns and their hardware are transferred, not new supplied horns. No filter, radiator, intercooler or coolant is included.

The 10-inch hose uses two 90-degree push-on/AN-8 fittings and connects original cooler to the passenger side of the new cooler. The 50.5-inch hose uses the third elbow plus line adapter and runs from the new cooler driver side, under the cooler and through the core support to the original transmission-line union. Install the O-ring on the straight threaded side of the supplied 3/4-16 adapter and use two wrenches to avoid damaging the original cooler during fitting removal/installation.

Capture ATF lost at the original cooler/line connections, remove the lower skid plate to clean spilled oil, then restore the skid plate with factory specifications. Follow the exact factory procedure to check/top off actual transmission fluid; no universal extra fill amount is given. Check all connections and protected routing and recheck after 50-100 miles.

The exact TRX manual specifies 23 ft-lb for both AN hose fittings at the 10-inch hose in Step 32 and for the driver-side cooler 90-degree fitting in Step 36. This is not a pan bolt, bracket, clamp or 3/4-16 O-ring-adapter torque. The latter adapter is installed carefully with two wrenches; factory mount/horn/grille/shutter hardware follows factory specifications. No generic numeric mounting value is supplied.

Remove engine cover, close-out panel, header, headlamp/fascia trim and grille; unplug/reconnect 360-camera harness where fitted. Remove active-shutter housing while retaining all its hardware, unplug horns, remove their bracket and transfer the original horns to the new upper bracket. Release the original cooler-line support and both retained line ends before removing that line; the original cooler remains part of the circuit.

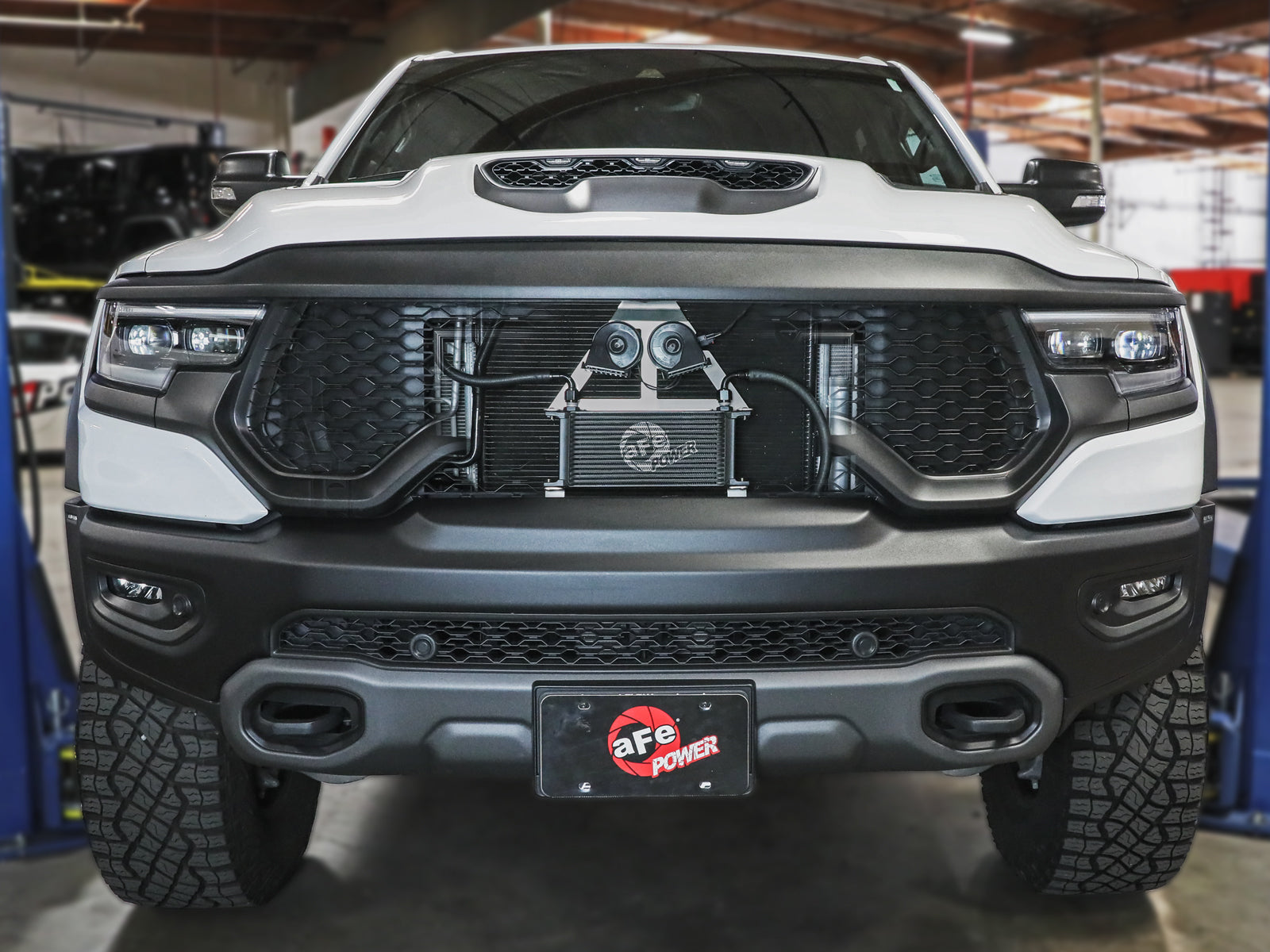

Assemble three brackets and cooler with eight supplied M6 screws/nuts left loose initially. The upper bracket mounts at the original horn location and the lower brackets sit at the lower core support. Restore original horn connector, route/tie the long hose and reinstall active-shutter housing so its original lower bolts also align with the new lower brackets before final tightening. Manual Step 35 calls the retained line a power-steering line, but expressly traces connection back to the transmission-line union opened in Step 20 and Figure AA: verify that actual transmission circuit, not a steering circuit. Cool fully, remove engine cover, close-out/header and headlamp/fascia trim, grille and active-shutter housing as the full manual directs, retaining all hardware. Disconnect camera where fitted and horns, then transfer original horns to the upper bracket. Release original transmission-line support and quick connectors, retain clips and use two wrenches carefully to remove the original cooler fitting; remove the original line and restore its support hardware. Assemble cooler/three brackets with eight supplied screws/nuts loosely and mount at original horn/lower-support positions. Build the 50.5-inch hose with one elbow and line adapter and 10-inch hose with two elbows. Seal/install the 3/4-16 adapter with its O-ring using two wrenches. Connect short hose first at original cooler then new cooler passenger side and torque its designated AN fittings to 23 ft-lb. Route long hose under cooler and through core support to original transmission-line union, retaining its clip; torque the new cooler driver-side elbow to 23 ft-lb. Reconnect horns and secure routing with ties. Restore active shutters with original bolts aligned to new lower brackets and tighten supplied hardware; restore camera, grille, fascia, header, cover and original mounts by factory specifications. Clean spilled ATF behind lower skid plate, refit it and check/top off ATF by the exact factory procedure. Recheck connections after 50-100 miles.

Installation Instructions

Read the current manufacturer listing for 46-80006 and full exact-family installation manual.

Cool fully, remove engine cover, close-out/header and headlamp/fascia trim, grille and active-shutter housing as the full manual directs, retaining all hardware. Disconnect camera where fitted and horns, then transfer original horns to the upper bracket. Release original transmission-line support and quick connectors, retain clips and use two wrenches carefully to remove the original cooler fitting; remove the original line and restore its support hardware. Assemble cooler/three brackets with eight supplied screws/nuts loosely and mount at original horn/lower-support positions. Build the 50.5-inch hose with one elbow and line adapter and 10-inch hose with two elbows. Seal/install the 3/4-16 adapter with its O-ring using two wrenches. Connect short hose first at original cooler then new cooler passenger side and torque its designated AN fittings to 23 ft-lb. Route long hose under cooler and through core support to original transmission-line union, retaining its clip; torque the new cooler driver-side elbow to 23 ft-lb. Reconnect horns and secure routing with ties. Restore active shutters with original bolts aligned to new lower brackets and tighten supplied hardware; restore camera, grille, fascia, header, cover and original mounts by factory specifications. Clean spilled ATF behind lower skid plate, refit it and check/top off ATF by the exact factory procedure. Recheck connections after 50-100 miles.

Remove engine cover, close-out panel, header, headlamp/fascia trim and grille; unplug/reconnect 360-camera harness where fitted. Remove active-shutter housing while retaining all its hardware, unplug horns, remove their bracket and transfer the original horns to the new upper bracket. Release the original cooler-line support and both retained line ends before removing that line; the original cooler remains part of the circuit.

The exact TRX manual specifies 23 ft-lb for both AN hose fittings at the 10-inch hose in Step 32 and for the driver-side cooler 90-degree fitting in Step 36. This is not a pan bolt, bracket, clamp or 3/4-16 O-ring-adapter torque. The latter adapter is installed carefully with two wrenches; factory mount/horn/grille/shutter hardware follows factory specifications. No generic numeric mounting value is supplied.

Capture ATF lost at the original cooler/line connections, remove the lower skid plate to clean spilled oil, then restore the skid plate with factory specifications. Follow the exact factory procedure to check/top off actual transmission fluid; no universal extra fill amount is given. Check all connections and protected routing and recheck after 50-100 miles.

46-80006: Assemble three brackets and cooler with eight supplied M6 screws/nuts left loose initially. The upper bracket mounts at the original horn location and the lower brackets sit at the lower core support. Restore original horn connector, route/tie the long hose and reinstall active-shutter housing so its original lower bolts also align with the new lower brackets before final tightening. Manual Step 35 calls the retained line a power-steering line, but expressly traces connection back to the transmission-line union opened in Step 20 and Figure AA: verify that actual transmission circuit, not a steering circuit.
