aFe Vulcan DPF-Back — Jeep Gladiator EcoDiesel Black Tip

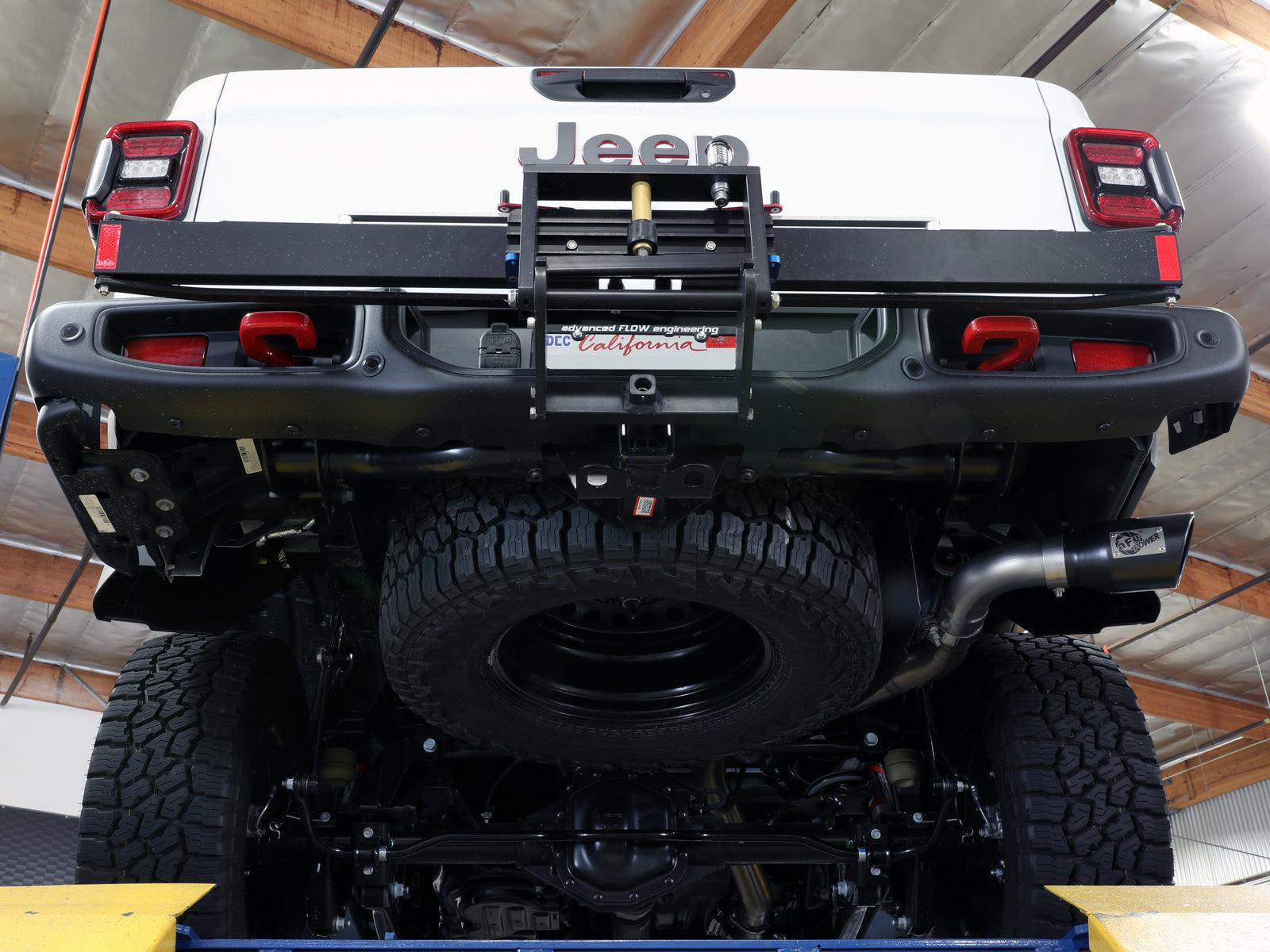

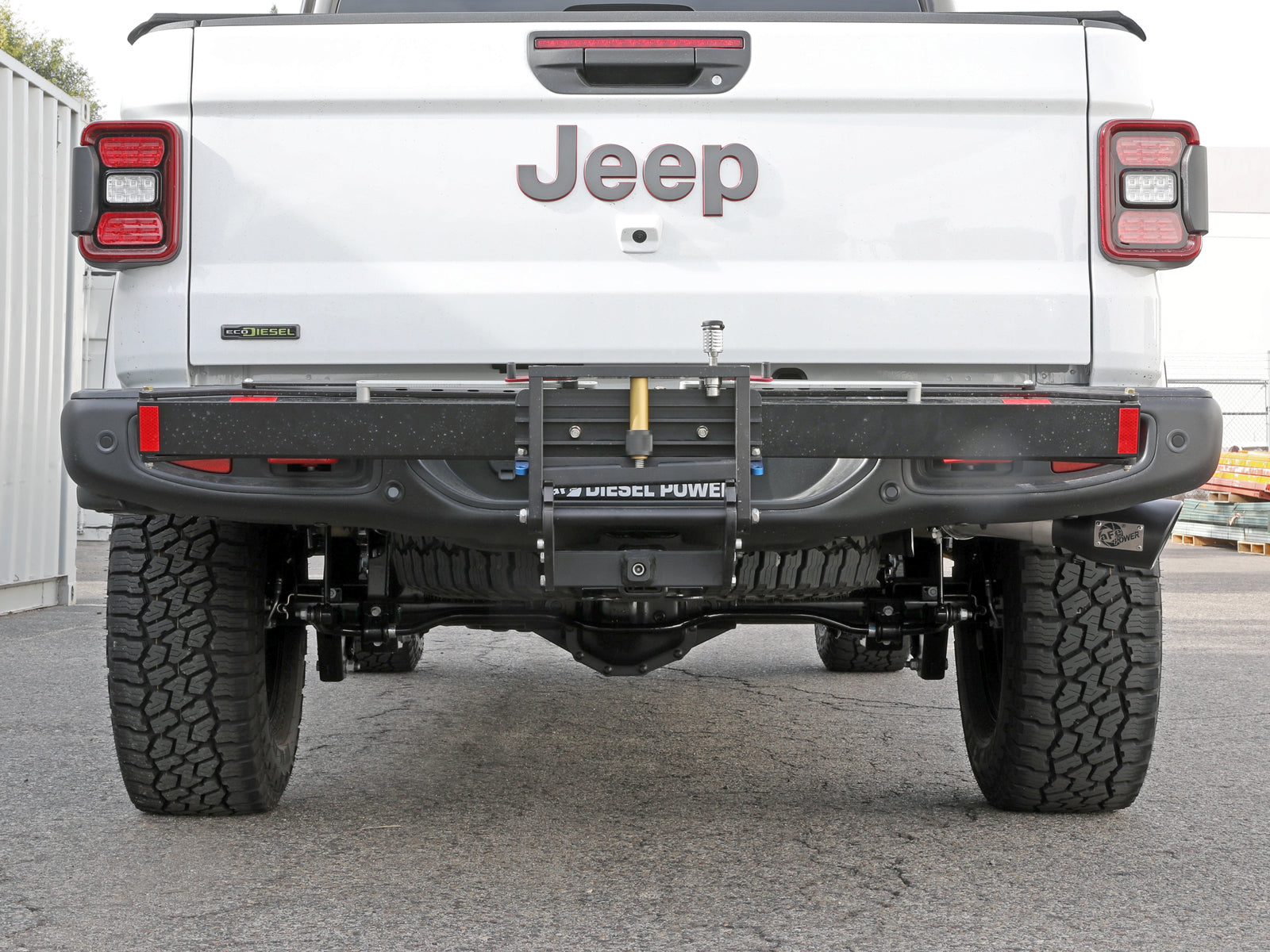

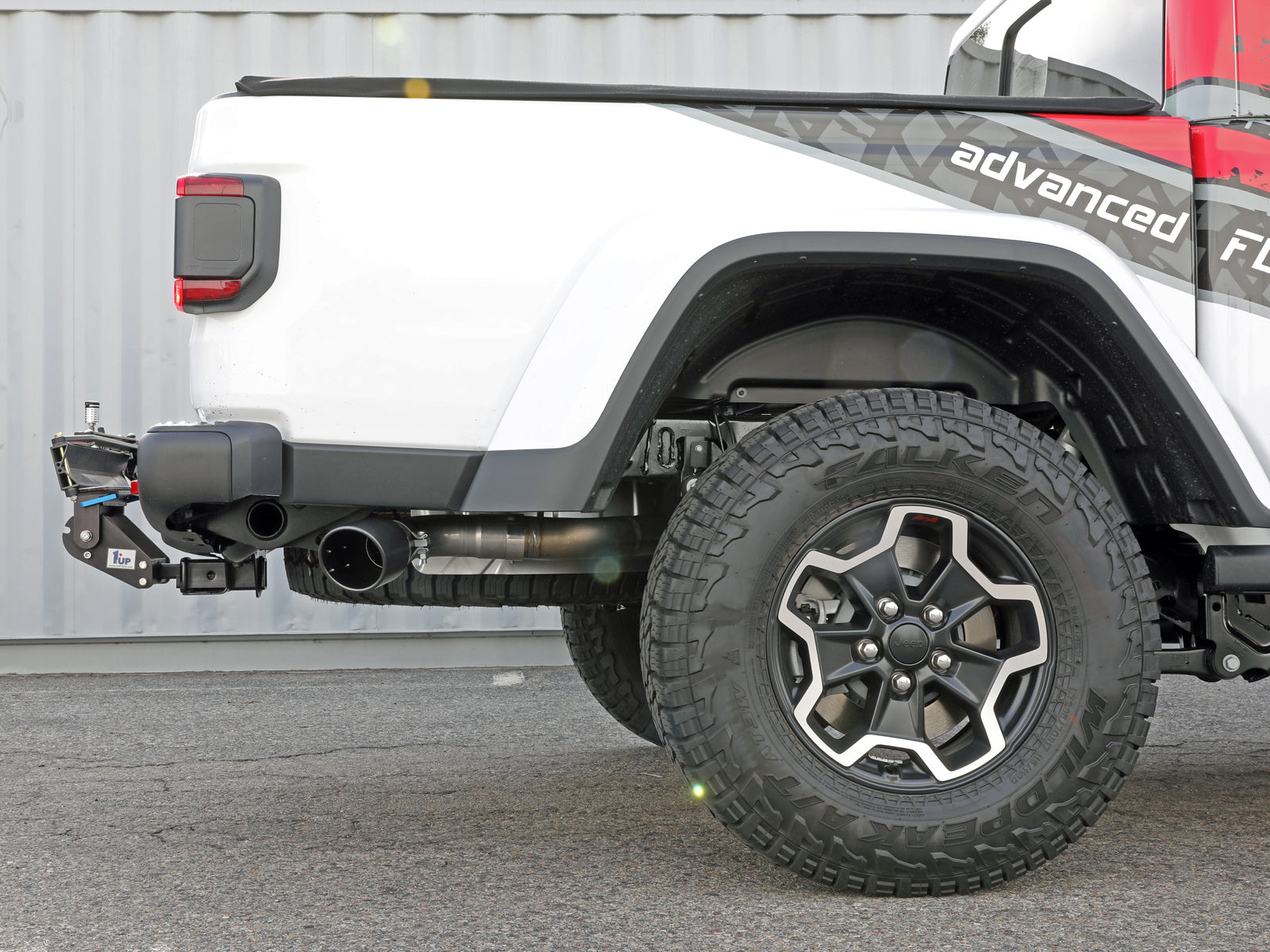

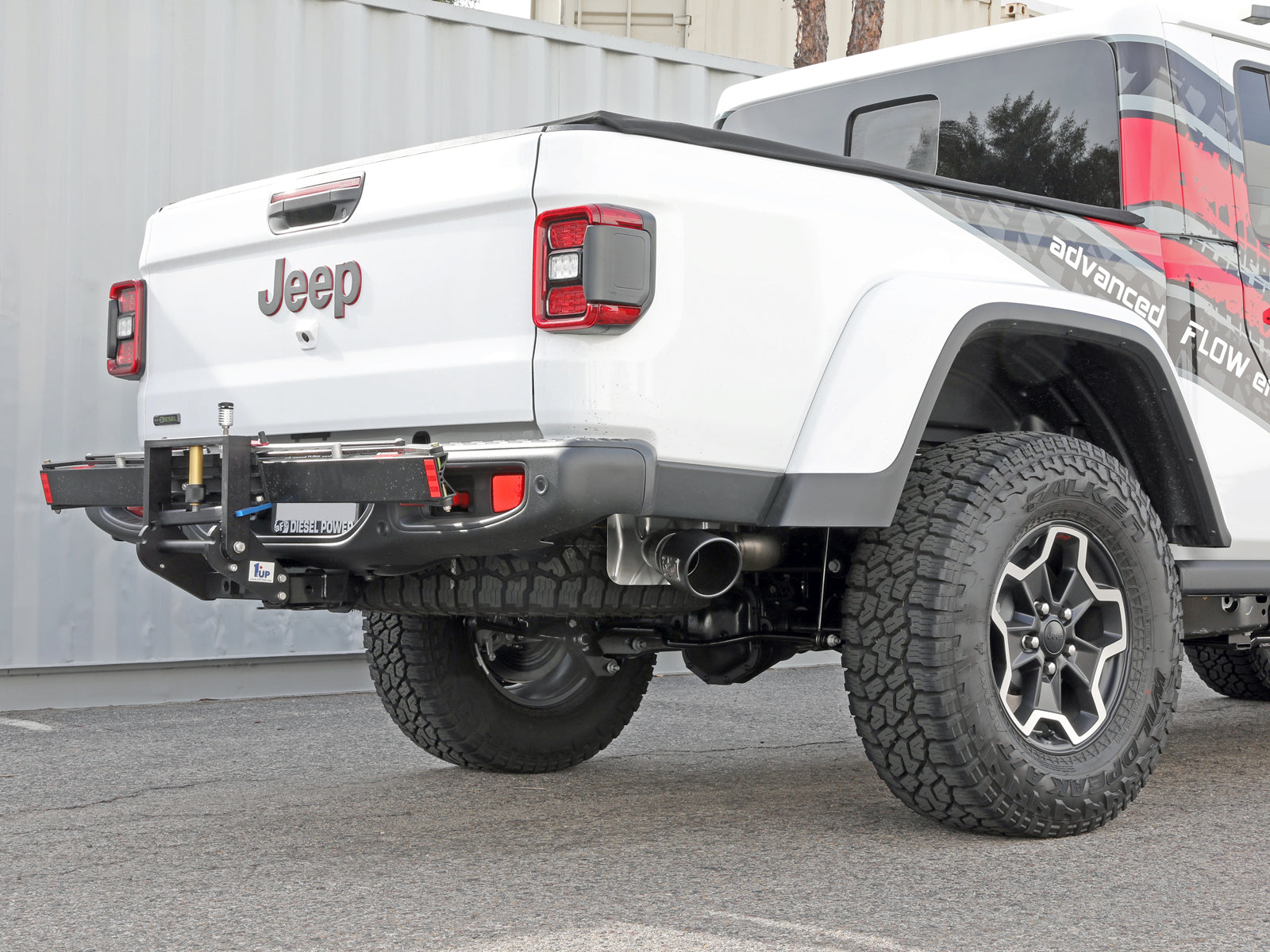

Gladiator EcoDiesel side-exit exhaust with a black 4.5-inch tip

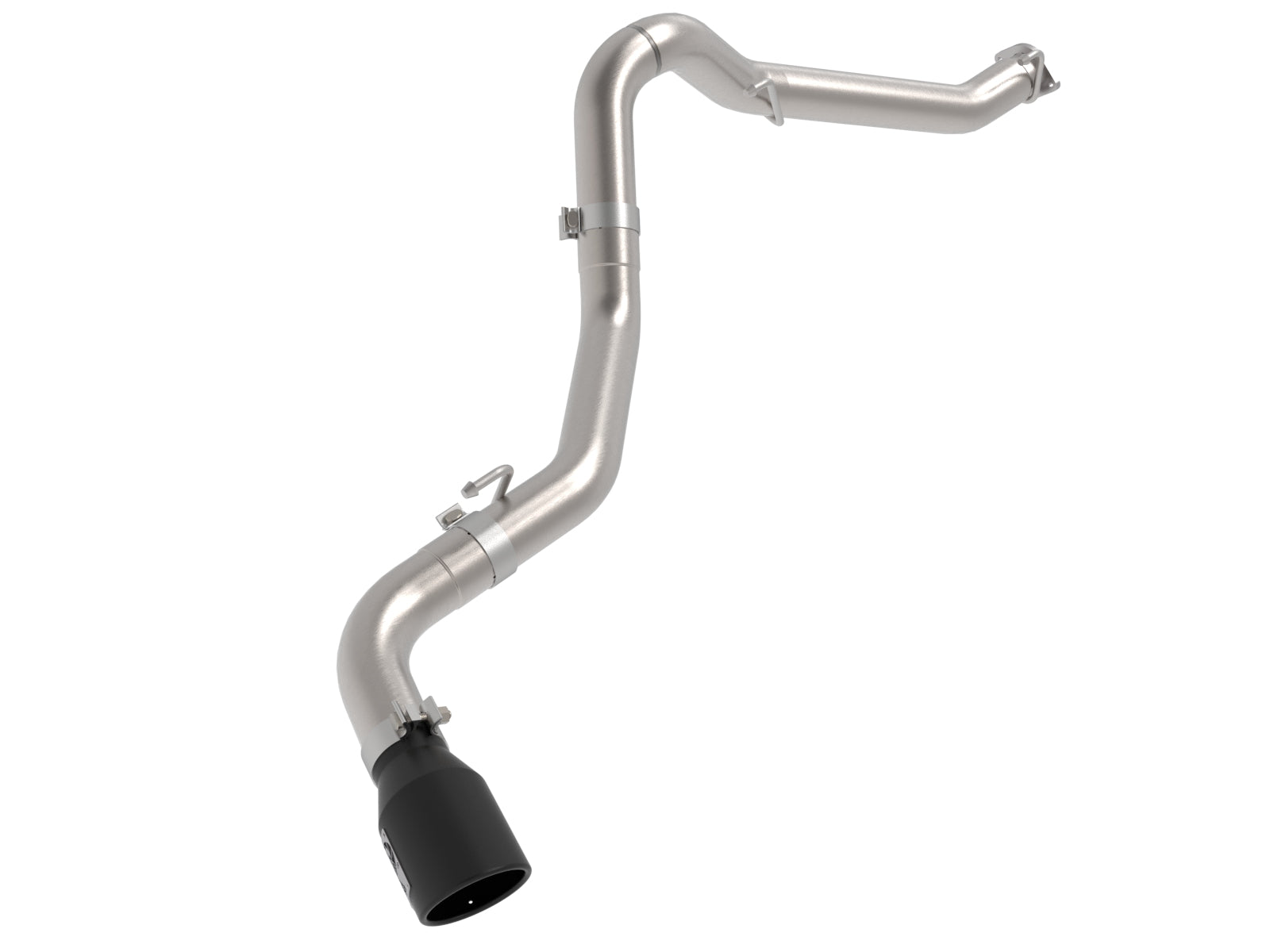

The aFe 49-38093-B The Vulcan system uses three-inch mandrel-bent 304 stainless tubing and one black 4.5-inch-outlet 304 stainless clamp-on tip with a riveted logo plate. Its factory-style flange and hangers mount behind the retained DPF. The manufacturer describes a direct bolt-on installation without cutting or modifications for the documented EcoDiesel application.

Key Features

• Selected aFe part 49-38093-B.
• Exact manufacturer application is 2021–2023 Jeep Gladiator JT with the 3.0L turbocharged EcoDiesel only.
• Three-inch 304 stainless tubing and MIG-welded construction.

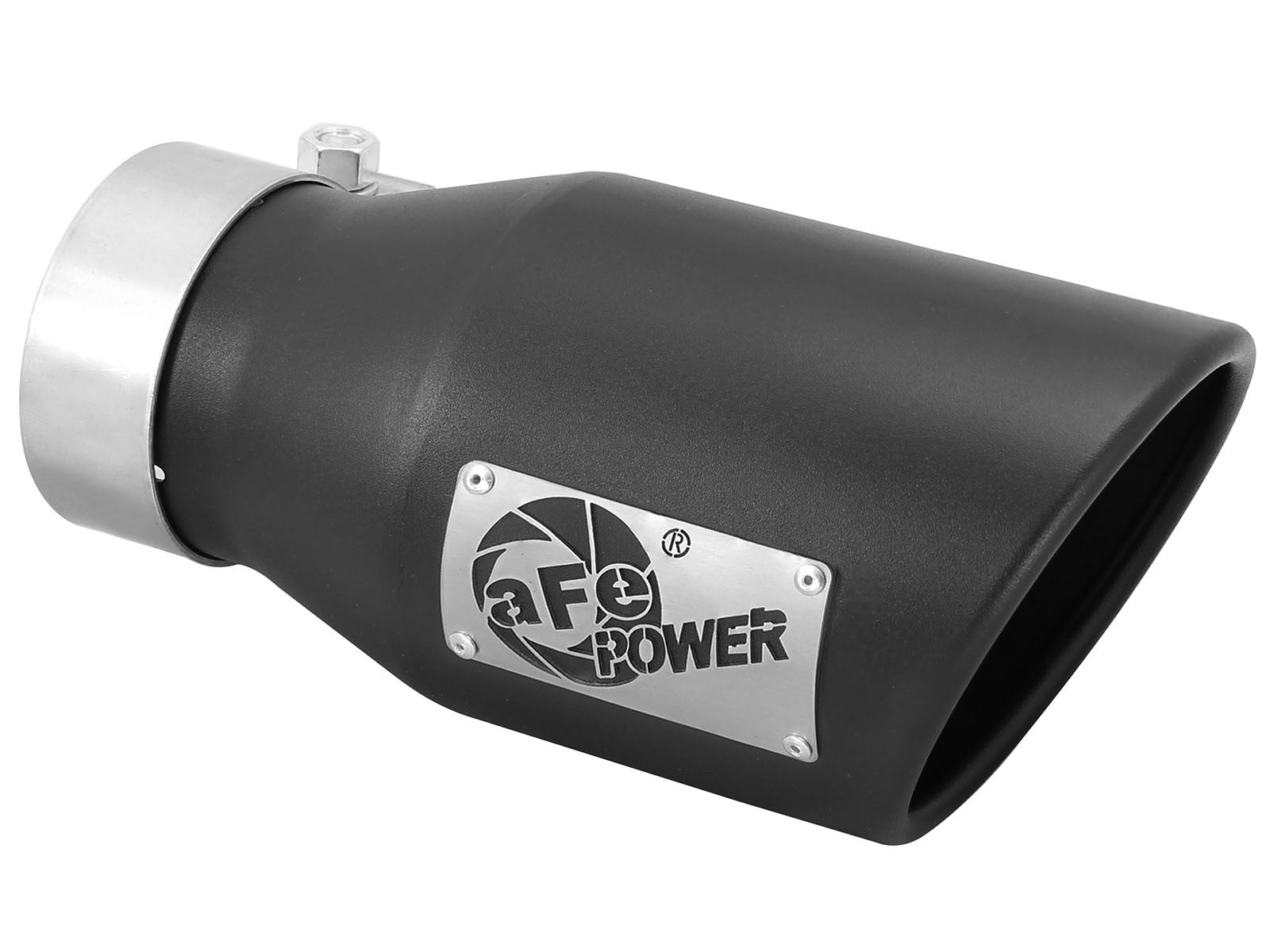

• One black 304 stainless tip: three-inch inlet, 4.5-inch outlet; selected bill identifies 49T30451-B09.
• Adjustable exit point is specifically described for Sport and Rubicon with factory rear sliders.
• Factory flange gasket and both original hanger-mount bolt pairs are reused.
• Remove the spare tire and guard for installation, then reinstall both before leak checking and completing the work.

Fitment

Only the 2021–2023 Gladiator JT 3.0L EcoDiesel is identified in the current manufacturer table and selected guide. The exact retailer independently lists the ten named scopes below. These names do not approve a gasoline configuration or later model year. The manufacturer describes an adjustable exit for Sport and Rubicon with factory rear sliders; check the actual equipment and safe exhaust clearance rather than assuming every trim has identical hardware.

Specifications

What's Included

• The 49-38093-B kit includes one over-axle assembly 05-145695, tailpipe assembly 05-245109 and tailpipe turn-out 05-245110.
• One selected black tip 49T30451-B09, with three-inch inlet and 4.5-inch outlet.
• Three three-inch band clamps 05-41055.
• Two M8 x 1.25 nuts 03-50404 and two M8 x 1.25 x 35 bolts 03-50403.
• Reuse the factory flange gasket and original hanger-mount bolts. No new gasket, DPF, muffler, sensor, intake filter or coupling is established as included.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact manufacturer EcoDiesel scope and adjustable exit information
• Selected September 2026 component bill and 16-step installation guide
• Exact selected retailer named application table
• Shop the aFe Power collection

FAQ

It is the three-inch 304 stainless Vulcan DPF-back for the listed Gladiator JT 3.0L EcoDiesel, with one black 4.5-inch side-exit tip behind the retained particulate filter.

The exact manufacturer table and selected guide identify only the 2021–2023 3.0L EcoDiesel. A gasoline truck is not approved by this listing.

The manufacturer specifically describes adjustment for Sport and Rubicon with factory rear sliders. Position the turn-out and tip with safe clearance from the actual body and equipment.

Yes. The selected procedure removes the spare tire and tire guard to create installation clearance. Step 13 explicitly reinstalls both before leak checking and completion.

No new gasket is listed. Remove the original gasket with the factory exhaust and reuse it when fitting the new over-axle flange with the supplied hardware. Verify its condition before proceeding.

Support the exhaust, undo the two flange nuts and both two-bolt hanger mounts, and remove the original flange gasket. The guide calls for lifting the rear to remove the original exhaust in one piece by sliding it toward the front. Use the vehicle’s approved support locations.

Slide the original over-axle hanger mount over the new hanger and secure its two original bolts. Repeat for the rear hanger mount after fitting the tailpipe. Then fit the turn-out and selected tip with the supplied bands.

Use 40–45 ft-lb for band clamps only; flange and hanger bolt torque values are not printed. Align the system and tighten front to rear, reinstall spare and guard, check and repair leaks, then re-tighten all clamps and hardware after 50–100 miles.

Installation Instructions

1. Confirm aFe 49-38093-B against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Inspect all parts, allow the exhaust to cool and wear protective equipment. Professional installation is recommended. Support the vehicle at its specified stand locations, separately support the original exhaust and lay out the new components. Leave bands adjustable until fully assembled.
3. Remove the spare tire and tire guard. Undo the two flange nuts, two over-axle hanger-mount bolts and two rear hanger-mount bolts. Retain the factory gasket. The guide directs lifting the rear to remove the original exhaust in one piece, sliding it toward the front.
4. Fit the new over-axle assembly at the flange with the provided hardware and retained factory gasket. Slide the original over-axle hanger mount over its hanger and secure it with the two original bolts.
5. Install the tailpipe with a supplied three-inch band. Slide the original rear hanger mount over its hanger and restore its two original bolts. Install the turn-out with another three-inch band and the selected black tip with the final three-inch band.
6. Align safe clearance from all wires, hoses, brake lines, body and tires. Starting at the front, evenly tighten clamps and fasteners. Use the printed 40–45 ft-lb specification for band clamps, without applying it as an invented flange or hanger bolt torque.
7. Reinstall the spare tire and tire guard. Start the vehicle, locate and repair any leak, and complete the work before removing supports. Re-tighten all clamps and hardware after 50–100 miles.
