Ranger Raptor Vulcan valved exhaust details

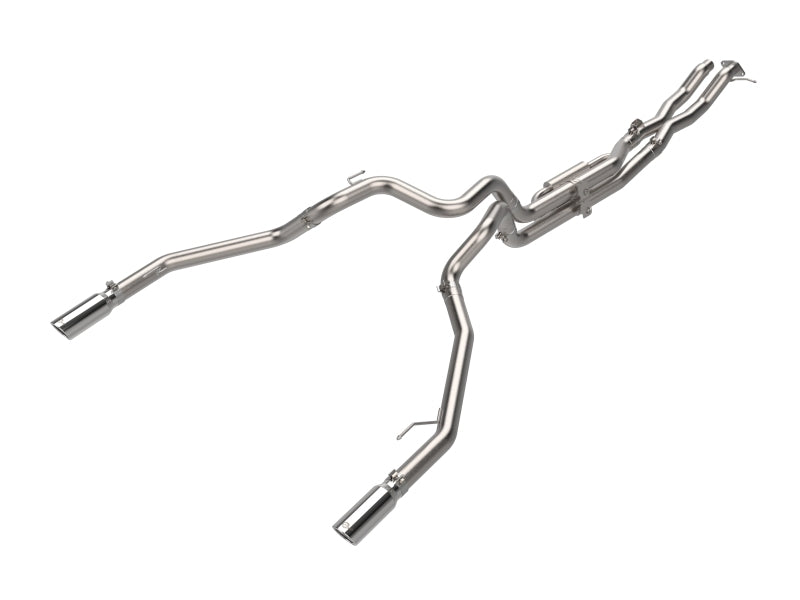

aFe 49-33152-P Vulcan uses 3-inch mandrel-bent 304 stainless tubing, an X-pipe and top/bottom expansion-chamber sections with factory-style exhaust valves. Transfer BOTH original valve motors and reconnect their wiring; two selected polished 4-inch outlets finish the system.
Key Features
- 3-inch mandrel-bent 304 stainless tubing.

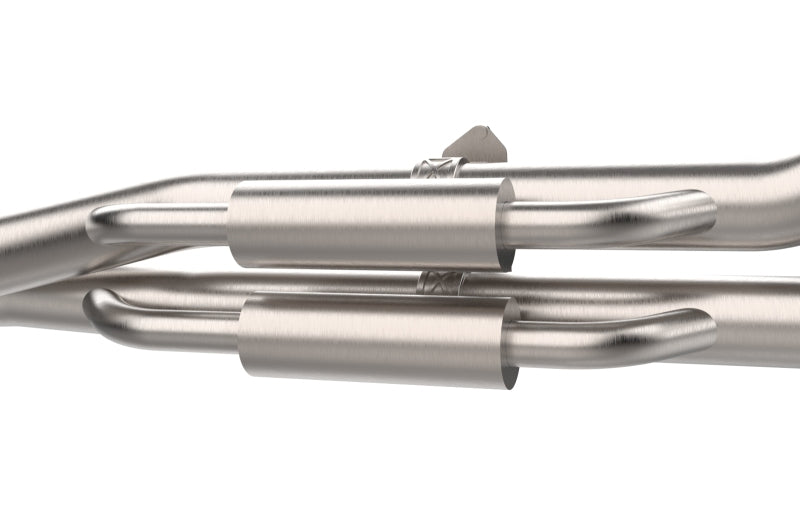

- X-pipe plus top and bottom acoustically tuned expansion chambers.
- Factory-style exhaust valves reuse original motors.
- TWO selected polished tips: each 3-inch inlet x 4-inch outlet x 12-inch length.
- Factory sleeve clamp, flange hardware and rubber hanger mounts reused.
- 100% MIG-welded construction.
- Seven sections, six 3-inch band clamps and one M8 x 1.25 nut.
Fitment
2024-2026 Ford Ranger RAPTOR with 3.0L twin-turbo V6, per current exact primary, manufacturer bulletin/blog application and September 2026 manual. This is Raptor-specific, not all Ranger engines or trims. Match original sleeve/flange connection, hanger mounts and factory exhaust-valve motors.
| Years | Make | Model | Named trim; actual Ranger Raptor 3.0L twin-turbo requirements apply |
|---|---|---|---|
| 2024-2026 | Ford | Ranger | Raptor |
Verify 49-33152-P against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-33152-P |
| System | Vulcan cat-back; Ranger RAPTOR 3.0L twin-turbo ONLY |
| Tube / welding | 3-inch mandrel-bent 304 stainless; MIG-welded |
| Sound-control sections | X-pipe and TOP/BOTTOM expansion chambers |
| Selected tips | TWO polished tips; each 3-inch inlet x 4-inch outlet x 12-inch length. Selected polished P121 finish and dimensions are identified by exact polished assembly page and its linked matching service-tip label. The shared manual bill prints B121 black tips only despite covering both finishes; that black-only line does not change the selected polished finish. |
| Valves / motors | Factory-style valves; BOTH original motors and hardware transferred |
| Supplied clamps / nut | SIX 3-inch bands; ONE M8 x 1.25 nut |
| Band-clamp torque | 40-45 ft-lb; no separate sleeve/flange/motor/M8/tip numeric torque |
| Recheck | Re-tighten clamps and hardware after 50-100 miles |
| Evidence / emissions | Advertised up to 8 HP/9 lb-ft; no actual dyno/flow chart or run conditions linked; current manufacturer says no CARB EO required |
What's Included
- 1 x 05-245614: X-pipe assembly.
- 1 x 05-245615: TOP expansion-chamber assembly.
- 1 x 05-245616: BOTTOM expansion-chamber assembly.
- 1 x 05-245617: Driver-side over-axle.
- 1 x 05-245618: Passenger-side over-axle.
- 1 x 05-245619: Driver-side tailpipe.
- 1 x 05-245620: Passenger-side tailpipe.
- 2 x 49T30404-P121: Selected polished tip, each 3-inch inlet x 4-inch outlet x 12-inch length; shared bill black-only qualification applies.
- 6 x 05-41055: 3-inch band clamp.
- 1 x 03-50403: M8 x 1.25 nut.

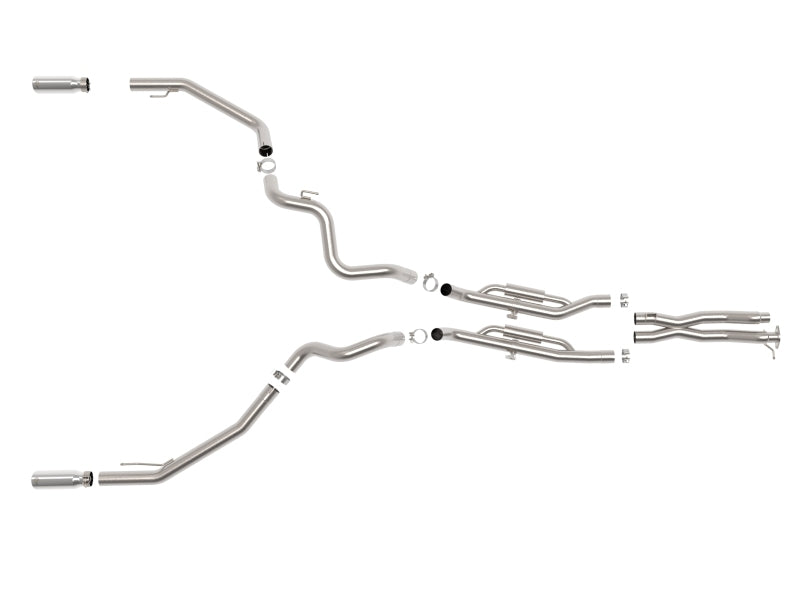

SEVEN exhaust sections: X-pipe 05-245614, top expansion chamber 05-245615, bottom expansion chamber 05-245616, driver over-axle 05-245617, passenger over-axle 05-245618, driver tailpipe 05-245619 and passenger tailpipe 05-245620. TWO selected polished tips 49T30404-P121, each 3-inch inlet x 4-inch outlet x 12-inch length, SIX 3-inch band clamps 05-41055 and ONE M8 x 1.25 nut 03-50403. Retain original valve motors/bolts, sleeve clamp, flange hardware and rubber mounts. No new valve motors, controller, remote, harness, intake filter/coupler or gasket package is itemized. Selected polished P121 finish and dimensions are identified by exact polished assembly page and its linked matching service-tip label. The shared manual bill prints B121 black tips only despite covering both finishes; that black-only line does not change the selected polished finish.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer product specifications for 49-33152-P
- Exact illustrated installation manual
- Shop the complete aFe Power collection
FAQ
What is the 49-33152-P?SEVEN exhaust sections: X-pipe 05-245614, top expansion chamber 05-245615, bottom expansion chamber 05-245616, driver over-axle 05-245617, passenger over-axle 05-245618, driver tailpipe 05-245619 and passenger tailpipe 05-245620. TWO selected polished tips 49T30404-P121, each 3-inch inlet x 4-inch outlet x 12-inch length, SIX 3-inch band clamps 05-41055 and ONE M8 x 1.25 nut 03-50403. Retain original valve motors/bolts, sleeve clamp, flange hardware and rubber mounts. No new valve motors, controller, remote, harness, intake filter/coupler or gasket package is itemized. Selected polished P121 finish and dimensions are identified by exact polished assembly page and its linked matching service-tip label. The shared manual bill prints B121 black tips only despite covering both finishes; that black-only line does not change the selected polished finish.
Does it fit every Ranger?2024-2026 Ford Ranger RAPTOR with 3.0L twin-turbo V6, per current exact primary, manufacturer bulletin/blog application and September 2026 manual. This is Raptor-specific, not all Ranger engines or trims. Match original sleeve/flange connection, hanger mounts and factory exhaust-valve motors.
Are new exhaust-valve motors supplied?No. Transfer BOTH original motors with factory hardware to the top/bottom expansion-chamber valves. PUSH and turn CLOCKWISE until bolt mounts align, then secure with original bolts. Reconnect BOTH electrical connectors. No new motors, remote, controller or harness is itemized.
What original mounts and clamps are reused?Note each hanger mount location/orientation during removal, retain mounts and bolts and reinstall ALL rubber mounts. Reuse factory sleeve clamp and flange hardware at the X-pipe. Its rubber isolator uses factory hardware plus the ONE supplied M8 x 1.25 nut.
Which tips are selected, and what is qualified?Selected polished P121 finish and dimensions are identified by exact polished assembly page and its linked matching service-tip label. The shared manual bill prints B121 black tips only despite covering both finishes; that black-only line does not change the selected polished finish. Selected finish is polished, two tips with 3-inch inlet x 4-inch outlet x 12-inch length each.
What are the assembly sequence and clamp quantities?Fit X-pipe first with original sleeve/flange hardware, then TOP/BOTTOM expansion chambers, reconnect valves, fit driver/passenger over-axle tubes, then tailpipe/tip assemblies. SIX supplied 3-inch band clamps secure the new section joints.
What torque, cutting and recheck apply?Align and tighten FRONT to REAR. Band clamps require 40-45 ft-lb. No separate sleeve/flange, motor, M8 nut or tip torque is supplied. Recheck clamps/hardware after 50-100 miles. Current primary specifies no cutting/modifications; no battery, coding, sensor or welding procedure is directed.
Are 8 HP/9 lb-ft or drone-free gains verified by a chart?Those are manufacturer-advertised gains; no actual dyno/flow chart or test conditions are linked for independent confirmation. No drone-free measurement is supplied. Current manufacturer says no CARB EO required; fit remains Ranger Raptor-specific.
Installation Instructions
Verify aFe 49-33152-P.
- Read BOTH exact September 2026 manual pages and confirm Ranger RAPTOR 3.0L twin-turbo. Cool exhaust, inspect parts, wear eye/hand protection and safely support vehicle at owner-manual jack-stand positions. Support original exhaust separately; leave new joints loose for alignment.
- Loosen original tailpipe clamps and unbolt rubber hanger mounts for easier removal. NOTE EACH MOUNT LOCATION AND ORIENTATION, retain mounts/bolts and remove original tailpipes. Unplug BOTH valve electrical connectors, loosen slip/band clamps and unbolt original muffler hanger mounts to remove factory muffler assembly.
- Transfer ORIGINAL VALVE MOTORS to the new TOP and BOTTOM expansion-chamber valve assemblies using original hardware. PUSH AND TURN CLOCKWISE until motor bolt mounts align, then install original bolts. The valve should remain in place when correctly seated. No new motors or wiring harness are included.
- Reinstall ALL rubber hanger mounts on the new exhaust. Install X-pipe assembly 05-245614 using ORIGINAL SLEEVE CLAMP and original flange hardware. Bolt its rubber isolator using factory hardware and supplied ONE M8 x 1.25 nut 03-50403.
- Install top expansion chamber 05-245615 and bottom 05-245616 with supplied 3-inch band clamps. RECONNECT BOTH valve electrical connectors and install rubber isolators. Install driver/passenger over-axle tubes 05-245617/05-245618 into their chambers with supplied clamps; engage isolators and leave loose for adjustment.
- Install driver/passenger tailpipes 05-245619/05-245620 and selected tips using the remaining provided clamps. SIX 3-inch band clamps are supplied in total. Adjust complete system and verify safe clearance to wires, hoses, brake lines, body and tires.
- Tighten evenly FRONT to REAR. BAND CLAMPS require 40-45 FT-LB; no separate factory sleeve/flange, motor-bolt, M8 nut or tip-fastener numeric torque is supplied. Start engine, check/repair leaks and lower vehicle. Re-tighten clamps/hardware after 50-100 miles. Current primary specifies no cutting/modifications; no battery, coding, sensor or welding procedure is directed.
Current exact manufacturer states no CARB EO number required for this cat-back. Up to 8 HP/9 lb-ft are manufacturer claims; no actual dyno/flow chart or run conditions are linked for independent confirmation, and no drone-free result is certified here. Original valve motors are required and not included. Selected polished P121 finish and dimensions are identified by exact polished assembly page and its linked matching service-tip label. The shared manual bill prints B121 black tips only despite covering both finishes; that black-only line does not change the selected polished finish.
