Ford Ranger Apollo GT muffler-delete axle-back

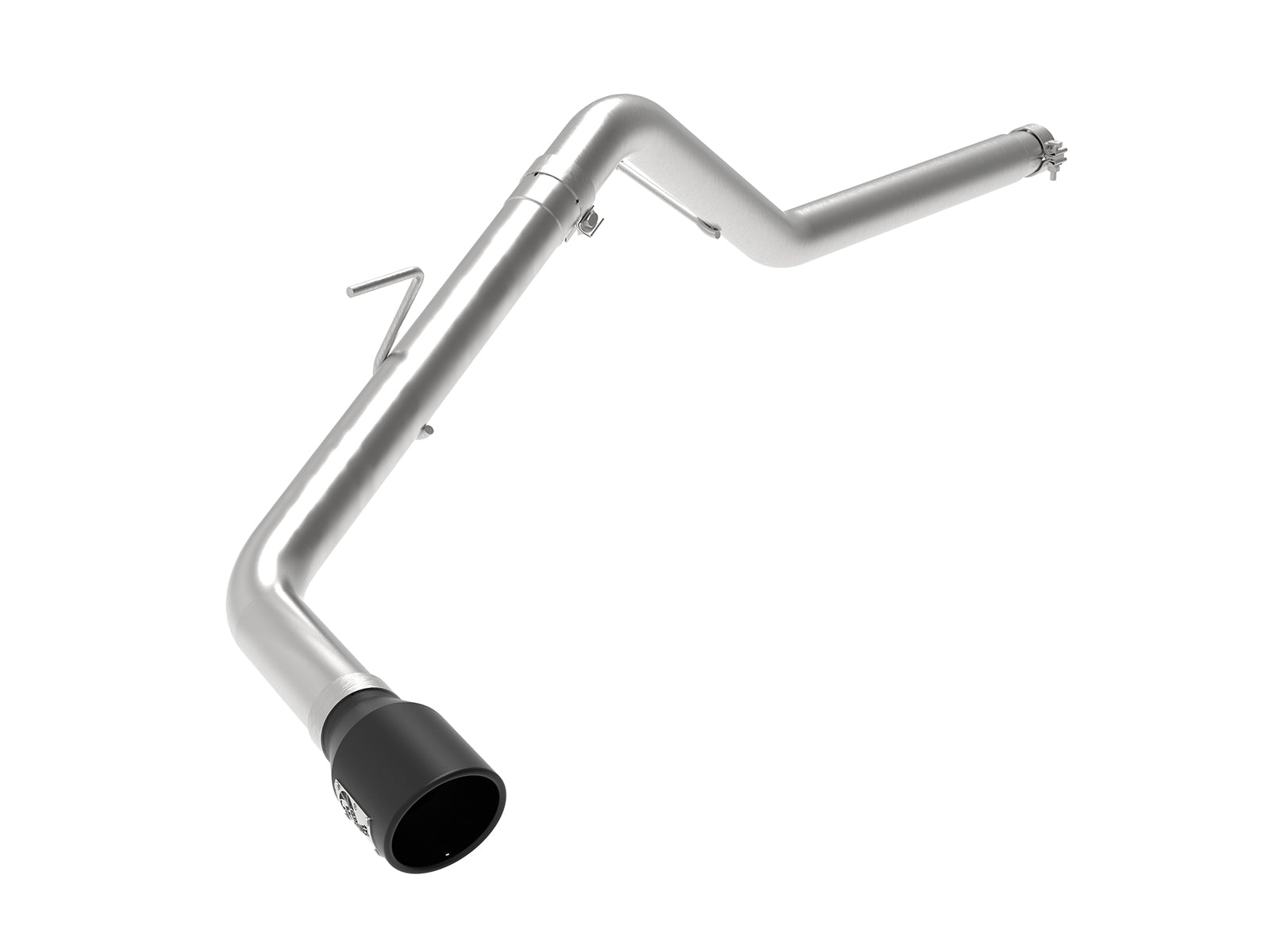

The aFe 49-43114-B is a 3-inch mandrel-bent 409 stainless, MIG-welded muffler-delete axle-back with one black 4.5-inch-outlet stainless tip and passenger-side exit. It replaces the factory rear muffler assembly; no new muffler is included. Selected coverage is 2019-2023 Ranger gas 2.3L EcoBoost. SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred.
Key Features
- Selected aFe part 49-43114-B.
- 3-inch mandrel-bent 409 stainless tubing with MIG-welded construction.
- Factory rear muffler deleted; no replacement muffler included.

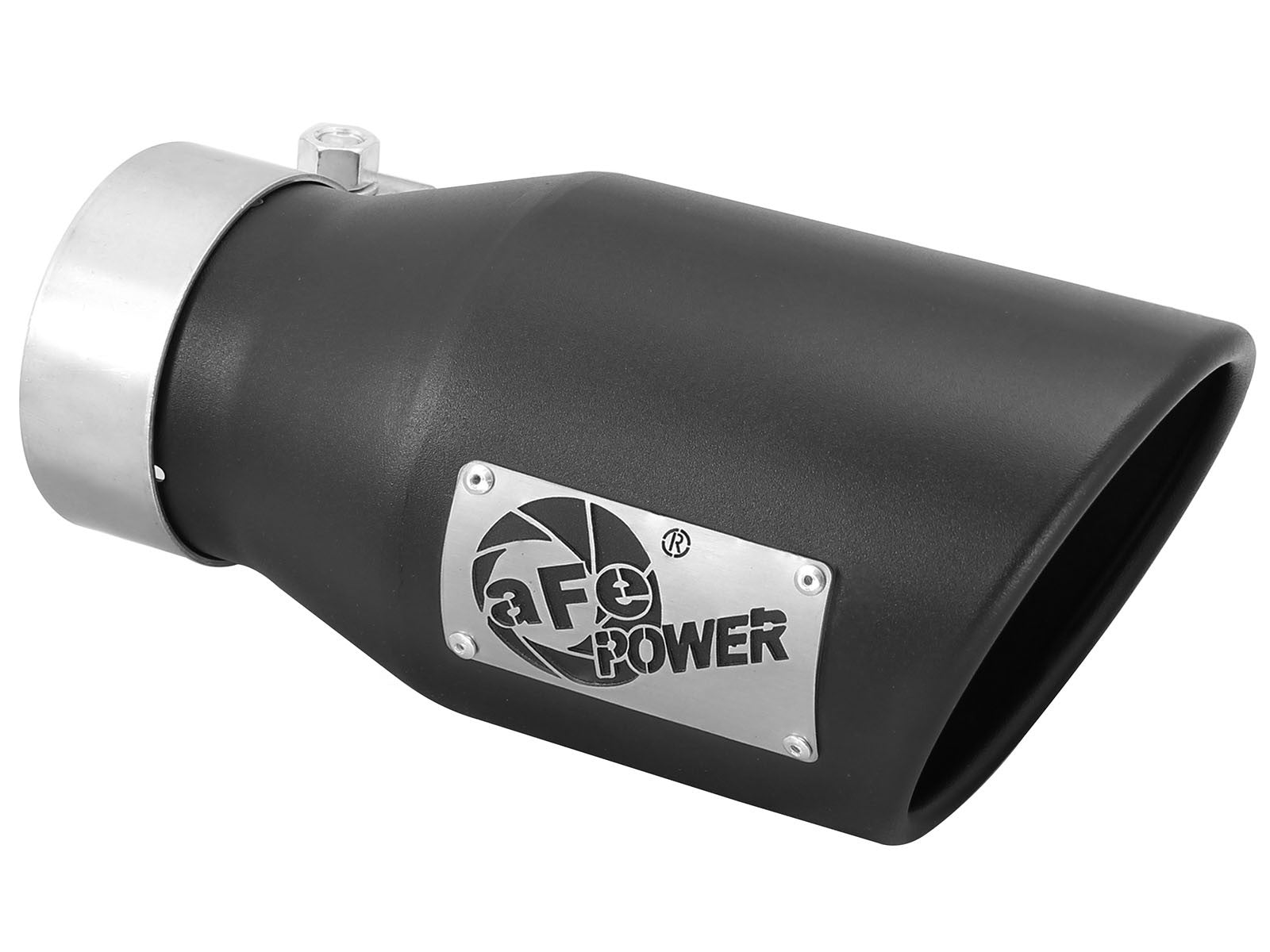

- One 4.5-inch black stainless outlet tip; grade/dimension wording qualified below.
- Factory mounting locations with the selected guide's hardware and cab-specific requirements.
Fitment
2019-2023 Ranger gas 2.3L EcoBoost. SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred. The full exact-part named table supplies the actual named rows below. No Raptor-R, diesel, later-generation or other-engine fit is inferred.
| Years | Make | Model | Submodel | Cab/bed and equipment limits |
|---|---|---|---|---|
| 2019-2023 | Ford | Ranger | Lariat | SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred. |
| 2019-2023 | Ford | Ranger | XL | SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred. |
| 2019-2023 | Ford | Ranger | XLT | SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 49-43114-B |
| Product type | Axle Back |
| Construction | 3-inch mandrel-bent 409 stainless, MIG welded. |
| Selected bill | one over-axle assembly 05-144709, one tailpipe assembly 05-144710, one 2.5-inch band 05-41061, one 3-inch band 05-41055 and one selected black tip 49T30451-B09. The polished alternative is not an additional tip; no muffler is included. |
| Cab and equipment scope | SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred. |
| Guide clarification | The current primary describes a 4.5-inch-diameter stainless outlet tip, while the bill and step 8 label the selected tip 3-inch and the bill calls it 409SS. Do not silently treat those dimensions as the same measurement or promise 304 alloy from a part-number prefix. Confirm actual inlet/outlet and replacement-tip specification with aFe if required; the listing retains the primary 4.5-inch outlet description and general stainless tip material. |
| Configuration-dependent installation | No extension or cutting procedure is specified. Remove the factory muffler at its front clamped joint; install the over-axle assembly using the 2.5-inch band and original isolation mount, then tailpipe/tip using the 3-inch band and original mount. |
| Tightening and recheck | The guide specifies band-clamp torque of 40-45 ft-lb only; no separate tip-fastener setting is printed. Align all sections with safe clearance from wires, hoses, brake lines, body parts and tires; no fixed dimension is printed. Tighten front to rear, check for leaks, lower the vehicle and retighten all clamps and hardware after 50-100 miles. |
| Sound and performance | The primary describes an aggressive sound and muffler-delete configuration but provides no selected measured power or flow chart. No guaranteed gain or drone-free result is established. |
| Emissions statement | The manufacturer says no CARB EO is required for this product. This does not approve unrelated exhaust modifications. |
What's Included
- The 49-43114-B kit includes one over-axle assembly 05-144709, one tailpipe assembly 05-144710, one 2.5-inch band 05-41061, one 3-inch band 05-41055 and one selected black tip 49T30451-B09. The polished alternative is not an additional tip; no muffler is included.
- The current primary describes a 4.5-inch-diameter stainless outlet tip, while the bill and step 8 label the selected tip 3-inch and the bill calls it 409SS. Do not silently treat those dimensions as the same measurement or promise 304 alloy from a part-number prefix. Confirm actual inlet/outlet and replacement-tip specification with aFe if required; the listing retains the primary 4.5-inch outlet description and general stainless tip material.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Exact selected manufacturer application and construction
- Complete selected guide, bill and cab-dependent procedure
- Full exact-part named fitment table
- Compare axle-back systems
FAQ
What is the 49-43114-B?It is a 3-inch mandrel-bent 409 stainless, MIG-welded muffler-delete axle-back with one black 4.5-inch-outlet stainless tip and passenger-side exit. It replaces the factory rear muffler assembly; no new muffler is included. Match 2019-2023 Ranger gas 2.3L EcoBoost.
Which cab, bed and wheelbase restrictions apply?SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred.
What parts are included with the selected finish?one over-axle assembly 05-144709, one tailpipe assembly 05-144710, one 2.5-inch band 05-41061, one 3-inch band 05-41055 and one selected black tip 49T30451-B09. The polished alternative is not an additional tip; no muffler is included.
Which hardware or specification detail needs confirmation?The current primary describes a 4.5-inch-diameter stainless outlet tip, while the bill and step 8 label the selected tip 3-inch and the bill calls it 409SS. Do not silently treat those dimensions as the same measurement or promise 304 alloy from a part-number prefix. Confirm actual inlet/outlet and replacement-tip specification with aFe if required; the listing retains the primary 4.5-inch outlet description and general stainless tip material.
How do extensions and original mounts apply?No extension or cutting procedure is specified. Remove the factory muffler at its front clamped joint; install the over-axle assembly using the 2.5-inch band and original isolation mount, then tailpipe/tip using the 3-inch band and original mount.
What tightening and follow-up checks apply?The guide specifies band-clamp torque of 40-45 ft-lb only; no separate tip-fastener setting is printed. Align all sections with safe clearance from wires, hoses, brake lines, body parts and tires; no fixed dimension is printed. Tighten front to rear, check for leaks, lower the vehicle and retighten all clamps and hardware after 50-100 miles.
Is cutting required?The selected primary states no cutting is required.
Are gains or drone-free operation guaranteed?The primary describes an aggressive sound and muffler-delete configuration but provides no selected measured power or flow chart. No guaranteed gain or drone-free result is established.
Installation Instructions
- Confirm aFe 49-43114-B against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
- Match the exact selected vehicle, engine, actual cab/bed and wheelbase. SuperCrew, 5-foot/61-inch bed and 126.8-inch wheelbase ONLY. No SuperCab, later generation, Raptor or other engine approval is inferred. Read the complete selected instructions, inspect actual packing and resolve the hardware/specification gaps before disassembly. Allow the system to cool; support the vehicle safely and independently support the exhaust. Leave joints loose until all components are installed.
- Remove the original muffler at its front clamped joint. Retain original rubber isolation mounts. Install the selected over-axle assembly with the supplied 2.5-inch band and original mount, then the selected tailpipe and black tip using the 3-inch band and original mount. Adjust tip position.
- The guide specifies band-clamp torque of 40-45 ft-lb only; no separate tip-fastener setting is printed. Align all sections with safe clearance from wires, hoses, brake lines, body parts and tires; no fixed dimension is printed. Tighten front to rear, check for leaks, lower the vehicle and retighten all clamps and hardware after 50-100 miles. No battery, sensor, ground-strap, crossmember or related-system procedure is borrowed. The current primary describes a 4.5-inch-diameter stainless outlet tip, while the bill and step 8 label the selected tip 3-inch and the bill calls it 409SS. Do not silently treat those dimensions as the same measurement or promise 304 alloy from a part-number prefix. Confirm actual inlet/outlet and replacement-tip specification with aFe if required; the listing retains the primary 4.5-inch outlet description and general stainless tip material.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
