Ford Power Stroke ATLAS DPF-back details

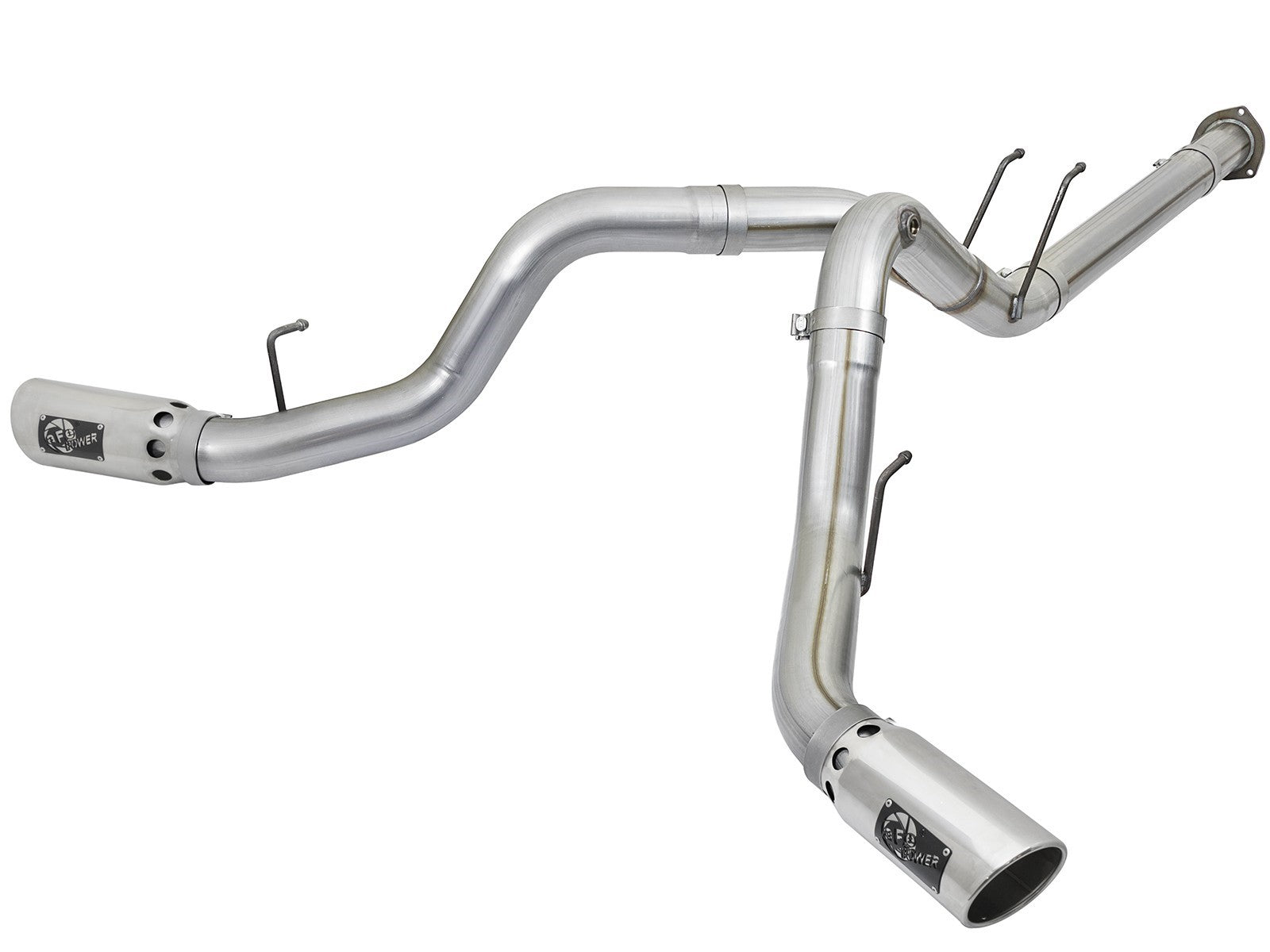

aFe 49-03092-P ATLAS uses 4-inch mandrel-bent aluminized steel tubing, hand MIG-welded construction and an over-axle mitered Y merge. Dual side-exit 5-inch polished intercooled stainless tips finish the exhaust behind the retained factory DPF.
Key Features
- 4-inch mandrel-bent ALUMINIZED STEEL; 100% hand MIG-welded.
- FIVE pipe sections; extension use varies by cab/wheelbase.
- FOUR 4-inch band clamps and LEFT hanger bracket 05-46258.
- Dual 5-inch polished intercooled stainless clamp-on tips.
- Original rear-DPF flange gasket/hardware reused; DPF retained.
- Cab-specific adaptor/extension cuts; exact five configurations listed.
- Spare tire repositioned RIGHT and RETIGHTENED for LEFT tube clearance.
Fitment
2017-2026 Ford F-250/F-350 Super Duty with 6.7L Power Stroke turbodiesel. Current exact primary and VISIBLE own manual header both extend to 2026; an older underlying PDF text layer still says 2022 and does not override the visible header. Exact selected named tables support King Ranch, Lariat, Platinum, XL and XLT 2017-2026, and Limited 2018-2024 on both Super Duty models. Original broad F-250/F-350 rows remain with endpoint extended to 2026. Actual cab/bed/wheelbase and original rear-DPF flange must match the stated configurations; no other Ford or gas engine fitment is inferred. Manufacturer confirms factory fifth-wheel hitch fitment.
| Years | Make | Model | Named grade; actual 6.7L turbodiesel cab/bed/wheelbase and original rear-DPF interface required |
|---|---|---|---|
| 2017-2026 | Ford | F-250 | |
| 2017-2026 | Ford | F-350 | |
| 2017-2026 | Ford | F-250 Super Duty | King Ranch |
| 2017-2026 | Ford | F-250 Super Duty | Lariat |
| 2018-2024 | Ford | F-250 Super Duty | Limited |
| 2017-2026 | Ford | F-250 Super Duty | Platinum |
| 2017-2026 | Ford | F-250 Super Duty | XL |
| 2017-2026 | Ford | F-250 Super Duty | XLT |
| 2017-2026 | Ford | F-350 Super Duty | King Ranch |
| 2017-2026 | Ford | F-350 Super Duty | Lariat |
| 2018-2024 | Ford | F-350 Super Duty | Limited |
| 2017-2026 | Ford | F-350 Super Duty | Platinum |
| 2017-2026 | Ford | F-350 Super Duty | XL |
| 2017-2026 | Ford | F-350 Super Duty | XLT |
Verify 49-03092-P against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-03092-P |
| System | ATLAS 4-inch DPF-back, not a DPF-delete or turbo/downpipe replacement |
| Main material / weld | Mandrel-bent aluminized steel; hand MIG-welded |
| Selected tips | Dual 5-inch angle-cut rolled-edge intercooled stainless, polished with black powder-coated laser-cut aFe plate |
| Cab / wheelbase configuration | SC/LB 8-foot box, 141.6-inch wheelbase: trim approximately 4 inches OFF flange adaptor; NO extension. EC/SB 6.75-foot box, 148-inch wheelbase: flange adaptor ONLY, no trim or extension. EC/LB 8-foot box, 164.2-inch wheelbase: flange adaptor plus extension CUT TO 19 inches total length. CC/SB 6.75-foot box, 159.8-inch wheelbase: flange adaptor plus extension CUT TO 15 inches total length. CC/LB 8-foot box, 176-inch wheelbase: flange adaptor and full extension, NO CUT. These are the manual printed wheelbases; do not round/substitute a later cab dimension without verifying actual routing. |
| Clamps / bracket | FOUR 4-inch 05-41172; bracket 05-46258; provided rubber mount separate PN/quantity unprinted |
| Original parts | DPF flange gasket/hardware, NOx sensor/wiring and hanger fixing bolts retained/restored |
| Spare tire | Move RIGHT against right heat shield for LEFT pipe clearance, then RETIGHTEN spare |
| Torque / recheck | NO numeric torque printed; 50-100-mile spare/tie/wrap clearance and band recheck |
| Performance evidence | No actual dyno, airflow or measured EGT chart and no numeric power gain is linked for this exact selection. Flow, scavenging and intercooled-tip descriptions do not establish a measured horsepower, torque, EGT or cabin-drone guarantee. |
| Emissions qualification | Current primary says no CARB EO required; legacy Non-CARB restriction retained unresolved, no blanket jurisdiction clearance |
What's Included
- 1 x 05-142285: ALUMINIZED flange adaptor; possible cab-specific cut.
- 1 x 05-142286: ALUMINIZED extension; use/trim depends on cab.
- 1 x 05-142287: ALUMINIZED over-axle Y-pipe.
- 1 x 05-142288: ALUMINIZED RIGHT tailpipe.
- 1 x 05-142289: ALUMINIZED LEFT tailpipe.
- 4 x 05-41172: 4-inch band clamp.
- 1 x 05-46258: LEFT hanger bracket; original bolts reused.
- 1 x 49T40501-P121: LEFT selected intercooled tip.
- 1 x 49T40502-P121: RIGHT selected intercooled tip.
FIVE ALUMINIZED-STEEL sections: flange adaptor 05-142285, extension 05-142286, over-axle Y-pipe 05-142287, RIGHT tailpipe 05-142288 and LEFT tailpipe 05-142289. Actual extension usage depends on cab/wheelbase. FOUR 4-inch band clamps 05-41172 and hanger bracket 05-46258. LEFT polished tip 49T40501-P121 and RIGHT 49T40502-P121 are selected; dual 5-inch intercooled stainless tips. Manual says a provided rubber isolation mount; its separate service PN/quantity is unprinted. Reuse ORIGINAL DPF-flange gasket/hardware and original hanger fixing bolts. Stainless 05-144xxx sections are alternatives for 49-43092, NOT extra supplied sections for this aluminized kit. Zip ties/heat wrap are referenced for inspection but separate supplied quantity/service identity is not itemized. No replacement DPF, converter, NOx sensor, valve motor or intake filter/coupler is supplied.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer product specifications for 49-03092-P
- Exact illustrated installation manual
- Shop the complete aFe Power collection
FAQ
What is the 49-03092-P?FIVE ALUMINIZED-STEEL sections: flange adaptor 05-142285, extension 05-142286, over-axle Y-pipe 05-142287, RIGHT tailpipe 05-142288 and LEFT tailpipe 05-142289. Actual extension usage depends on cab/wheelbase. FOUR 4-inch band clamps 05-41172 and hanger bracket 05-46258. LEFT polished tip 49T40501-P121 and RIGHT 49T40502-P121 are selected; dual 5-inch intercooled stainless tips. Manual says a provided rubber isolation mount; its separate service PN/quantity is unprinted. Reuse ORIGINAL DPF-flange gasket/hardware and original hanger fixing bolts. Stainless 05-144xxx sections are alternatives for 49-43092, NOT extra supplied sections for this aluminized kit. Zip ties/heat wrap are referenced for inspection but separate supplied quantity/service identity is not itemized. No replacement DPF, converter, NOx sensor, valve motor or intake filter/coupler is supplied.
Which Super Duty years and grades apply?2017-2026 Ford F-250/F-350 Super Duty with 6.7L Power Stroke turbodiesel. Current exact primary and VISIBLE own manual header both extend to 2026; an older underlying PDF text layer still says 2022 and does not override the visible header. Exact selected named tables support King Ranch, Lariat, Platinum, XL and XLT 2017-2026, and Limited 2018-2024 on both Super Duty models. Original broad F-250/F-350 rows remain with endpoint extended to 2026. Actual cab/bed/wheelbase and original rear-DPF flange must match the stated configurations; no other Ford or gas engine fitment is inferred. Manufacturer confirms factory fifth-wheel hitch fitment.
What cuts and extension lengths apply?SC/LB 8-foot box, 141.6-inch wheelbase: trim approximately 4 inches OFF flange adaptor; NO extension. EC/SB 6.75-foot box, 148-inch wheelbase: flange adaptor ONLY, no trim or extension. EC/LB 8-foot box, 164.2-inch wheelbase: flange adaptor plus extension CUT TO 19 inches total length. CC/SB 6.75-foot box, 159.8-inch wheelbase: flange adaptor plus extension CUT TO 15 inches total length. CC/LB 8-foot box, 176-inch wheelbase: flange adaptor and full extension, NO CUT. These are the manual printed wheelbases; do not round/substitute a later cab dimension without verifying actual routing.
What must happen to the NOx sensor and DPF?Remove ORIGINAL NOx sensor before original rear exhaust/extension removal. DPF remains. Preserve original sensor/wiring and restore according to vehicle service instructions before operation; the abbreviated manual omits a later restoration step. Reuse original DPF flange gasket and hardware.
How is spare-tire clearance handled?Loosen undercarriage spare, push RIGHT against right-side heat shield to clear LEFT tube, then RETIGHTEN spare once clearance is satisfactory. After 50-100 miles recheck spare clearance, zip ties and heat wrap. Their separate supplied quantity/service identity is unprinted.
Which hanger hardware and tip orientation apply?LEFT bracket 05-46258 uses ORIGINAL bolts and provided rubber isolator. If RIGHT original hanger mount is removed for access, rebolt it. BOTH tip badges face REAR of truck. No separate provided rubber-mount PN/quantity is printed.
What torque and mileage recheck are printed?NO numeric band, flange, tip or hanger torque is printed. Align and tighten FOUR 4-inch bands FRONT to REAR. After 50-100 miles recheck spare/tie/wrap clearance and re-tighten bands if necessary; do not borrow torque from another kit.
Are power, EGT gains or a blanket emissions clearance established?No actual dyno, airflow or measured EGT chart and no numeric power gain is linked for this exact selection. Flow, scavenging and intercooled-tip descriptions do not establish a measured horsepower, torque, EGT or cabin-drone guarantee. Current no-EO wording does not resolve legacy Non-CARB restriction or authorize removal of DPF/NOx equipment.
Installation Instructions
Verify aFe 49-03092-P.
- Read own March 2022 ONE-page manual, all TEN steps and photos. VISIBLE header explicitly reads 2017-2026 despite stale underlying extracted 2022 text. Cool exhaust, wear eye/hand protection and support vehicle/exhaust independently; manual calls for at least TWO stands/jacks for exhaust support.
- REMOVE original NOx SENSOR BEFORE removing original rear exhaust/extension from REAR SIDE OF DPF. Preserve ORIGINAL flange gasket and all original hardware for reuse. Retain original sensor and wiring; the abbreviated manual does not print a later sensor restoration procedure. Restore the original sensor and connections according to vehicle service instructions before operation; removal does not authorize sensor deletion.
- Choose cut/extension configuration BEFORE assembly: SC/LB 8-foot box, 141.6-inch wheelbase: trim approximately 4 inches OFF flange adaptor; NO extension. EC/SB 6.75-foot box, 148-inch wheelbase: flange adaptor ONLY, no trim or extension. EC/LB 8-foot box, 164.2-inch wheelbase: flange adaptor plus extension CUT TO 19 inches total length. CC/SB 6.75-foot box, 159.8-inch wheelbase: flange adaptor plus extension CUT TO 15 inches total length. CC/LB 8-foot box, 176-inch wheelbase: flange adaptor and full extension, NO CUT. These are the manual printed wheelbases; do not round/substitute a later cab dimension without verifying actual routing.
- LOOSEN undercarriage SPARE TIRE and push it to the RIGHT as far as directed, against right heat shield, to provide clearance from LEFT exhaust tube. Once clearance is satisfactory, TIGHTEN SPARE TIRE BACK UP. Do not leave tire loose or remove protective shield as a substitute.
- Secure THREE-hole flange adaptor to original DPF with ORIGINAL hardware/gasket. Install over-axle Y-pipe on applicable extension/adaptor routing and engage hangers in original rubber isolators. Install RIGHT tailpipe; if original right hanger mount must be removed for access, REBOLT IT after engaging hanger.
- Position RIGHT tip with aFe badge facing REAR of truck, initially snug. Remove original bolts for LEFT hanger bracket 05-46258 and install bracket using SAME ORIGINAL hardware per photos. Engage LEFT tailpipe hanger in provided rubber isolation mount. Position LEFT tip with badge facing REAR.
- Align all sections and tighten FOUR 4-inch bands from FRONT toward REAR. No numeric band, tip, flange or hanger torque is printed; do not borrow 40-45 ft-lb from a different kit. Verify restored original NOx sensor/wiring and all clearances before operation.
- Check/repair exhaust leaks. After 50-100 miles check SPARE TIRE clearance, zip ties and heat wrap, and re-tighten bands if necessary. Exact supplied tie/wrap quantities are not itemized. No battery-disconnection, coding, valve-transfer or installation welding procedure is supplied. Original DPF stays installed.
No actual dyno, airflow or measured EGT chart and no numeric power gain is linked for this exact selection. Flow, scavenging and intercooled-tip descriptions do not establish a measured horsepower, torque, EGT or cabin-drone guarantee. Manufacturer says no CARB EO required, while original Non-CARB restriction remains; this is not blanket jurisdiction clearance. Visible manual header/current primary are through 2026. Preserve DPF, original sensor and wiring. No specific torque, new gasket, sensor or tie/wrap count is invented.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
