aFe Ram 6.7L 2019-2026 ATLAS Black Long-Bed DPF-Back

Ram ATLAS long-bed DPF-back exhaust details

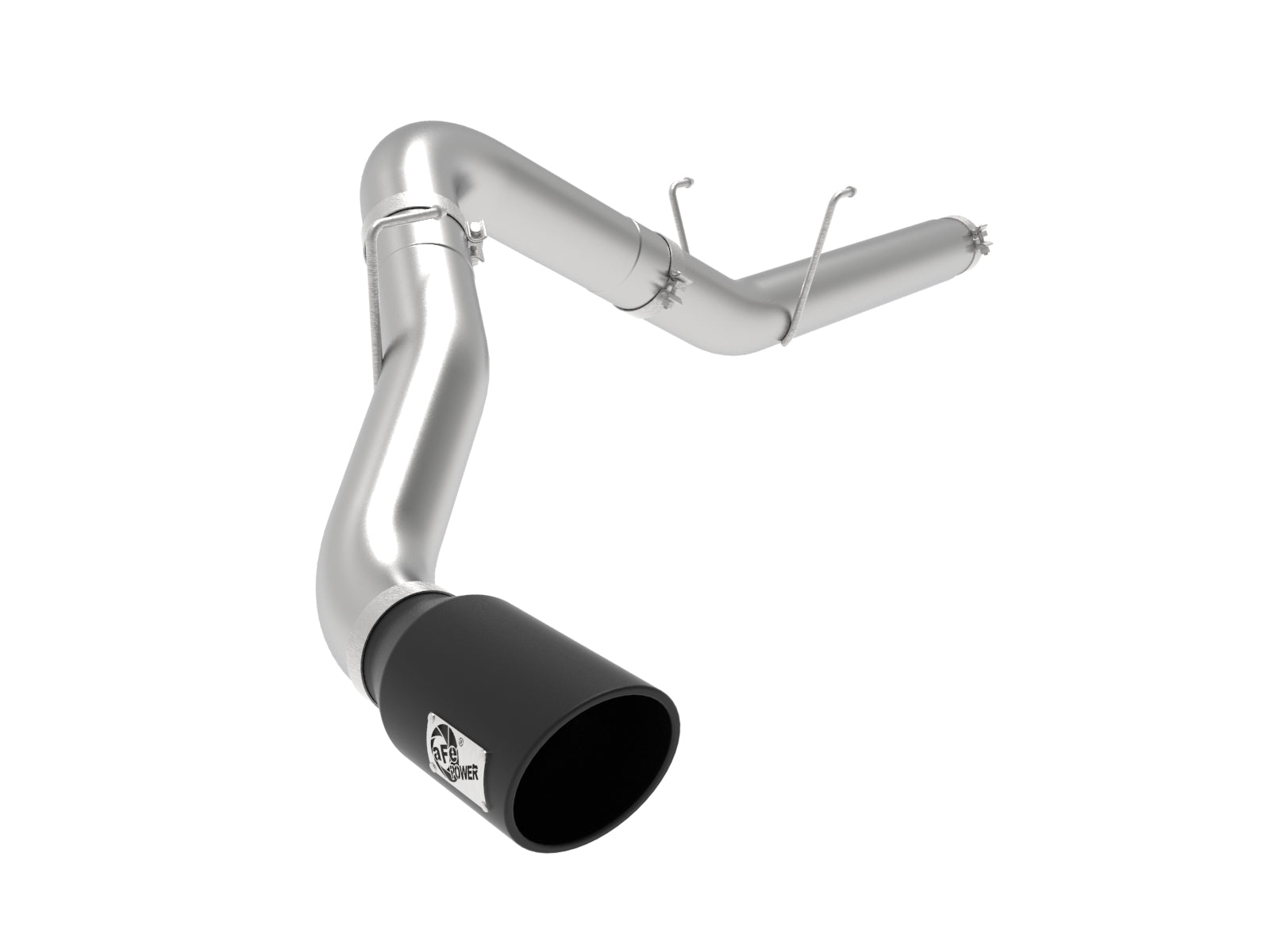

aFe 49-02075-B ATLAS uses 5-inch mandrel-bent ALUMINIZED STEEL tubing, 100% MIG-welded construction and factory-style hangers for the 169-inch Crew Cab long-bed Ram diesel. THREE tube sections and one 7-inch black stainless tip install behind the retained DPF.

Key Features

• 5-inch mandrel-bent ALUMINIZED STEEL main tubing.
• Crew Cab / 8-foot LONG BED / 169-inch wheelbase ONLY.
• THREE sections: front pipe, over-axle and tailpipe.
• TWO 5-inch stainless bands plus ONE 4.5-inch stainless band.
• ONE 5-inch inlet x 7-inch outlet x 15-inch selected stainless tip.
• Factory hanger/isolation mounts reused; original DPF retained.
• Band clamps 40-45 ft-lb; all clamps/hardware recheck at 50-100 miles.

Fitment

2019-2026 Ram 2500 / 3500 with 6.7L Cummins turbodiesel, CREW CAB / LONG BED with 8-foot box and 169-inch wheelbase ONLY. Current exact primary and own September 2026 manual agree through 2026 and on that configuration. Every named grade requires the actual diesel engine, long bed, wheelbase and rear-DPF interface. Short-bed, Mega Cab, other wheelbases, gas engines and cab-and-chassis layouts are not inferred. Named scopes below follow exact selected retailer tables; older Laramie Longhorn, SLT and Lone Star limits are retained.

Verify 49-02075-B against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-242010: ALUMINIZED front pipe; installation calls it mid-pipe.
• 1 x 05-242011: ALUMINIZED over-axle section.
• 1 x 05-242012: ALUMINIZED tailpipe.
• 2 x 05-41173: 5-inch stainless band clamp.
• 1 x 05-410241: 4.5-inch stainless front band clamp.

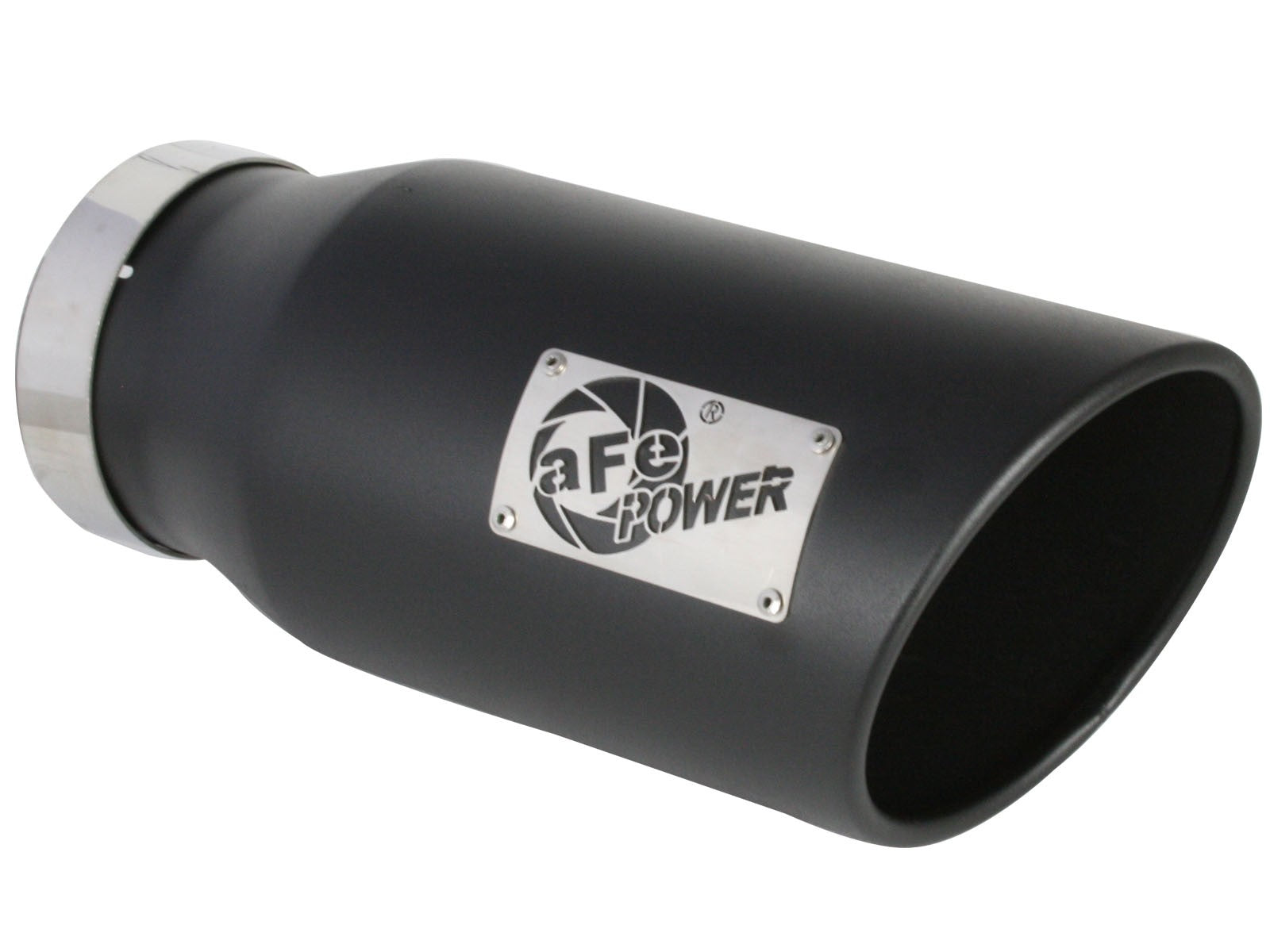

• 1 x 49T50701-B15: Selected 5-inch inlet x 7-inch outlet x 15-inch stainless tip.

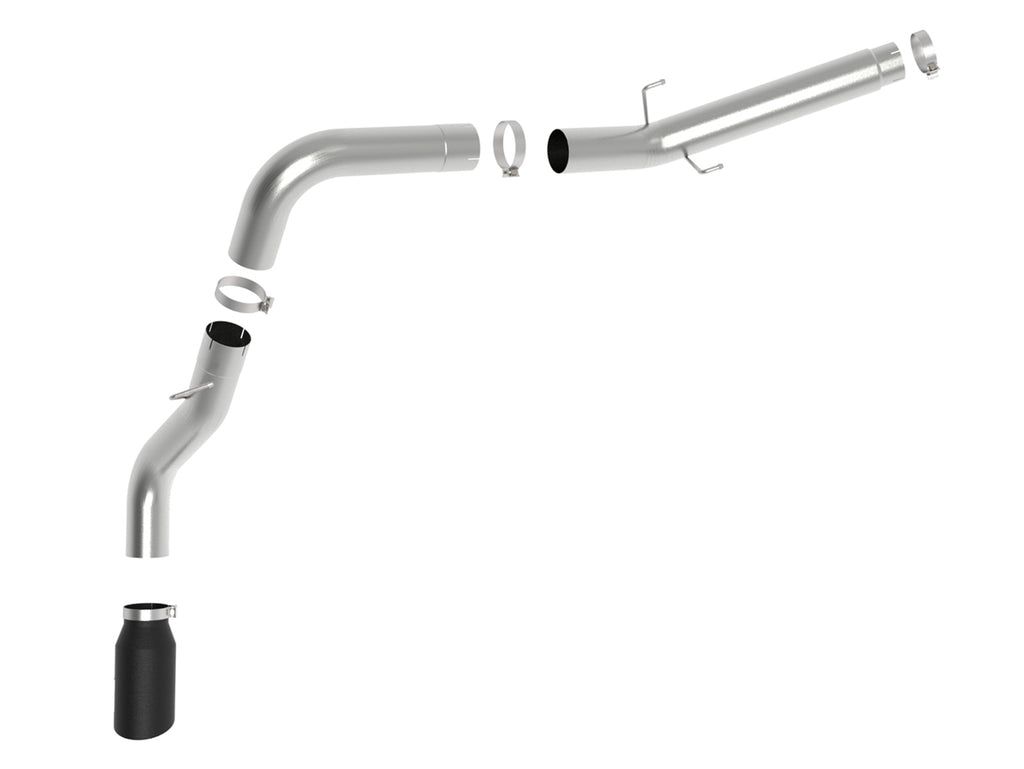

THREE ALUMINIZED-STEEL sections: front pipe 05-242010 (called mid-pipe in installation step 6), over-axle 05-242011 and tailpipe 05-242012. TWO 5-inch stainless bands 05-41173 and ONE 4.5-inch stainless band 05-410241. ONE selected BLACK 49T50701-B15 stainless bolt-on tip, 5-inch inlet x 7-inch outlet x 15-inch length. Reuse original factory hanger/isolation mounts. Shared bill stainless main-section alternatives are for the other material version and are not extra supplied assemblies. No separate extension, short-bed rear pipe, muffler, new DPF, converter, sensor, valve, intake filter or coupler is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 49-02075-B
• Exact illustrated installation manual
• Shop the complete aFe Power collection

FAQ

THREE ALUMINIZED-STEEL sections: front pipe 05-242010 (called mid-pipe in installation step 6), over-axle 05-242011 and tailpipe 05-242012. TWO 5-inch stainless bands 05-41173 and ONE 4.5-inch stainless band 05-410241. ONE selected BLACK 49T50701-B15 stainless bolt-on tip, 5-inch inlet x 7-inch outlet x 15-inch length. Reuse original factory hanger/isolation mounts. Shared bill stainless main-section alternatives are for the other material version and are not extra supplied assemblies. No separate extension, short-bed rear pipe, muffler, new DPF, converter, sensor, valve, intake filter or coupler is listed.

2019-2026 Ram 2500 / 3500 with 6.7L Cummins turbodiesel, CREW CAB / LONG BED with 8-foot box and 169-inch wheelbase ONLY. Current exact primary and own September 2026 manual agree through 2026 and on that configuration. Every named grade requires the actual diesel engine, long bed, wheelbase and rear-DPF interface. Short-bed, Mega Cab, other wheelbases, gas engines and cab-and-chassis layouts are not inferred. Named scopes below follow exact selected retailer tables; older Laramie Longhorn, SLT and Lone Star limits are retained.

NO. This 169-inch Crew Cab long-bed kit uses front pipe 05-242010, over-axle 05-242011 and tailpipe 05-242012. Its own bill has no separate extension or short-bed rear pipe. Do not transfer Mega Cab / short-bed assembly rules from another part number.

The shared manual header uses Cat-Back, while its step 5 explicitly removes factory exhaust only to BACK OF DPF. Current exact selected manufacturer page identifies DPF-Back. Retain original DPF; the generic header does not establish a different connection.

Main tubes are ALUMINIZED STEEL. ONE black 49T50701-B15 stainless bolt-on tip has 5-inch inlet, 7-inch outlet and 15-inch length. Alternative stainless main sections in shared bill are not extra supplied parts.

Support factory exhaust. Install front/mid-pipe using 4.5-inch band and original isolation mounts, over-axle with first 5-inch band, then tailpipe with second 5-inch band and original hanger mount. Fit tip, align and tighten FRONT to REAR.

BAND CLAMPS require 40-45 ft-lb; no separate numeric decorative-tip torque is printed. Check leaks and repair before lowering safely. Re-tighten ALL clamps and hardware after 50-100 miles. Current primary specifies no cutting for stated configuration.

No actual dyno or flow chart is linked for this exact selection. Manufacturer flow descriptions do not independently establish numeric horsepower, torque or EGT gains, fuel-economy improvement or a cabin-drone guarantee. Current no-EO wording does not resolve original Non-CARB restriction or provide blanket jurisdiction clearance.

Installation Instructions

Verify aFe 49-02075-B.

1. Read own September 2026 TWO-page manual, ALL FIFTEEN steps, full bill and diagram. Confirm Crew Cab / 8-foot LONG BED / 169-inch wheelbase and actual 6.7L diesel. Inspect shipping condition, cool exhaust, wear eye/hand protection and use vehicle-manual jack-stand positions. Support factory exhaust separately and leave new joints loose for adjustment.
2. Remove original exhaust UP TO BACK OF DIESEL PARTICULATE FILTER. The shared manual heading says Cat-Back, but its step 5 and current exact primary identify the retained-DPF connection. Do not remove the DPF or infer a different turbo/downpipe connection.
3. Install ALUMINIZED front pipe 05-242010 with supplied 4.5-inch band 05-410241 and engage its hangers in ORIGINAL factory isolation mounts. No separate extension or short-bed rear pipe is used in this three-section kit.
4. Install over-axle 05-242011 with one supplied 5-inch band. Install tailpipe 05-242012 with the second 5-inch band and engage its hanger in ORIGINAL isolation mount. Install selected black tip and adjust exhaust/tip position.
5. Check safe clearances from wires, hoses, brake lines, body parts and tires. Align then tighten evenly from FRONT to REAR. BAND CLAMPS require 40-45 FT-LB. No separate numeric decorative-tip torque is printed.
6. Start vehicle and check for leaks; repair any found before lowering safely. Re-tighten ALL clamps and hardware after 50-100 miles. Current exact manufacturer says no cutting or modifications for this listed configuration. No battery-disconnection, sensor relocation, valve transfer or coding procedure is printed.

No actual dyno or flow chart is linked for this exact selection. Manufacturer flow descriptions do not independently establish numeric horsepower, torque or EGT gains, fuel-economy improvement or a cabin-drone guarantee. Own generic Cat-Back heading does not change actual retained-DPF connection in step 5. Current no-EO wording does not resolve legacy Non-CARB restriction or authorize DPF/sensor deletion. Three-section 169-inch long-bed system uses its own front pipe; do not borrow the short-bed extension layout.
