aFe Bladerunner 3in Black Intercooler Hot and Cold Side Tubes 14-15 Dodge Ram 1500 EcoDiesel V6 3.0L

BladeRunner charge piping for the exact engine

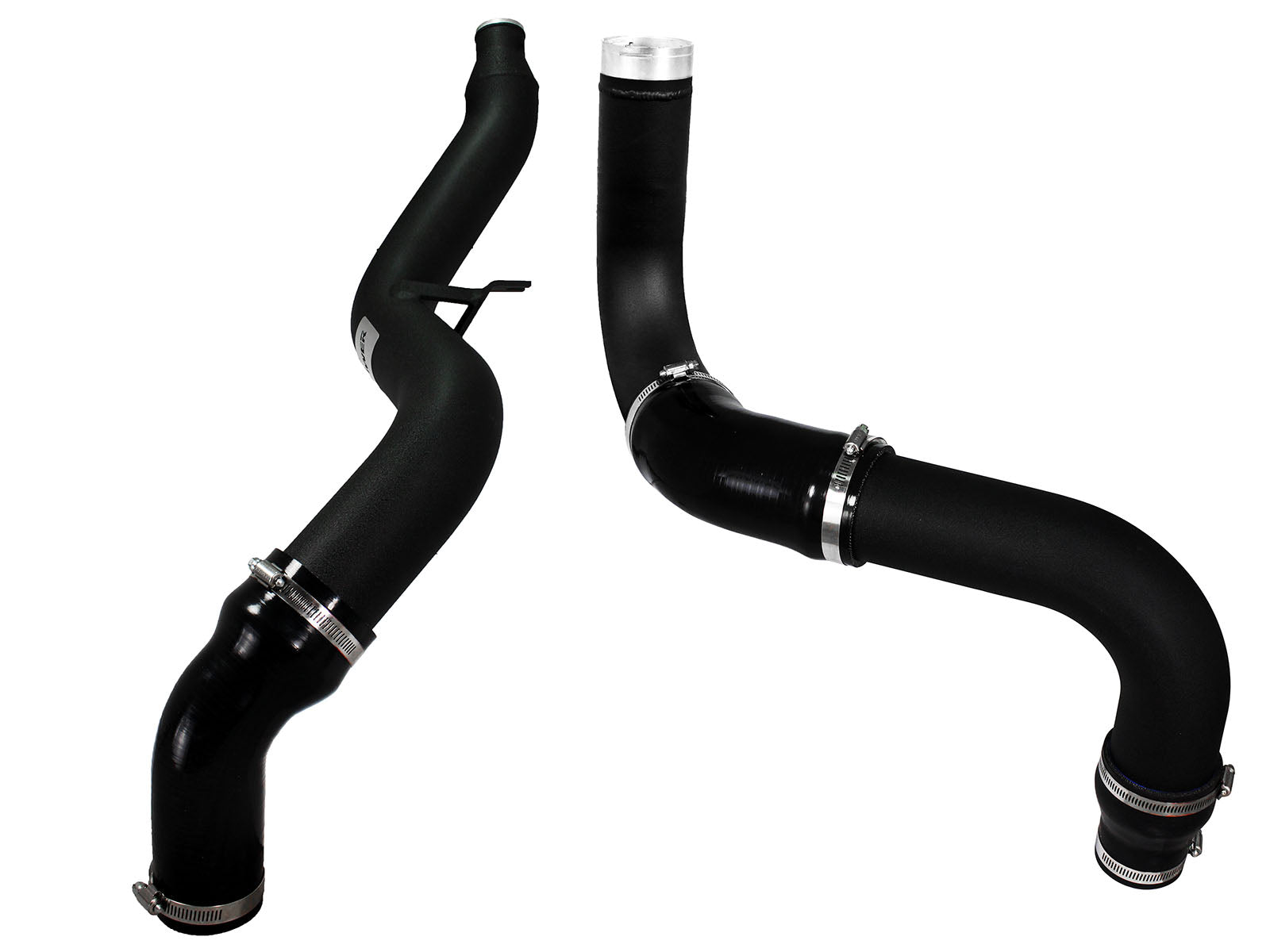

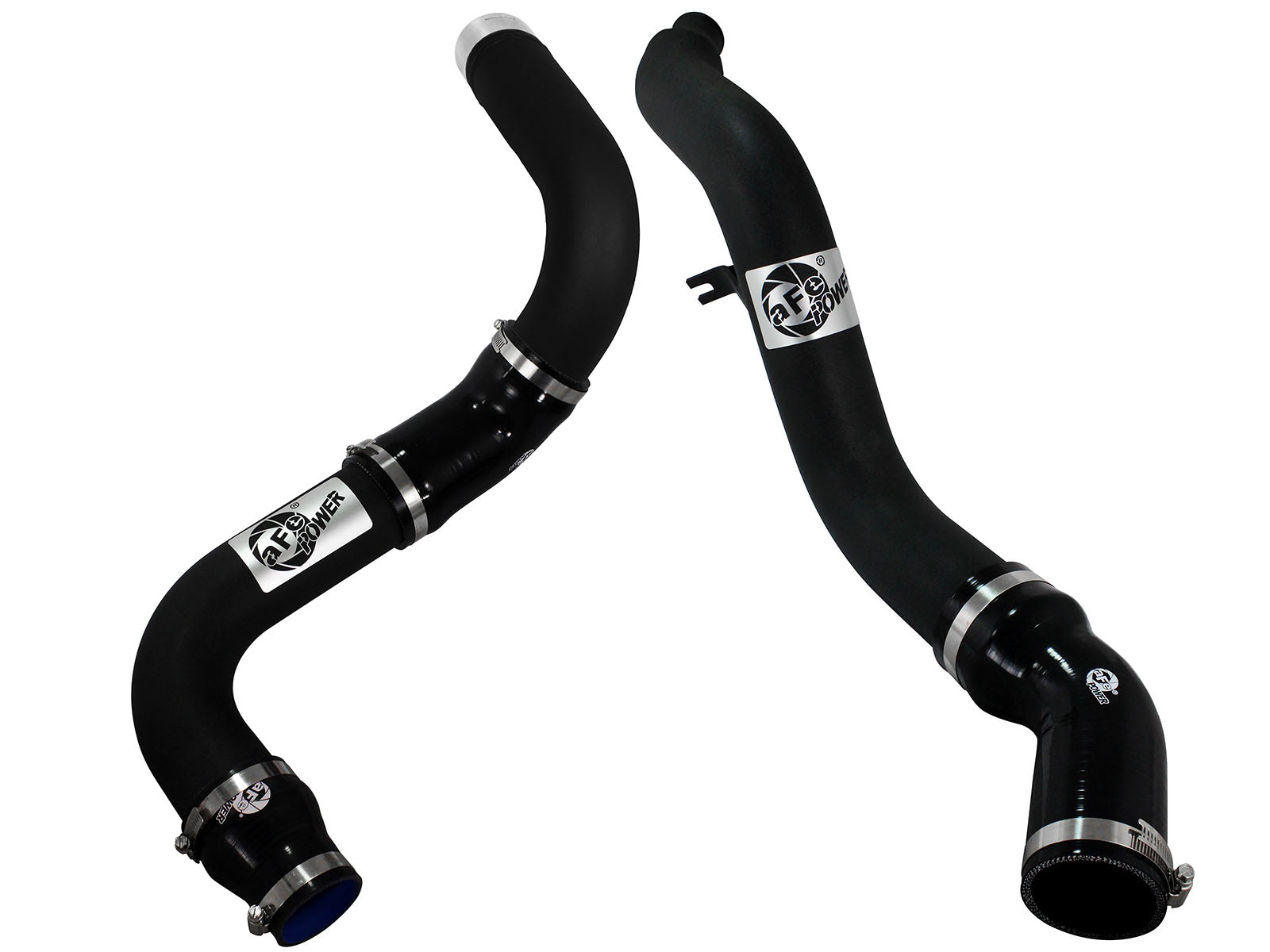

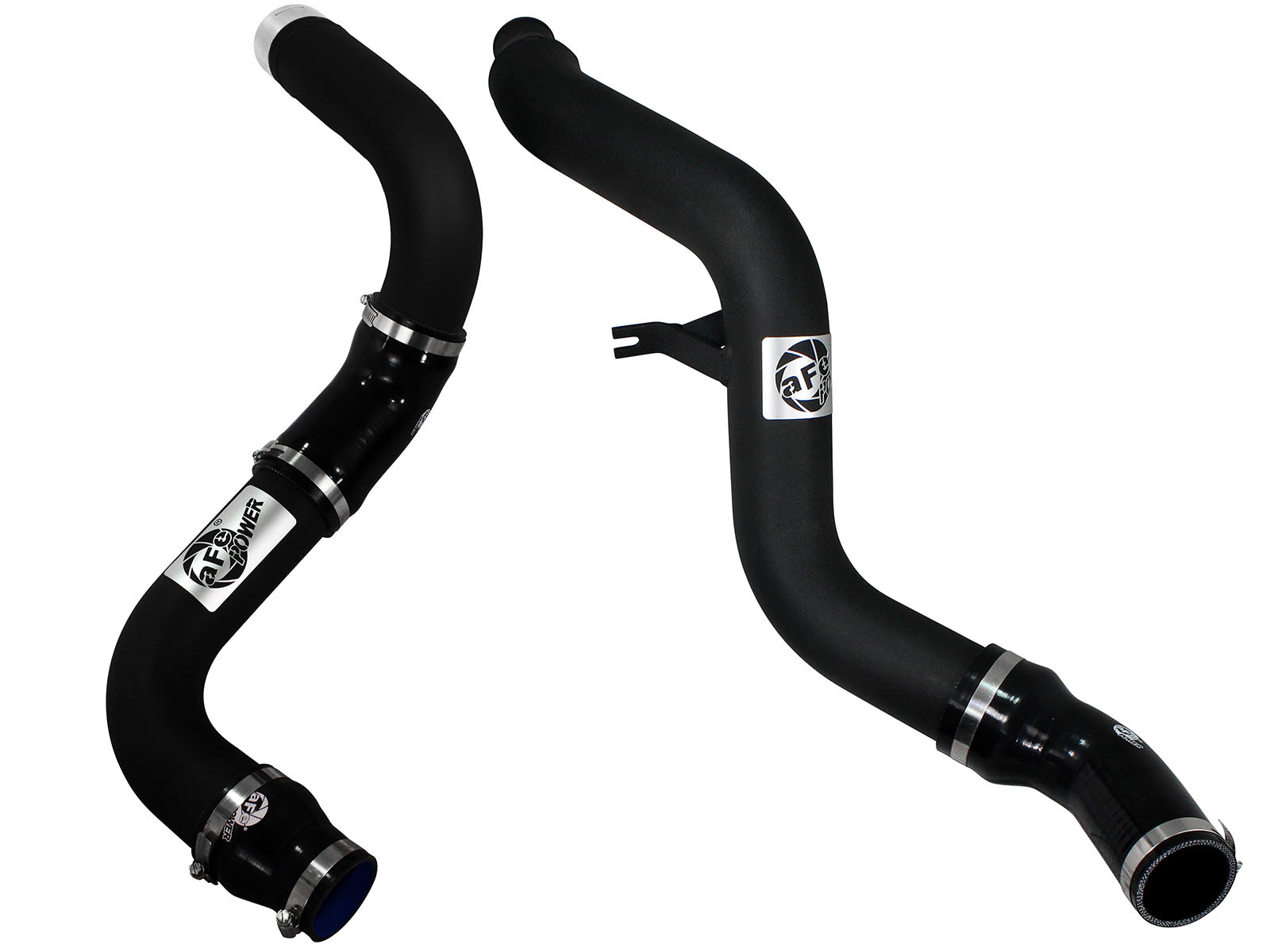

The aFe 46-20174-B is the BladeRunner hot/cold charge-pipe kit for 2014–2015 Ram 1500 trucks with the 3.0L EcoDiesel V6. Its nominal 3-inch mandrel-bent aluminum tubing has wrinkle-black powder coating. The cold side uses two physical sections in addition to the one-piece hot tube; it is not simply two tubes total. No intercooler core is included.

Key Features

• Current exact primary specifies 3-inch aluminum tubing with reinforced five-ply silicone; stainless clamp material does not make the tube stainless.
• Manufacturer reports up to 35% more flow for this exact kit; this is not a guaranteed power/EGT result or published boost rating.
• Cold factory-style quick connection reuses the original metal spring clip; its top-pin orientation and production-date routing matter.
• Older combo hot nut/washer mounting is distinguished from later standalone stand/spacer instructions.
• The downpipe/tuner sentence printed in the manual is unrelated boilerplate, not a charge-pipe instruction to alter emissions equipment or clear faults with tuning.

Fitment

46-20174-B: Current exact manufacturer page and linked instructions cover 2014–2015 Ram 1500 EcoDiesel 3.0L V6 only. Do not extend to gas V6/V8, HD Cummins or later EcoDiesel years. The combo links January/August 2015 hot/cold sheets. Its hot sheet uses a supplied nylon lock nut and fender washer at the front-engine stud; later standalone September 2017 instructions instead use the engine-cover stand and a passenger-side spacer. These are different documented revisions, not permission to promise the later spacer in this combo. The cold sheet describes two tube sections, making three physical tubes across this complete hot/cold kit.

Specifications

What's Included

• One hot tube, one silicone elbow and two new hot clamps in the linked January 2015 sheet, plus one nylon lock nut and one fender washer for its mounting revision.
• One cold upper tube and one cold lower tube, one elbow coupling, one reducer coupling and four new cold clamps in the linked August 2015 sheet.
• Three physical tube sections, three couplings and six new clamps across those linked sheets; the original hot upper connection and original cold metal retaining clip are retained as instructed.
• The current primary describes an O-ring-sealed quick connection, but a separately supplied O-ring quantity/size is not certified by the linked bill of materials. No core, air filter, new sensor or injection system is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

A nominal 3-inch hot/cold aluminum charge-pipe kit for 2014–2015 Ram 1500 3.0L EcoDiesel, without an intercooler core.

The linked sheets describe one hot tube and two cold sections, with three couplings and six new clamps total. The hot upper connection and cold metal spring clip are retained.

Current exact manufacturer page and linked instructions cover 2014–2015 Ram 1500 EcoDiesel 3.0L V6 only. Do not extend to gas V6/V8, HD Cummins or later EcoDiesel years. The combo links January/August 2015 hot/cold sheets. Its hot sheet uses a supplied nylon lock nut and fender washer at the front-engine stud; later standalone September 2017 instructions instead use the engine-cover stand and a passenger-side spacer. These are different documented revisions, not permission to promise the later spacer in this combo. The cold sheet describes two tube sections, making three physical tubes across this complete hot/cold kit.

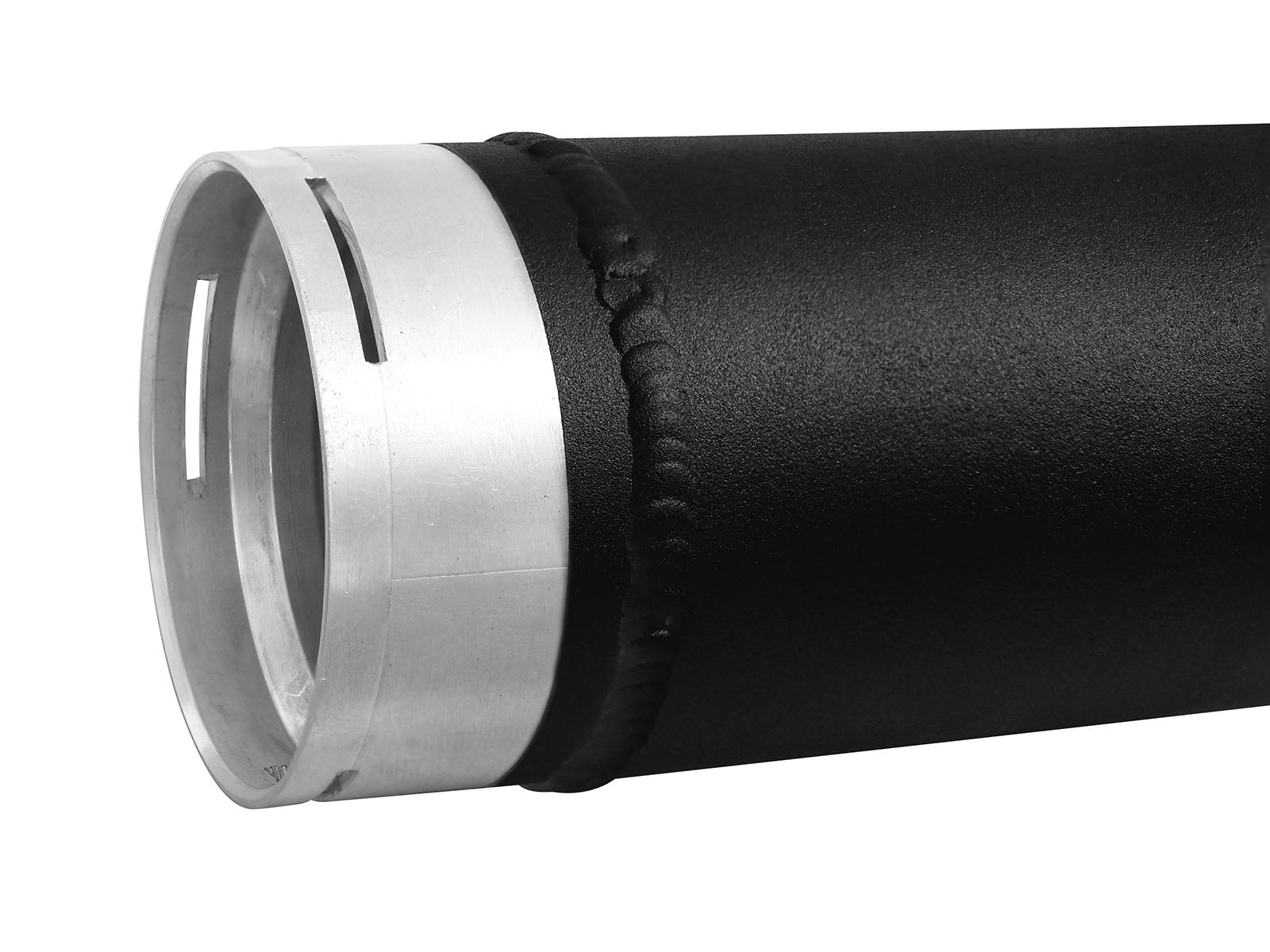

The original cold-side metal spring clip is recovered from the plastic housing and reused, with its center pin at the top. The current primary mentions an O-ring-sealed billet quick connection but the linked parts list does not identify a separate new O-ring or its size. No new sensors are listed.

The exact linked instructions give clamp access/tool sizes but no numerical clamp torque, spring-collapse endpoint or mileage interval. Do not import a later Ram family's 10 ft-lb, 75 in-lb or mileage interval.

The exact sheet distinguishes routing between or in front of the A/C lines by production date. Verify actual routing and clearance; the procedure does not instruct opening refrigerant lines.

The printed downpipe/tuner sentence is unrelated to this charge-pipe installation. It does not establish a need or permission to modify emissions equipment or suppress faults.

The current exact manufacturer page and linked instructions state this kit is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20174-B, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Allow the engine to cool, secure the vehicle level with parking brake/chocks as needed, disconnect the battery and remove the engine cover. Verify the actual kit mounting revision before starting.
3. Release the driver-side hot hose at the intercooler and the clamp where the lower hose meets its metal tube. Remove the original bracket's two engine mounting nuts, then uncover and release the upper clamp near the turbo under its rubber cover/heat wrap. Remove both original hot halves and the engine-top sound-deadening material.
4. Fit the supplied elbow and two new lower clamps to the intercooler without tightening fully.
5. For this linked January 2015 hot revision, position the new hot tube's bracket on the front-engine stud and secure it with the listed supplied washer and nylon lock nut. Keep the tube clear of metal, then tighten the original upper connection and two new lower clamps. The old sheet notes possible engine-cover contact; confirm actual clearance rather than assuming interference-free fit.
6. For the passenger-side cold assembly, release the intercooler hose and engine-inlet clip and remove the original cold hose. Push the original black plastic housing down at both sides to recover its metal spring clip.
7. Fit that original clip to the replacement upper tube with the clip's center pin at the top. Assemble the reducer on the short end of the lower tube and the longer side of the elbow on its other end, using the four supplied cold clamps.
8. Install the lower cold section, push the upper machined connection fully into the engine inlet and join both sections. The exact sheet describes production-date-dependent routing either between or in front of the A/C lines; match the actual routing and confirm tube clearance. It does not direct opening the refrigerant circuit.
9. Tighten all four cold clamps after seating and alignment, then restore the engine cover and battery. No numeric clamp torque or mileage interval is published.

46-20174-B: inspect every connection and resolve the documented kit discrepancies before operation.
