BladeRunner charge piping for the exact engine

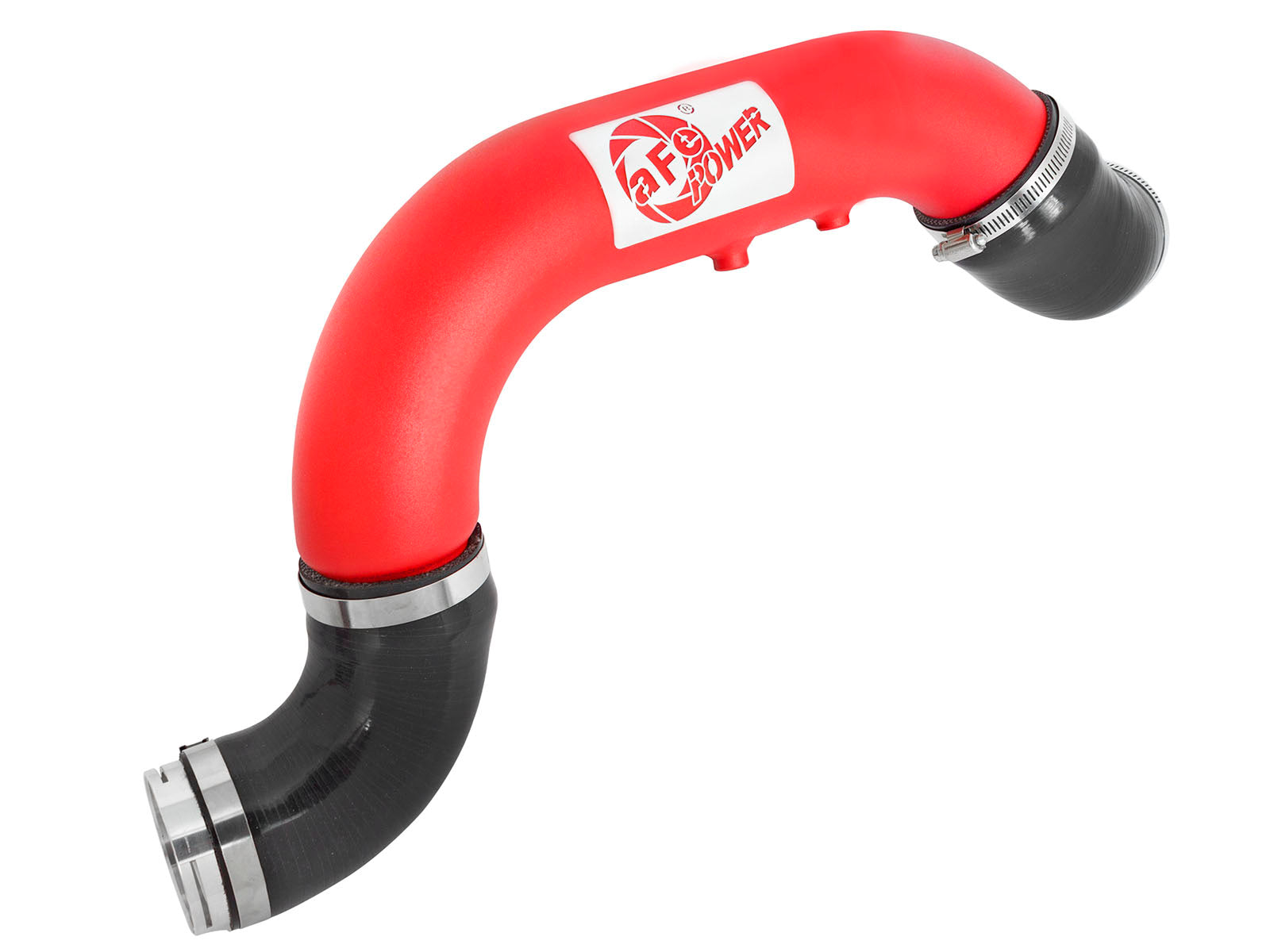

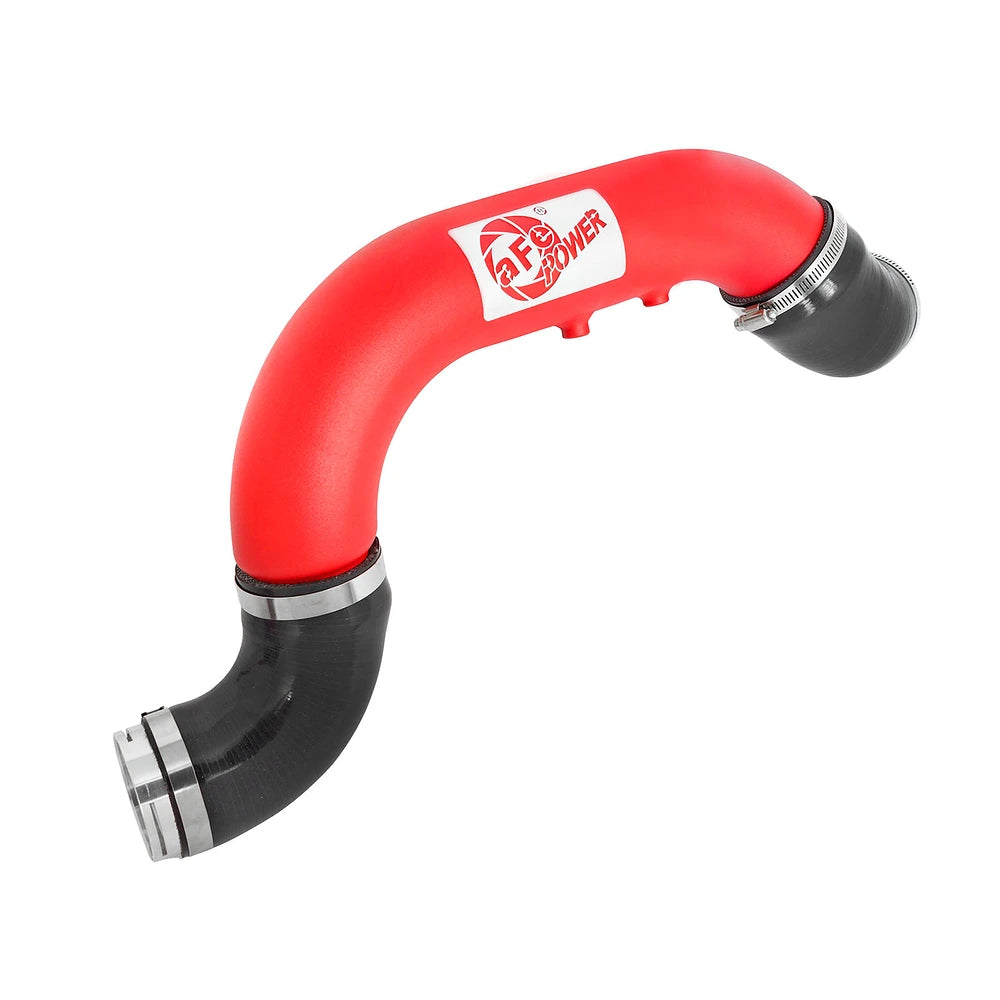

The aFe 46-20269-R is the red cold-side aluminum charge-pipe replacement for 2016–2020 Chevrolet Colorado and GMC Canyon 2.8L LWN turbo-diesel applications. It uses 3-inch cold mandrel-bent aluminum tubing, not stainless-steel tubes, and mates to the original intercooler using billet factory-style adapters.
Key Features
- 3-inch cold aluminum routing with one factory-style billet quick-connect adapter.
- Manufacturer-described five-ply polyester-reinforced silicone couplings and stainless-steel clamps; stainless describes the clamps, not the tubing.
- The current primary page reports 21% more flow than its stock comparison. This is a manufacturer flow-test claim, not a guaranteed horsepower, temperature drop or additive gain with other components.

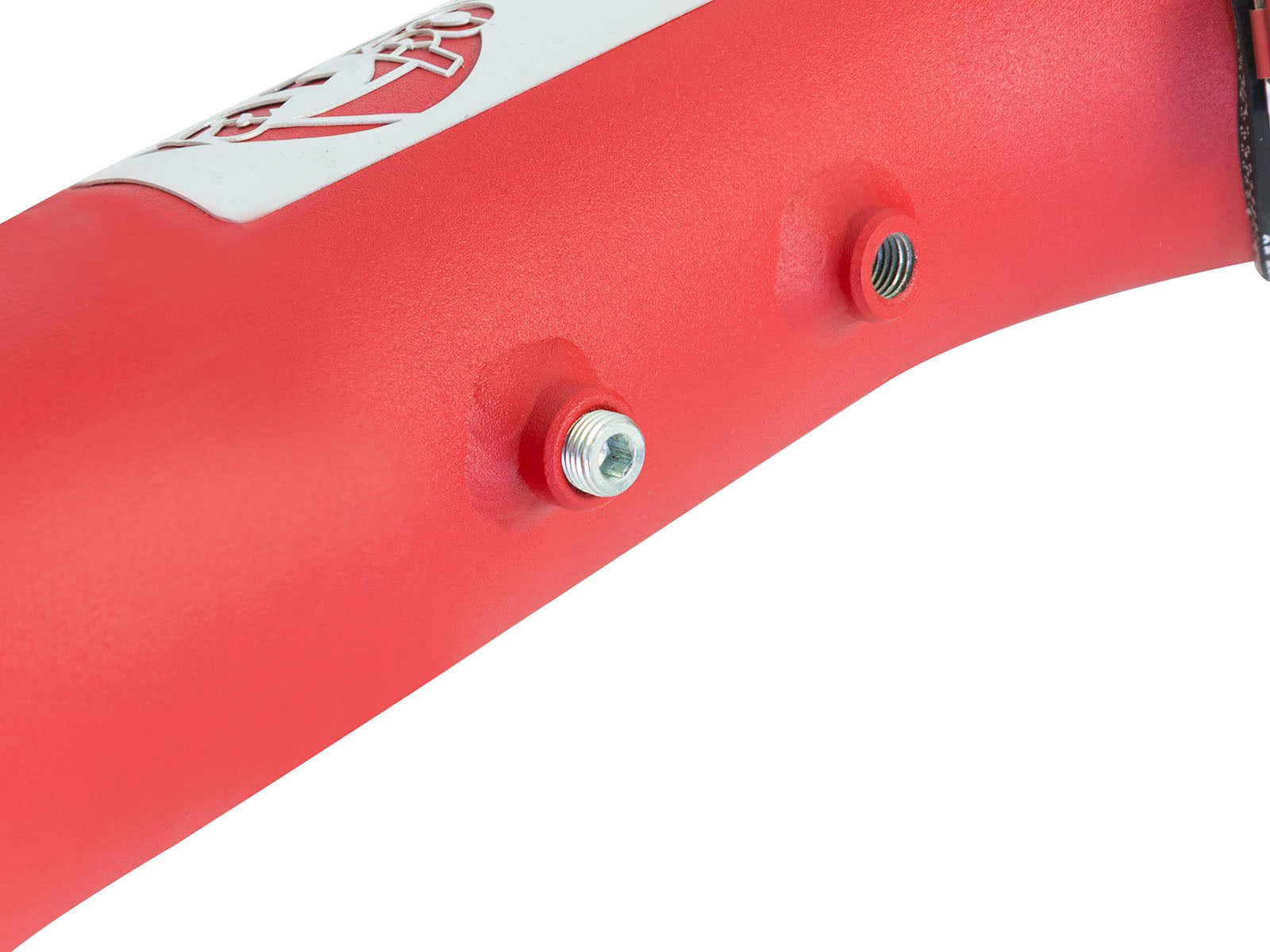

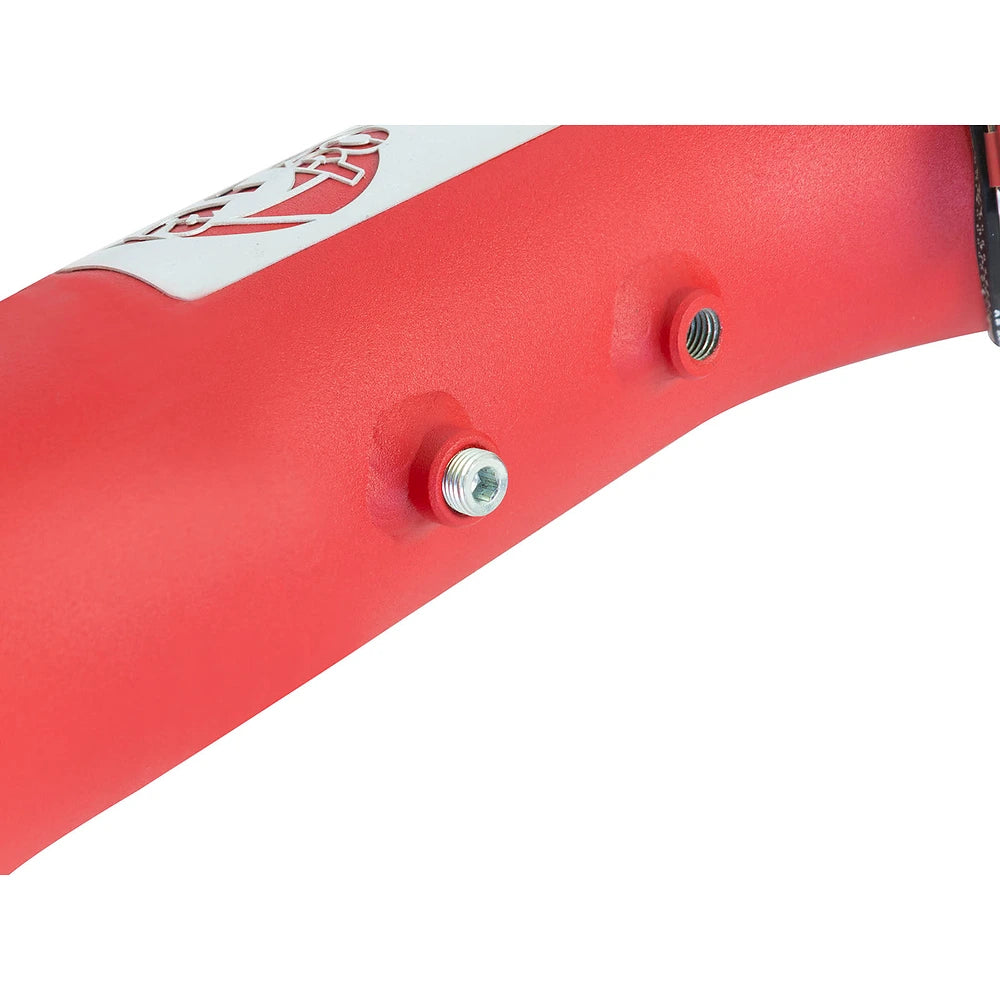

- One manufacturer-listed 1/8 NPT auxiliary port per tube is supplied with a plug for unused installation. A port is not universal approval for every sensor or water/methanol nozzle.
Fitment
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2016–2020 | Chevrolet Colorado / GMC Canyon | 2.8L LWN turbo-diesel and exact original charge connections; no gasoline engine or blanket named-trim approval |
46-20269-R: The current exact primary page and linked manual cover 2016–2020; existing broader later-year references conflict with that scope and are not approved by borrowing a later hot-pipe range. Named trims still require the actual 2.8L LWN engine and original connection checks.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20269-R |
| Configuration | One cold tube / two couplings / four clamps / one seal, adapter and plug |
| Tubing / flow path | 3-inch cold mandrel-bent aluminum; 6061-T6 billet quick-connect adapters |
| Finish | Textured-red powder coating |
| Clamps / fastening | Exact manual directs clamp tightening with an 8 mm socket but supplies no numerical torque or mileage interval. Do not apply the stainless OER SmartSeal 72 in-lb value to these clamps. |
| Original sensors / seals | Reuse the original temperature sensor and metal retaining clip. Remove the original plastic clip-retaining housing to recover the clip; lubricate the supplied O-ring lightly. One auxiliary 1/8 NPT port per tube is manufacturer-listed, with an unused-port plug; it does not include an injection system. |
| Emissions | The current exact manufacturer page and linked manual state this aluminum pipe configuration is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV. |

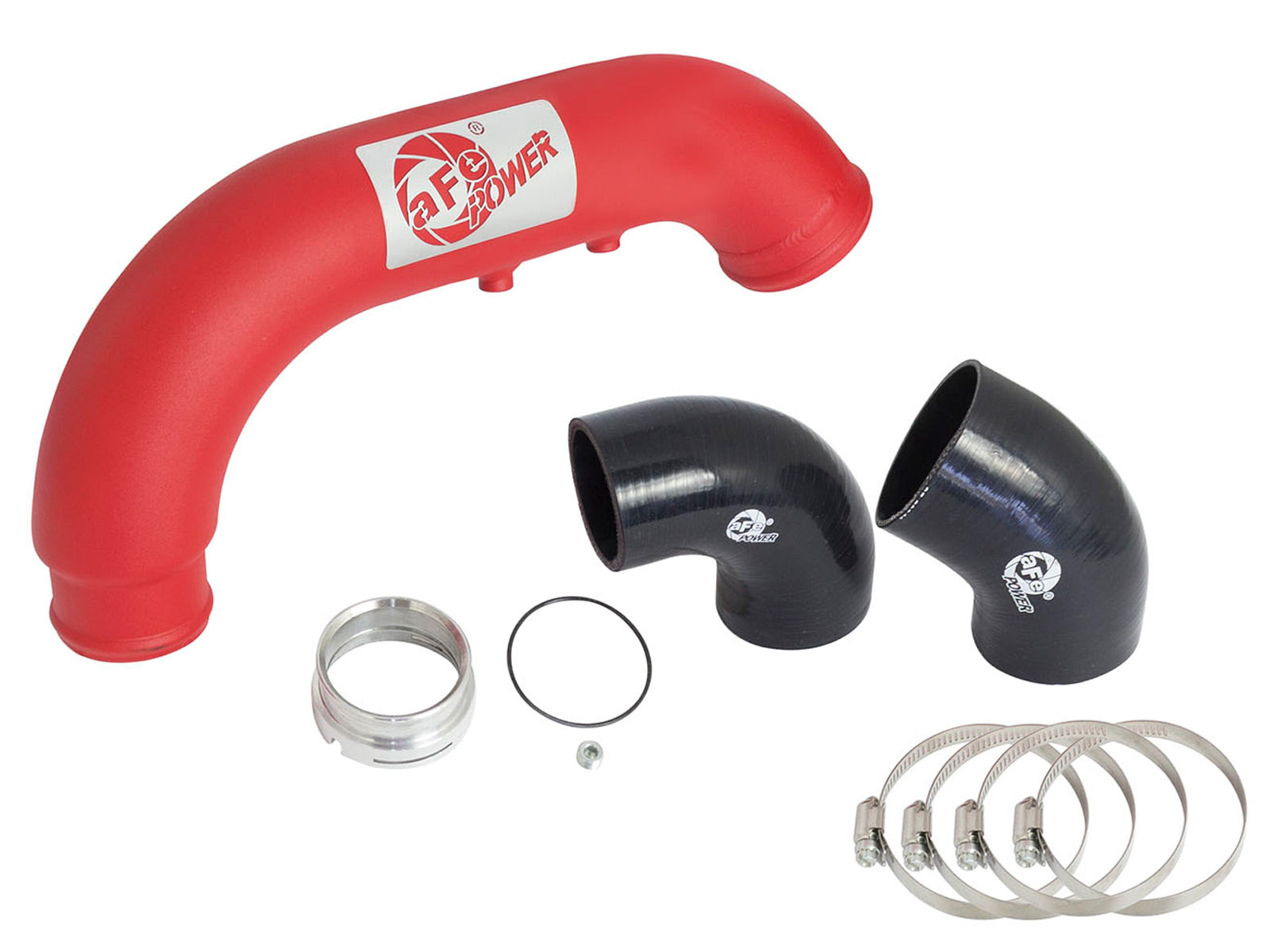

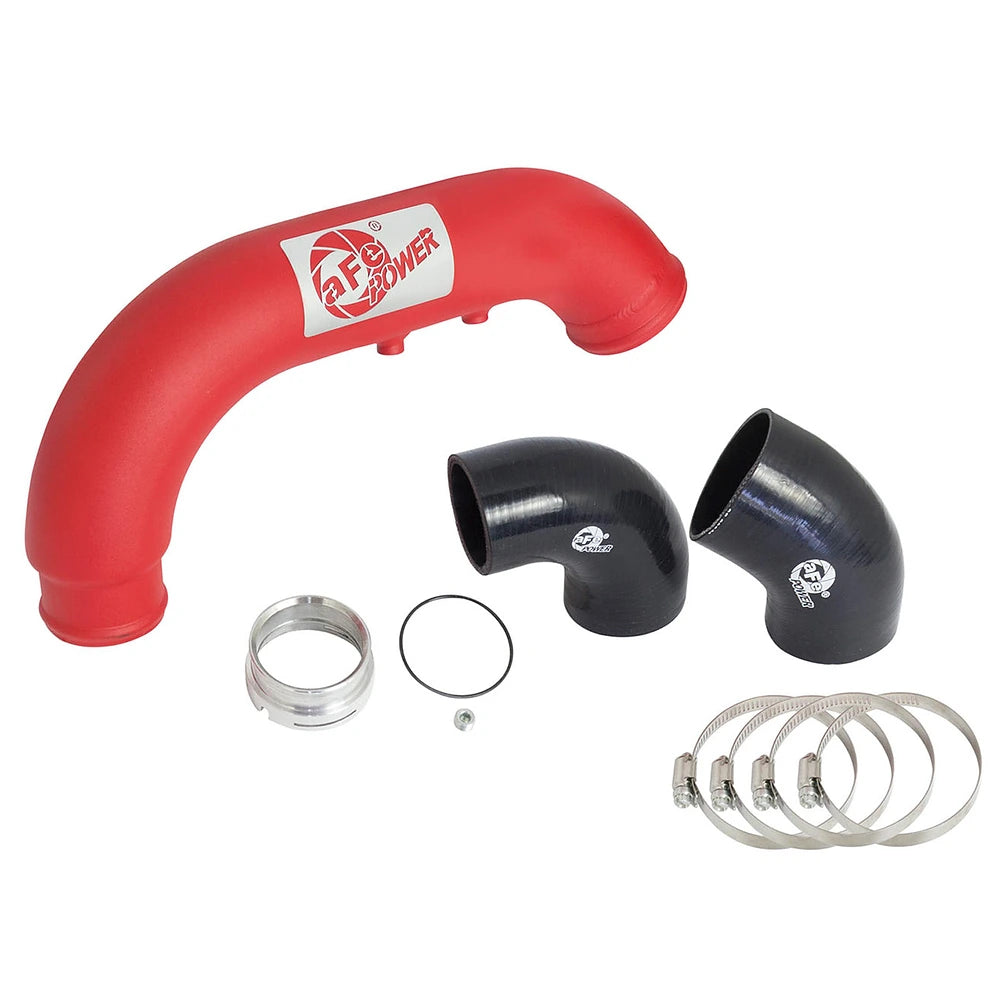

What's Included
- One 3-inch aluminum cold charge pipe.
- Two silicone couplings, four clamps, one O-ring, one plug and one billet quick-connect adapter.
- The cold manual specifies three #44 clamps and one #48 clamp; these designations are not the tube bore.
- Reuse the original temperature sensor and metal retaining clip. No new intercooler core, air filter or complete sensor/injection system is supplied.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power by exact engine and charge-pipe configuration; the stainless OER and larger aluminum configurations have different contents, year scopes and emissions statements.
- Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.
Frequently Asked Questions
What is the 46-20269-R?An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.
How many tubes and which side does this kit include?is the red cold-side aluminum charge-pipe replacement for 2016–2020 Chevrolet Colorado and GMC Canyon 2.8L LWN turbo-diesel applications. It uses 3-inch cold mandrel-bent aluminum tubing, not stainless-steel tubes, and mates to the original intercooler using billet factory-style adapters.
Are the airflow claims guaranteed horsepower gains?No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.
Which original couplings, vent or sensor components are retained?Reuse the original temperature sensor and metal retaining clip. Remove the original plastic clip-retaining housing to recover the clip; lubricate the supplied O-ring lightly. One auxiliary 1/8 NPT port per tube is manufacturer-listed, with an unused-port plug; it does not include an injection system.
What is the clamp torque?Exact manual directs clamp tightening with an 8 mm socket but supplies no numerical torque or mileage interval. Do not apply the stainless OER SmartSeal 72 in-lb value to these clamps.
Are all manual contents and installation steps consistent?The current exact primary page and linked manual cover 2016–2020; existing broader later-year references conflict with that scope and are not approved by borrowing a later hot-pipe range. Named trims still require the actual 2.8L LWN engine and original connection checks.
Does a threaded port include a water/methanol system?No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.
Is this kit CARB exempt?The current exact manufacturer page and linked manual state this aluminum pipe configuration is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV.
Installation Instructions
- Read the exact manufacturer instructions for 46-20269-R, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
- Cool and securely park the vehicle. Disconnect the appropriate original temperature-sensor connector and release the original turbo/engine-end clamp and intercooler quick connections as shown in the exact manual.
- Remove the original charge pipe and temperature sensor. Carefully release the plastic housing retaining each original metal clip so that the metal clip can be reused on the supplied adapter.
- Seal the unused auxiliary port with the supplied plug and thread sealant. Transfer each original temperature sensor into its separate sensor port. Follow the exact hot/cold port orientation; do not substitute an injection nozzle for the original temperature sensor.

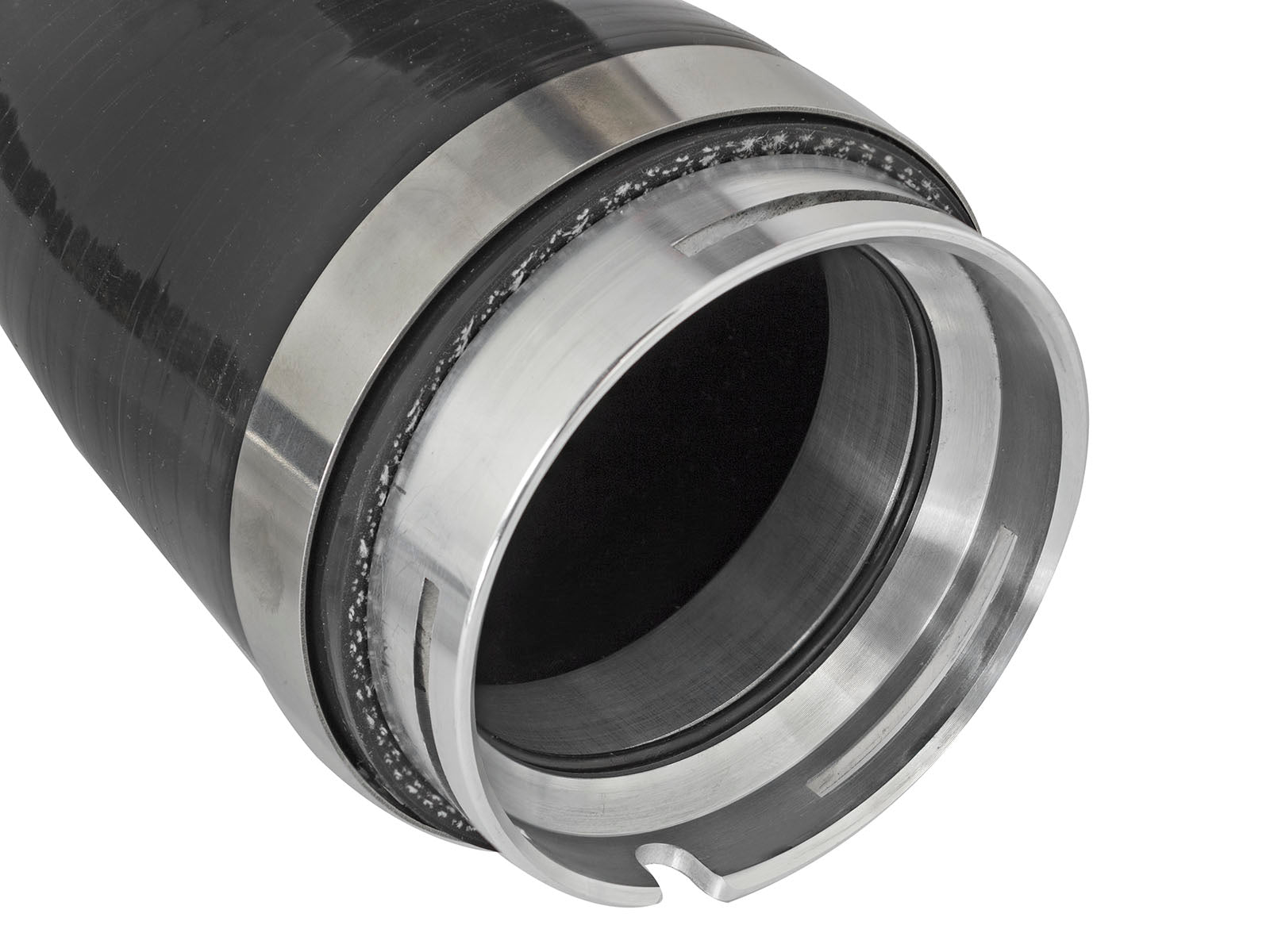

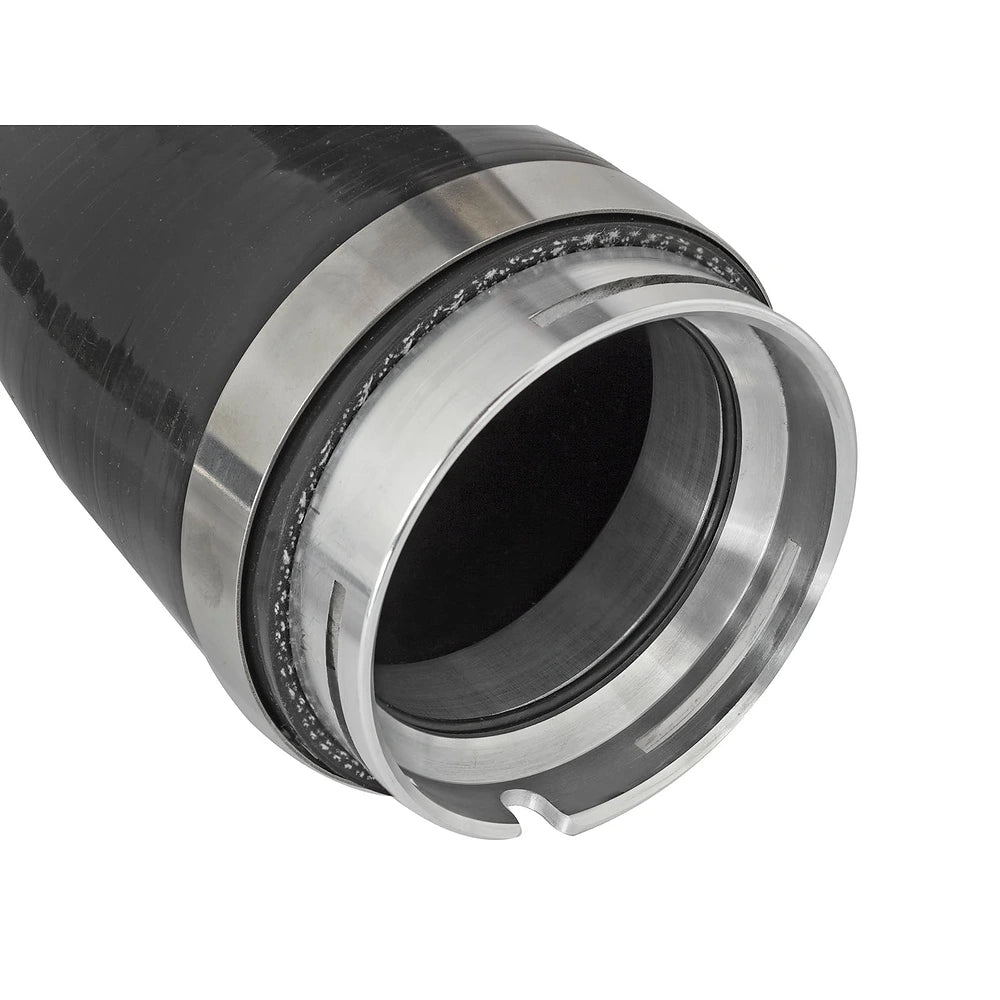

- Lightly lubricate the supplied O-ring, seat them in the adapter grooves and install the original metal clips on the adapters. Assemble the couplings with the manual clamp-number assignments.

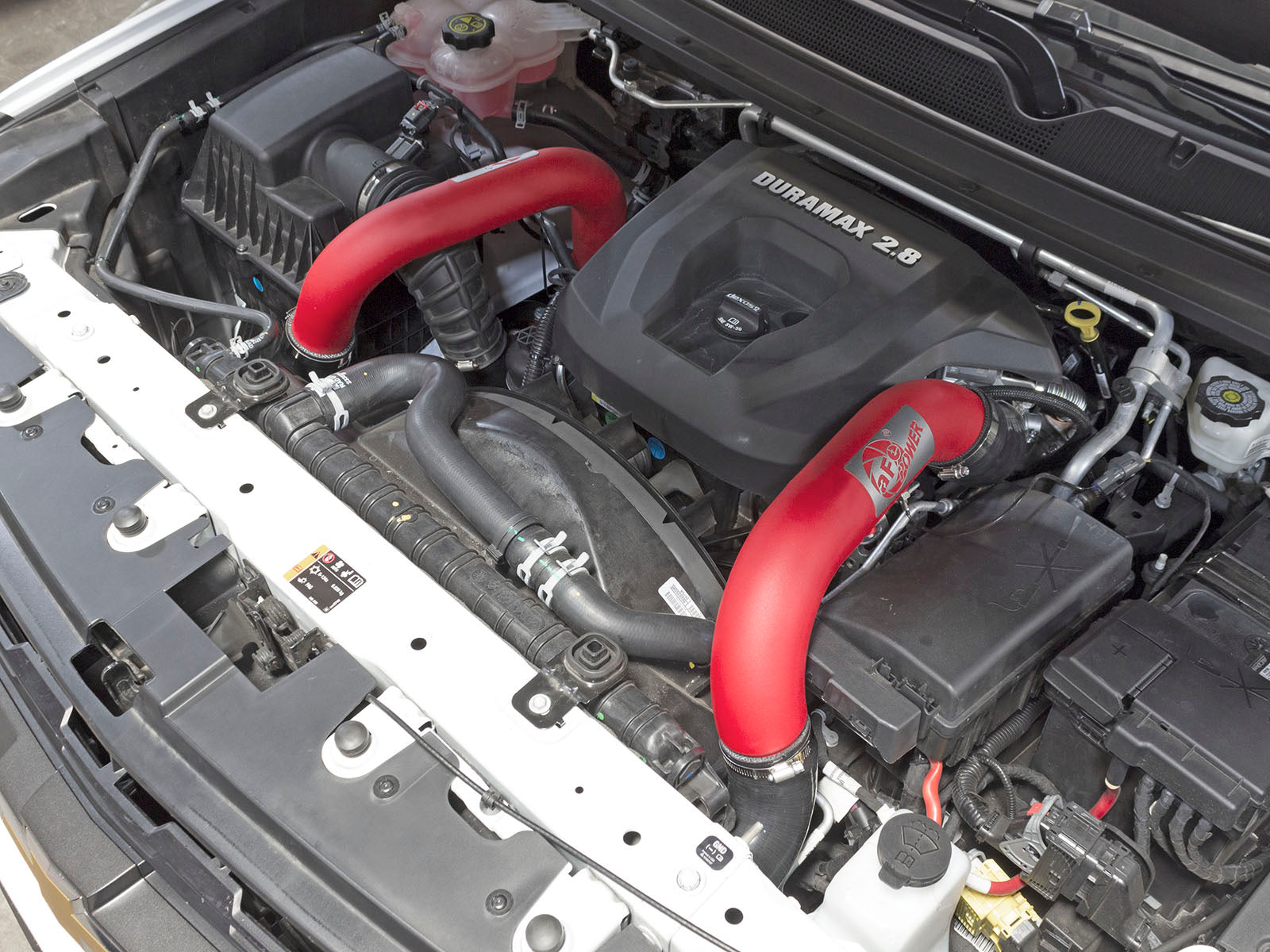

- Fit the intercooler connection first and then the engine inlet. Reconnect all sensor wiring. Ensure the pipes clear metal surfaces and rubber hoses before tightening.
- Tighten clamps with the instructed 8 mm socket and verify complete seating, retained clips, clearances and secure connections before operation. The exact aluminum manual gives no numerical torque or mileage recheck interval.
46-20269-R: inspect every connection and resolve the documented kit discrepancies before operation.
California Proposition 65 Warning
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
