aFe GM L5P 6.6L Hot/Cold Pipes 3in/3.5in Black 20–23

BladeRunner charge piping for the exact engine

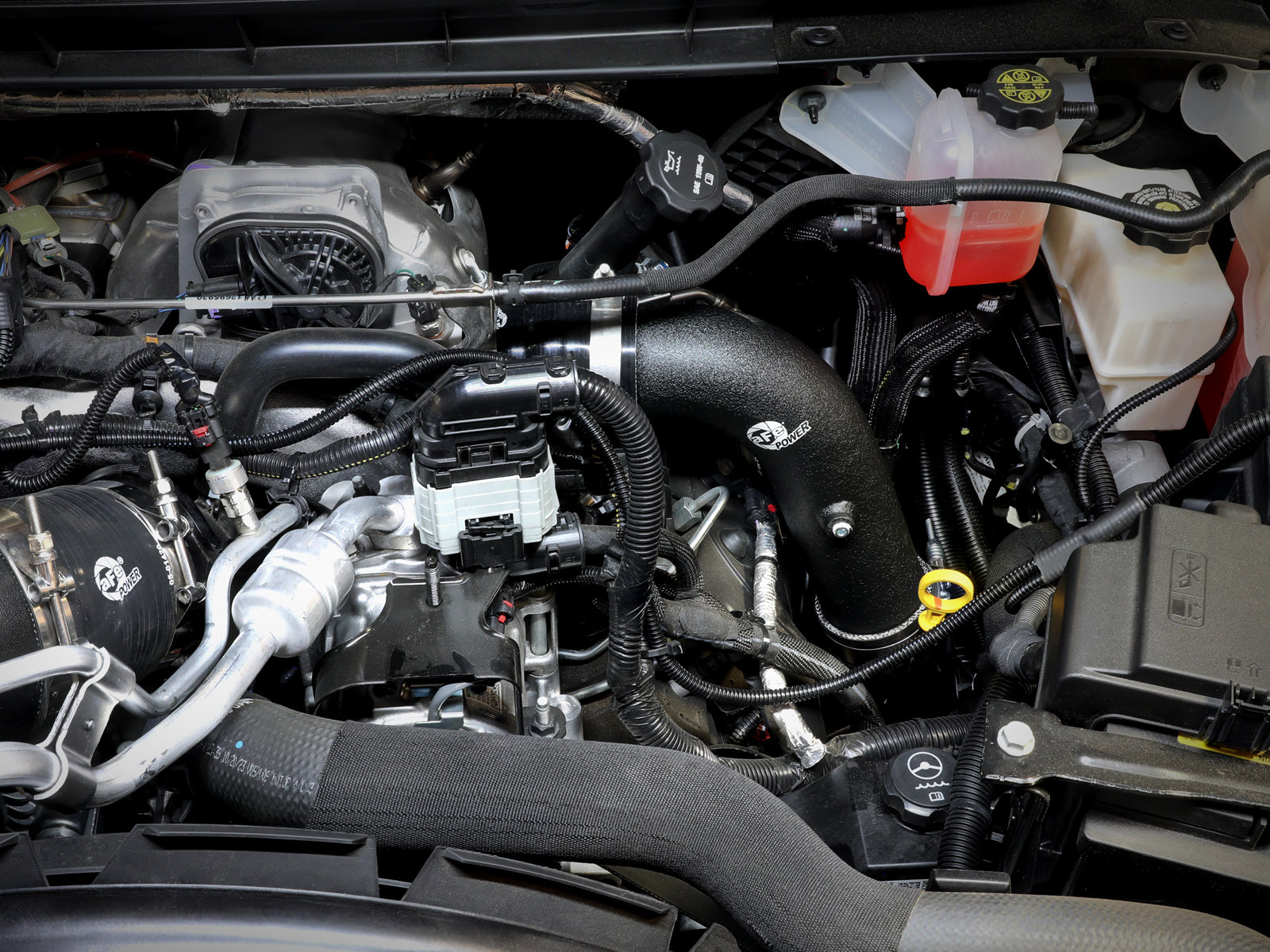

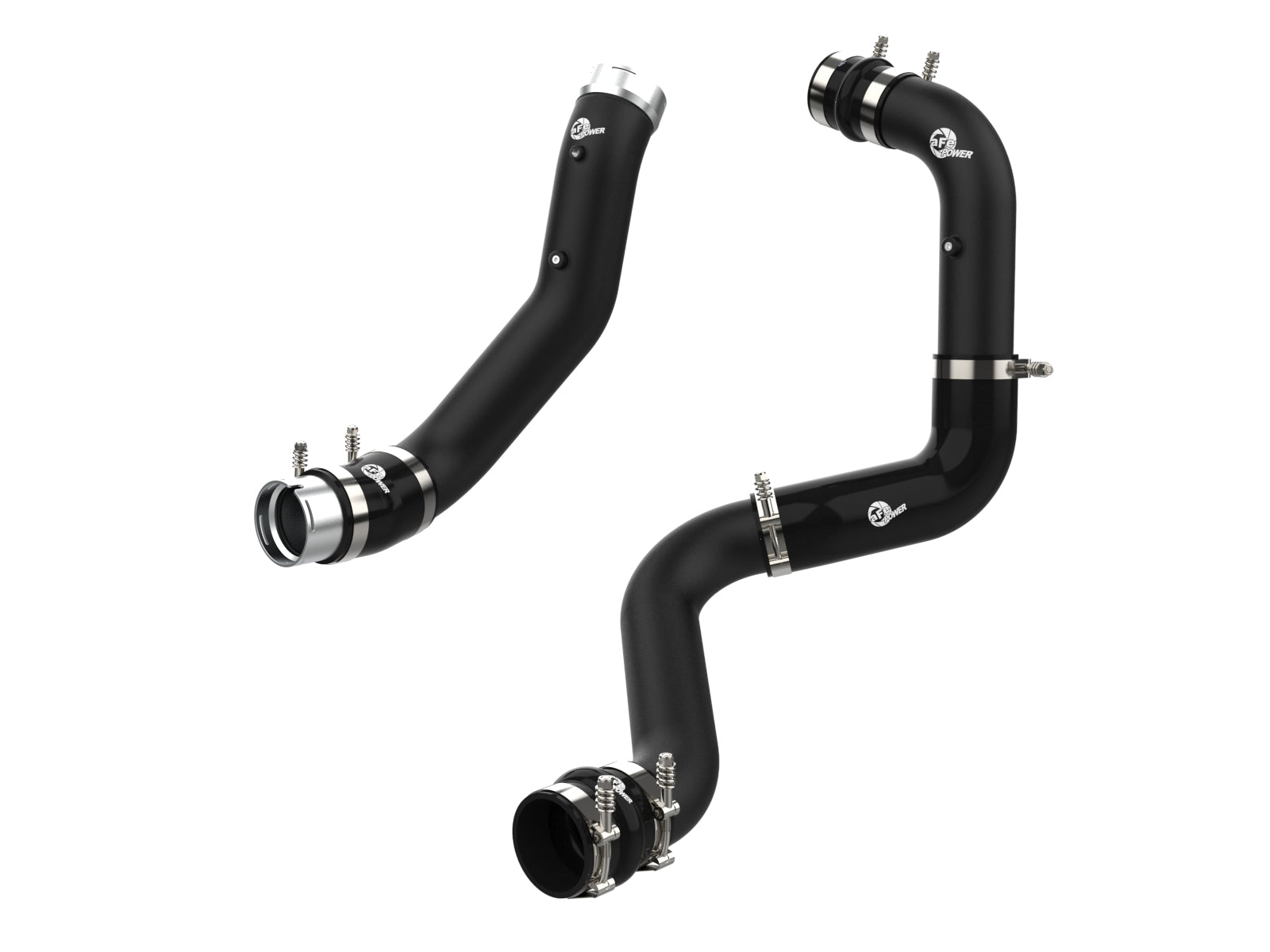

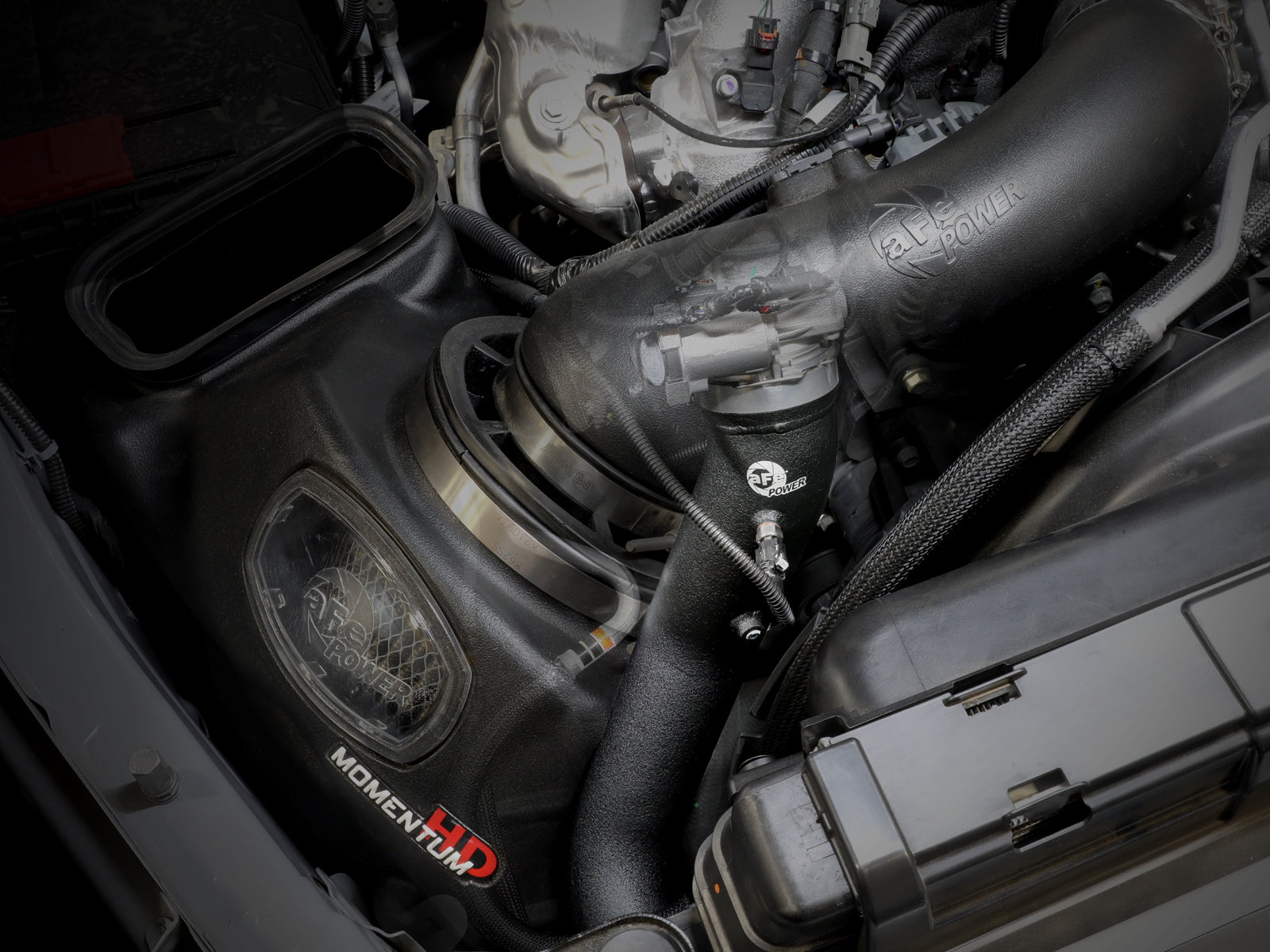

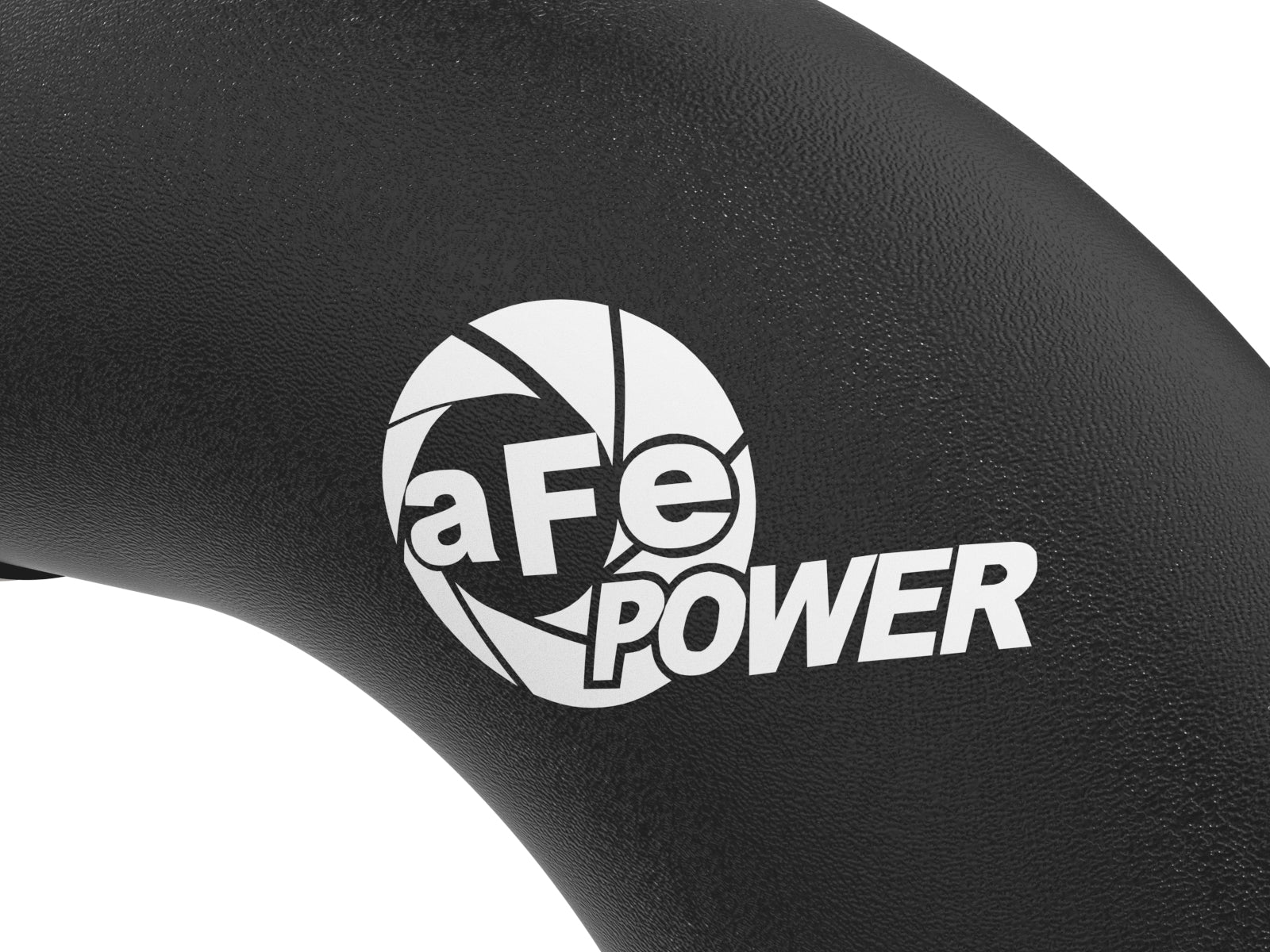

The aFe 46-20444-B is the hot and cold-side BladeRunner aluminum charge-pipe kit for 2020–2023 Chevrolet Silverado and GMC Sierra HD trucks with the 6.6L L5P turbo-diesel. It uses 3-inch hot / 3.5-inch cold TIG-welded aluminum tubing, wrinkle-black powder coating and supplied silicone/clamp hardware. It is charge piping, not a new intercooler core.

Key Features

• 3-inch hot / 3.5-inch cold aluminum charge path with three physical tube sections.
• Exact manufacturer packing quantities and retained original sensor/clip requirements are distinguished from the separately sold intercooler core.
• Manufacturer lists hot-side up to 26% and cold-side up to 22% more flow than stock; these are separate comparisons, not an additive 48% total. No guaranteed power, cooling result or boost limit follows from this test claim.
• One auxiliary 1/8 NPT fitting per side has an unused-port plug. This does not include a sensor, nozzle, controller or complete water/methanol system.

Fitment

46-20444-B: The current exact primary page and manual cover 2020–2023. A later hot-only pipe range does not extend this cold-side interface or complete combo application. The combination manual says check connections after 50–100 miles and gives no numerical clamp torque. The separately linked current hot/cold manuals specify 10 ft-lb or a completely collapsed spring and 100–200 miles. These are distinct instructions: confirm the supplied revision and exact-kit guidance rather than silently replacing the combo procedure with a component value. The cold adapter is called an inlet in one parts-table description, but its exact steps install it at the intercooler outlet. The printed 80m O-ring entry is resolved by the explicit 80 mm installation step. Named-trim restoration uses exact retailer detail within the manufacturer diesel/model scope. Actual L5P engine, body interfaces and boxed revision still require confirmation; no gasoline 6.6L or non-HD chassis approval is inferred.

Specifications

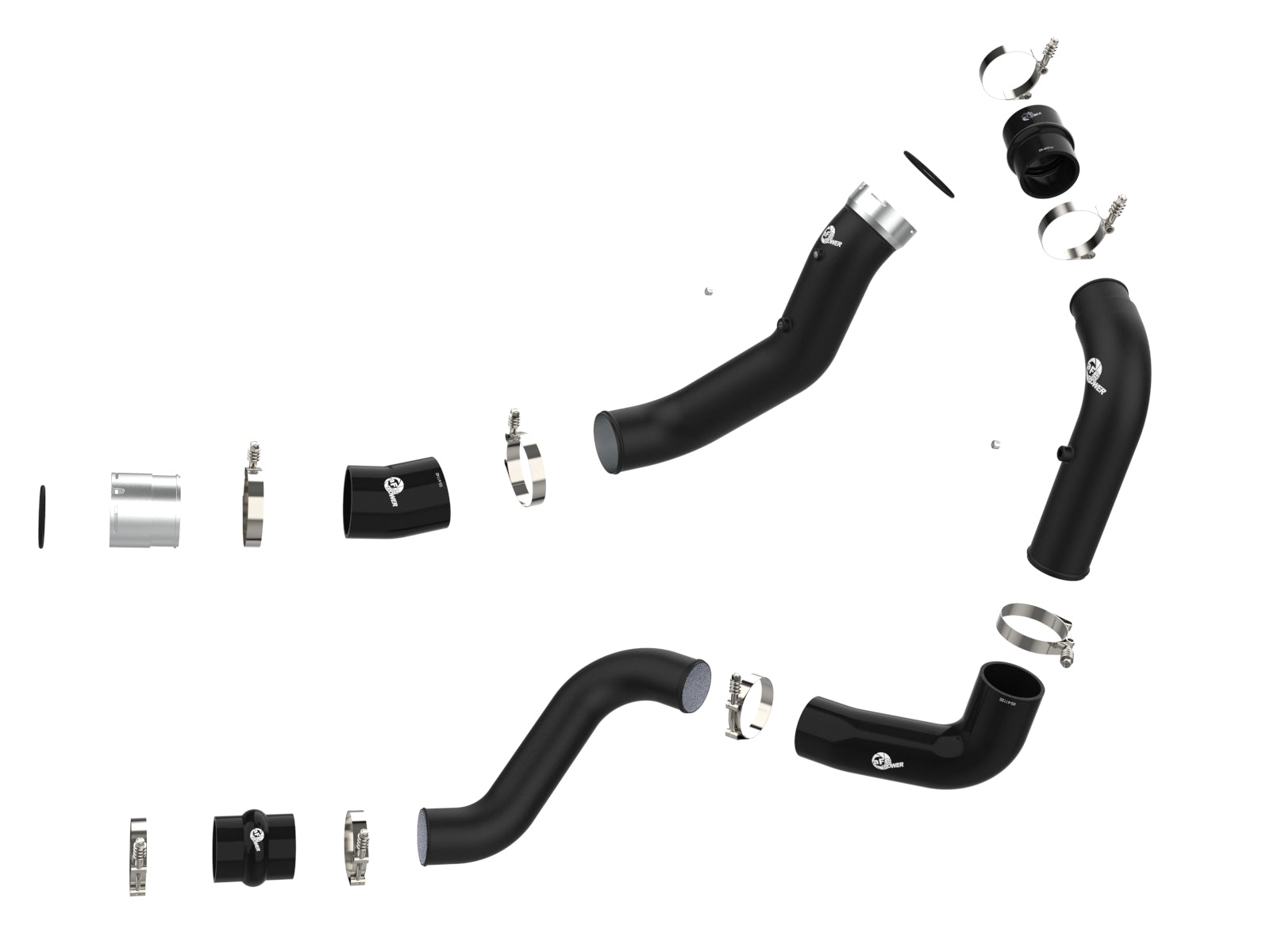

What's Included

• Two nominal 3-inch hot-side tube sections: upper 05-61138B and lower 05-61139B.

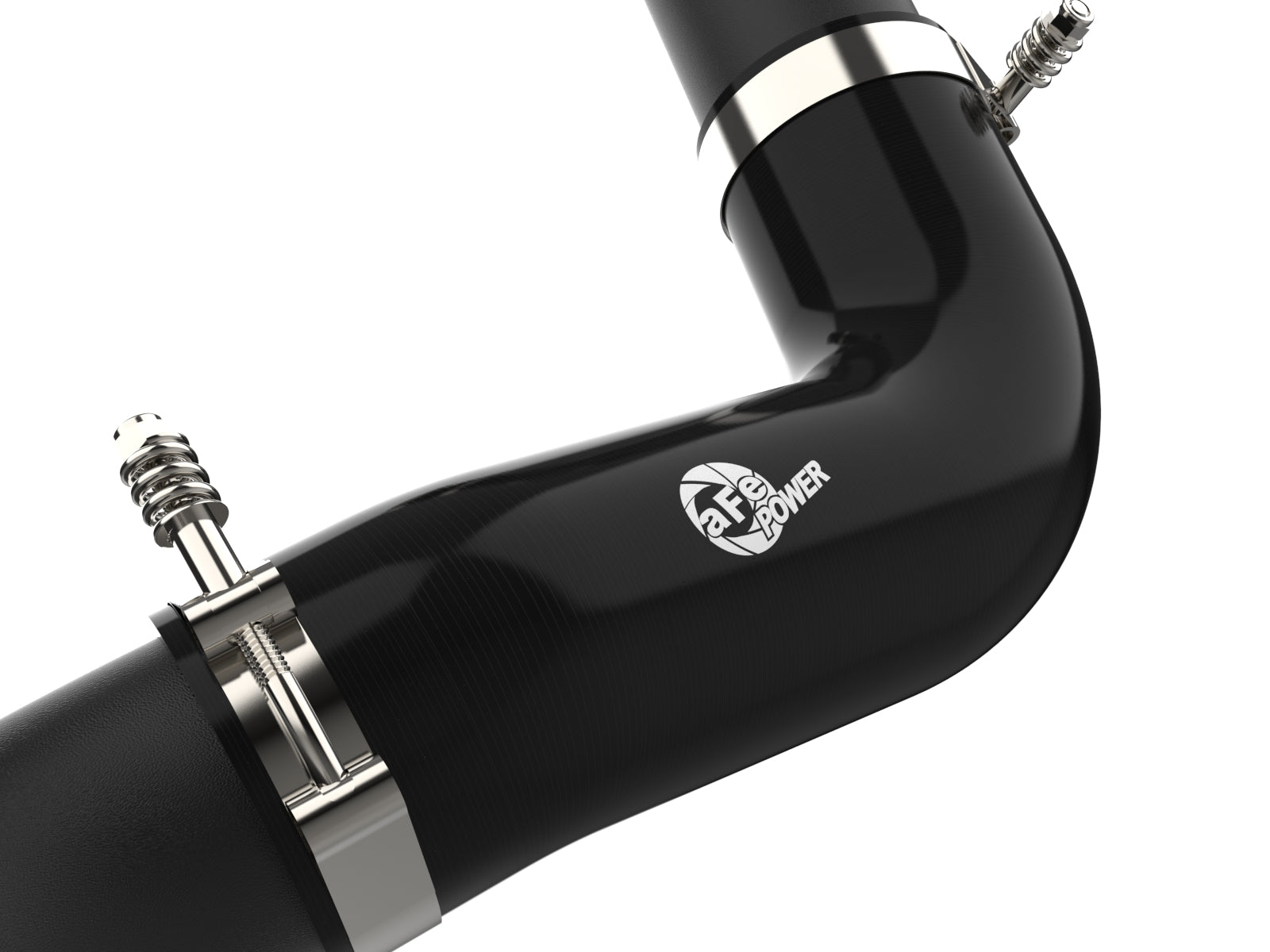

• Three silicone couplings: 2.75-inch ID × 4-inch length hump 05-60216; 3-inch elbow with 80-degree/30-degree bends 05-61122; 3-inch ID × 4-inch length hump 05-60012.
• Six spring-loaded T-bolt clamps: two 05-60435 and four 03-50530.
• One 1/8 NPT plug, 03-50029.
• One nominal 3.5-inch cold tube, 05-61140B, and one 3.50/3.45-inch, 14-degree silicone elbow coupling, 05-61142.

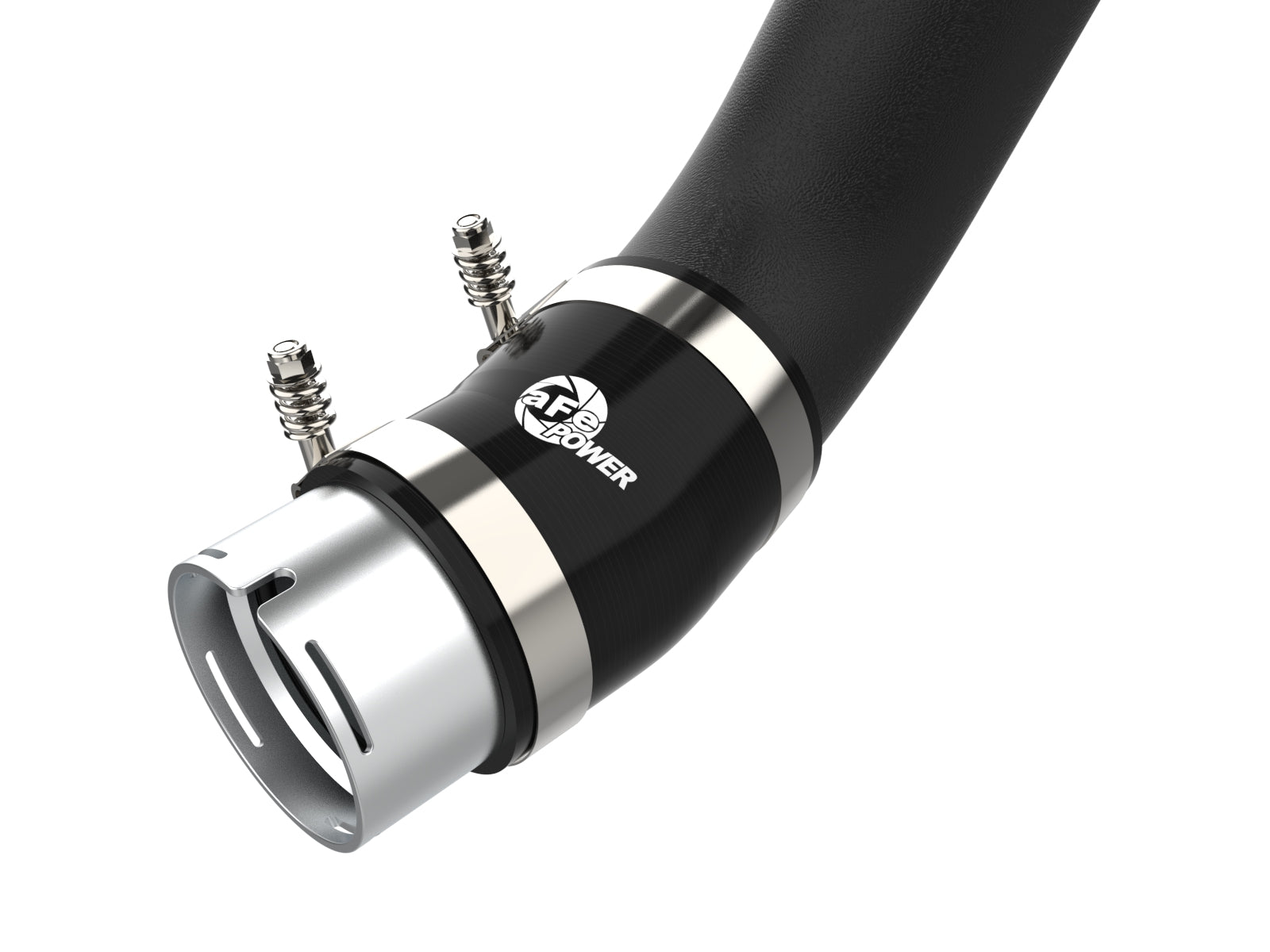

• Two spring-loaded T-bolt clamps, 05-60024, and one intercooler-outlet quick-connect adapter, 05-61141.
• One 70 mm ID × 5 mm O-ring, 05-61151, for the outlet adapter, and one 80 mm ID × 5 mm O-ring, 05-61136, for the cold tube engine-end connection. The table prints 80m, but the installation steps explicitly state 80 mm.
• One 1/8 NPT plug, 03-50029.
• No new intercooler core, air filter, MAF sensor, temperature sensor or complete injection system is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.

is the hot and cold-side BladeRunner aluminum charge-pipe kit for 2020–2023 Chevrolet Silverado and GMC Sierra HD trucks with the 6.6L L5P turbo-diesel. It uses 3-inch hot / 3.5-inch cold TIG-welded aluminum tubing, wrinkle-black powder coating and supplied silicone/clamp hardware. It is charge piping, not a new intercooler core.

No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.

Hot side has an auxiliary 1/8 NPT port and plug; no original hot sensor transfer is specified. The cold side reuses its original temperature sensor and both original retaining clips; the MAF is disconnected/reconnected for intake access, not newly supplied. Cold seals are 70 mm ID × 5 mm at the outlet adapter and 80 mm ID × 5 mm at the engine-end tube.

Exact combination manual: tighten clamps securely; no numerical torque provided, and check connections after 50–100 miles. Current individual manuals instead state 10 ft-lb or fully collapsed spring and 100–200 miles; confirm the correct combo revision before work.

The current exact primary page and manual cover 2020–2023. A later hot-only pipe range does not extend this cold-side interface or complete combo application. The combination manual says check connections after 50–100 miles and gives no numerical clamp torque. The separately linked current hot/cold manuals specify 10 ft-lb or a completely collapsed spring and 100–200 miles. These are distinct instructions: confirm the supplied revision and exact-kit guidance rather than silently replacing the combo procedure with a component value. The cold adapter is called an inlet in one parts-table description, but its exact steps install it at the intercooler outlet. The printed 80m O-ring entry is resolved by the explicit 80 mm installation step. Named-trim restoration uses exact retailer detail within the manufacturer diesel/model scope. Actual L5P engine, body interfaces and boxed revision still require confirmation; no gasoline 6.6L or non-HD chassis approval is inferred.

No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.

The current exact manufacturer page and linked manual state this configuration is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20444-B, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Cool and securely park the vehicle and disconnect negative battery cables. Release the MAF connector safety tab, disconnect its wiring, remove the intake tube and release the airbox from its mounting nut and original grommets.
3. Release the original cold-pipe temperature-sensor connector and the retaining clips at the engine inlet and intercooler outlet. Remove the original cold pipe and carefully recover both metal retaining clips for reuse.
4. Transfer the original intake-air temperature sensor into the indicated cold-pipe fitting and use thread sealant as instructed. Seal the unused 1/8 NPT port with the supplied plug when no accessory sensor is installed.
5. Lightly grease and install the 80 mm ID seal in the cold tube engine-end groove and the 70 mm ID seal in the separate intercooler-outlet adapter. Refit the original retaining clips and ensure the adapter clip snaps fully around the intercooler outlet groove. Follow the actual clip/notch positions, which may face front or rear depending on the vehicle.
6. Assemble the elbow and two cold-side clamps, connect the cold tube to the engine inlet first and then slide the elbow onto the intercooler-outlet adapter. Align for clearance and use the exact kit tightening guidance below.
7. Reconnect and lock the temperature-sensor wiring. Restore the airbox mounting pegs into their grommets, original nut, intake tube/clamps and MAF wiring/safety clip, then reconnect the negative battery cables. Check secure clamps and connectors after the exact manual interval.
8. Cool and securely park the vehicle and disconnect negative battery cables. Release the turbo-outlet coupling, remove the front driver-side inner-fender liner for access, release the original hose at the intercooler inlet and remove the hot pipe from above.
9. Use thread sealant on the unused-port plug or suitable accessory sensor. Install the supplied plug when no aftermarket sensor is used. Fit the 2.75-inch ID hump coupling to the reduced upper-tube end using its specified clamp.
10. Clean oil residue from connection surfaces. Through the wheel well, fit the 3-inch ID hump coupling at the intercooler inlet and install the lower tube. Fit the compound elbow between the lower and upper sections, leaving clamps loose for alignment.
11. Connect the upper assembly to the turbo outlet and lower assembly, fully seat the couplings and ensure no pipe contacts surrounding parts. Apply the exact kit tightening guidance below.
12. Restore the inner-fender liner and all removed hardware and reconnect the negative battery cables. Check secure clamps and connectors after the exact manual interval.
13. Tightening and recheck guidance for this exact listing: Exact combination manual: tighten clamps securely; no numerical torque provided, and check connections after 50–100 miles. Current individual manuals instead state 10 ft-lb or fully collapsed spring and 100–200 miles; confirm the correct combo revision before work.

46-20444-B: inspect every connection and resolve the documented kit discrepancies before operation.
