BladeRunner intercooling for the exact F-150 configuration
The aFe 46-20292-B is the intercooler and single cold-side tube kit for the 2017–2020 Ford F-150 Raptor 3.5L twin-turbo EcoBoost. It reuses the original hot-side pipes, fans and recirculation valve/canister. This is not a complete new hot/cold pipe kit or a replacement fan kit.
Key Features
- A 3-inch bar-and-plate intercooler core with manufacturer-specified aluminum end tanks and billet connections.
- The exact page reports 17% more flow for the cold tube over the original cold tube. This is not a verified whole-kit flow increase or guaranteed horsepower gain.
- Kit-specific fan and bracket spacers retain the original fan assembly and support arrangement. No new fans are included.
- Accessory/condensation port and vent/plug arrangement do not supply an injection system or establish universal sensor compatibility.
Fitment
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2017–2020 | Ford F-150 Raptor | 3.5L twin-turbo EcoBoost V6 with the exact original fan, bracket and valve configuration; not blanket approval for all F-150 engines or trims |
46-20292-B: The linked exact manual names this Raptor kit and lists two separate fan spacers and two bracket spacers. Its installation sequence jumps from step 30 to step 33 and does not explicitly close every disconnected fan-wire connection; verify complete original fan/harness restoration and the throttle-body coupling under the applicable vehicle service procedure before operation. No missing fastener length, numerical torque or recheck mileage is invented. The older manual race-only notice does not override the current primary California restriction.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20292-B |
| Configuration | Intercooler plus one cold-side tube; original hot-side tubes and fans retained |
| Material | TIG-welded 3/16-inch 5052 aluminum end tanks per primary overview; powder-coated aluminum cold tube and billet-aluminum quick adapter |
| Core and connections | 3-inch bar-and-plate core with dual 2.5-inch inlets and one 3-inch outlet; not an overall dimensional specification |
| Charge tubes | One nominal 3.5-to-3-inch cold tube, two silicone couplings, four clamps and an O-ring-sealed adapter using the original retaining clip |
| Original components | Retain the original intercooler fans and grommets, hot-side couplings, valve/canister and cold-pipe sensor. Lubricate the supplied adapter O-ring and sensor seal as instructed; reuse the factory intercooler retaining clip and confirm it snaps fully into its groove. |
| Fastening / maintenance | No numerical torque or mileage-based clamp recheck interval is provided by the exact manual. M10/M6 fastener names and tool sizes are not torque values. |
| Emissions | The current manufacturer page states this product is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV. |
What's Included

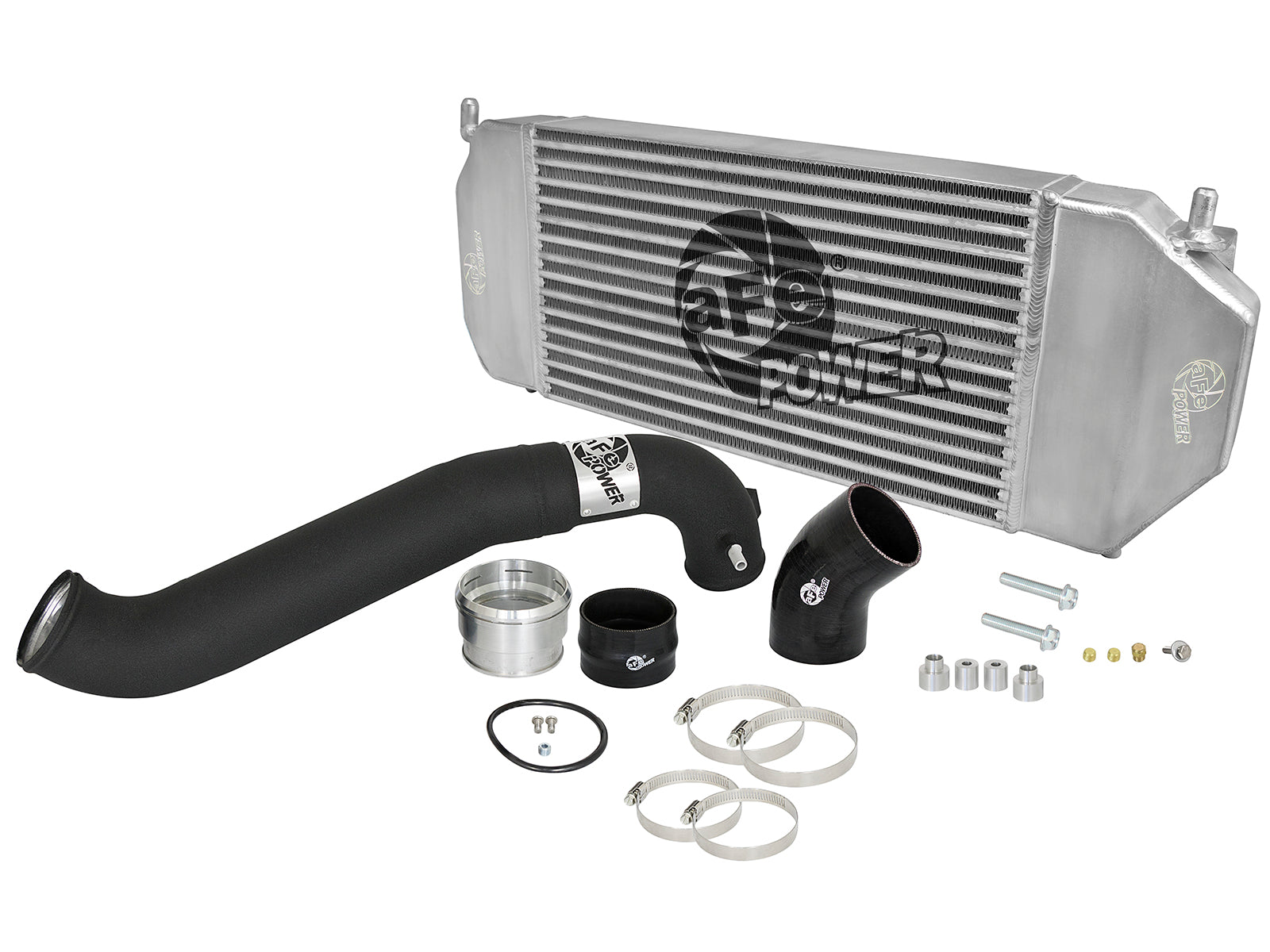

- One intercooler and one cold-side tube, 05-60771B.
- One quick-connect adapter, one O-ring, one silicone elbow and one small silicone coupling; two #048 clamps and two #052 clamps.
- Two bracket spacers, two fan spacers, two M10 socket-head screws, two M6 cap screws and two M6 washers. No unlisted screw length is inferred.
- Three 1/8 NPT hex plugs and one 1/8 NPT breather vent. Original retaining clip, sensor, fans, rubber grommets, valve/canister and hot-side connections are retained.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power by exact engine and intercooler configuration.
- Verify the exact core, valve, fan, pipe and support arrangement before selecting separate charge piping or accessories; a shared F-150 model name is not compatibility proof.
Frequently Asked Questions
What is the 46-20292-B?is the intercooler and single cold-side tube kit for the 2017–2020 Ford F-150 Raptor 3.5L twin-turbo EcoBoost. It reuses the original hot-side pipes, fans and recirculation valve/canister. This is not a complete new hot/cold pipe kit or a replacement fan kit.
Does this include all new hot and cold piping?Intercooler plus one cold-side tube; original hot-side tubes and fans retained. One nominal 3.5-to-3-inch cold tube, two silicone couplings, four clamps and an O-ring-sealed adapter using the original retaining clip
Which original components must be retained?Retain the original intercooler fans and grommets, hot-side couplings, valve/canister and cold-pipe sensor. Lubricate the supplied adapter O-ring and sensor seal as instructed; reuse the factory intercooler retaining clip and confirm it snaps fully into its groove.
Are all related F-150 intercoolers interchangeable?No. Match exact model years, engine, valve, fan, support and pipe connections. The core-only and tube-equipped kits have different hardware and instructions.
Are the manufacturer performance claims guaranteed?No. Only the exact primary test claims stated above apply, with their test configuration and limitations. They are not guaranteed gains or a safe boost-setting recommendation.
Is a water/methanol system or new sensor included?No. A threaded port, vent or plug does not supply an injection controller, nozzle, pump or universal sensor. Confirm each accessory independently.
What are the torque, document and packing-list limitations?No numerical torque or mileage-based clamp recheck interval is provided by the exact manual. M10/M6 fastener names and tool sizes are not torque values. The linked exact manual names this Raptor kit and lists two separate fan spacers and two bracket spacers. Its installation sequence jumps from step 30 to step 33 and does not explicitly close every disconnected fan-wire connection; verify complete original fan/harness restoration and the throttle-body coupling under the applicable vehicle service procedure before operation. No missing fastener length, numerical torque or recheck mileage is invented. The older manual race-only notice does not override the current primary California restriction.
Is this intercooler CARB exempt?The current manufacturer page states this product is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV.
Installation Instructions
- Read the exact Raptor intercooler/cold-tube instructions for 46-20292-B, verify its complete packing list and resolve the documented closing-step omissions before work.
- Park level, engage the parking brake, cool the engine and follow the manual battery-disconnection guidance. Remove the intake Y-pipe and its sensor connection, release the vent and cold-tube wiring attachment, and retain the original cold-pipe sensor.
- Release the throttle-body coupling. Remove the skid plate, move the pressure-relief-valve tube aside, separate the original cold pipe and remove its lower wire retaining clip for reuse.
- Disconnect the original hot-side intercooler couplings. Release the valve wire loom and intercooler-fan harness clips/connector as directed. Support the cross brace before removing the two frame bolts and lowering the intercooler, fans and brace together.
- Transfer the original rubber grommets to the new intercooler and install the specified bottom-pin plugs with thread sealant. Fit the two supplied fan spacers into the lubricated original fan grommets.
- Transfer the original valve/canister assembly, securing it with the supplied bolt and washer. Assemble original fans, grommets, hot-side couplings, brace and new core. With assistance, refit the assembly using the second pair of bracket spacers and supplied bolts; confirm upper grommet seating before tightening.
- Install the original retaining clip into the adapter outer groove and supplied O-ring into its inner groove. Lubricate adapter/sensor seals as directed, fit the large elbow and clamps, then fit the small coupling, sealed unused port plug and original sensor to the new cold tube.
- Lower the cold tube into place and seat the adapter fully onto the intercooler, confirming complete clip engagement. Verify the upper throttle-body coupling and all clamps under the applicable instructions; do not treat the manual skipped step numbers as permission to omit a connection.
- Restore the relief-valve tube, sensor and vent locks, intake Y-pipe, skid plate and all original electrical connections, including fan/valve looms and the battery connection as applicable. Verify original fan operation and secure, leak-free routing before operation; no numerical torque or mileage schedule is inferred.
46-20292-B: resolve all stated source and hardware limitations before operating the vehicle.
