aFe BladeRunner Ford 6.4L Diesel 3in Hot/Cold Pipes 08–10

BladeRunner charge piping for the exact engine

The aFe 46-20074-B is the two-tube hot- and cold-side kit for the 2008–2010 Ford F-250/F-350 6.4L turbo-diesel Power Stroke. It replaces charge piping, not the intercooler core, radiator or an entire cooling system.

Key Features

• The exact primary page reports up to 13 hp / 31 lb-ft, with hot-side flow up to 14% and cold-side flow up to 18% over their respective stock pipes. These individual manufacturer tests are not additive or guaranteed results for every vehicle.
• Five-ply silicone couplings and stainless-steel spring-loaded T-bolt clamps, per current primary descriptions.

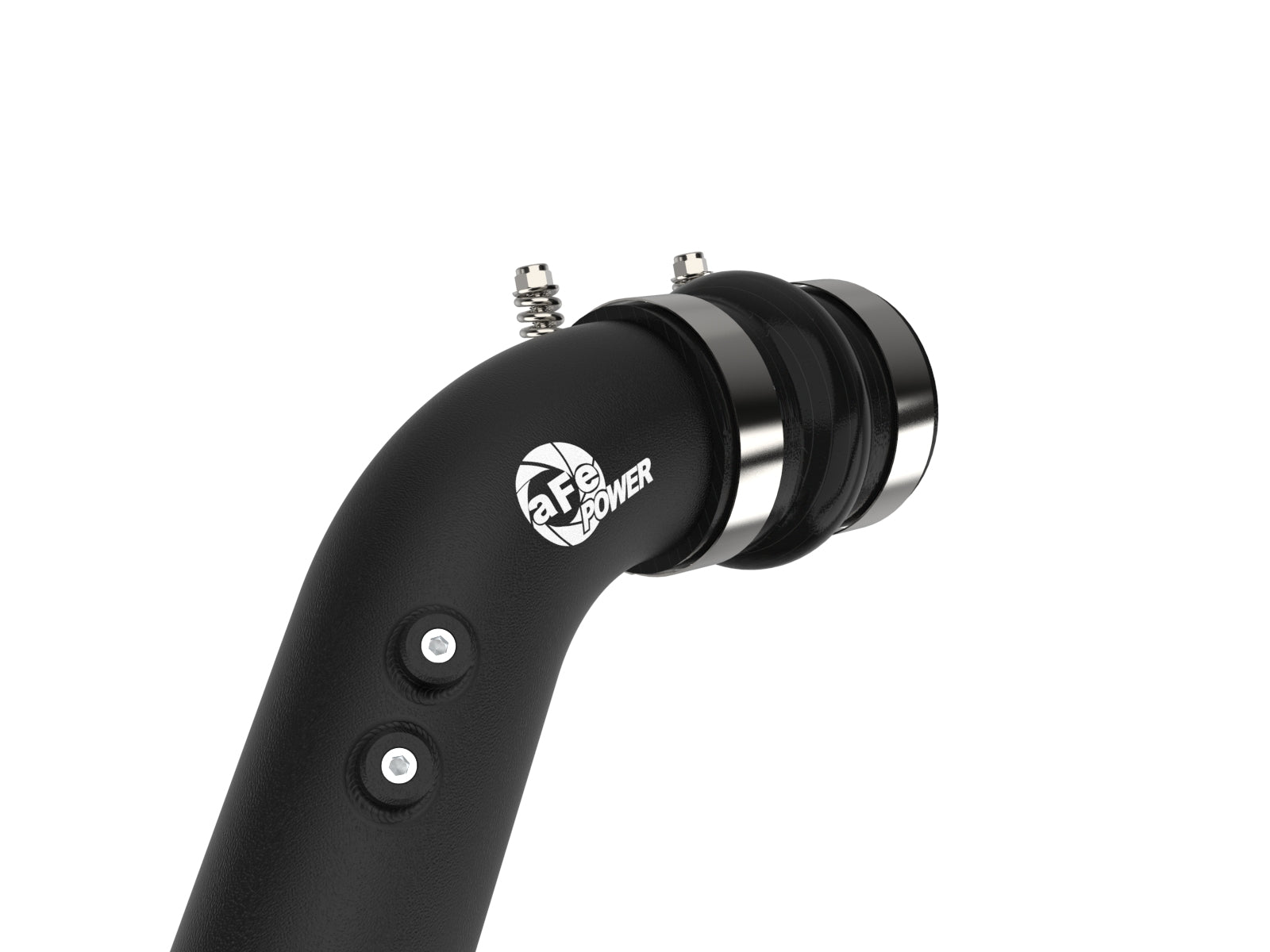

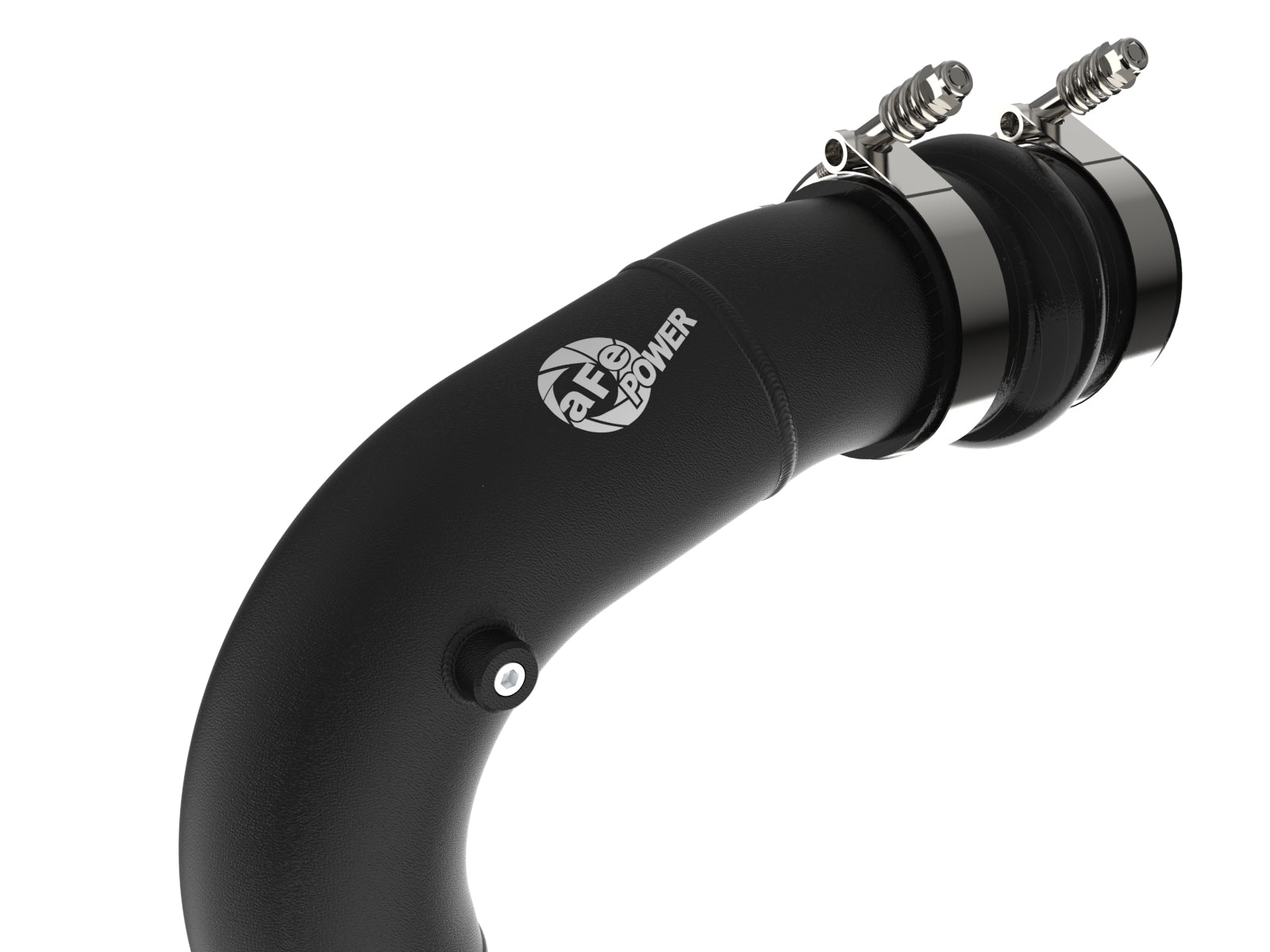

• Unused accessory ports are sealed with supplied 1/8 NPT plugs; a port does not include or universally approve a sensor or water/methanol system.
• No new air filter is listed in the exact manual; the generic Filter Included page field does not change the kit contents.

Fitment

46-20074-B: The exact manuals identify F-250/F-350 2008–2010 with the 6.4L turbo-diesel engine. A model/trim name alone does not establish that engine or actual charge connections. Additional F-450/F-550 cold-pipe listings appear in retailer search results, but exact chassis applicability is not independently certified here and is not extended to the other kits. Do not infer all diesel engines or add gasoline applications. The exact combined manual lists one hot tube and one cold tube. Its cold component is labeled 46-20078-B internally, while the separate marketed cold SKU omits that suffix; this is not a promise of another complete kit. Hot removal requires choosing radiator removal to preserve the old tube or an illustrated original-pipe cut for non-reuse. Cold-side core-support clearance can require trimming and the supplied isolation pad.

Specifications

What's Included

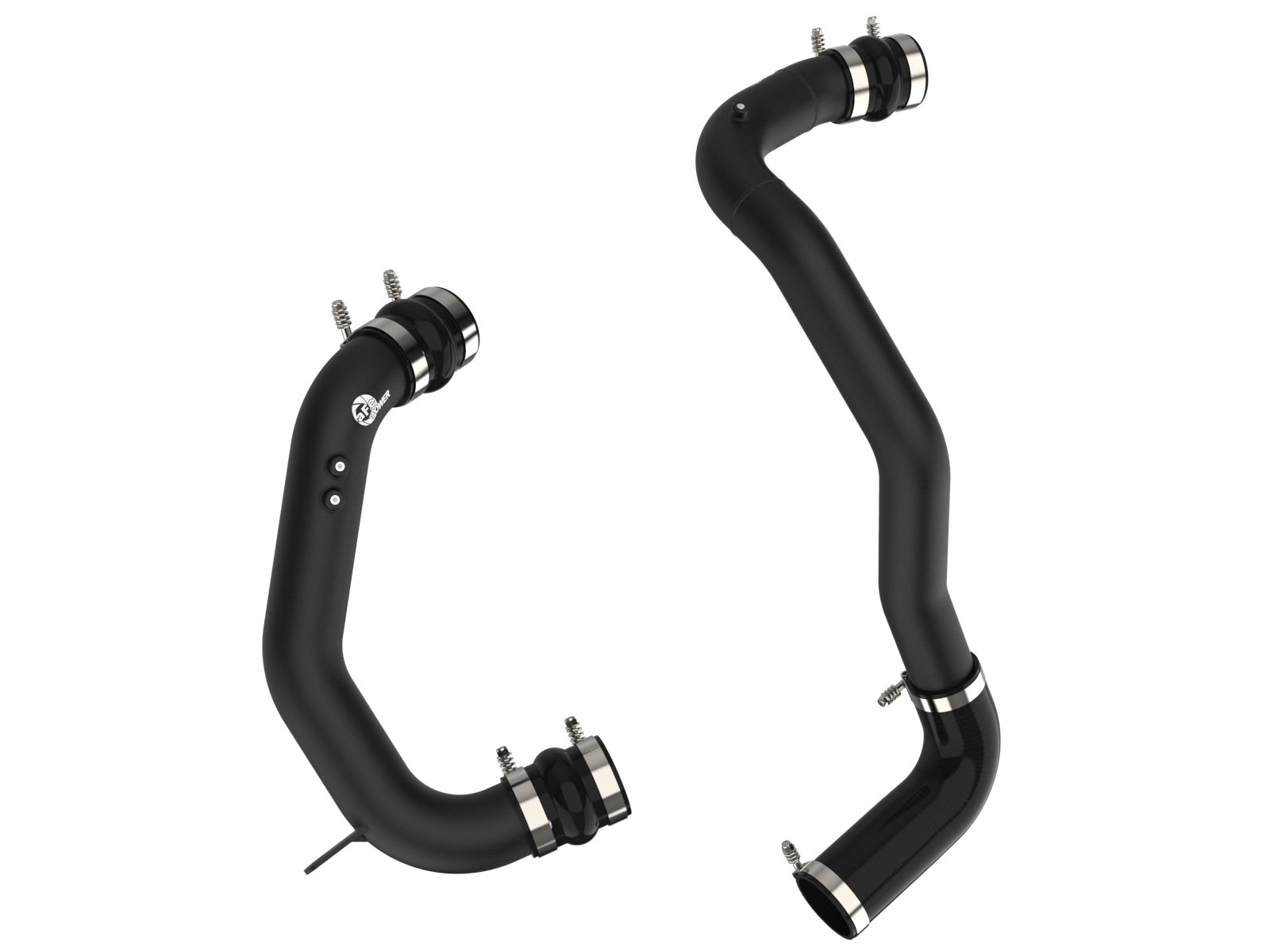

• One 3-inch hot tube, 05-61119B, and one 3-inch cold tube, 05-61188B.

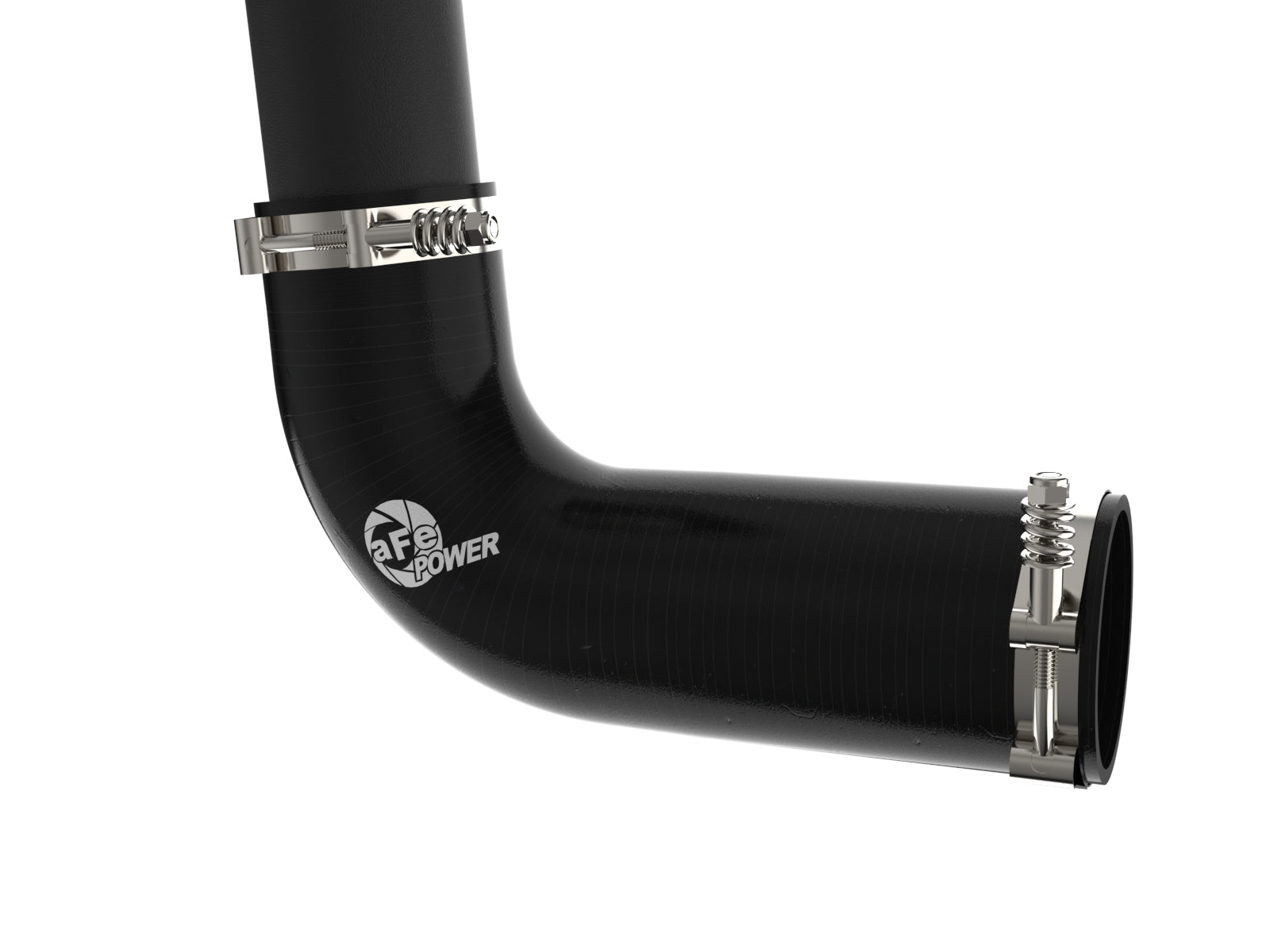

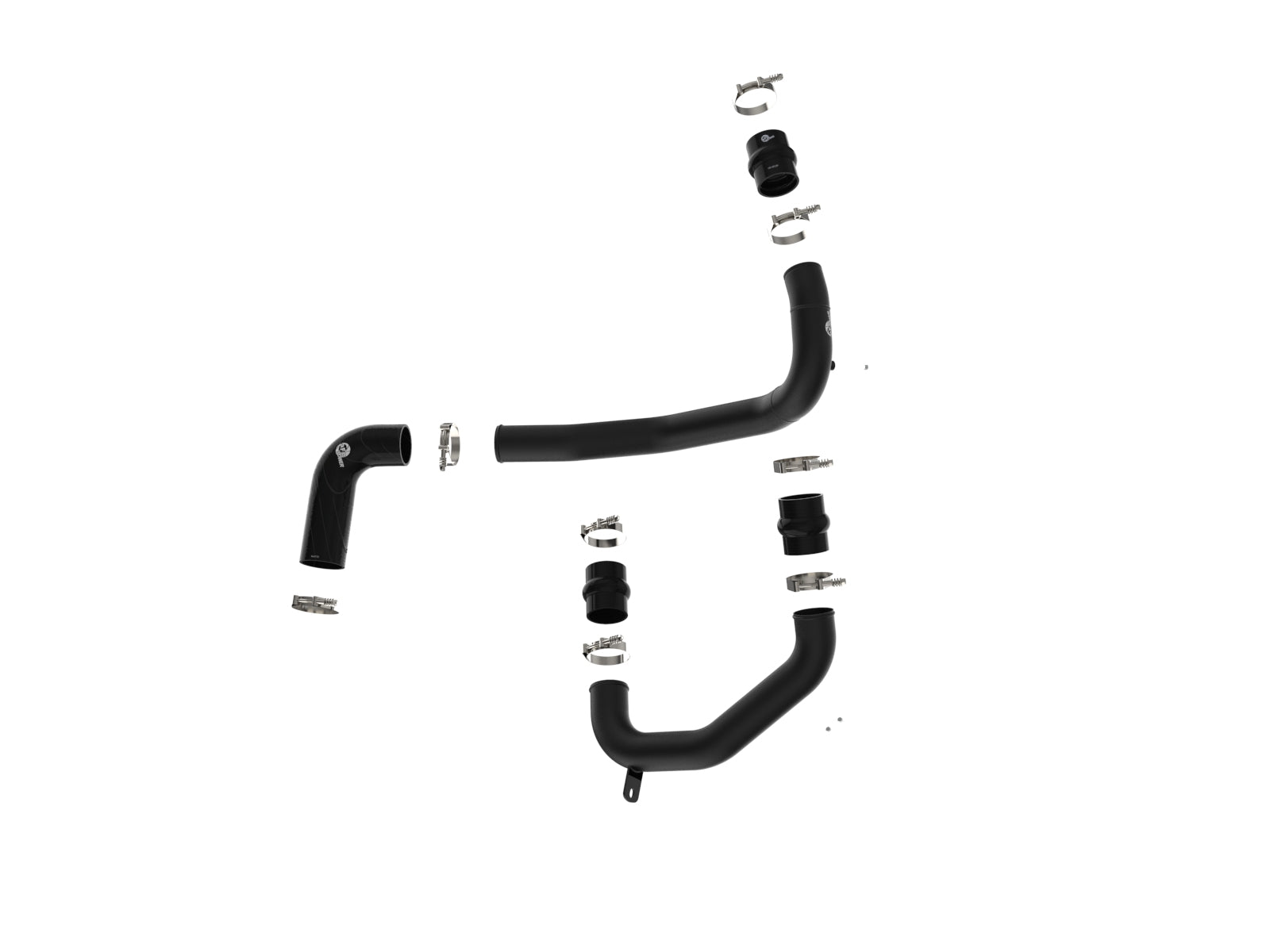

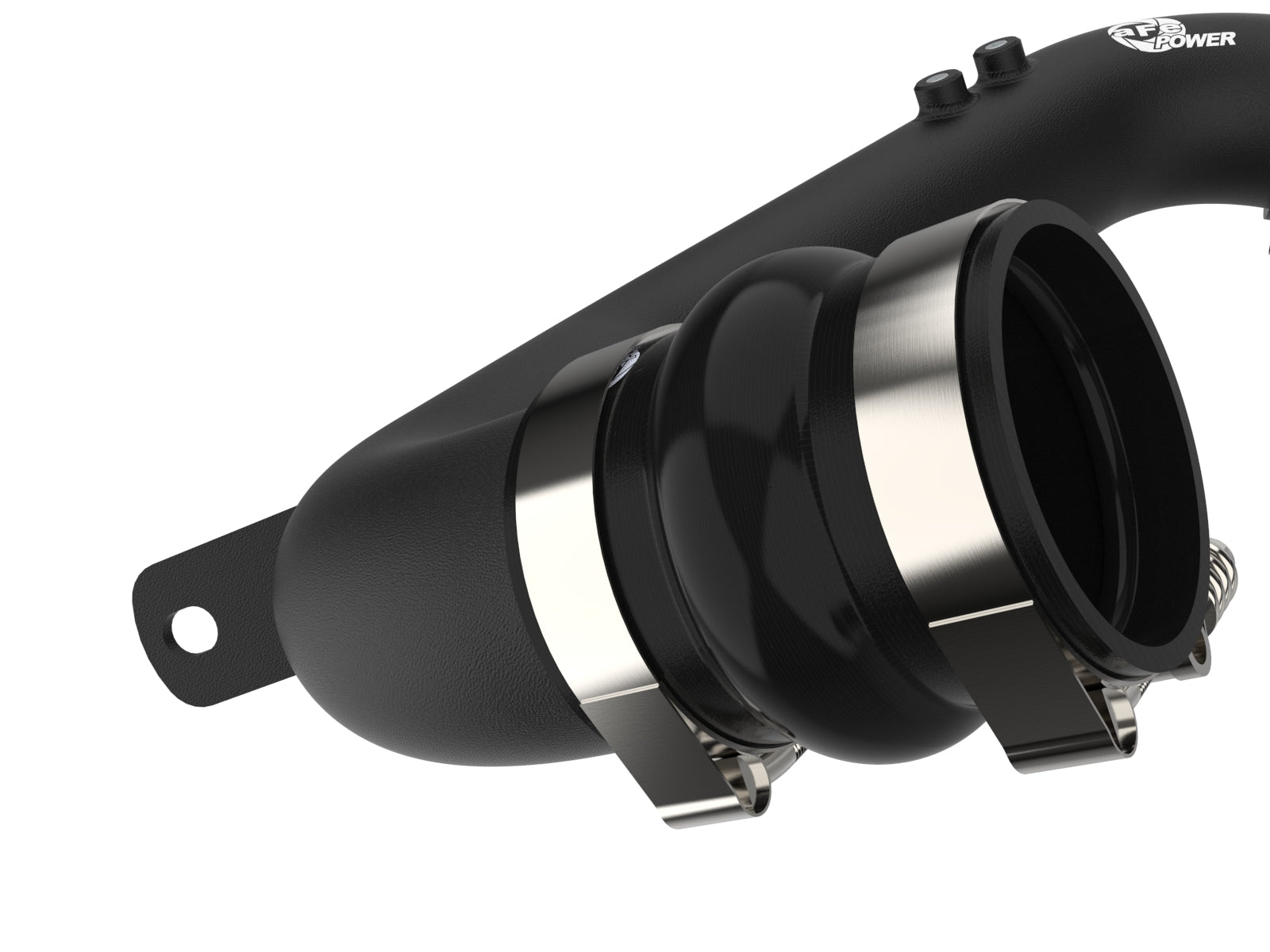

• Four silicone couplings: one 86-degree 3.25-to-3-inch reducer, one 3-inch ID x 4-inch hump and two internally beaded 3-inch ID x 4-1/8-inch humps.
• Eight spring-loaded T-bolt clamps: seven listed at 3.25 inches and one at 3.38–3.69 inches.
• Three 1/8 NPT plugs and one isolation pad, 3 x 4 x 1/8 inch. No intercooler core, radiator, new sensor or air filter.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.

is the two-tube hot- and cold-side kit for the 2008–2010 Ford F-250/F-350 6.4L turbo-diesel Power Stroke. It replaces charge piping, not the intercooler core, radiator or an entire cooling system.

No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.

Hot work moves and restores the original power-steering reservoir/line clip; no new steering line or sensor is supplied. Cold work also retains the horn, radiator brackets, upper support, hood latch, transmission-cooler attachment and original mounting screw.

The exact manual gives no numerical torque. Tool/socket sizes and clamp diameters are not torque specifications. Check all connections after 50–100 miles, as stated in each exact manual.

The exact manuals identify F-250/F-350 2008–2010 with the 6.4L turbo-diesel engine. A model/trim name alone does not establish that engine or actual charge connections. Additional F-450/F-550 cold-pipe listings appear in retailer search results, but exact chassis applicability is not independently certified here and is not extended to the other kits. Do not infer all diesel engines or add gasoline applications. The exact combined manual lists one hot tube and one cold tube. Its cold component is labeled 46-20078-B internally, while the separate marketed cold SKU omits that suffix; this is not a promise of another complete kit. Hot removal requires choosing radiator removal to preserve the old tube or an illustrated original-pipe cut for non-reuse. Cold-side core-support clearance can require trimming and the supplied isolation pad.

No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.

The current manufacturer pages state these products are not CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV. The older combo manual race-only notice does not establish road-use approval.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20074-B, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Allow cooling, park level, engage the parking brake and disconnect the negative battery cables. Choose the exact manual removal method before proceeding: aFe recommends radiator removal if preserving the original hot tube; alternatively the original tube may be cut for removal only if it will not be reused. Radiator work requires the applicable vehicle service procedure.
3. For the illustrated original-pipe cutting route, release both original hot-tube connections and place rags inside the tube as directed to protect against debris. Unclip the power-steering line, unbolt and move its reservoir aside without inventing a hydraulic-line disconnection.
4. Mark the original tube at the manufacturer illustrated location, move all wires, hoses and reservoirs clear and cut only that identified original charge pipe if the non-reuse route was chosen. Do not invent a universal cut length or cut a new supplied pipe. Remove the old tube and its couplings, retaining original components needed for restoration.
5. Remove all protective rags/debris before assembly. Seal unused NPT ports with supplied plugs and thread sealant as directed, and thoroughly clean oil residue from coupling connections.
6. Fit the 3-inch ID x 4-1/8-inch internally beaded hump and two 3.25-inch spring-loaded clamps at the turbo outlet, initially loose. Fit the new hot tube and seat the coupling bead into its prescribed locking position. Restore the power-steering reservoir and line clip.
7. Fit the 86-degree 3.25-to-3-inch reducer with one 3.25-inch clamp and the larger supplied 3.38-to-3.69-inch clamp at the intercooler end. Align the tube clear of surrounding components before final clamp tightening.
8. With negative battery cables disconnected, release the original cold-side intercooler coupling. Disconnect/remove the horn and move the transmission cooler aside from its intercooler saddle, retaining original hardware.
9. Release the two upper intercooler support screws. Mark the exact hood-latch position around its screws, then remove and move the latch aside with its retaining clips. Remove radiator-support brackets and the upper core-support fasteners as directed; retain all parts.
10. Remove the upper core support, release the engine-inlet coupling and remove the original cold pipe. Seal unused threaded ports with the supplied plugs and thread sealant. Clean oil residue from all coupling connections.
11. Fit the 3-inch ID x 4-inch hump and two 3.25-inch spring-loaded clamps to the new pipe end without the bracket. Fit that end to the engine inlet and loosely use the original lower passenger-side core-support screw to support the tube as instructed.
12. Check pipe-to-core-support clearance in the illustrated area. Add the supplied isolation pad where directed. If clearance is insufficient, the manual calls for slight trimming of the upper core support. This is not a fan-shroud cut, and the pad does not replace required clearance. Do not invent a cut dimension.
13. Restore radiator brackets, the hood latch aligned to its original marks, intercooler support, transmission-cooler fastener and horn/electrical connector. Verify proper latch engagement using the applicable vehicle service procedure before driving.
14. Fit the 3-inch ID x 4-1/8-inch internally beaded hump and two remaining 3.25-inch spring-loaded clamps at the intercooler end. Seat its beaded side into the intercooler groove, verify clearance, tighten all clamps and secure the original mounting screw.
15. Confirm all protective rags and debris are removed, all disturbed original supports/electrical connections are restored, and tubes clear surrounding parts. Reconnect negative battery cables as directed, inspect secure leak-free connections and recheck after the exact manual 50–100-mile interval.

46-20074-B: inspect every connection and resolve the documented kit discrepancies before operation.
