BladeRunner charge piping for the exact engine
The aFe 46-20109 is the single cold-side charge pipe from intercooler to intake manifold for the listed Ford 6.0L turbo-diesel Power Stroke applications. It is aluminum charge piping, not a stainless-steel intercooler core or a complete cooling system.
Key Features
- Exact cold charge routing for the listed 6.0L Power Stroke; not gasoline, 7.3L, 6.4L or 6.7L coverage.
- Current primary descriptions specify five-ply silicone couplings and stainless-steel spring-loaded T-bolt clamps.
- The hot-side primary page reports up to 7% greater flow over its stock counterpart. The hot-side percentage is not a cold-pipe performance result.
- Accessory 1/8 NPT ports do not include new sensors or a water/methanol system. Generic Filter Included page fields do not add an air filter.
Fitment
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2003β2007 | Ford F-250 / F-350 Super Duty | 6.0L turbo-diesel Power Stroke V8; exact manufacturer application |
| 2004β2005 | Ford Excursion | 6.0L turbo-diesel only; exact retailer model/engine coverage, not every named-trim certification |
| 2004β2007 | Ford F-450 / F-550 Super Duty | 6.0L turbo-diesel only; exact retailer scope, confirm actual chassis and connections |
| 2003 | F-450 / F-550 β unresolved | Conflicting retailer year scopes; not included as verified coverage pending exact chassis proof |
46-20109: Manufacturer instructions explicitly name F-250/F-350 2003β2007 with the 6.0L Power Stroke. Exact engine-specific retailer tables additionally name Excursion 2004β2005 and F-450/F-550 2004β2007. That additional detail is retailer evidence, not a manufacturer-explicit full trim/chassis table. Named Excursion trims still require the actual 6.0L diesel and connection/clearance checks. The standalone October 2012 cold manual lists four 3.5-inch T-bolt clamps and no plug. The February 2017 cold page linked under the combo lists four 3.25-inch clamps, one plug, possible fan-shroud trimming and a 100β200-mile recheck. Confirm actual supplied revision, clamp fit and sealing. Retailers conflict on 2003 F-450/F-550 coverage; that year is withheld pending exact chassis proof, not declared physically incompatible.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20109 |
| Configuration | Charge piping and exact listed installation components; no intercooler core |
| Tubing / flow path | One nominal 3-inch cold tube; the opposite side and intercooler core are separate. |
| Finish | TIG-welded aluminum with wrinkle-black powder coating; stainless steel describes the clamps, not the tubes. |
| Clamps / fastening | The standalone manual says tighten until the clamp spring is compressed, without numerical torque or a mileage interval. A later combo cold-page revision adds 100β200 miles and possible fan-shroud trimming; confirm the applicable revision. |
| Original sensors / seals | The cold procedure temporarily removes the original intake filter/tubing and disconnects its sensors and coolant-overflow tube, then restores all original components and both battery connections. No new sensors are supplied. Cold hump-coupling directions differ from the hot coupling instruction. |
| Emissions | The current primary pages and linked manuals state these products are not CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV. |
What's Included

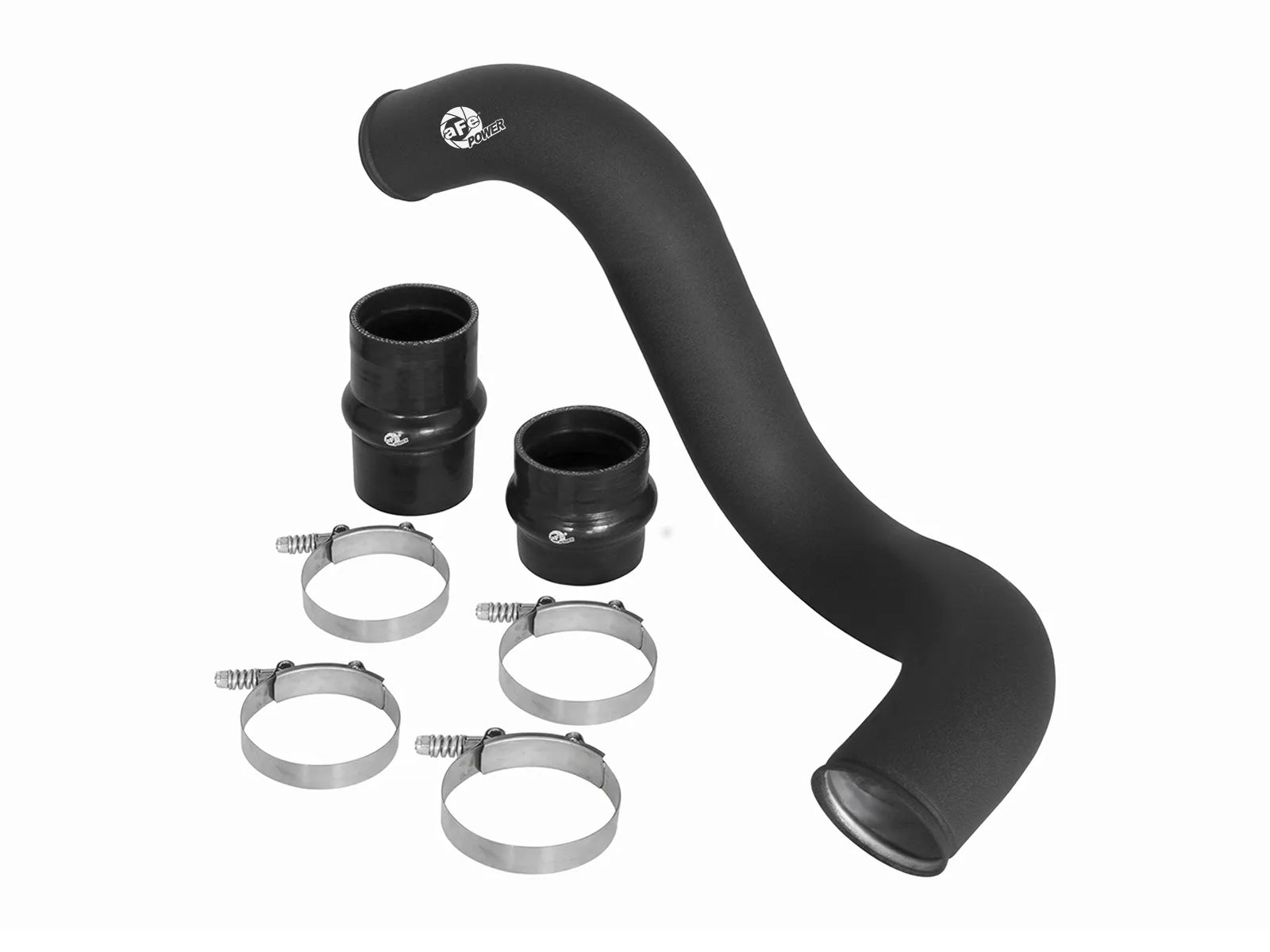

- One nominal 3-inch aluminum cold tube and two hump couplings.
- Four T-bolt clamps. The exact standalone manual labels them 3.5 inches; the later combined-kit cold page labels its four clamps 3.25 inches. Confirm the actual supplied revision.
- A plug is not listed in the standalone manual, although the current page describes an accessory port and the later combo cold page includes a plug. Confirm actual packing and proper unused-port sealing rather than promising a plug in every box.
- No hot tube, intercooler core, air filter, sensor or injection system.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
- Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.
Frequently Asked Questions
What is the 46-20109?An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.
How many tubes and which side does this kit include?is the single cold-side charge pipe from intercooler to intake manifold for the listed Ford 6.0L turbo-diesel Power Stroke applications. It is aluminum charge piping, not a stainless-steel intercooler core or a complete cooling system.
Are the airflow claims guaranteed horsepower gains?No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.
Which original couplings, vent or sensor components are retained?The cold procedure temporarily removes the original intake filter/tubing and disconnects its sensors and coolant-overflow tube, then restores all original components and both battery connections. No new sensors are supplied. Cold hump-coupling directions differ from the hot coupling instruction.
What is the clamp torque?The standalone manual says tighten until the clamp spring is compressed, without numerical torque or a mileage interval. A later combo cold-page revision adds 100β200 miles and possible fan-shroud trimming; confirm the applicable revision.
Are all manual contents and installation steps consistent?Manufacturer instructions explicitly name F-250/F-350 2003β2007 with the 6.0L Power Stroke. Exact engine-specific retailer tables additionally name Excursion 2004β2005 and F-450/F-550 2004β2007. That additional detail is retailer evidence, not a manufacturer-explicit full trim/chassis table. Named Excursion trims still require the actual 6.0L diesel and connection/clearance checks. The standalone October 2012 cold manual lists four 3.5-inch T-bolt clamps and no plug. The February 2017 cold page linked under the combo lists four 3.25-inch clamps, one plug, possible fan-shroud trimming and a 100β200-mile recheck. Confirm actual supplied revision, clamp fit and sealing. Retailers conflict on 2003 F-450/F-550 coverage; that year is withheld pending exact chassis proof, not declared physically incompatible.
Does a threaded port include a water/methanol system?No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.
Is this kit CARB exempt?The current primary pages and linked manuals state these products are not CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV.
Installation Instructions
- Read the exact manufacturer instructions for 46-20109, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
- With batteries disconnected, disconnect original intake-tube sensors and the coolant-overflow tube. Remove the original air filter and intake tubing for access, retaining them for reuse.
- Loosen the two original cold-tube clamps and remove the original tube. Fit the supplied couplings to the replacement tube and verify the actual clamp revision.
- The standalone cold manual gives directional hump-coupling instructions: the manifold-end coupling bead faces the manifold; the tube-end coupling bead faces the tube inlet. Do not replace these directions with the hot-pipe bead instruction.
- Resolve unused-port sealing using the applicable supplied instructions. The later combo cold page lists a plug and thread sealant; the older standalone list omits a plug. Confirm the actual hardware before operation.
- Install the cold tube and check fan-shroud clearance. The later cold component page warns that clearance is limited and shroud trimming may be required. Verify the actual interference and applicable instructions before any cut; no cut dimension is invented.
- Tighten spring-loaded clamps as directed without inventing numerical torque. Restore original filter/intake tubing, sensors, coolant-overflow tube and both battery connections. Follow the applicable supplied revision recheck guidance; the later combined-kit cold page specifies approximately 100β200 miles.
46-20109: inspect every connection and resolve the documented kit discrepancies before operation.
