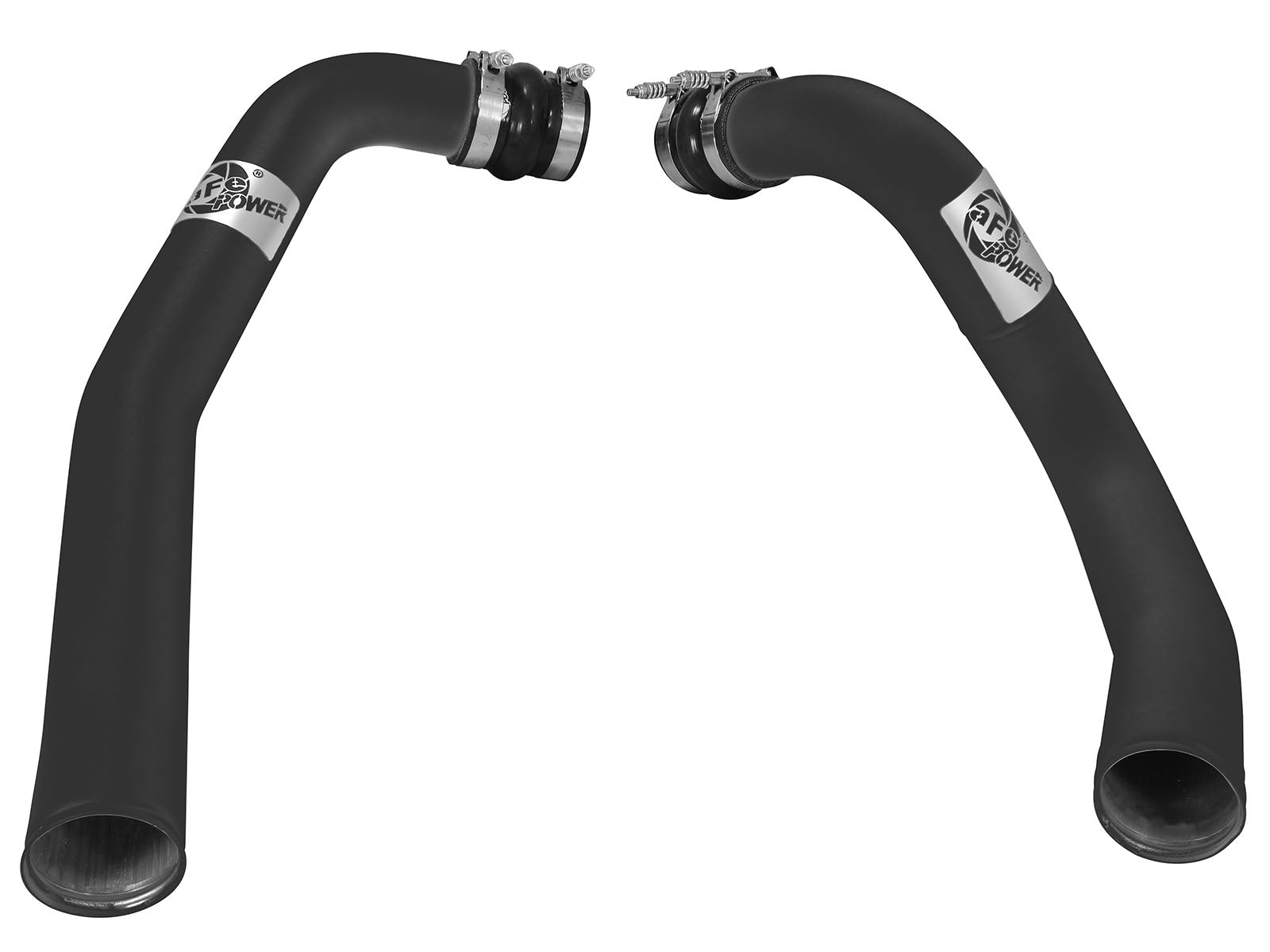

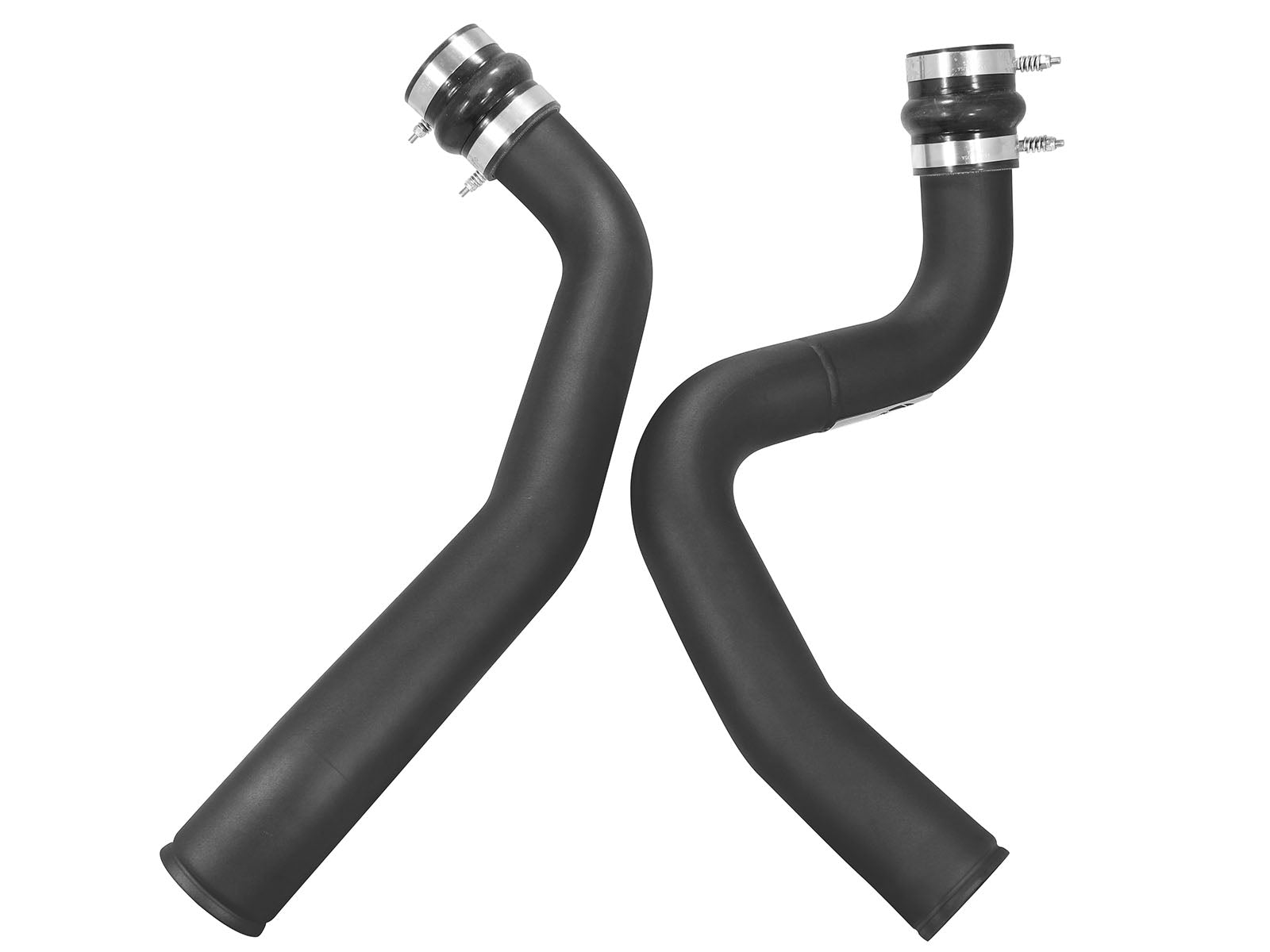

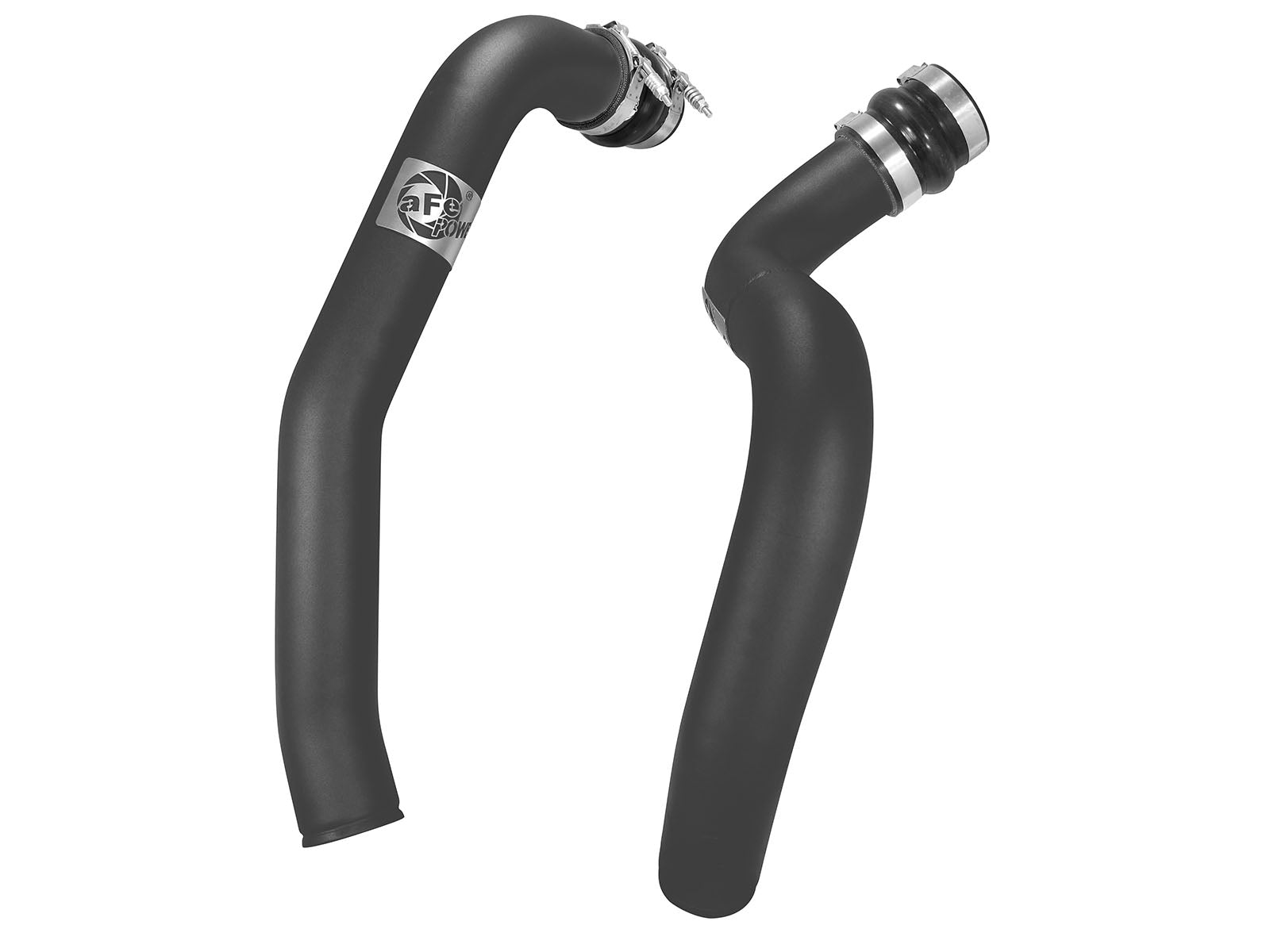

The aFe 46-20094-B is the hot- and cold-side aluminum charge-pipe kit for the 1999–2003 Ford F-250/F-350 7.3L turbo-diesel Power Stroke. It contains charge piping, not an intercooler core. The 2003 model year alone does not establish a 7.3L engine or the correct original connections.
| Years | Model | Exact engine / requirements |
|---|---|---|
| 1999–2003 | Ford F-250 / F-350 | 7.3L turbo-diesel Power Stroke only, exact original upper/lower charge connections; not a 2003 6.0L application |
46-20094-B: No exact installation manual or complete kit packing list was available on the current primary page or exact-document searches. The manufacturer lists supplied couplings/clamps but does not itemize their ends or quantities. The exact retailer FAQ explicitly excludes lower intercooler boots/clamps and calls for matched existing connections. Verify actual packing and lower-interface compatibility before installation; do not assume all new hoses, clamp sizes, sensor transfers, threaded ports, cutting requirements or numerical torque from another Power Stroke kit.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20094-B |
| Configuration | Hot- and cold-side charge piping with manufacturer-listed couplings/clamps; no intercooler core |

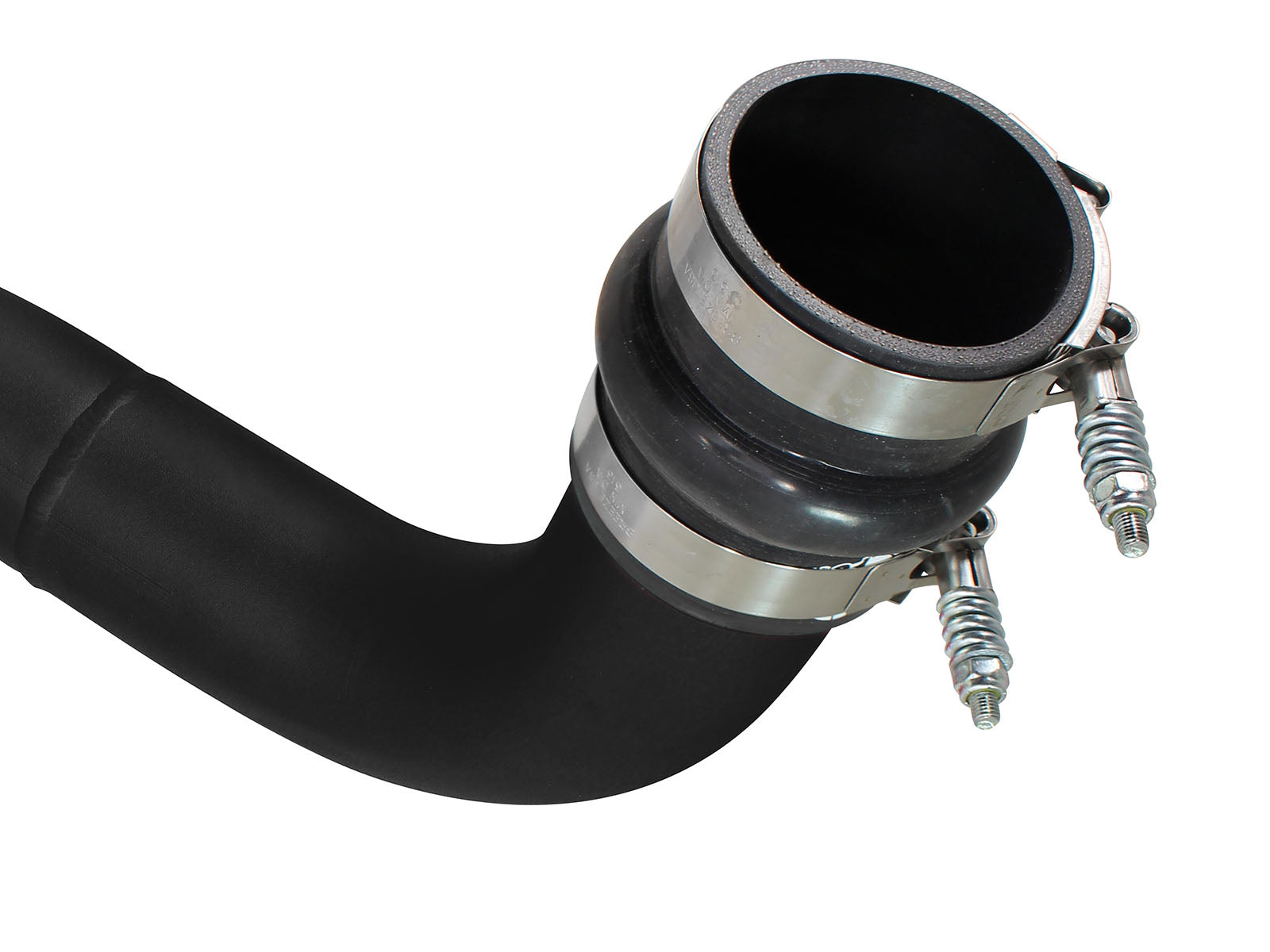

| Material | Mandrel-bent aluminum tubes with wrinkle-black powder coating; stainless steel describes the spring-loaded T-bolt clamps |
| Core and connections | No core included. Manufacturer lists compatibility with the original or appropriate aFe intercooler; actual lower connections must match. |

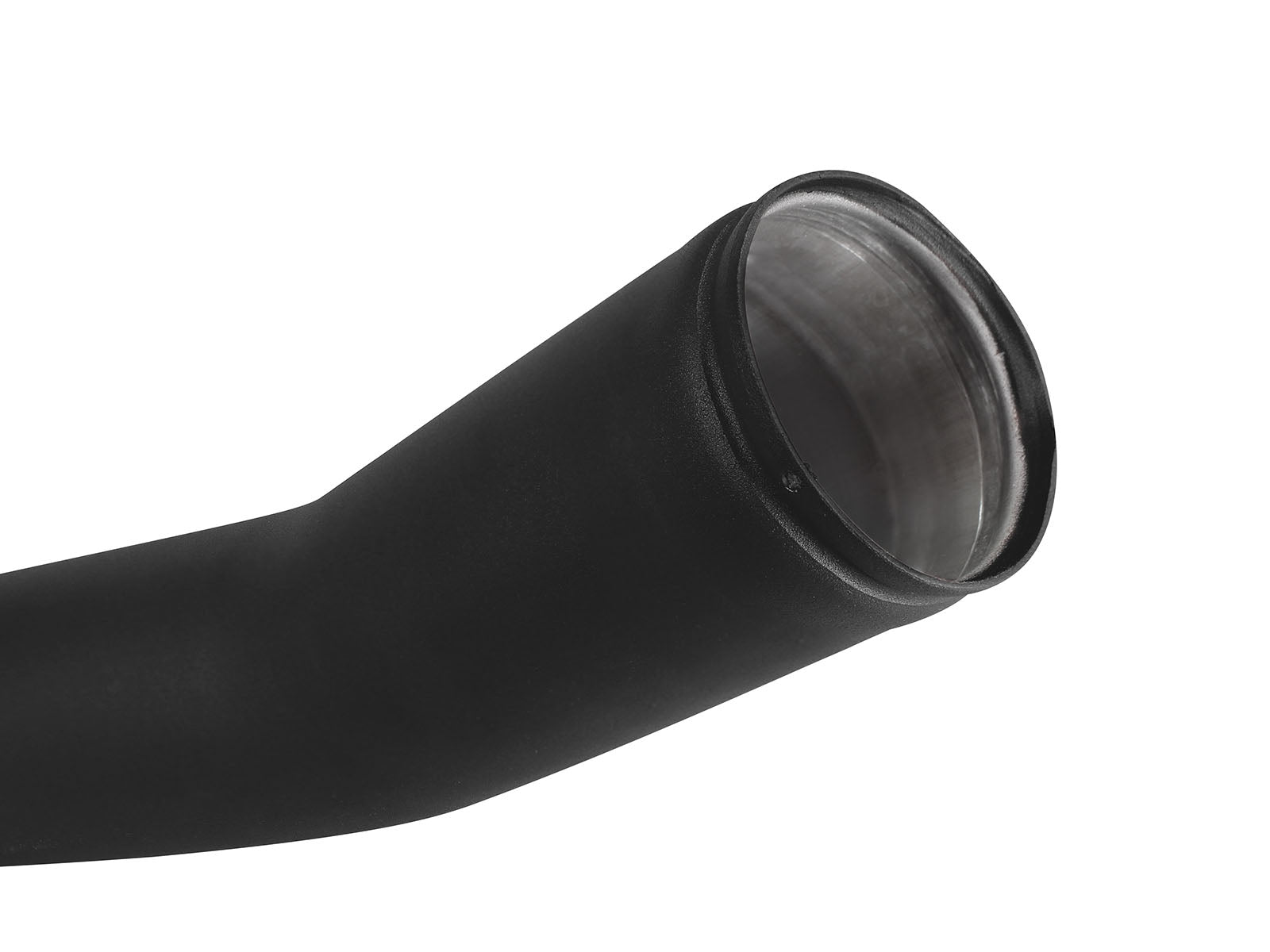

| Charge tubes | Nominal 3-inch hot and cold aluminum charge tubing; exact overall lengths and complete packing-list quantities not verified. |
| Original components | Exact lower intercooler-end boots/clamps must be checked against the installed intercooler; the retailer says those connections are not supplied. No verified exact sensor/retainer transfer procedure or new sensor is established. |
| Fastening / maintenance | No exact numerical torque, clamp-specific tightening method or mileage recheck interval was verified for this kit. Do not borrow the 6.0L, 6.4L or 6.7L instructions. |
| Emissions | The current exact manufacturer page states this product is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
is the hot- and cold-side aluminum charge-pipe kit for the 1999–2003 Ford F-250/F-350 7.3L turbo-diesel Power Stroke. It contains charge piping, not an intercooler core. The 2003 model year alone does not establish a 7.3L engine or the correct original connections.
Does this include all new hot and cold piping?Hot- and cold-side charge piping with manufacturer-listed couplings/clamps; no intercooler core. Nominal 3-inch hot and cold aluminum charge tubing; exact overall lengths and complete packing-list quantities not verified.
Which original components must be retained?Exact lower intercooler-end boots/clamps must be checked against the installed intercooler; the retailer says those connections are not supplied. No verified exact sensor/retainer transfer procedure or new sensor is established.
Are all related Ford Power Stroke intercoolers interchangeable?No. Match exact model years, engine, valve, fan, support and pipe connections. The core-only and tube-equipped kits have different hardware and instructions.
Are the manufacturer performance claims guaranteed?No. Only the exact primary test claims stated above apply, with their test configuration and limitations. They are not guaranteed gains or a safe boost-setting recommendation.
Is a water/methanol system or new sensor included?No. A threaded port, vent or plug does not supply an injection controller, nozzle, pump or universal sensor. Confirm each accessory independently.
What are the torque, document and packing-list limitations?No exact numerical torque, clamp-specific tightening method or mileage recheck interval was verified for this kit. Do not borrow the 6.0L, 6.4L or 6.7L instructions. No exact installation manual or complete kit packing list was available on the current primary page or exact-document searches. The manufacturer lists supplied couplings/clamps but does not itemize their ends or quantities. The exact retailer FAQ explicitly excludes lower intercooler boots/clamps and calls for matched existing connections. Verify actual packing and lower-interface compatibility before installation; do not assume all new hoses, clamp sizes, sensor transfers, threaded ports, cutting requirements or numerical torque from another Power Stroke kit.
Is this intercooler CARB exempt?The current exact manufacturer page states this product is not CARB exempt and is unavailable for purchase in California or use on vehicles registered with the California DMV.
46-20094-B: resolve all stated source and hardware limitations before operating the vehicle.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
