BladeRunner charge piping for the exact engine
The aFe 46-20049 is the driver-side 3-inch aluminum BladeRunner hot charge-pipe kit for the exact GM 6.6L LLY, LBZ and LMM turbo-diesel applications below. The current primary specifies TIG-welded aluminum and five-ply silicone couplings; stainless steel describes the clamps and relocation-bracket hardware, not the current tube.
Key Features
- Exact driver-side hot routing with current manufacturer aluminum tube construction and the required brake-line bracket clearance change.
- Manufacturer reports up to 67% more flow, 16 hp and 49 lb-ft in its testing, plus a listed 185 CFM flow point at 1.5 inches H2O differential. These are test results, not guaranteed gains or a 1.5-inch boost-pressure limit.
- The exact cold-tube 75 in-lb procedure does not apply to these current hot-side spring-loaded clamps.
- Physical engine/year fitment and the narrower exact CARB order row are distinguished rather than claiming all years exempt.
Fitment
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2004.5–2005 | Chevrolet Silverado HD / GMC Sierra HD | 6.6L LLY turbo-diesel; exact original hot-side charge connections |
| 2006–2007 | Chevrolet Silverado HD / GMC Sierra HD | 6.6L LBZ turbo-diesel; verify actual engine/body, including any separately listed Classic application |
| 2007.5–2010 | Chevrolet Silverado HD / GMC Sierra HD | 6.6L LMM turbo-diesel; physical fitment does not extend the exact EO row beyond 2007 |
46-20049: The current primary/manual physical application covers 2004.5–2010 across LLY/LBZ/LMM, but the official D-550-8 row for this exact hot-pipe part covers 2004–2007. Do not borrow the different cold-part 2007–2010 EO row. Older retailer stainless descriptions differ from the current explicit aluminum construction; confirm actual labelled revision. The exact current manual governs its bracket, coupling and clamp kit. Exact named-trim restoration remains retailer detail within the manufacturer engine/body scope, not proof of every engine in a model year.
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20049 |
| Configuration | One hot tube, two couplings, four clamps, one bracket adapter, one M8 screw/lock washer and one plug |
| Tubing / flow path | Nominal 3-inch TIG-welded aluminum hot-side tube; not an intercooler core |
| Finish | Wrinkle-black powder coat |
| Clamps / fastening | Current exact manual: spring-loaded T-bolt clamps 10 ft-lb OR until the spring is completely collapsed; recheck clamps/connectors after 100–200 miles. These are not bracket-bolt or sensor torque values. |
| Original sensors / seals | One 1/8 NPT auxiliary port and one unused-port plug. No new sensor or original temperature-sensor transfer is listed. Relocate the original brake-line mounting bracket with the supplied adapter; this is mounting work, not an instruction to open the hydraulic circuit. |
| Emissions | CARB D-550-8 lists this exact hot-pipe part for 2004–2007 GM 6.6L diesel pickups. Its separate 2007–2010 row names a different cold-pipe part, not this hot pipe. The current page broader physical fitment does not certify a blanket exemption through 2010; match the actual revision and exact order/label before relying on an exemption. |
What's Included

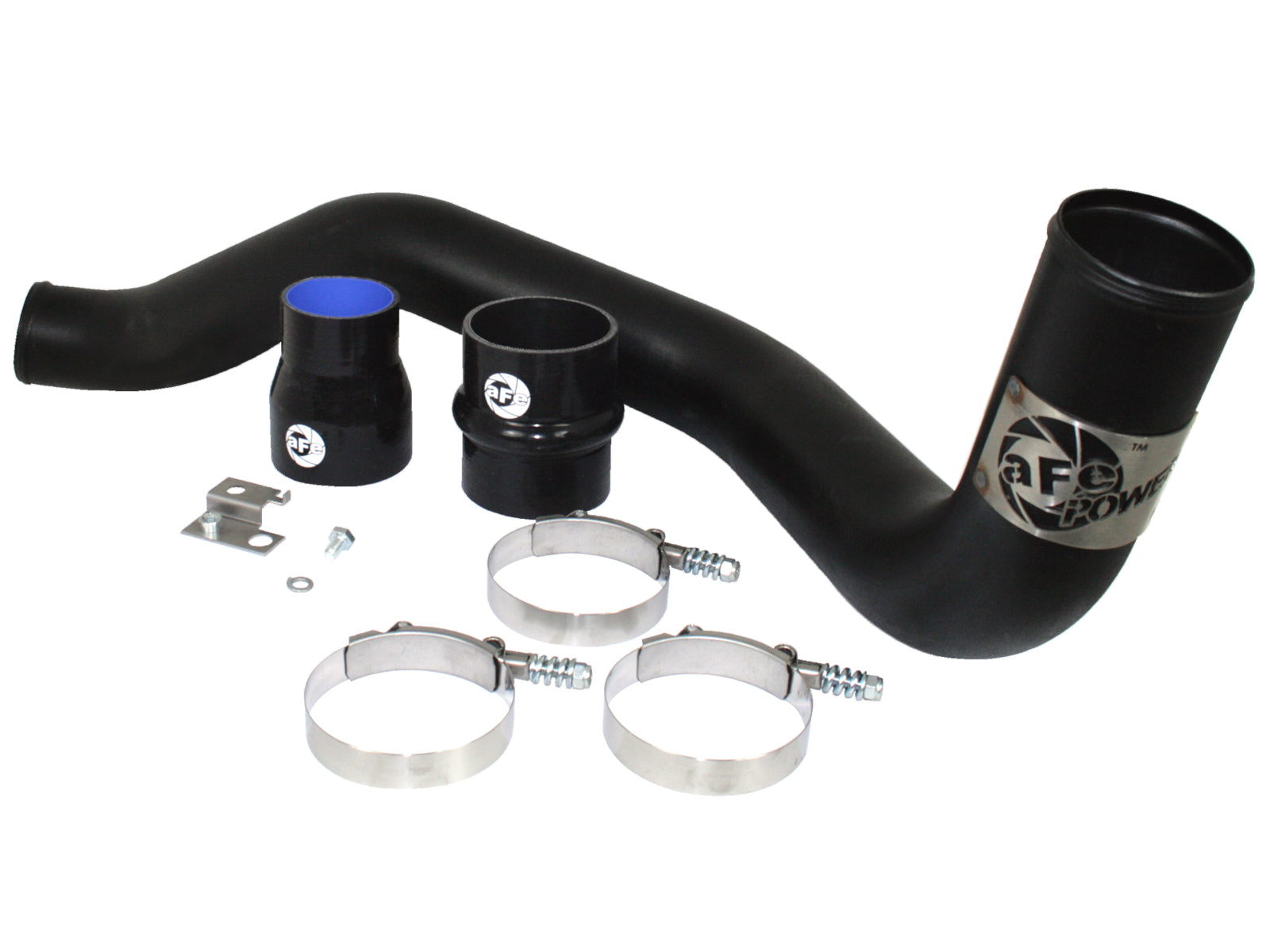

- One hot aluminum tube, 05-60028B.
- One 3/2.375-inch ID × 4-inch length silicone reducer, 05-60047, and one 3-inch ID × 4-inch length hump coupling, 05-60012.
- Four spring-loaded T-bolt clamps: one 2.5–2.75-inch range 03-50560 and three 3.25–3.5-inch range 03-50530.
- One brake-line bracket adapter, 05-60049; one M8 × 1.25 × 12 screw, 03-50031; one M8 lock washer, 03-50086. The adapter attaches to the frame with the retained original screw.
- One 1/8 NPT unused-port plug, 03-50029. No new core, air filter or complete sensor/injection system is listed.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
- Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.
Frequently Asked Questions
What is the 46-20049?An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.
How many tubes and which side does this kit include?is the driver-side 3-inch aluminum BladeRunner hot charge-pipe kit for the exact GM 6.6L LLY, LBZ and LMM turbo-diesel applications below. The current primary specifies TIG-welded aluminum and five-ply silicone couplings; stainless steel describes the clamps and relocation-bracket hardware, not the current tube.
Are the airflow claims guaranteed horsepower gains?No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.
Which original couplings, vent or sensor components are retained?One 1/8 NPT auxiliary port and one unused-port plug. No new sensor or original temperature-sensor transfer is listed. Relocate the original brake-line mounting bracket with the supplied adapter; this is mounting work, not an instruction to open the hydraulic circuit.
What is the clamp torque?Current exact manual: spring-loaded T-bolt clamps 10 ft-lb OR until the spring is completely collapsed; recheck clamps/connectors after 100–200 miles. These are not bracket-bolt or sensor torque values.
Are all manual contents and installation steps consistent?The current primary/manual physical application covers 2004.5–2010 across LLY/LBZ/LMM, but the official D-550-8 row for this exact hot-pipe part covers 2004–2007. Do not borrow the different cold-part 2007–2010 EO row. Older retailer stainless descriptions differ from the current explicit aluminum construction; confirm actual labelled revision. The exact current manual governs its bracket, coupling and clamp kit. Exact named-trim restoration remains retailer detail within the manufacturer engine/body scope, not proof of every engine in a model year.
Does a threaded port include a water/methanol system?No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.
Is this kit CARB exempt?CARB D-550-8 lists this exact hot-pipe part for 2004–2007 GM 6.6L diesel pickups. Its separate 2007–2010 row names a different cold-pipe part, not this hot pipe. The current page broader physical fitment does not certify a blanket exemption through 2010; match the actual revision and exact order/label before relying on an exemption.
Installation Instructions
- Read the exact manufacturer instructions for 46-20049, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
- Cool and secure the vehicle and disconnect both negative battery cables. Loosen the turbocharger-coupler clamps, release the driver-side fender-liner clips and secure the liner out of the way, then loosen the intercooler-coupler clamps and remove the original tube through the wheel well.
- Use thread sealant on the supplied unused-port plug or suitable accessory sensor. Fit the plug when no aftermarket sensor is installed.
- Unfasten the original brake-line mounting bracket from the frame. Attach the new adapter using the retained original frame screw, then fasten the original brake-line bracket to the adapter with the supplied M8 screw/lock washer. No hydraulic-line opening is directed.
- Feed the new tube through the driver-side wheel well. Fit the reducer with the one small and one middle clamp at the turbo outlet and the 3-inch hump with two middle clamps at the intercooler end, leaving joints loose for alignment.
- Fully seat connections and ensure clearance before tightening spring-loaded clamps to 10 ft-lb OR a completely collapsed spring, per the exact current manual. Restore the fender liner/clips and both negative battery connections.
- Recheck clamps and connectors after 100–200 miles. Confirm the actual labelled part and exact D-550-8 year scope independently from the broader physical application.
46-20049: inspect every connection and resolve the documented kit discrepancies before operation.
